Advance Tabco  |  SKU: DTS-D30-108L  |  UPC: 747545120571

Advance Tabco DTS-D30-108L Compartment Sinks

$5,501.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

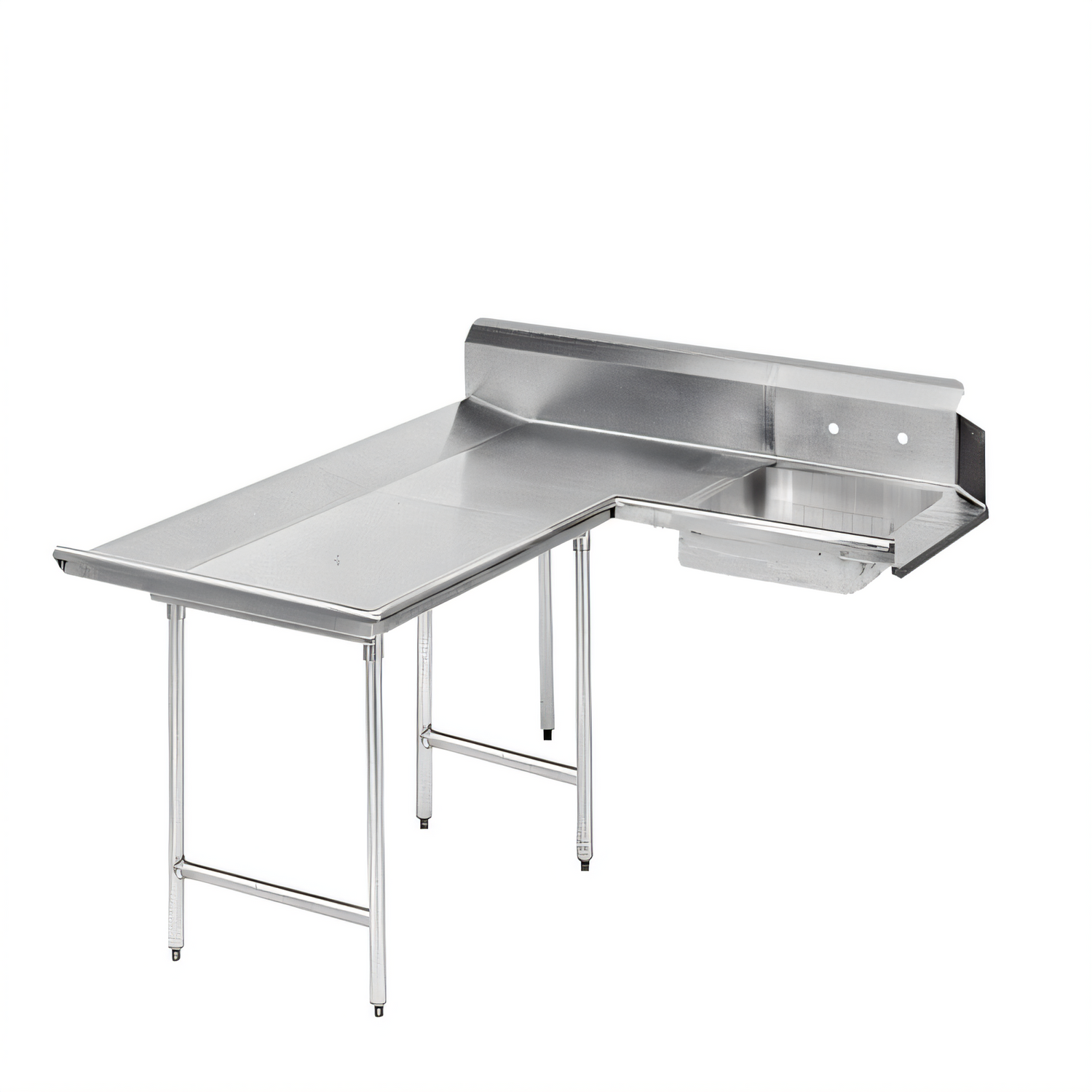

Advance Tabco Spec-Line Dishlanding Soil Dishtable – 107" Left

L-shaped entry table with landing, 14 ga 304 stainless steel top & 8" deep pre-rinse sink

Built for the most demanding dishrooms, this Spec-Line dishtable delivers seamless, NSF-approved workflow from tray drop-off to dish machine. The 107" L-shaped design positions a generous landing area and pre-rinse sink to the operator’s left, keeping soiled ware moving quickly while containing mess with an extra-tall 10 ½" backsplash.

Why You’ll Love It

  • Heavy-duty 14 ga 304 stainless steel top resists corrosion, dents & chemicals.
  • 20" × 20" × 8" pre-rinse sink bowl speeds scrap-off and pre-wash.
  • 10 ½" backsplash with 2" tile edge protects walls and simplifies installation.
  • 1 5/8"-diameter 16 ga stainless legs with welded front-to-back crossrails for rock-solid stability.
  • TIG-welded seams blended to a sanitary satin finish—no sharp edges.
  • Faucet holes pre-punched on 8" centers (faucet sold separately).
  • 1 ½" IPS basket drain included—ready to hook up out of the box.
  • Stainless bullet feet adjust 1" for perfect leveling on uneven floors.
  • Pre-rinse scrap basket included; slide bar ships when a K-461 or K-461A disposer adapter is specified.
  • NSF listed for food-service sanitation compliance.

Specifications

Model / Series Spec-Line Dishlanding Soil, Left (DTS-D30-108L)
Overall Length 107" (nominal 9 ft)
Configuration L-shape with landing; mounts to left of dish machine operator
Top Construction 14 ga 304 stainless steel, TIG welded
Legs / Bracing 1 5/8" Ø 16 ga 304 stainless legs with welded crossrails front-to-back
Backsplash 10 ½" H with 2" return & tile edge
Sink Bowl 20" × 20" × 8" deep, 1 ½" IPS basket drain
Faucet Holes 8" centers (faucet not included)
Included Accessories Pre-rinse scrap basket; slide bar when K-461/K-461A disposer adapter is ordered
Approx. Weight 320 lb
Certifications NSF
IMPORTANT: Confirm compatibility with your specific dish machine model before ordering. Advance Tabco’s Dish Machine Compatibility Chart is available under “Product Support” at advancetabco.com.

Dish machine, faucet and disposer adapter sold separately. Slide bar ships only when disposer adapter K-461 or K-461A is selected.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

305.0lbs

Stainless Series

300 series

Splash Height

10"H splash

Shape

corner

Width (end - corner) OA

97" - 108"

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Direction

left to right

Stainless Gauge

14 gauge

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 107" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
