Advance Tabco | SKU:
DTC93-2020-9R
Advance Tabco DTC93-2020-9R Compartment Sinks
$4,575.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco DTC93-2020-9R Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTC93-2020-9R Compartment Sinks
$4,575.00
Unit price
/
Unavailable
Description

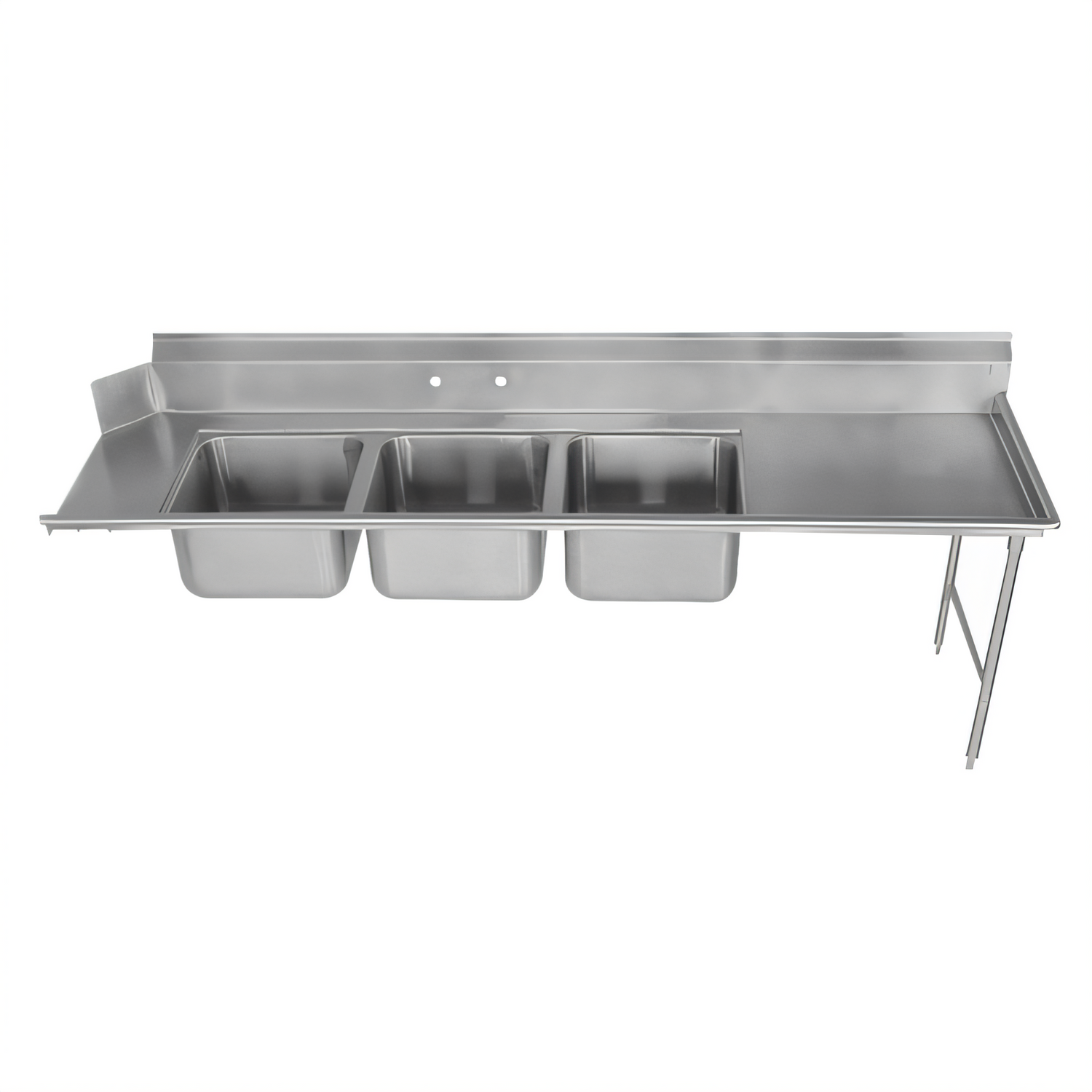

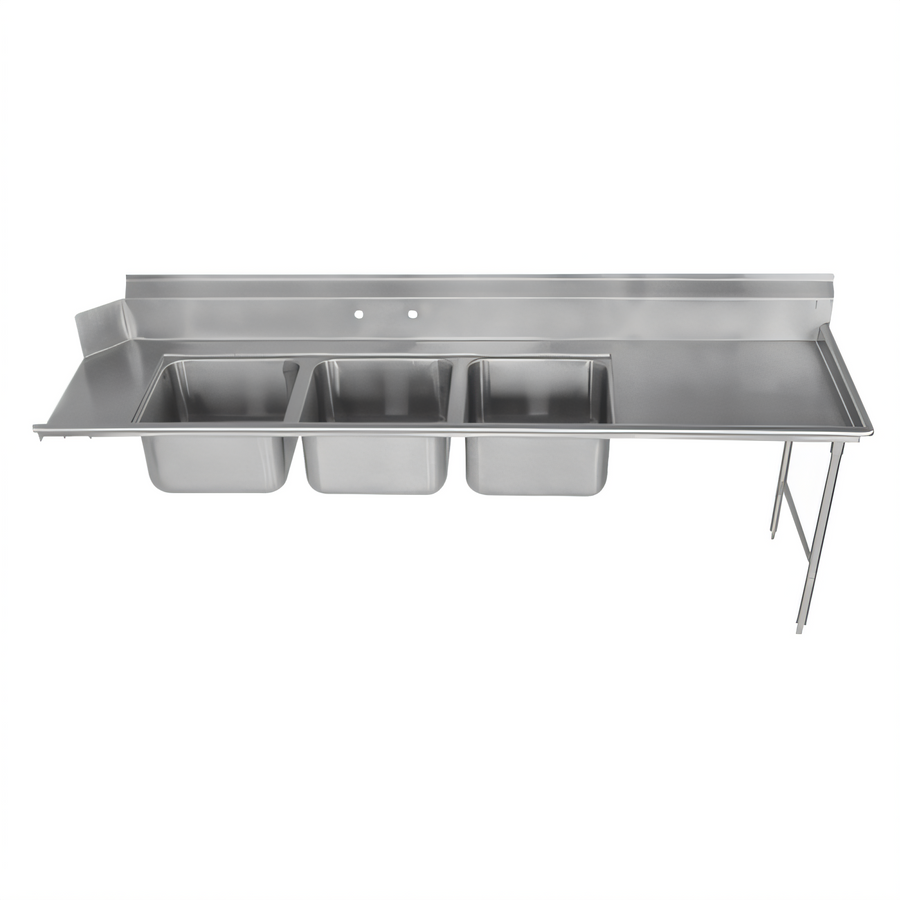

Advance Tabco DTC93-2020-9R Dishtable w/ 3-Compartment Sink – 108"L, Right Side
Deep Drawn™ 20" x 20" x 12" Bowls • 28" Right Drainboard • NSFEngineered for seamless integration with a right-hand dish machine, the Advance Tabco DTC93-2020-9R combines a heavy-duty 3-compartment sink and spacious drainboard in one NSF-listed unit. Its Deep Drawn™ bowls, rugged 16-gauge 304 stainless steel top, and bulletproof construction keep your warewashing line moving shift after shift.
Key Benefits
- Optimized workflow – 12" bowl-to-machine setback and 28" drainboard let operators load racks quickly without congestion.
- Deep Drawn™ sink bowls – seamless one-piece design with generous 3" corner radius for superior cleanability and strength.
- All 304 stainless steel – 16-gauge top with stainless legs, gussets, and front-to-back crossrails withstands aggressive wash-down conditions.
- TIG-welded frame – welds are blended to a matching satin finish for a polished, sanitary appearance.
- Heavy-duty 10-1/2" bullet feet – extra-large stainless steel feet provide rock-solid stability and easy leveling.
- Tile-edge backsplash – 10-1/2" high splash with 2" return speeds installation and keeps water where it belongs.
- Pre-punched faucet holes – 8"-center holes in the splash (faucet sold separately).
- Complete drain kit included – 1-1/2" IPS stainless wastes for each bowl.
At-a-Glance Specs
| Model | DTC93-2020-9R |
|---|---|
| Overall Length | 108" (8 ft-11 in) |
| Configuration | Right-to-Left (attaches to the right of the dish machine operator) |
| Number / Size of Bowls | 3 bowls, each 20"W x 20"L x 12"D |
| Drainboard | 28" right drainboard, corrugated |
| Top Material & Gauge | 16-gauge 304 stainless steel (14-gauge upgrade available) |
| Frame | 1-5/8" O.D. stainless legs with welded stainless front-to-back crossrails & gussets |
| Feet | Adjustable 10-1/2" stainless steel bullet feet |
| Backsplash Height | 10-1/2" with 2" tile edge return |
| Faucet Holes | One set, 8" on-center, 1-1/8" dia. (faucet not included) |
| Certifications | NSF Listed |
Recommended Accessories (Optional)
- DTA-SS-24: 24" stainless undershelf for added storage.
- DTA-63: 20" x 20" prerinse basket with welded slide bar.
- DTA-49: 14-gauge top upgrade for extreme heavy-duty use.
- K-472: Faucet hole modification to match specialty faucets.
Important: Before ordering, confirm your dish machine’s control box or drive unit will not interfere with the 12" bowl setback. Consult the Dish Machine Compatibility Chart or contact our staff for assistance.
Faucets, prerinse sprays, and racks shown in photos are sold separately.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.5in
Width
108.0in
Depth
30.0in
Shipping Weight
285.0lbs
Compartment (front - back)
20"
Width (side - side) OA
97" - 108"
Dishtable Splash
10-1/2"
Dish Machine Location
left side
Dishtable Legs
stainless steel
Compartment (side - side)
20"
Type Stainless Steel Top
300 series
Gauge
16 ga
Dishtable Shape
straight
Specifications
Dishtable with 3-compartment Sink, 108”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 28" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
