Advance Tabco DTC93-2020-9L Compartment Sinks
Description

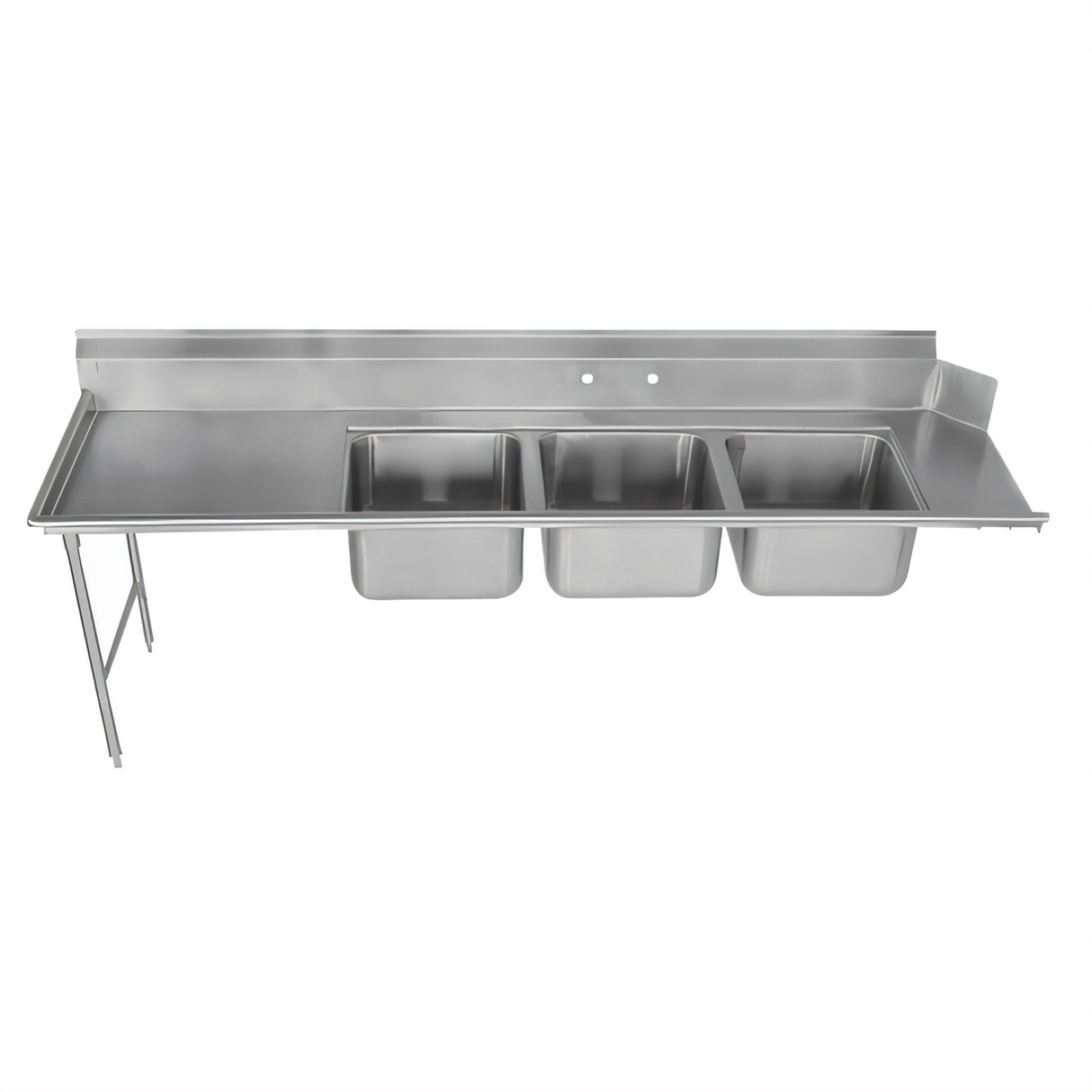

Advance Tabco DTC93-2020-9L Left-Feed Dishtable with 3-Compartment Sink – 108"
20" × 20" × 12" Deep Drawn™ bowls • 28" left drainboard • 16-gauge 304 stainless steelTackle the toughest ware-washing rush with this 108 inch Advance Tabco Smart Fabrication™ dishtable. Purpose-built to attach to the left side of your dish machine, it combines a seamless 3-compartment sink with a generous drainboard, keeping your scrape, wash and rinse workflow moving fast and sanitary.
Key features
- (3) Deep Drawn™ sink compartments – 20" × 20" × 12" each, one-piece construction with 3" radius corners for easy cleaning
- 28" ribbed left drainboard sloped toward the bowls for rapid drainage
- Bowls positioned 12" from dish machine opening to maximize usable workspace
- Heavy-duty 16-gauge Type 304 stainless steel top with bold 3" backsplash, 2" return and tile edge for flush wall mounting
- Stainless steel 1 5/8"-O.D. legs with front-to-back crossrails and oversized 10-1/2" adjustable bullet feet
- TIG-welded construction; welds are ground and blended to a uniform satin finish
- 8"-O.C. faucet holes pre-punched in backsplash (faucet sold separately)
- (3) 1 1/2" IPS basket drains included
- NSF listed for food-service sanitation
Specifications
| Model | DTC93-2020-9L |
|---|---|
| Overall length | 108" / 2743 mm |
| Overall depth | 30" / 762 mm |
| Drainboard location | Left – 28" long |
| Number of compartments | 3 |
| Bowl size (W × L × D) | 20" × 20" × 12" |
| Top material | 16-gauge Type 304 stainless steel |
| Legs & bracing | Stainless steel, 1 5/8"-O.D. with crossrails |
| Backsplash | 3" high with tile edge |
| Faucet holes | 1 set, 8" centers, 1 1/8" dia. |
| Drains | (3) 1 1/2" IPS basket drains (included) |
| Approx. weight | 285 lb / 129 kg |
| Certifications | NSF |
Popular accessories (sold separately)
- DTA-SS-18 / DTA-SS-24 – 18" or 24" stainless steel undershelves
- DTA-49 – 14-gauge stainless steel top upgrade
- DTA-62 – 20" × 20" prerinse basket with welded slide bar
- DTA-69 – 16" × 20" prerinse basket with welded slide bar
- K-472 – faucet-hole modification
- Overhead rack shelves, faucets and other Smart Fabrication™ options
Faucet, prerinse unit and dish machine shown in images are for illustration only and are not included.
