Advance Tabco DTC93-2020-10R Compartment Sinks

SKU: DTC93-2020-10R
GTIN: 747545219107
$4,723.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco New Arrivals

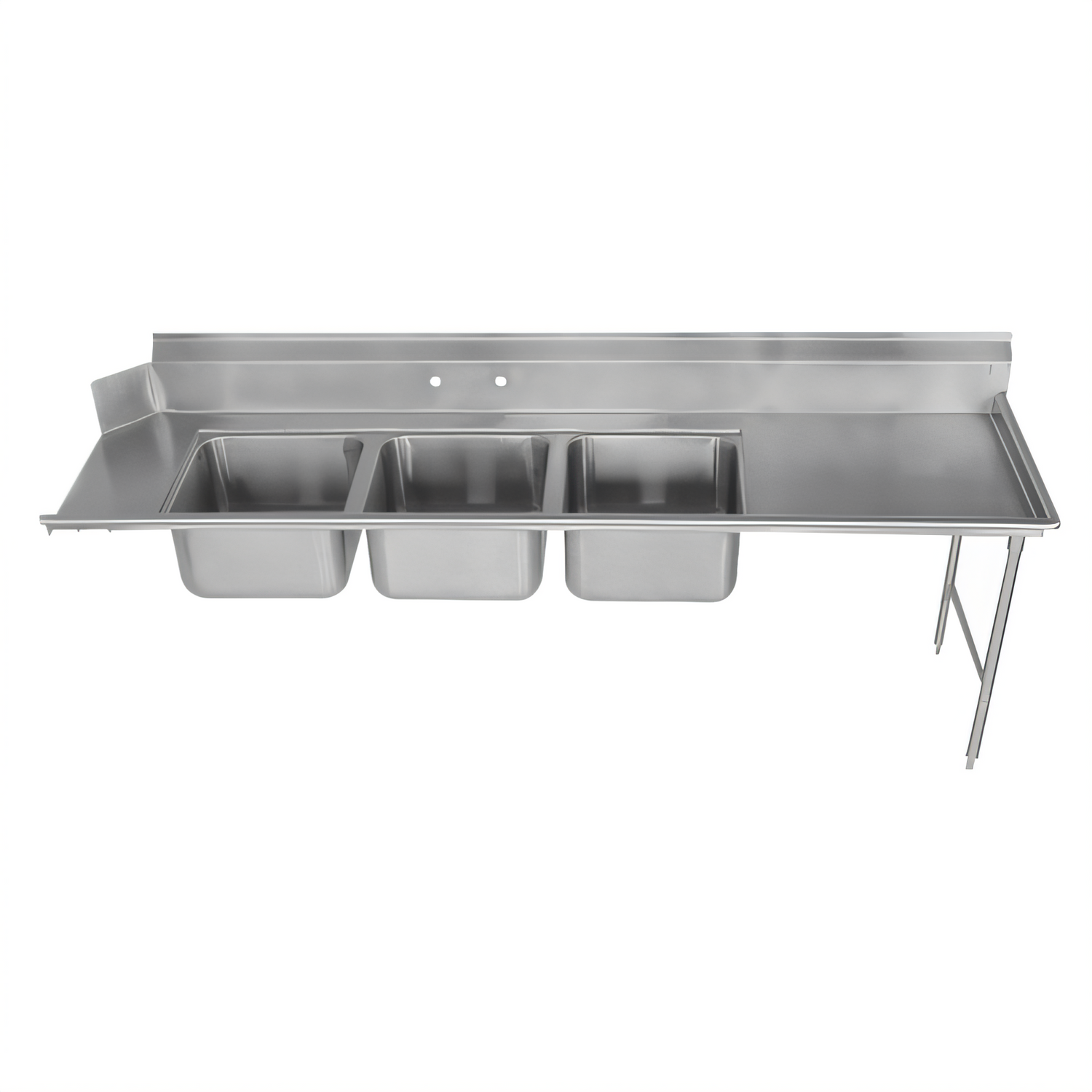

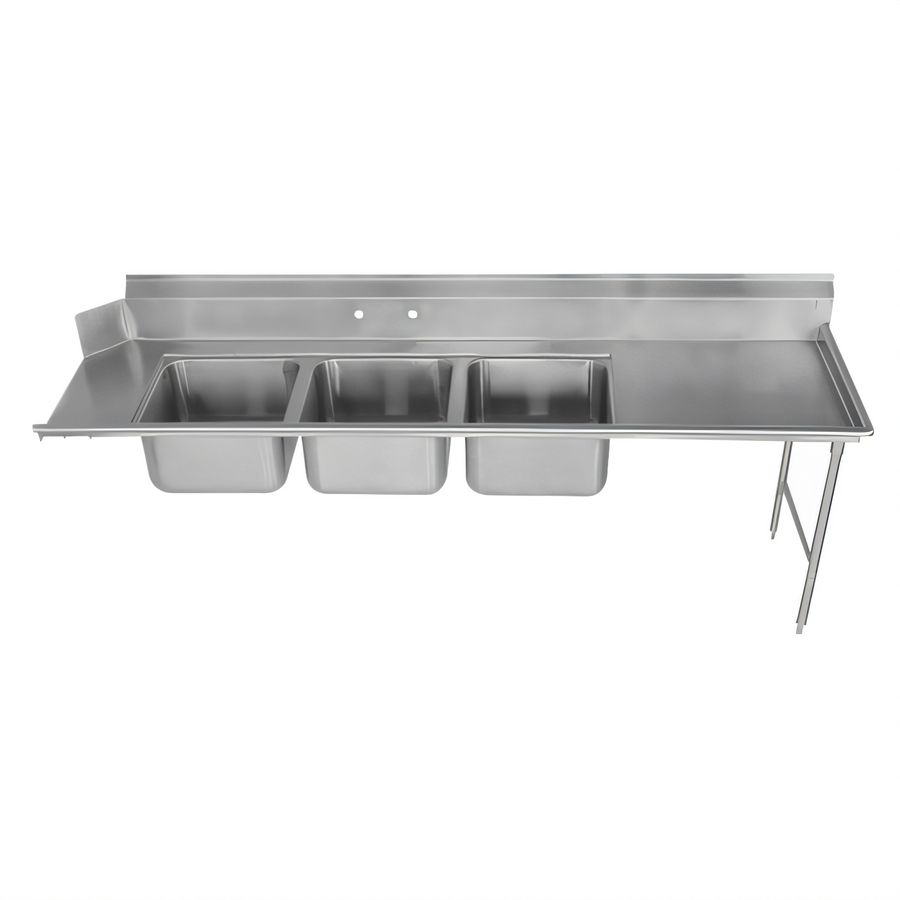

Advance Tabco DTC93-2020-10R Stainless Steel Dishtable, 120"

Right-Side 3-Compartment Sink with 40" Drainboard

Build a faster, safer dish room with this 120" Advance Tabco dishtable. Three seamless Deep Drawn™ bowls handle your wash-rinse-sanitize steps while the spacious 40" right drainboard keeps racks organized and water directed to the sink—not your floor. Heavy-duty 16-gauge 304 stainless steel, all TIG welds and oversized bullet feet give you the rock-solid reliability today’s high-volume kitchens demand.

Key Features

  • (3) Deep Drawn™ bowls, each 20" W × 20" F/B × 12" D with 3" radius corners for effortless cleaning.
  • Bowls are set 12" in from the dish machine to maximize landing space and minimize splash.
  • 40" right-hand drainboard with built-in pitch for rapid water run-off.
  • 16-gauge 304 stainless steel top; 14-gauge upgrade available.
  • All TIG-welded construction; gussets welded to stainless steel channels—no bolts to loosen.
  • 10-1/2" high backsplash with 2" return and tile edge for a sanitary wall seal.
  • Pre-punched 8" O.C. faucet holes in backsplash (faucet sold separately).
  • Stainless steel legs with front-to-back crossrails and an extra center leg on 120" units.
  • Extra-large stainless steel bullet feet provide 1" of height adjustment.
  • (3) 1-1/2" IPS basket drains included.
  • NSF certified for food-contact safety.

Specifications

Model DTC93-2020-10R
Overall Length 120"
Overall Depth 30"
Working Height 34"
Backsplash Height 10-1/2"
Sink Compartments 3
Bowl Size (W × D × H) 20" × 20" × 12"
Drainboard 40" – Right
Top Material 16-Gauge 304 Stainless Steel
Legs/Crossrails Stainless Steel, TIG welded
Drains (3) 1-1/2" IPS basket drains (included)
Faucet Holes (1 set) 8" O.C.
Certification NSF
Approx. Shipping Weight 310 lb.

Boost Dish Room Efficiency

Mount the table directly to the right of your dish machine. Use the drainboard as a landing zone for soiled racks, then progress through the three sink bowls for compliant wash, rinse and sanitize steps—all in one continuous, ergonomic line.

Important: Verify your dish machine’s control box or drive unit does not interfere with the sink bowls (located 12" from the machine) before ordering.

Optional Add-Ons (sold separately)

  • 18" or 24" stainless steel undershelf (Models DTA-SS-18, DTA-SS-24)
  • Prerinse baskets with welded slide bars (Models DTA-62, DTA-63)
  • 14-gauge top upgrade (Model DTA-49)
  • Overhead rack shelves and commercial faucets

Need a left-hand configuration or custom length? Ask about Advance Tabco’s Smart Fabrication™ solutions.

Overall Dimensions:

120.0"W x 30.0"D x 44.5"H

Product Weight:

310.0 lb
Manufacturer Advance Tabco
Height 44.5in
Width 120.0in
Depth 30.0in
Shipping Weight 310.0lbs
Compartment (side - side) 20"
Dish Machine Location left side
Compartment (front - back) 20"
Width (side - side) OA 109" - 120"
Dishtable Splash 10-1/2"
Dishtable Legs stainless steel
Type Stainless Steel Top 300 series
Gauge 16 ga
Dishtable Shape straight
Specifications Dishtable with 3-compartment Sink, 120”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 40" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)

Documents

PDF Cutsheet PDF Download
