Advance Tabco DTC93-2020-10L Compartment Sinks
$4,723.00
Unit price
/
Unavailable
Description

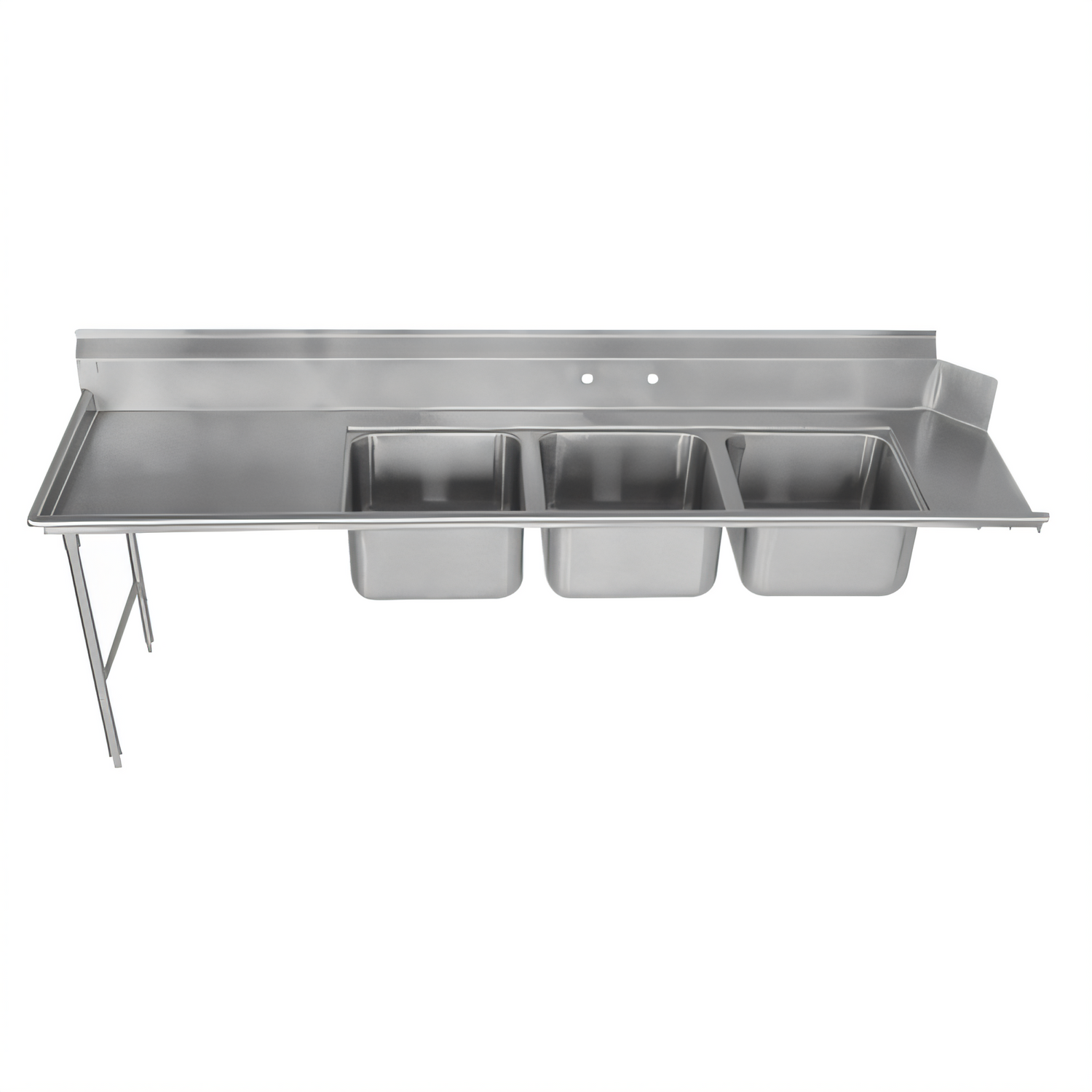

Advance Tabco 120" Left-Side Dishtable with 3-Compartment Sink
Model DTC93-2020-10L | Deep Drawn™ 20" × 20" × 12" Bowls | NSF ListedBuilt for the busiest warewashing lines, this 10 ft Advance Tabco dishtable pairs an extra-large 40" drainboard with three seamless Deep Drawn™ sink bowls, giving staff the rugged, easy-to-clean workstation they need to keep dishes moving and sanitation on point.
Key Benefits
- Attaches to the left of the dishmachine operator for an efficient left-to-right workflow.
- (3) 20" × 20" × 12" bowls formed from one piece of 304 stainless—no welds, no leaks.
- 40" drainboard provides generous landing space for racks, bus tubs, or air-drying wares.
- 16 ga 304 stainless top with bold 10 1/2" backsplash, 2" return, and tile edge for quick wall sealing.
- Bowls are located 12" from the machine, creating an extra usable work area.
- Full TIG-welded construction, 1 5/8" stainless legs, front-to-back crossrails, and extra-large 10 1/2" adjustable bullet feet for rock-solid stability.
- Factory-punched 8"-on-center faucet holes; 1 1/2" IPS waste drains and strainers included (faucet not included).
Specifications
| Model | DTC93-2020-10L |
|---|---|
| Overall length | 120" (3048 mm) |
| Sink compartments | 3 |
| Bowl size (W × L × D) | 20" × 20" × 12" (508 × 508 × 305 mm) |
| Drainboard length / side | 40" / Left |
| Material & gauge | 16 ga type 304 stainless steel (14 ga upgrade available) |
| Backsplash | 10 1/2" H with 2" return & tile edge |
| Faucet holes | (1) set, 8" centers, 1 1/8" dia. |
| Waste drains | (3) 1 1/2" IPS with strainers |
| Legs / bracing | 1 5/8" O.D. stainless legs, stainless gussets & front-to-back crossrails; extra center leg included |
| Feet | Stainless, adjustable, 10 1/2" bullet style |
| Approx. weight | 310 lb (141 kg) |
| Listings | NSF |
Popular Options & Accessories
- 18" stainless undershelf (DTA-SS-18)
- 24" stainless undershelf (DTA-SS-24)
- 14 ga top upgrade (DTA-49)
- Prerinse rack slide bars & baskets (DTA-62, DTA-63, DTA-65, DTA-69)
- Overhead rack shelves, faucets & custom Smart Fabrication™ modifications
Installation Note: Bowls sit 12" from the dishmachine. Verify that your machine’s control box or drive unit will not interfere before ordering.
Need layout assistance? Our team can help configure the perfect warewashing line—just ask!
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.5in
Width
120.0in
Depth
30.0in
Shipping Weight
310.0lbs
Width (side - side) OA
109" - 120"
Dishtable Splash
10-1/2"
Dishtable Shape
straight
Compartment (side - side)
20"
Gauge
16 ga
Type Stainless Steel Top
300 series
Dishtable Legs
stainless steel
Compartment (front - back)
20"
Dish Machine Location
right side
Specifications
Dishtable with 3-compartment Sink, 120”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 40" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
