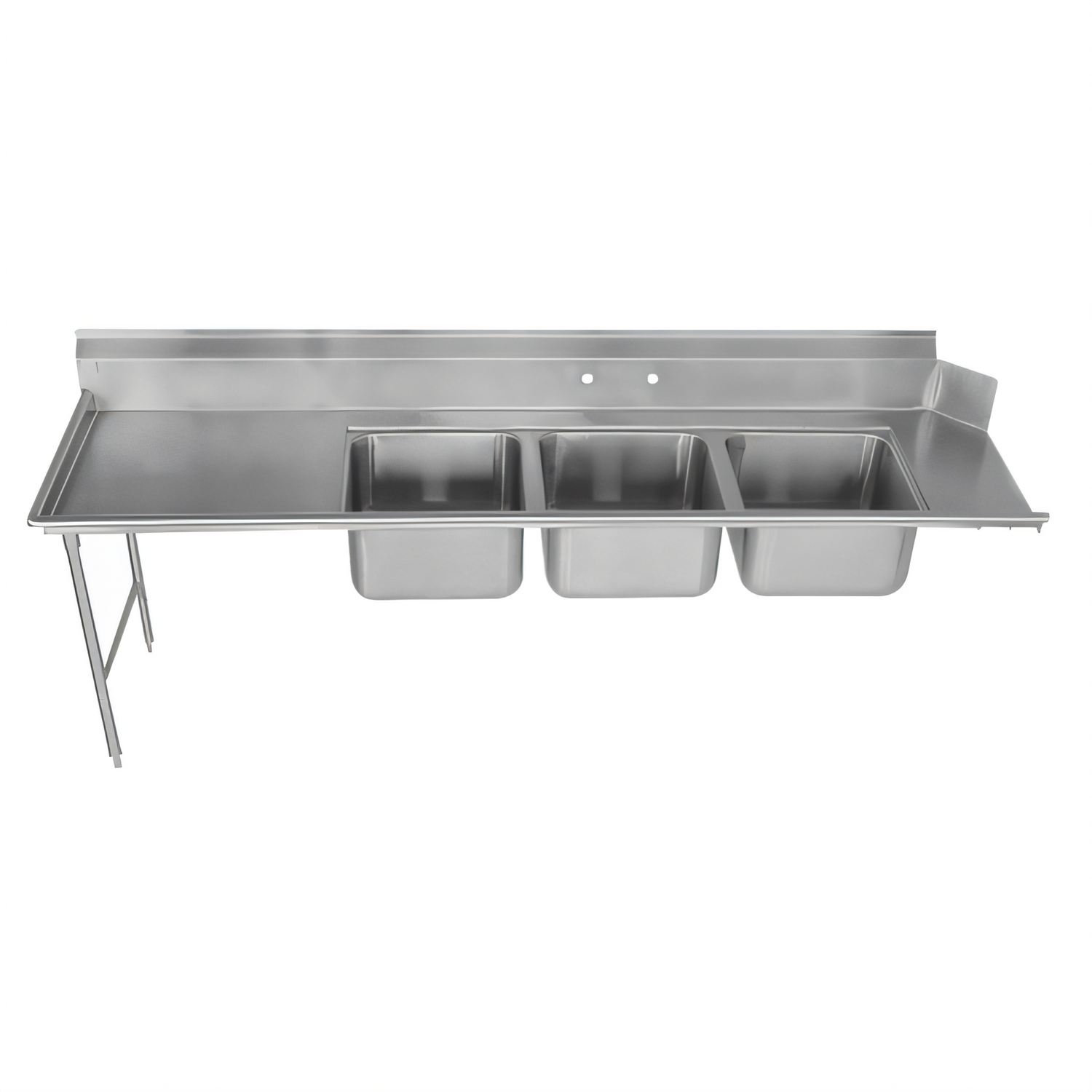

Advance Tabco DTC93-1620-9L 108" Left-Side Dishtable with 3-Compartment Sink

40" drainboard • Deep Drawn™ 16" × 20" × 12" bowls • NSF Listed

Optimize your warewashing flow with this 108-inch Advance Tabco Smart Fabrication™ dishtable. A generous 40-inch drainboard and three seamless Deep Drawn™ sink compartments give staff one tough, efficient station for pre-rinse, wash and sanitize tasks—all built from heavy-duty 16-gauge 304 stainless steel to thrive in the busiest kitchens.

Key Features
  • Mounts to the left side of the dish-machine operator (verify orientation before ordering).
  • (3) Deep Drawn™ bowls—16" W × 20" L × 12" D—with easy-clean 3" corner radius.
  • Bowls positioned 12" from dish machine for unobstructed access and added landing space.
  • Extra-long 40" ribbed drainboard speeds drying and staging of racks.
  • 10-½" backsplash with 2" tile edge return for a sanitary, splash-guarded installation.
  • Pre-punched 8" O.C. faucet holes; compatible with most commercial splash-mount faucets (sold separately).
  • 1½" IPS waste drains included for each compartment.
  • NSF listed for food-contact safety and code compliance.
Built to Last
  • 16-gauge 304 stainless steel top resists corrosion, dents and chemicals (14-gauge upgrade available).
  • All TIG-welded construction, ground and polished to a satin finish.
  • 1 ⅝" Ø stainless steel legs with welded gussets and full front-to-back cross-rails for exceptional rigidity.
  • Oversized, adjustable 10-½" stainless steel bullet feet keep the table level on uneven floors.
  • One-piece sink body ensures leak-free performance and superior structural integrity.
Specifications
Model DTC93-1620-9L
Overall length 108" (2743 mm)
Drainboard Left side, 40" long
Sink compartments 3
Bowl size (W × L × D) 16" × 20" × 12"
Top material 16-gauge 304 stainless steel
Legs / bracing Stainless steel, 1 ⅝" Ø legs with front-to-back cross-rails
Backsplash height 10-½" with 2" tile edge
Faucet holes (1) set, 8" on center
Drain size 1½" IPS (strainers included)
Shipping weight Approx. 275 lb (125 kg)
Optional Accessories
  • 18" or 24" stainless steel undershelf (DTA-SS-18 / DTA-SS-24)
  • 14-gauge stainless steel top upgrade (DTA-49)
  • Prerinse baskets with welded slide bar (DTA-69 or DTA-62)
  • Faucet hole modification kit (K-472)
Installation Note: Confirm dish-machine make and model prior to purchase—control boxes or drive units must clear the sink bowls. Table must be leveled and anchored for safe operation.

Dish machine, faucet and prerinse unit shown in photos are for illustration only and are not included.

Overall Dimensions:

108.0"W x 30.0"D x 44.5"H

Product Weight:

275.0 lb
Manufacturer Advance Tabco
Height 44.5in
Width 108.0in
Depth 30.0in
Shipping Weight 275.0lbs
Width (side - side) OA 97" - 108"
Dishtable Splash 10-1/2"
Compartment (side - side) 16"
Compartment (front - back) 20"
Gauge 16 ga
Type Stainless Steel Top 300 series
Dishtable Legs stainless steel
Dishtable Shape straight
Dish Machine Location right side
Specifications Dishtable with 3-compartment Sink, 108”W, (3) 16" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 40" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
