Advance Tabco DTC93-1620-8L Compartment Sinks
Description

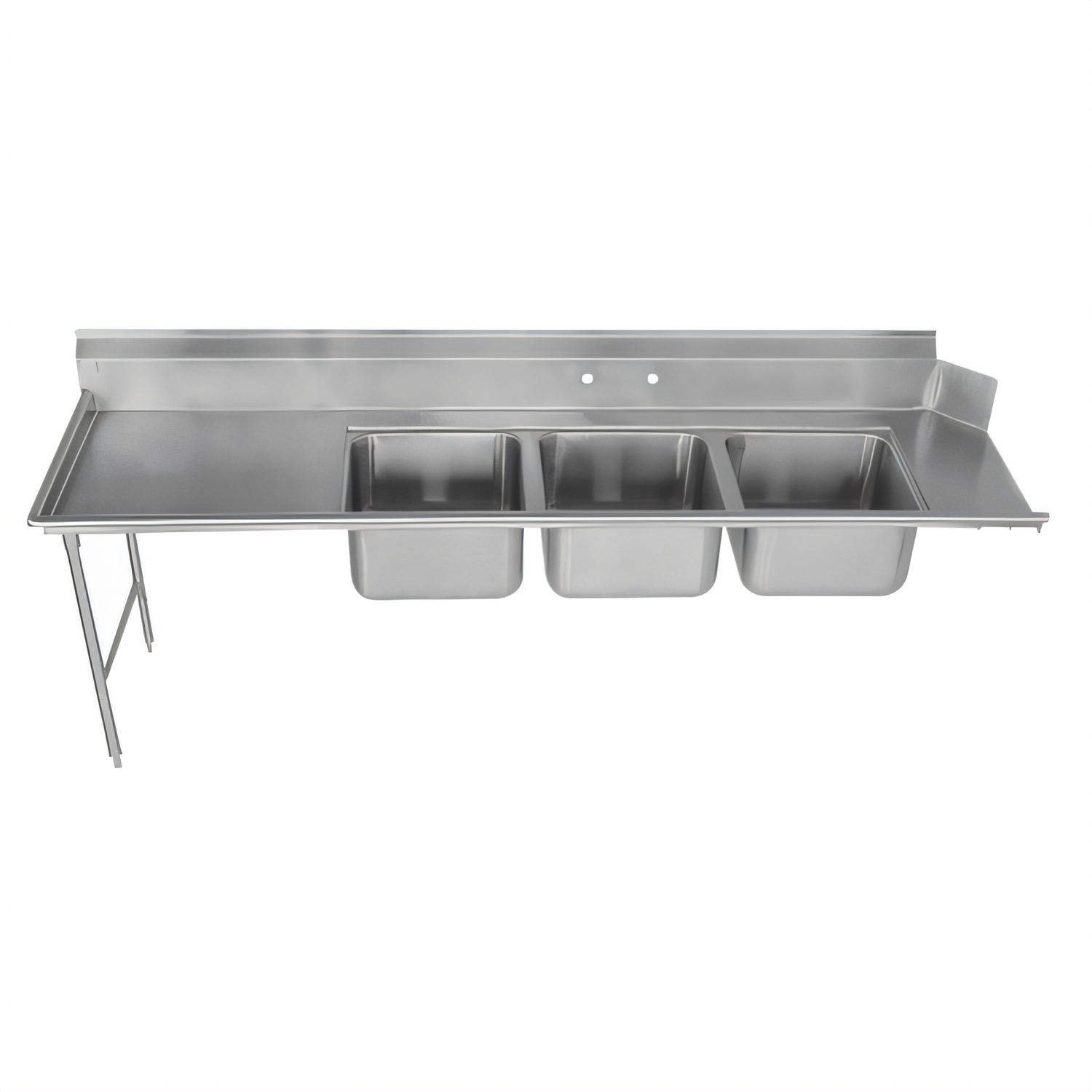

Advance Tabco DTC93-1620-8L 96" Dishtable with 3-Compartment Sink & 28" Left Drainboard
16" × 20" × 12" Deep Drawn™ Bowls • 16 ga 304 Stainless Steel • Left-Hand ConfigurationStreamline your ware-washing line with a single, heavy-duty station. This 96-inch Advance Tabco dishtable mounts to the left of your dish machine operator, providing three spacious sink bowls and a generous 28-inch drainboard—all in tough, corrosion-resistant 304 stainless steel.
Key Features
- (3) 16" W × 20" L × 12" D Deep Drawn™ sink bowls with smooth 3" radius corners for fast, sanitary clean-ups.
- Bowls are positioned 12" away from the dish machine to maximize usable work surface.
- 28" left drainboard offers ample landing space for soiled wares.
- 16 ga 304 stainless-steel top with a satin finish—14 ga upgrade available.
- 1" tile-edge backsplash with 2" return speeds installation and protects surrounding walls.
- Stainless-steel legs, front-to-back crossrails, and TIG-welded gussets for rock-solid stability.
- Extra-large 10-1/2" adjustable stainless-steel bullet feet for easy leveling on uneven floors.
- Pre-punched 8"-on-center faucet holes (faucet sold separately).
- (3) 1-1/2" IPS waste drains included.
- NSF listed for food-service sanitation compliance.
Product Specifications
| Model | DTC93-1620-8L |
|---|---|
| Overall Length | 96" |
| Overall Depth | 30" |
| Drainboard Length / Side | 28" – Left |
| Number of Compartments | 3 |
| Bowl Size (W × L × D) | 16" × 20" × 12" |
| Material | 16 ga 304 stainless steel |
| Backsplash Height | 10-1/2" with 1" tile edge |
| Legs / Bracing | 1-5/8" Ø stainless steel legs with front-to-back crossrails |
| Feet | Adjustable 10-1/2" stainless-steel bullet feet |
| Faucet Holes | 8" centers, 1-1/8" dia. |
| Waste Drain Size | 1-1/2" IPS (each bowl) |
| Certification | NSF |
Why Deep Drawn™ Bowls?
Each compartment is formed from a single sheet of stainless steel, producing seamless, ultra-strong bowls without weld seams that can trap food soil or bacteria—perfect for high-volume, HACCP-minded kitchens.
Need a heavier 14 ga top, pre-rinse slide bar, or undershelf? Ask our team about factory-installed options to customize this table for your operation.
