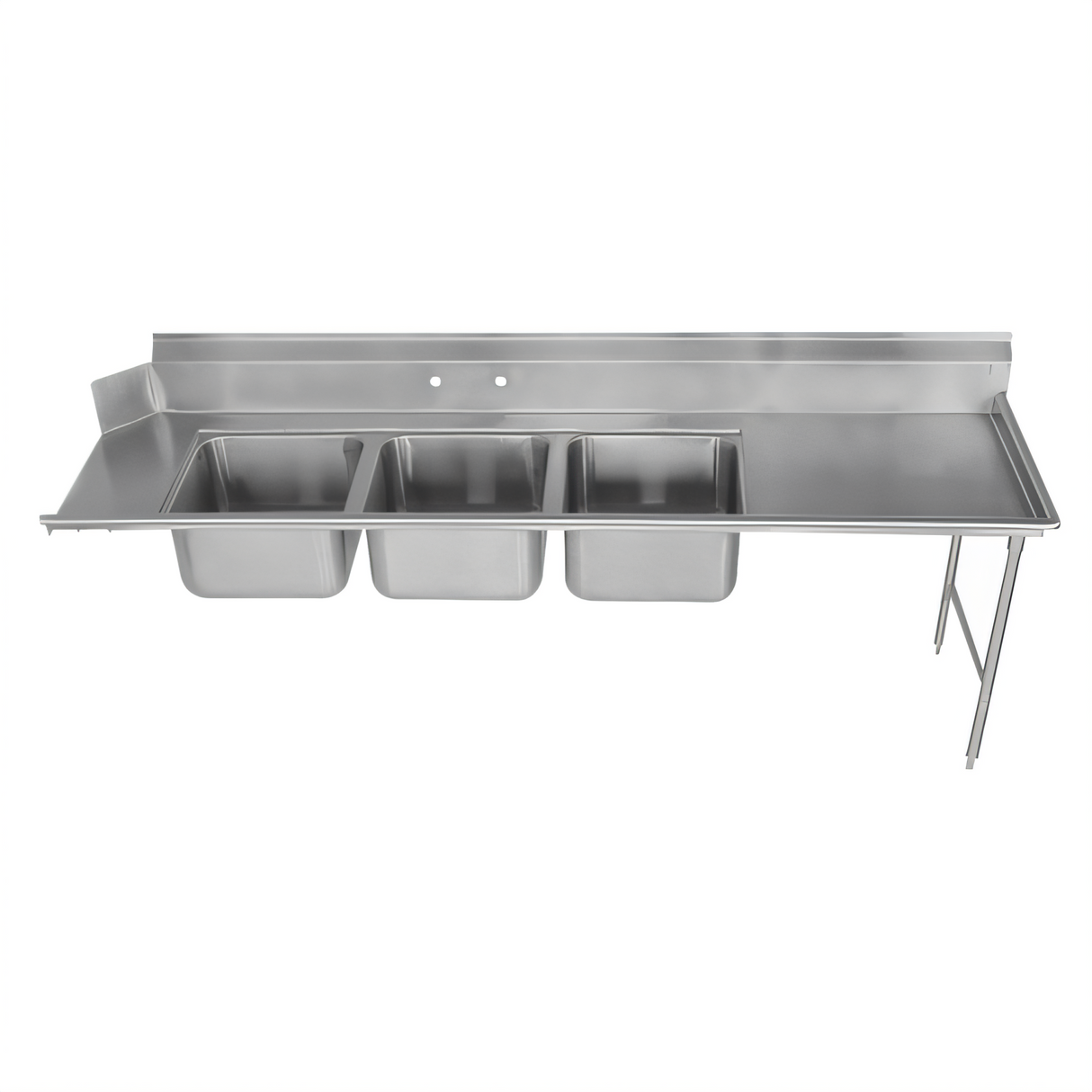

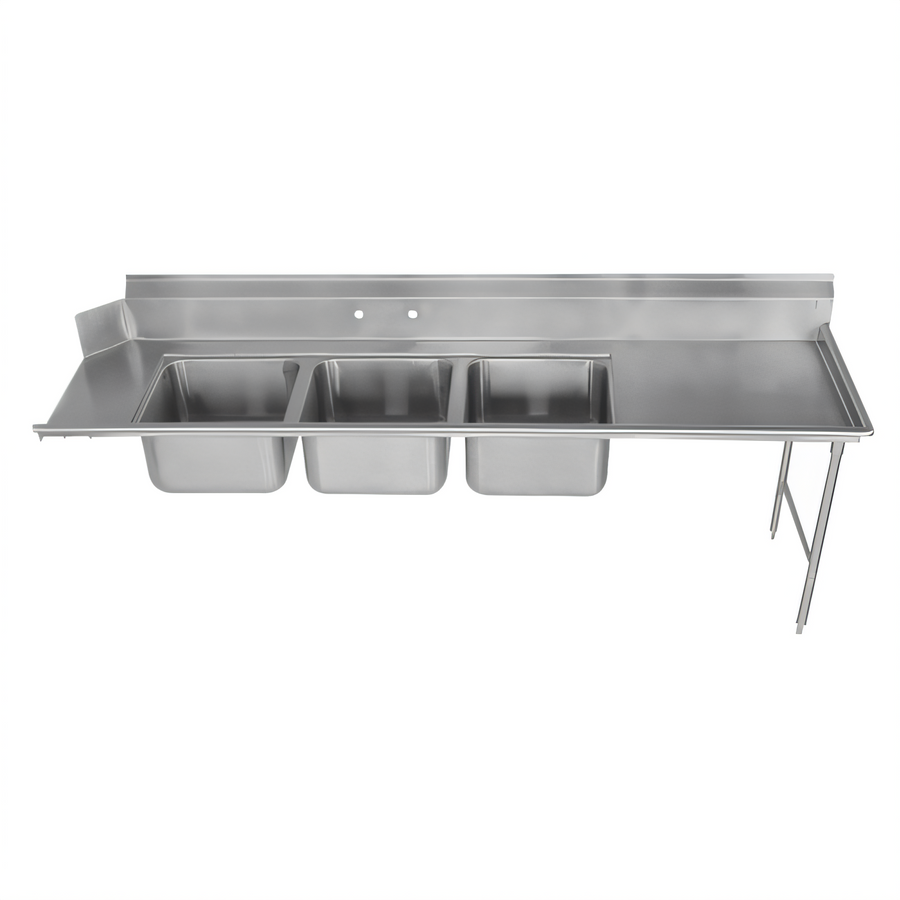

Advance Tabco DTC93-1620-7R Dishtable
84" W • 3-Compartment Sink • Right-Side Drainboard

Streamline your ware-washing line with this all-in-one 84 inch dishtable and sink combo from Advance Tabco. Built from heavy-duty 16 gauge 304 stainless steel, the DTC93-1620-7R delivers the rugged reliability you need while maximizing workflow at the right side of your commercial dish machine.

Key Benefits

  • Deep Drawn™ bowls – (3) seamless 16" × 20" × 12" compartments with generous 3" radius corners for easy cleaning.
  • Optimized layout – Bowls sit 12" from the dish machine opening, leaving ample landing area and preventing splash-back.
  • Right-hand 16" drainboard – Provides a dedicated drying/stacking zone without sacrificing sink space.
  • TIG-welded, all-stainless construction – 304 top, 1 5/8" legs, and full front-to-back crossrails resist corrosion and add rigidity.
  • Tile-edge backsplash – 10 1/2" high with 2" return simplifies wall sealing and protects surrounding surfaces.
  • Extra-large 10 1/2" bullet feet – Stainless, adjustable feet level the unit quickly on uneven floors.
  • Plumb-ready – One set of 8"-on-center faucet holes in the splash and (3) 1 1/2" IPS basket drains included. (Faucet sold separately.)
  • NSF listed – Meets rigorous sanitation standards for commercial kitchens.

At-a-Glance Specifications

Manufacturer / Model Advance Tabco DTC93-1620-7R
Overall Length 84" (2134 mm)
Overall Depth 30"
Work Height 34" deck / 39" to backsplash top
Bowl Configuration (3) 16" × 20" × 12" Deep Drawn bowls
Drainboard 16" Right-hand
Material & Gauge 16 ga 304 stainless steel top (14 ga upgrade optional)
Legs / Bracing 1 5/8" Ø stainless legs with stainless front-to-back crossrails
Feet Adjustable stainless bullet feet, 10 1/2"
Faucet Holes (1) set, 8" on center
Drain Outlets 1 1/2" IPS per bowl (strainers included)
Certifications NSF

Popular Accessories (Sold Separately)

  • 18" or 24" stainless steel undershelf (Models DTA-SS-18 / DTA-SS-24)
  • Prerinse baskets with welded slide bars – 16" × 20" (DTA-69) or 20" × 20" (DTA-62)
  • 14 ga stainless steel upgrade kit (DTA-49)
  • Overhead wall rack shelves & commercial faucets
Important: Before ordering, confirm that your dish machine’s control box or drive unit will not interfere with the 12" offset sink bowls. Contact Advance Tabco or consult the Dish Machine Compatibility Chart (advancetabco.com) for assistance.

Faucet, dish machine, and accessories shown in photos are for illustration only and are not included with the dishtable.

Overall Dimensions:

84.0"W x 30.0"D x 44.5"H

Product Weight:

220.0 lb
Manufacturer Advance Tabco
Height 44.5in
Width 84.0in
Depth 30.0in
Shipping Weight 220.0lbs
Dishtable Splash 10-1/2"
Compartment (side - side) 16"
Dishtable Shape straight
Dish Machine Location left side
Width (side - side) OA 73" - 84"
Gauge 16 ga
Type Stainless Steel Top 300 series
Dishtable Legs stainless steel
Compartment (front - back) 20"
Specifications Dishtable with 3-compartment Sink, 84”W, (3) 16" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 16" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)

Documents

PDF Cutsheet PDF Download
