Advance Tabco DTC93-1620-6L Compartment Sinks
Description

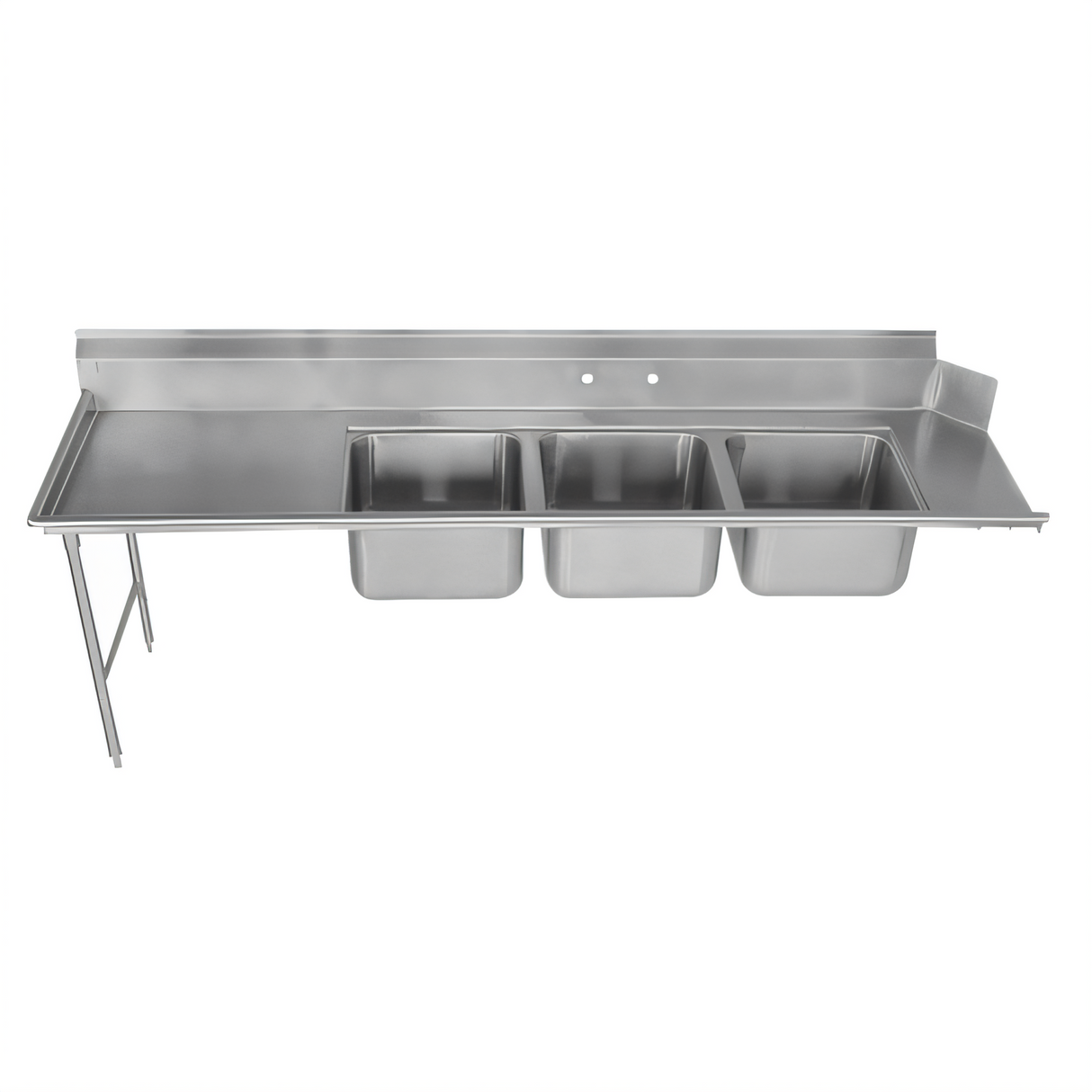

Advance Tabco DTC93-1620-6L – 72" Left-Side Dishtable with 3-Compartment Sink
Deep Drawn™ 16" × 20" × 12" Bowls • 4" Drainboard • NSF CertifiedStreamline soiled-ware handling and speed up your ware-washing operation with this heavy-duty 3-compartment dishtable. Built from 16-gauge 304 stainless steel and engineered to bolt directly to the left side of your dish machine, the DTC93-1620-6L delivers rugged durability, extra work surface and complete NSF sanitation compliance in one space-saving unit.
Why You’ll Love It
- Three seamless Deep Drawn™ bowls (16" × 20" × 12" each) with generous 3" corner radius for fast, hygienic clean-up.
- 4" left-side drainboard keeps pre-rinsed wares organized and off the worktop.
- Bowls are positioned 12" from the machine opening—no lost work surface!
- 16-gauge 304 stainless steel top resists corrosion from harsh detergents.
- All-TIG-welded construction; welds are blended to a uniform satin finish.
- Bold 10-½" backsplash with 2" return and tile edge for a tight, sanitary wall seal.
- One set of 8"-center faucet holes pre-punched (faucet sold separately).
- Adjustable 10-½" stainless steel bullet feet level the table on uneven floors.
- Stainless steel legs plus front-to-back crossrails & gussets for rock-solid stability.
- NSF listed for food-service sanitation.
At-a-Glance Specs
| Brand / Model | Advance Tabco • DTC93-1620-6L |
|---|---|
| Overall Length | 72" (1829 mm) |
| Orientation | Attaches to left of dish machine operator |
| Number of Compartments | 3 |
| Bowl Interior (each) | 16" W × 20" L × 12" D |
| Drainboard Size | 4" left |
| Work-top Material | 16-gauge 304 stainless steel |
| Legs / Bracing | 1 5⁄8" Ø stainless legs with stainless front-to-back crossrails & gussets |
| Feet | 10-½" extra-large adjustable stainless steel bullet feet |
| Faucet Holes | (1) set, 8" on-center |
| Drain Size | 1 ½" IPS (waste drains included) |
| Certifications | NSF |
| Shipping Weight | Approx. 200 lb / 91 kg |
Popular Add-Ons (Sold Separately)
- Stainless steel undershelves – 18" (Model DTA-SS-18) or 24" (Model DTA-SS-24)
- 16" × 20" pre-rinse basket with welded slide bar (Model DTA-69)
- 14-gauge work-top upgrade (Model DTA-49)
- Overhead rack shelves, spray faucets & more – ask our team!
Need a right-side configuration or custom length? Reach out to our Smart Fabrication™ specialists and we’ll build it to fit.
