Advance Tabco  |  SKU: DTC-S70-36R  |  UPC: 747545120267

Advance Tabco DTC-S70-36R Compartment Sinks

$1,256.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

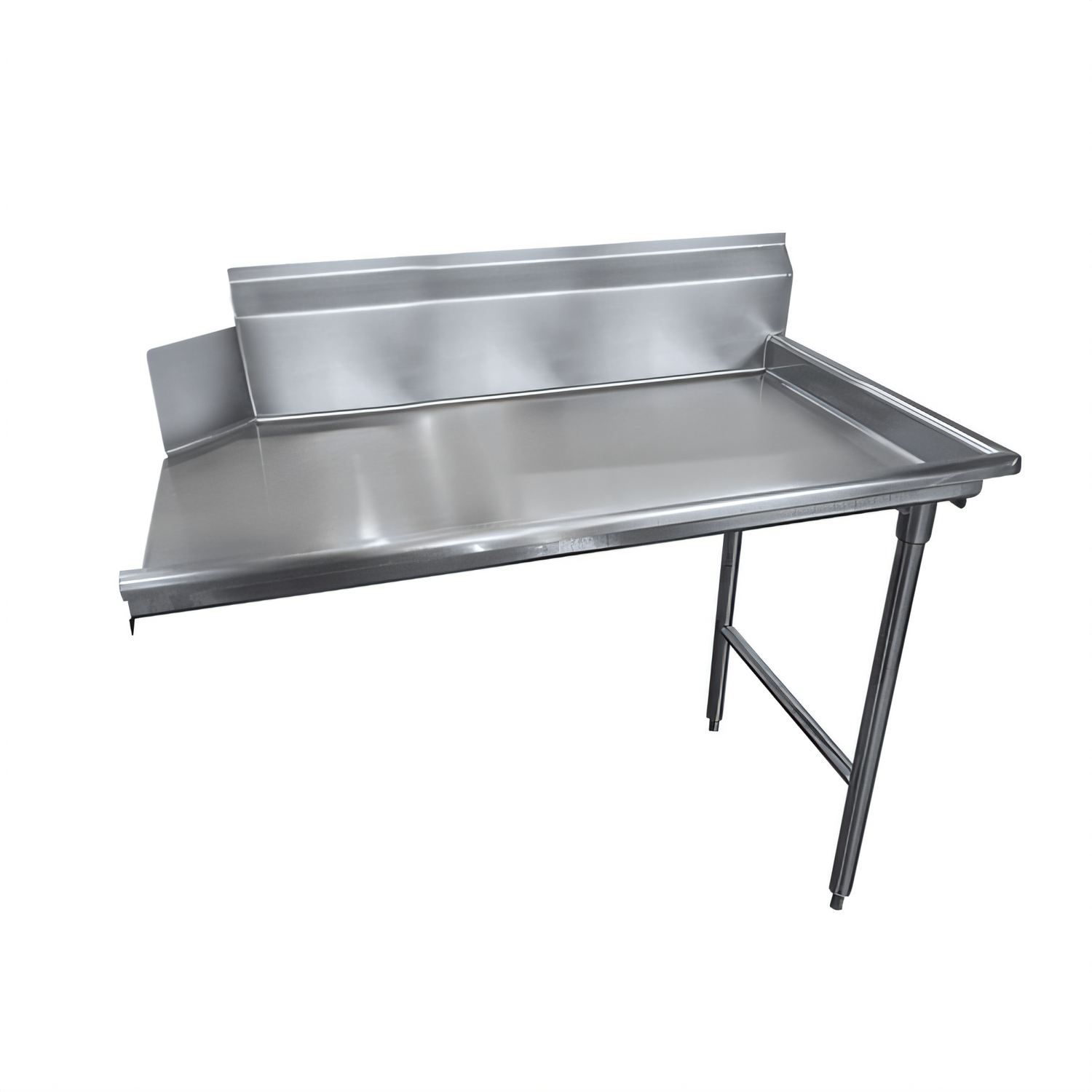

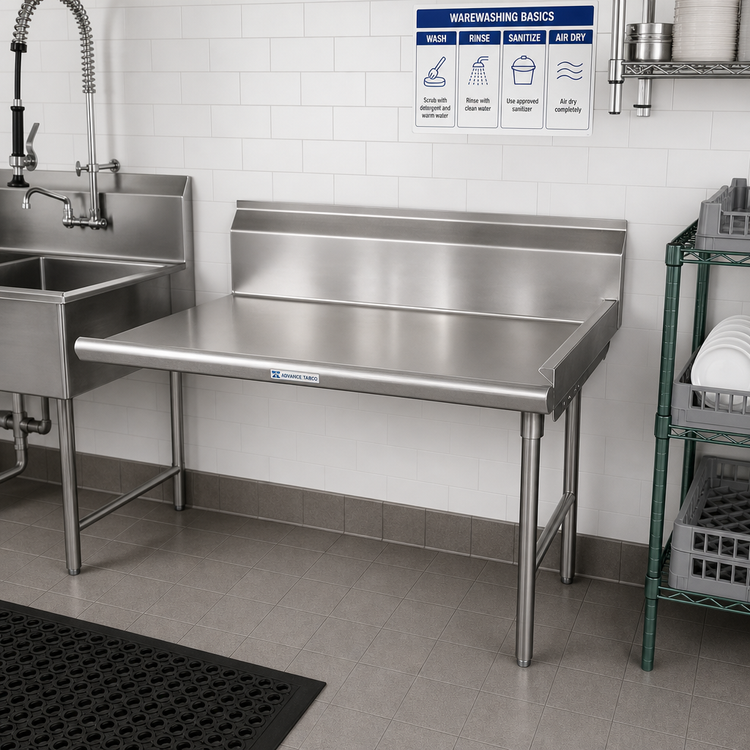

Advance Tabco Clean Straight Dishtable – 35"W (Clean-Right)

Model DTC-S70-36R • 16 ga 304 Stainless Steel Top & Legs

Built for the exit (clean) side of your door-type or conveyor dishwasher, this 35 inch Advance Tabco dishtable delivers rock-solid construction, a generous 10-1/2" backsplash, and a space-saving straight design that keeps sanitized wares moving smoothly down the line.

Key Features

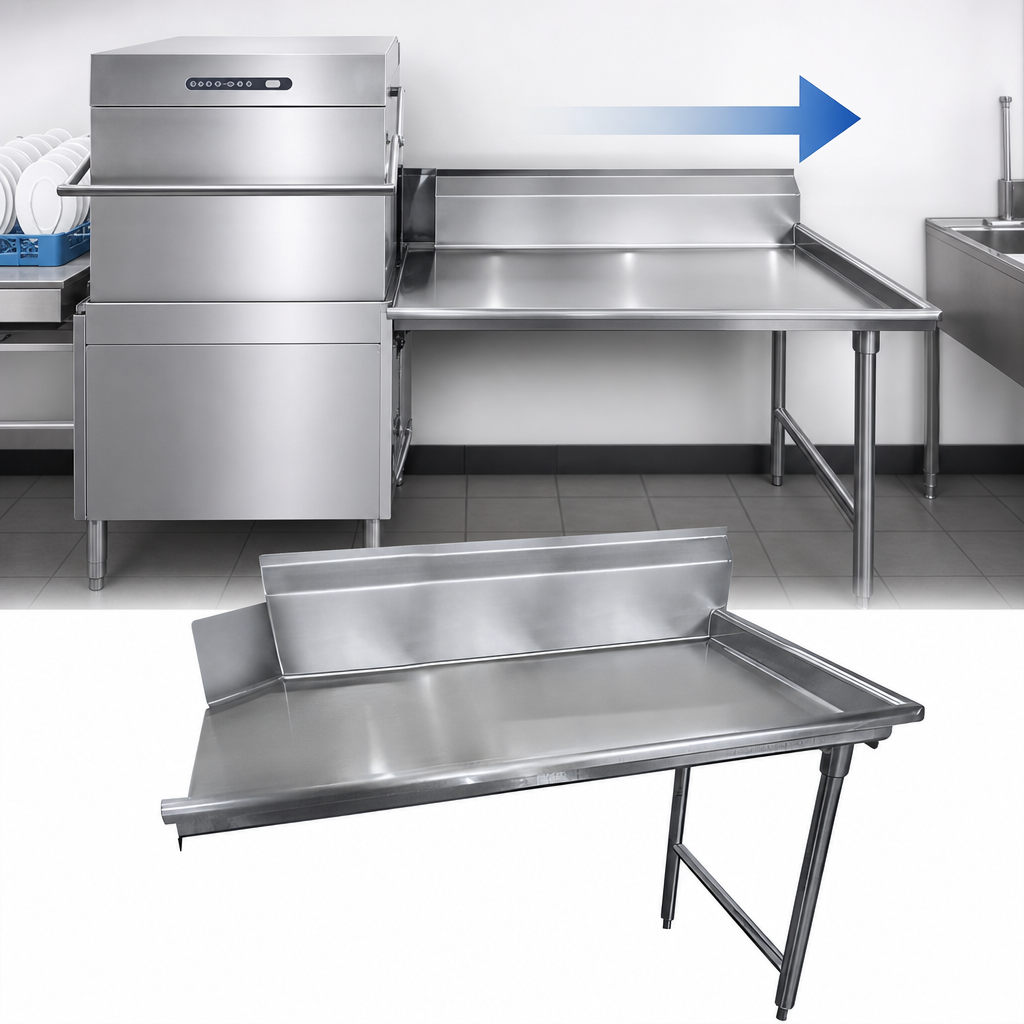

  • Clean-right orientation – mounts to the right of the machine operator for efficient rack unloading.
  • Heavy-duty 16 ga, type 304 stainless steel top stands up to corrosive ware-washing chemicals.
  • Extra-large 10-1/2" backsplash with 2" return and tile edge for a watertight, code-compliant wall seal.
  • 3" rolled front & side rims contain drips while providing a smooth, snag-free work edge.
  • (4) 1-5/8"-Ø, 16 ga 304 SS legs with welded crossrails and 1" adjustable stainless steel bullet feet.
  • All TIG-welded; welds are polished to a satin finish for easy cleaning and a professional look.
  • NSF listed and ready for food-service installation.

Technical Specifications

Overall Width (L) 35" (nominal 3 ft section)
Overall Depth (F-B) 30"
Working Height 34" to top of work surface
Backsplash Height 10-1/2" with 2" return
Top Material 16 ga type 304 stainless steel
Legs / Feet 1-5/8"-Ø 16 ga 304 SS legs with stainless steel adjustable bullet feet (1")
Cross Bracing Welded 304 SS crossrails
Front & Side Rims 3" rolled
Orientation Clean Straight – Right Hand
Approx. Ship Weight 45 lb
NSF Listing Yes

Verify minimum clearances on the clean (exit) side of your dish machine before ordering. A full compatibility chart is available at advancetabco.com.

Popular Accessories (sold separately)

  • Stainless steel undershelf for extra storage
  • Wall-mounted overshelf for trays and glass racks
  • Pre-rinse faucets, scrap baskets & rack shelves
Need a left-hand or longer run? Advance Tabco offers this series in lengths from 2 ft – 12 ft and both orientations. Contact us for custom quotes.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

35.0in

Depth

30.0in

Shipping Weight

55.0lbs

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

31" - 36"

Specifications

Dishtable, clean, straight design, attaches to right of dish machine operator, 10-1/2"H backsplash, 3" rolled front & side rims, stainless steel legs, with crossrails, 35"W x 30"D x 34"H, 16/304 stainless steel
