Advance Tabco DTC-S70-108R Compartment Sinks
Description

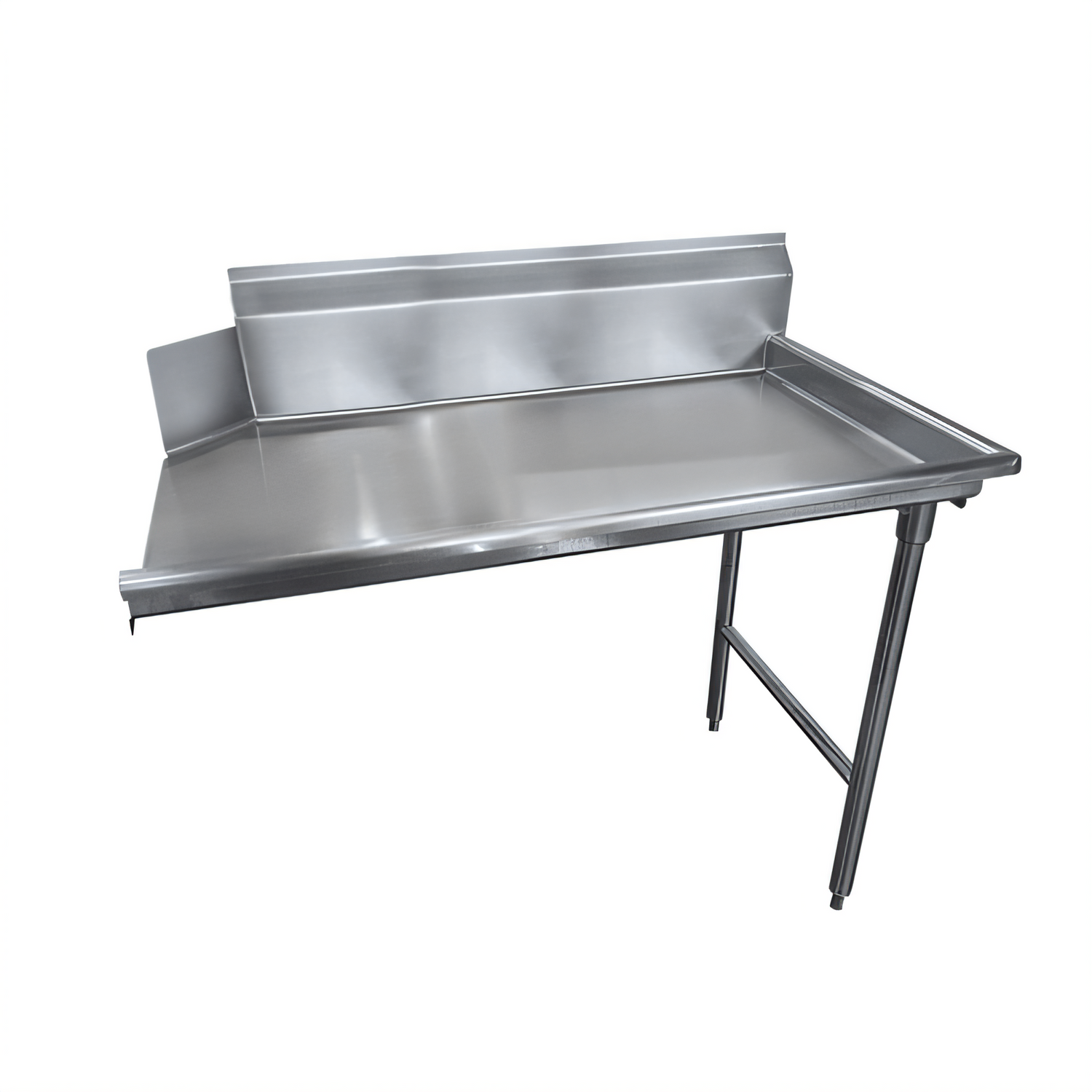

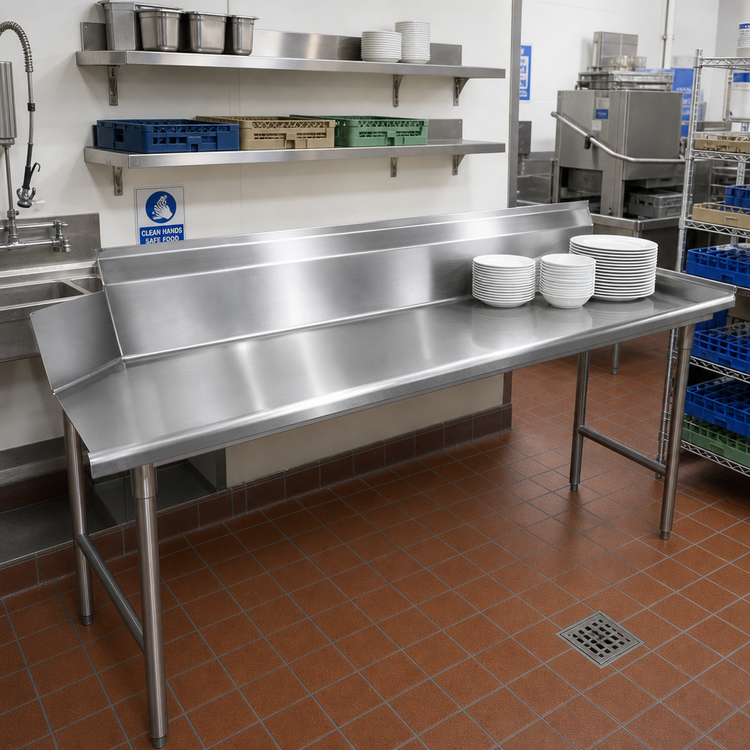

Advance Tabco DTC-S70-108R Clean Straight Dishtable
107″ W × 30″ D × 34″ H • Right-Side Clean Table • 16-Gauge 304 Stainless SteelAdd a spacious, rock-solid clean landing to the right of your dish machine. This 9-foot Advance Tabco dishtable features an extra-tall backsplash, 3″ rolled rims and all-stainless welded construction to keep your warewashing line fast, sanitary and organized.
Highlights
- Designed for clean-side, right-hand discharge from door-type or conveyor dish machines.
- Generous 107″ (9 ft) deck easily accommodates multiple racks at once.
- 10 ½″ rear backsplash with 2″ tile-edge return protects walls and simplifies installation.
- 3″ rolled front & side rims add strength while containing water run-off.
- Durable 16-ga type 304 stainless steel top resists corrosion, chemicals & heat.
- 1 5/8″ Ø 16-ga 304 stainless steel legs with fully welded crossrails for superior rigidity.
- Stainless steel adjustable bullet feet (1″ range) for easy leveling on uneven floors.
- TIG-welded throughout; welds are blended to a clean satin finish.
- NSF listed and ready for high-volume commercial kitchens.
- Compatible optional accessories: undershelf, wall shelf, faucets (sold separately).
Technical Specifications
| Model | DTC-S70-108R |
|---|---|

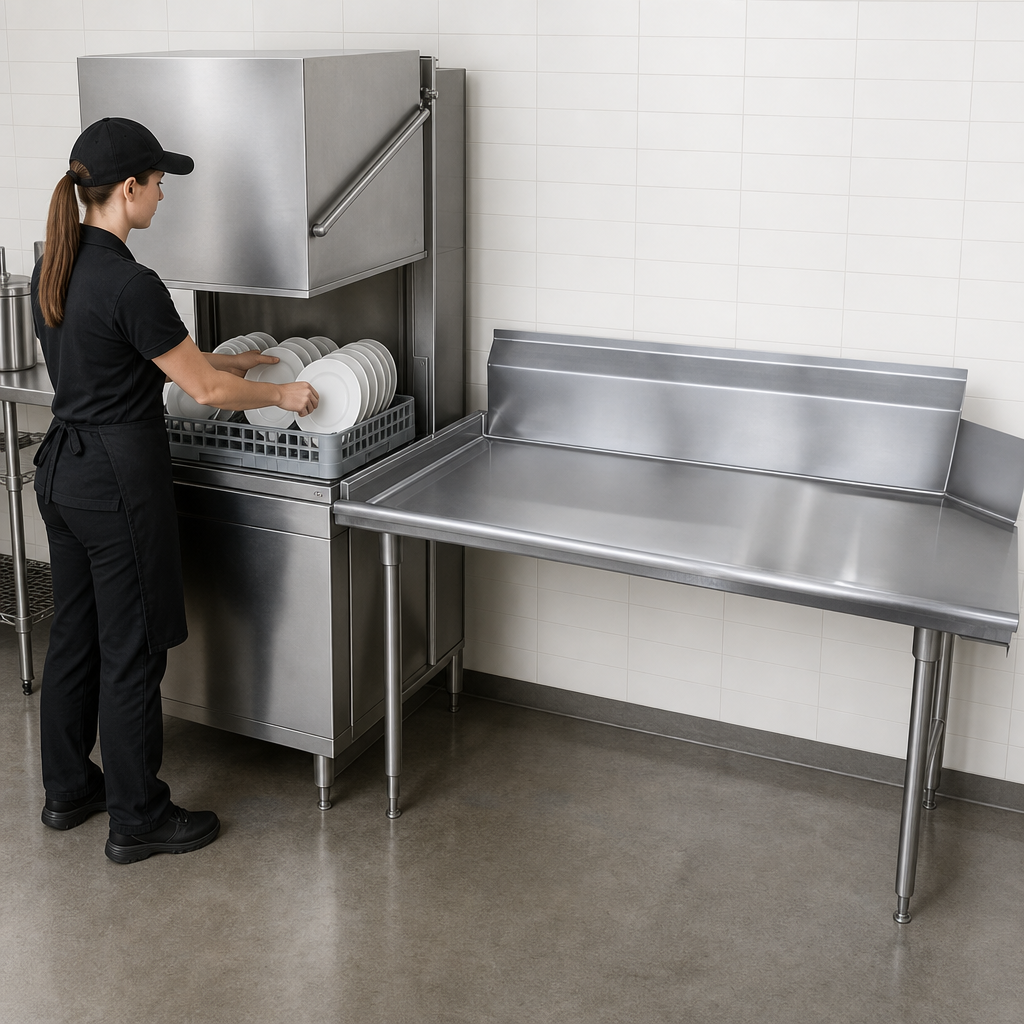

| Orientation | Clean Right (mounts to operator’s right-hand side) |
| Overall Width | 107″ |
| Depth | 30″ |
| Working Height | 34″ |
| Backsplash Height | 10 ½″ with 2″ tile-edge return |
| Front/Side Rims | 3″ rolled, 1 ½″ downturn |
| Top Material | 16-ga 304 stainless steel |
| Legs | 1 5/8″ Ø 16-ga 304 stainless steel |
| Bracing | Welded stainless steel crossrails |
| Feet | Stainless steel bullet feet, 1″ adjustable |
| Approx. Weight | 225 lb |
| Certification | NSF |
Installation & Compatibility
- Tile-edge backsplash allows quick, flush mounting to tiled walls.
- Standard 34″ working height aligns with most commercial dish machines.
- Please confirm clearance requirements with the Advance Tabco Dish Machine Compatibility Chart before ordering.
Looking for a different length, left-hand orientation or custom sink bowl? Ask us about Advance Tabco Smart Fabrication™ for made-to-order dishtables.
