Advance Tabco DTC-S30-24R Compartment Sinks
Description

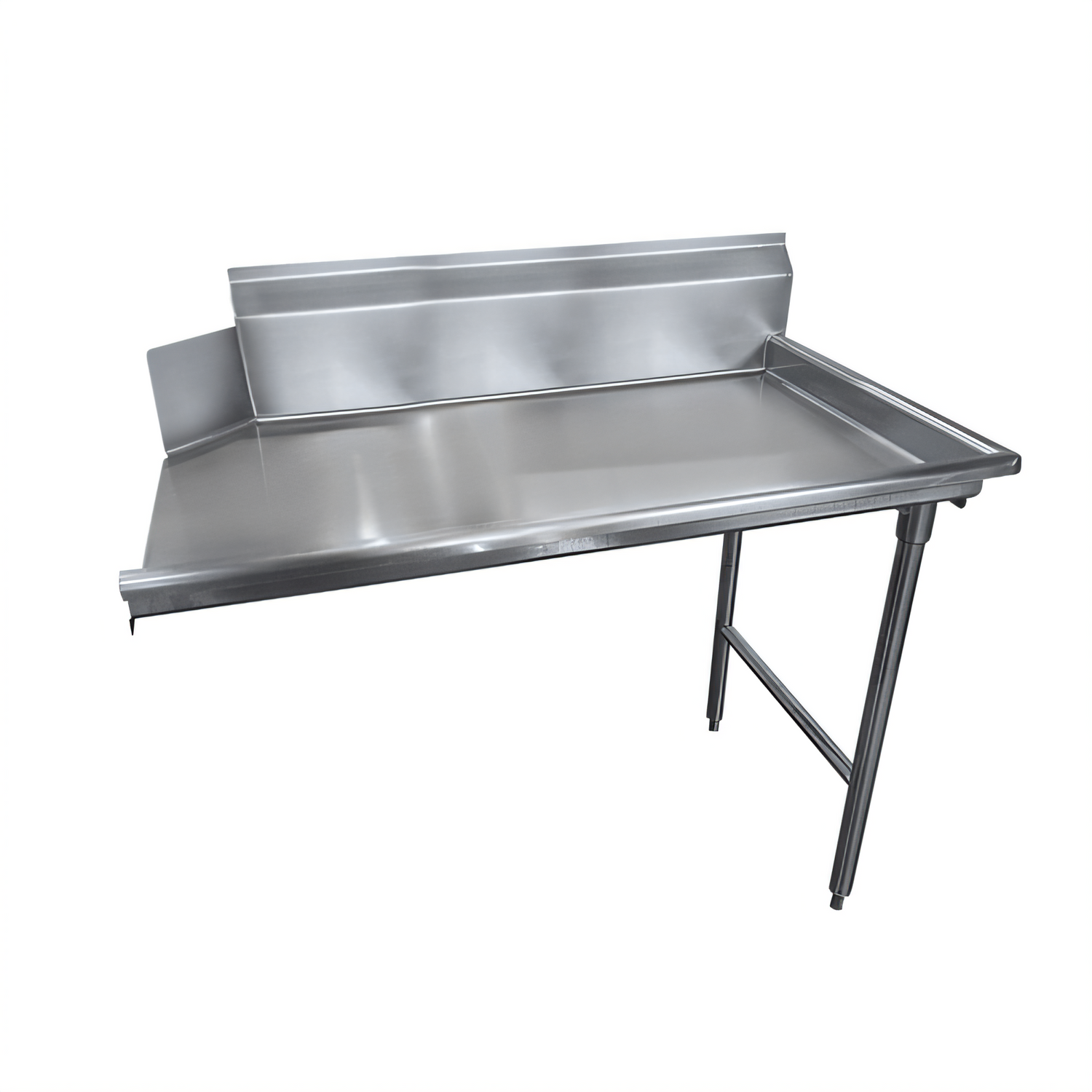

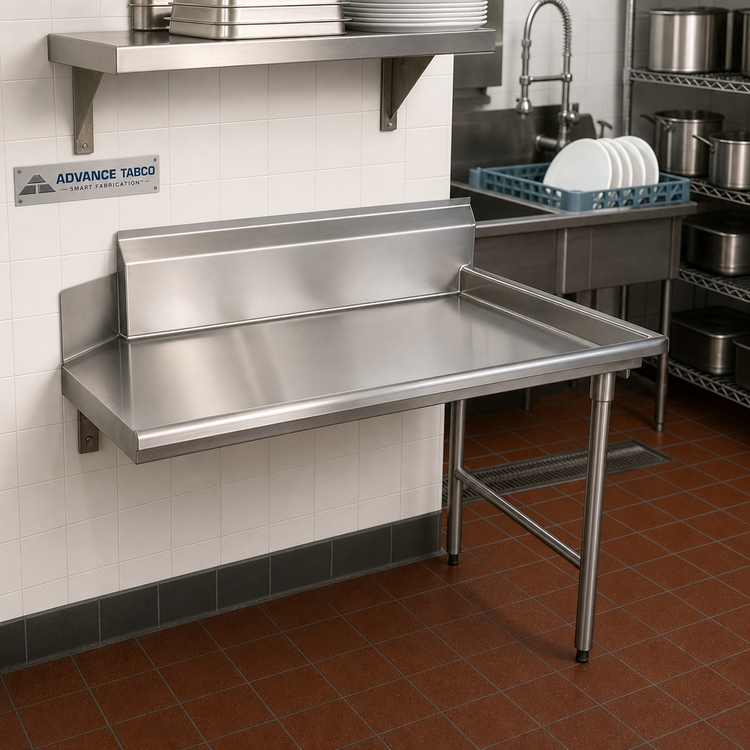

Advance Tabco Clean Straight Dishtable – Right Side Mount, 23"
Model DTC-S30-24R • Spec-Line SeriesProvide a sanitary, efficient landing area for clean dish racks with this heavy-duty Advance Tabco 23" clean straight dishtable. Engineered for right-hand installation, it mates directly to the exit side of your dish machine, keeping the flow of clean ware moving while protecting surrounding surfaces from splashes.
Key Features
- Rugged 14-gauge, 304 stainless steel top resists corrosion and dents.
- Extra-tall 10-1/2" backsplash with 2" return and tile edge for fast, water-tight wall installation.
- 3" rolled front & side rims contain water and shield staff from sharp edges.
- 1-5/8" Ø 16-gauge 304 stainless steel legs with welded crossrails for unbeatable stability.
- All TIG-welded construction; welds are polished to a smooth, easy-to-clean satin finish.
- Stainless steel gussets and adjustable 1" stainless bullet feet withstand years of daily use.
- NSF listed for open foodservice applications.
Specifications
| Overall Dimensions | 23" W x 30" D x 34" H (working height) |
|---|---|
| Backsplash | 10-1/2" H with 2" return, tile edge |

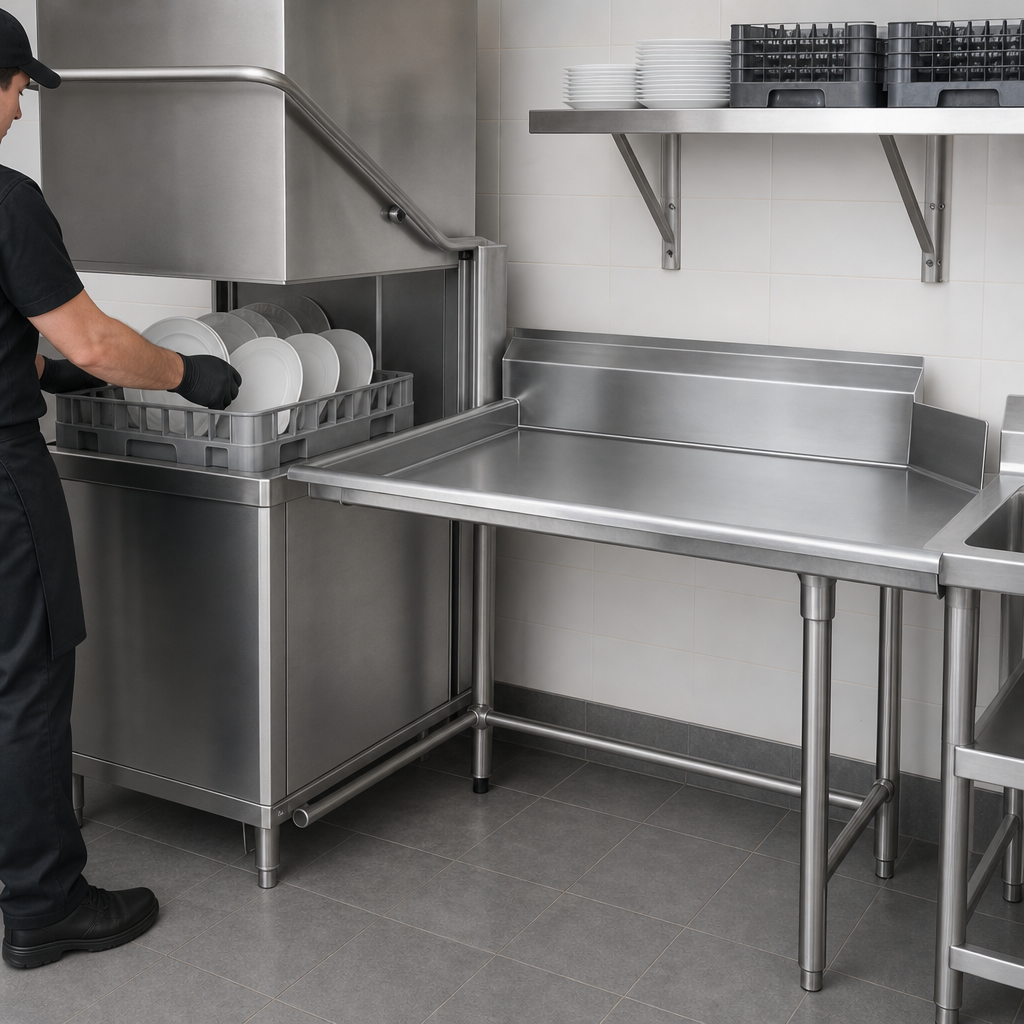

| Orientation | Clean Right – mounts on operator’s right side of dish machine |
| Top Material / Gauge | 14-ga 304 stainless steel |
| Legs & Crossrails | 1-5/8" Ø, 16-ga 304 stainless steel (welded) |
| Rim Style | 3" rolled front & sides |
| Feet | Stainless bullet feet, 1" adjustment |
| Approx. Weight | 35 lb |
Optional Accessories
- Stainless steel undershelf for added storage
- Wall or overhead shelves for rack storage
- Faucet & pre-rinse fittings (sold separately)
Looking for a different length, left-hand configuration, or built-in sink bowl? Advance Tabco’s Smart Fabrication™ team can build a custom dishtable to your exact specifications.
