Advance Tabco DTC-S30-24L Compartment Sinks
Description

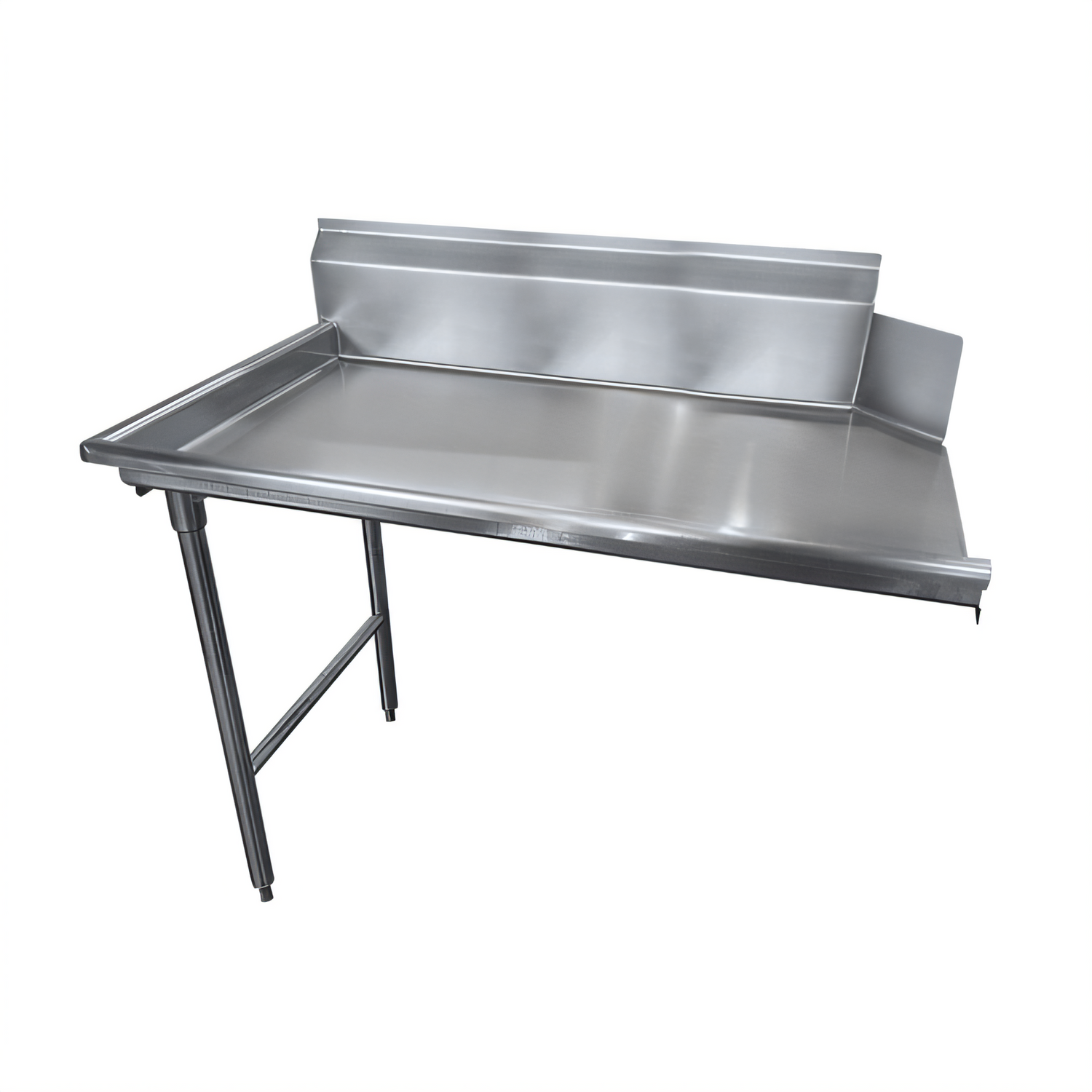

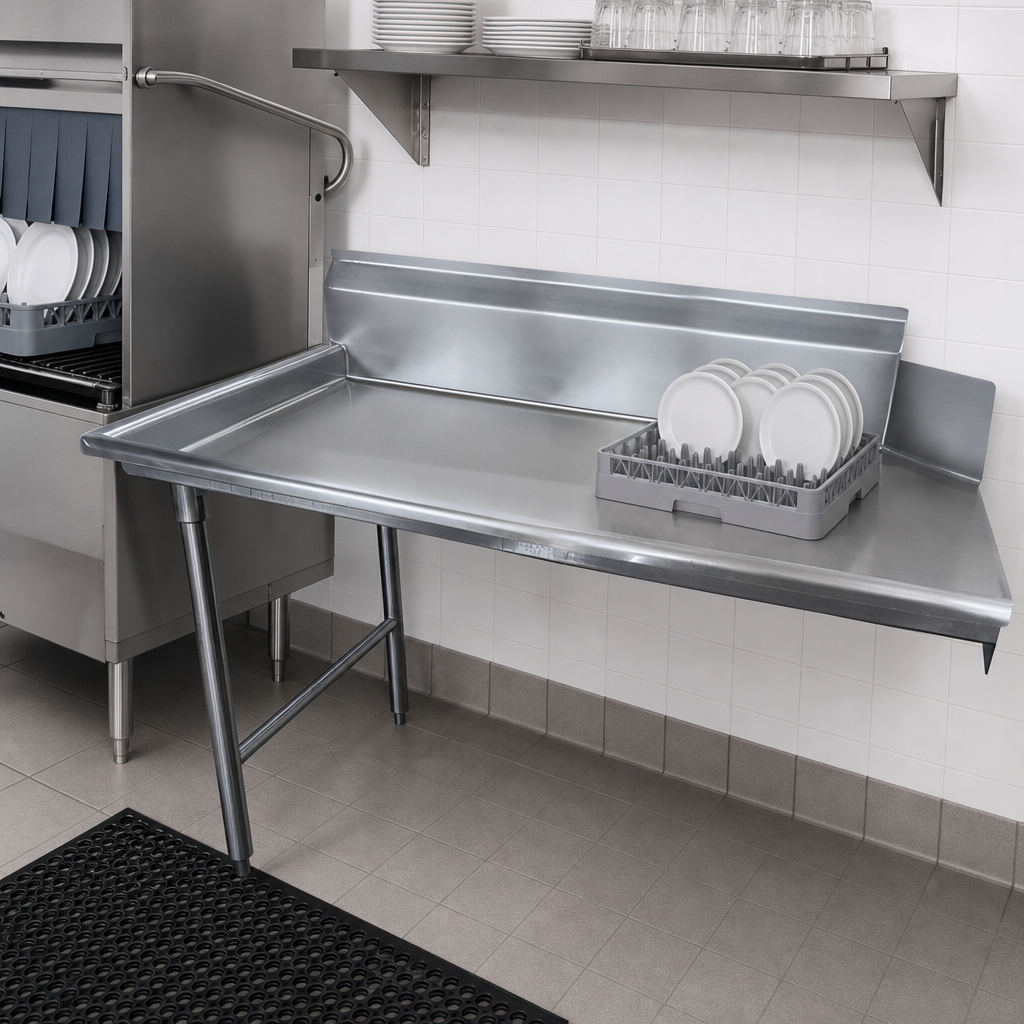

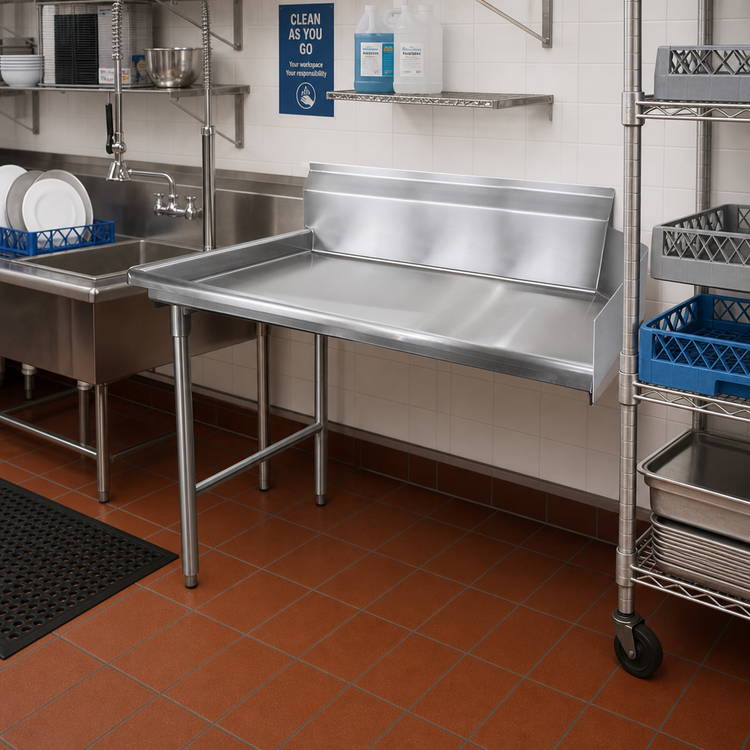

Advance Tabco Clean-Straight Dishtable – 23" x 30"
Left-side clean table for commercial dish machinesBuild a smoother, safer dish room workflow with Advance Tabco’s heavy-duty clean-straight dishtable. Designed to mount on the left of the dish-machine operator (clean exit), this compact 23" model delivers outstanding durability, fast installation and NSF-approved sanitation.
Key Benefits
- 14 ga 304 stainless-steel top – extra-thick for years of warp-free service.
- 10-1/2" high backsplash with 2" tile-edge return keeps walls dry and simplifies caulking.
- 3" rolled front & side rims prevent drips and provide a smooth, snag-free work edge.
- All-TIG-welded construction; welded areas are blended to a uniform satin finish.
- 1-5/8" Ø stainless-steel legs with welded crossrails & adjustable stainless bullet feet for rock-solid stability.
- NSF listed for open-air food-zone use.
Technical Specifications
| Orientation | Clean – mounts to left side of dish machine operator |
|---|---|
| Overall size (L × D × H) | 23" L × 30" D × 34" H |
| Work height | 34" |
| Top material / gauge | 304 series stainless, 14 ga |
| Backsplash | 10-1/2" H with 2" return, tile-edge design |
| Front & side rims | 3" rolled, 180° turned-down |
| Legs & bracing | 304 stainless 1-5/8" Ø legs with welded stainless crossrails |
| Feet | Adjustable stainless bullet feet (1" range) |
| Welds / finish | All TIG welded, satin finish |
| NSF Certification | Yes |
Optional Accessories (sold separately)
- Stainless-steel undershelf – maximize storage under the work top
- Wall-mount overshelves
- Pre-rinse faucets & rinse assemblies
This table is engineered to fit most straight-through commercial units. Always verify clearance requirements using Advance Tabco’s Compatibility Chart or consult our Smart Fabrication™ team before ordering.
Need a different length, right-hand model or custom sink bowl? Contact us for a fast Smart Fabrication™ quote.
