Advance Tabco DTC-S30-120L Compartment Sinks
Description

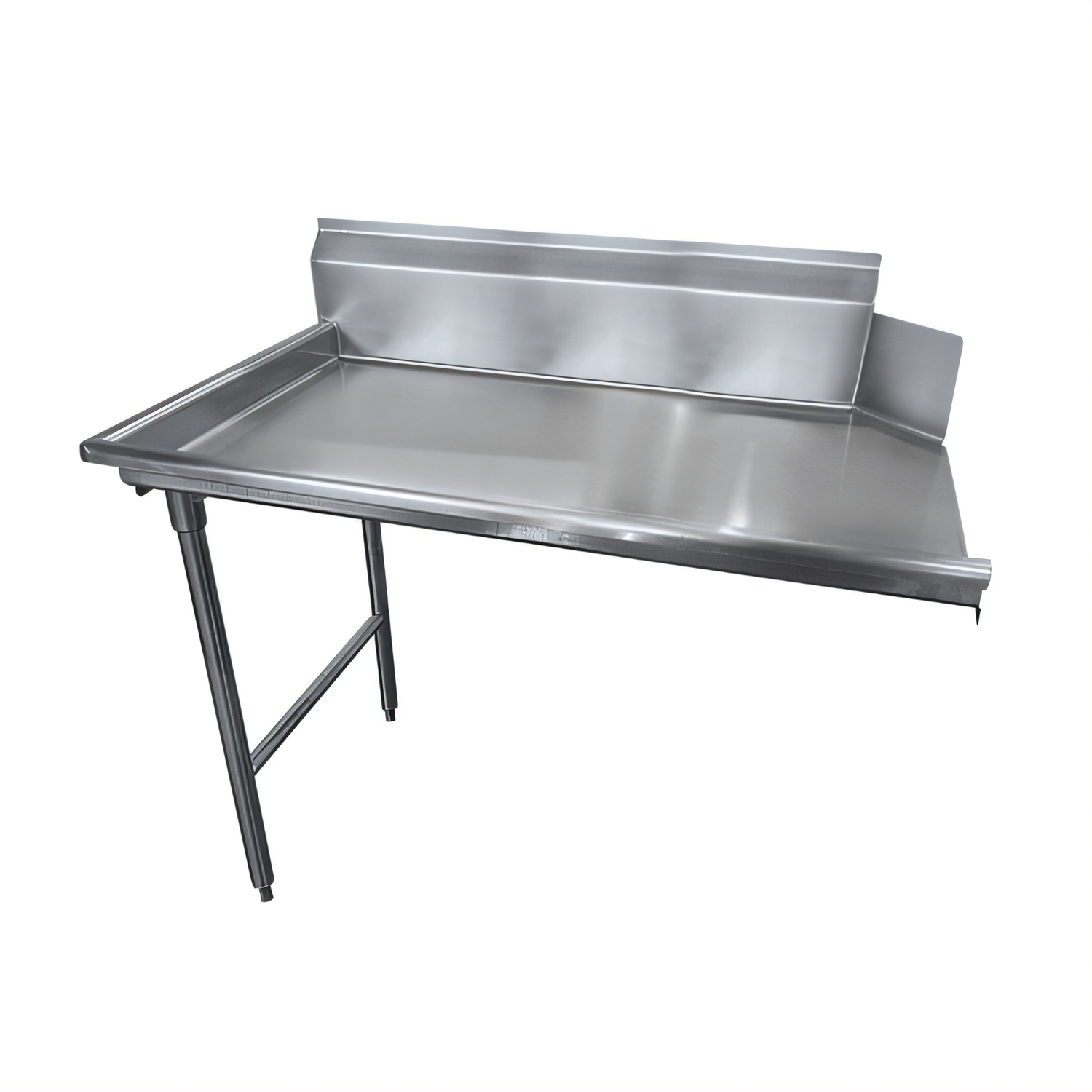

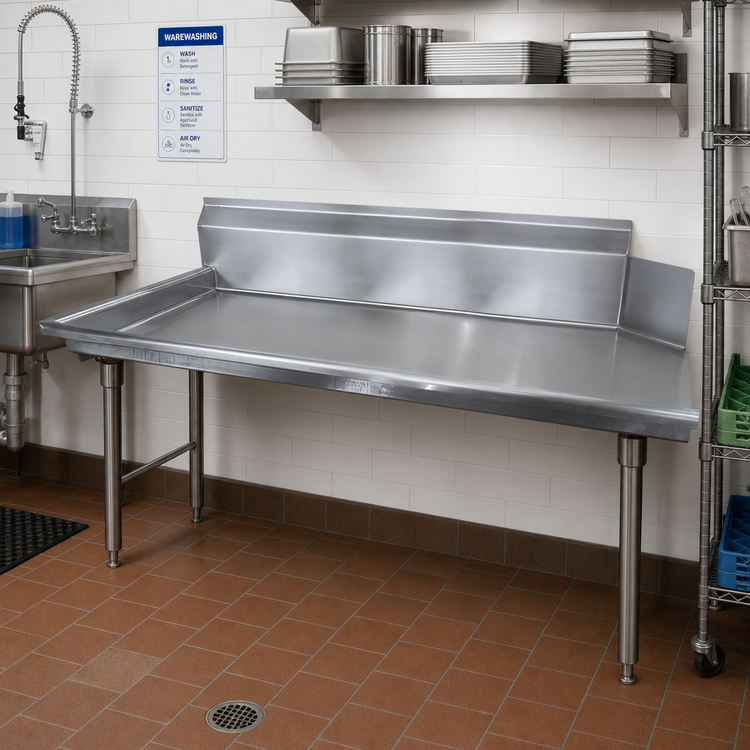

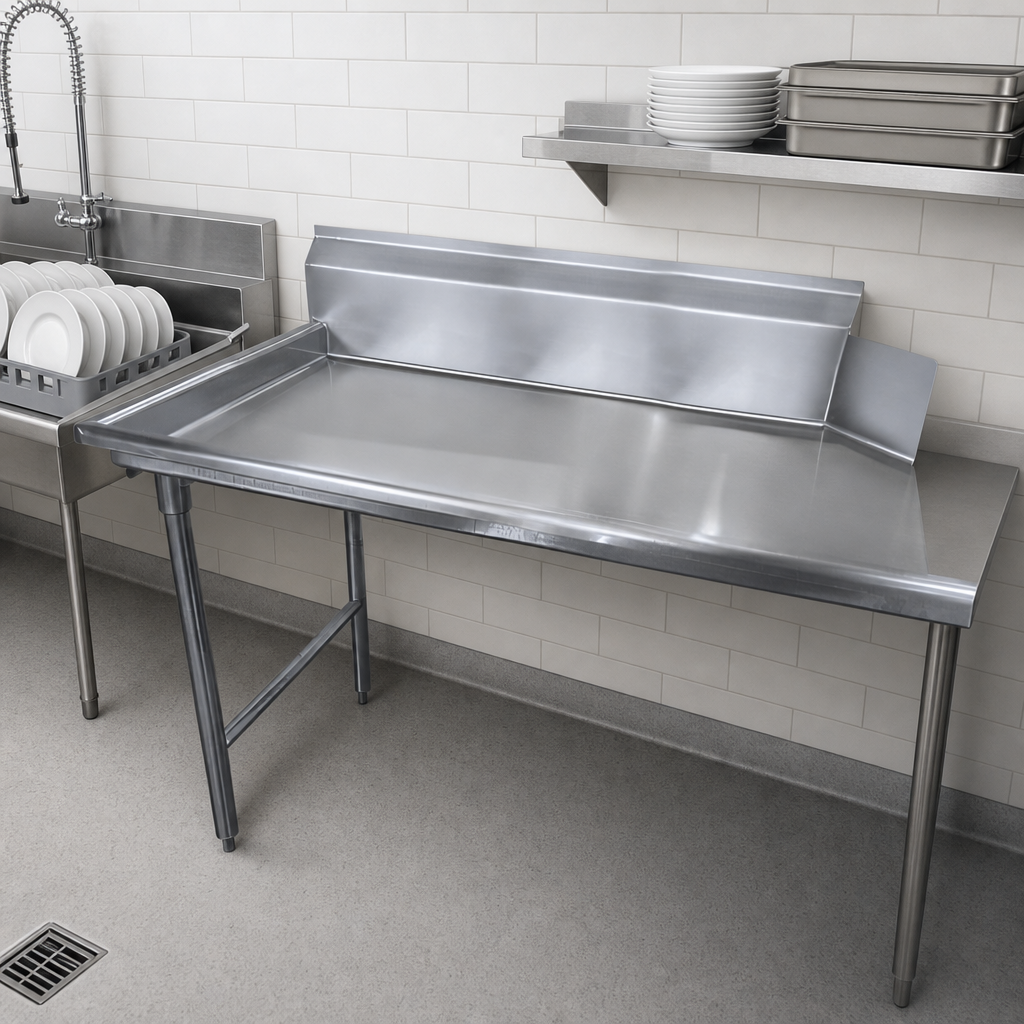

Advance Tabco Spec-Line Clean Straight Dishtable – 10 ft (Left-Hand)
Model DTC-S30-120L | 14 ga 304 Stainless Steel TopDesigned for the clean side of your warewashing line, this heavy-duty dishtable attaches to the operator’s left and provides a spacious, sanitary landing area for racks of spotless dishes as they exit the machine.
Key Features
- Clean, straight configuration—mounts to the operator’s left side of most conveyor or door-type dish machines.
- Premium 14 ga Type 304 stainless steel top stands up to daily commercial abuse and harsh chemicals.
- 10-1/2" high backsplash with 2" return and tile-edge for a fast, watertight wall installation.
- 3" rolled front & side rims contain water and offer a comfortable work edge.
- 1-5/8" Ø, 16 ga 304 stainless steel legs with welded crossrails & adjustable stainless bullet feet for unbeatable stability.
- All TIG-welded construction; welds are blended to a uniform satin finish for easy cleaning.
- NSF listed and proudly made in the USA.
Technical Specifications
| Overall length | 119" (10 ft nominal) |
|---|---|
| Overall depth | 30" |
| Working height | 34" |
| Backsplash height | 10-1/2" with 2" return, tile-edge |
| Front / side rims | 3" rolled |
| Top material | 14 ga 304 stainless steel |
| Legs & crossrails | 16 ga 304 stainless steel, welded |
| Feet | Stainless bullet feet, 1" adjustable |
| Configuration | Clean straight – left hand |
| Approx. weight | 250 lb |
Optional Accessories
- Stainless steel undershelf (factory-welded) for extra storage.
- Wall-mounted shelving to keep trays or racks within reach.
- Splash- or deck-mount faucets for quick rinsing or pot filling.
Dish machine compatibility: Always confirm clearance requirements with the Advance Tabco Dish Machine Compatibility Chart or our Smart Fabrication™ team before ordering.
Need a different size, right-hand layout, or special modifications? Custom fabrication is available—contact us for details.
