Description

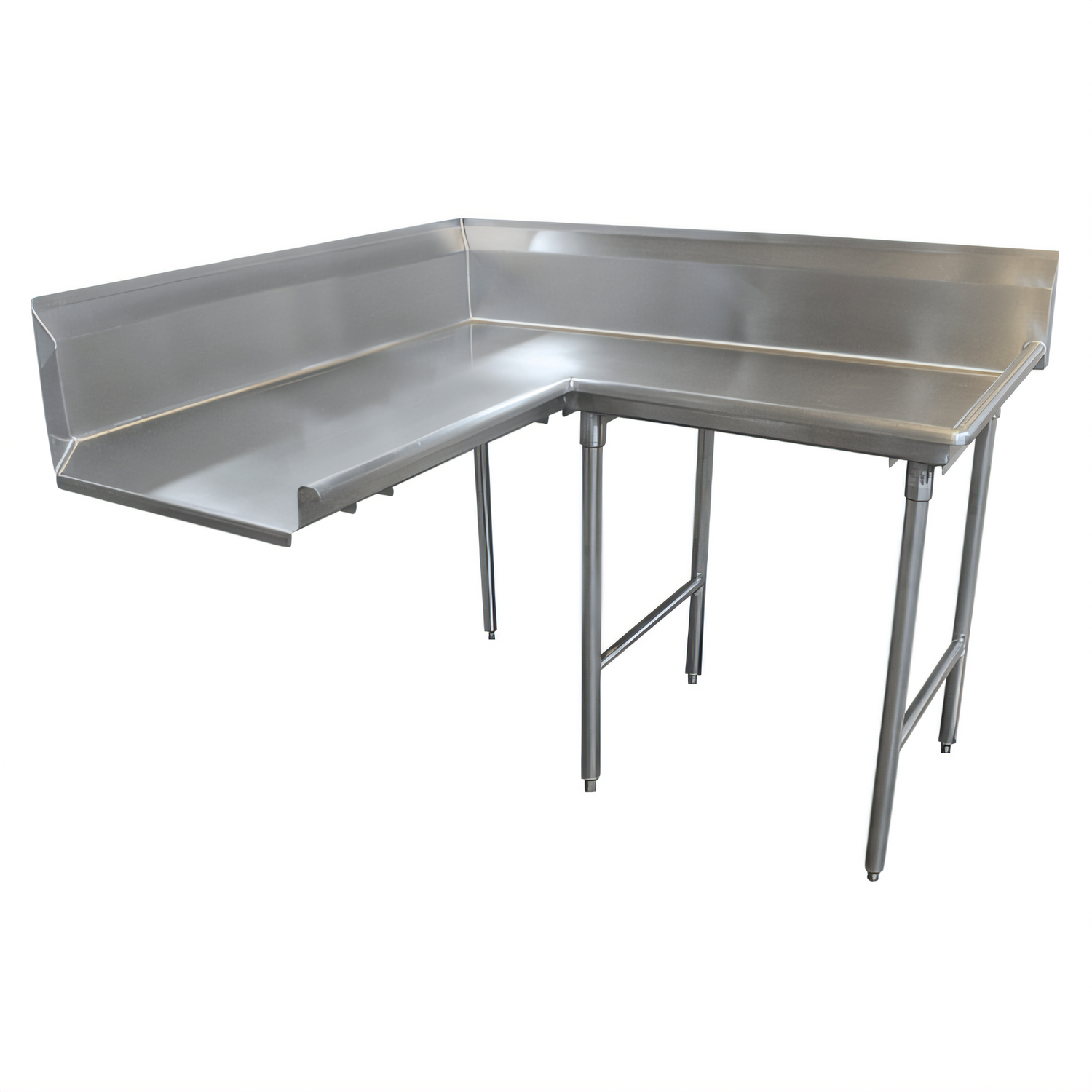

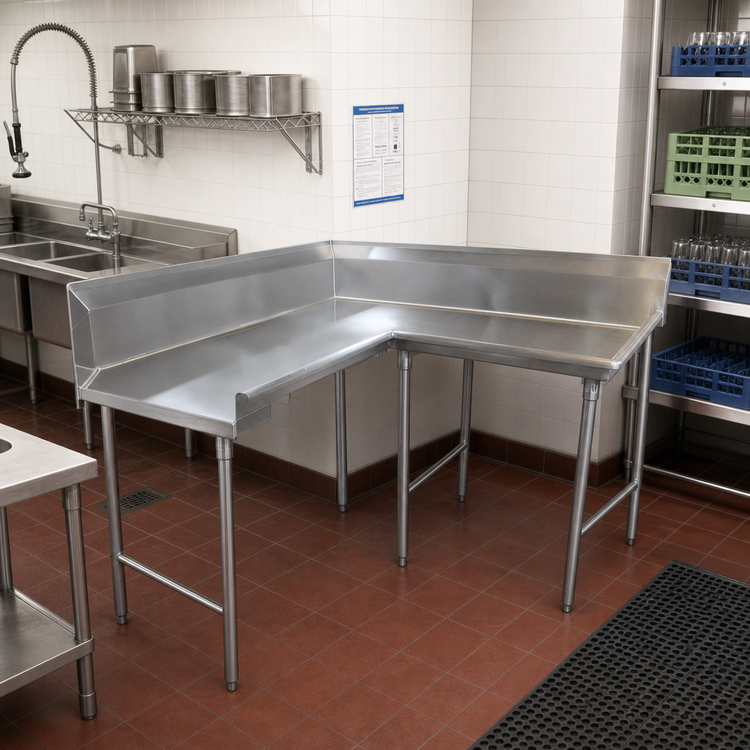

Advance Tabco Korner Clean Dishtable – 83" Right-Side L-Shape

Standard Series • Model DTC-K70-84R

Streamline the clean side of your ware-washing line while keeping valuable floor space free. This 83 inch Advance Tabco Korner Clean dishtable mounts to the right of the dish-machine operator, providing a rugged 16-gauge 304 stainless steel work surface, a bold 10 ½" backsplash, and rock-solid leg bracing—all in a compact L-shape that tucks neatly into any corner.

Key Features

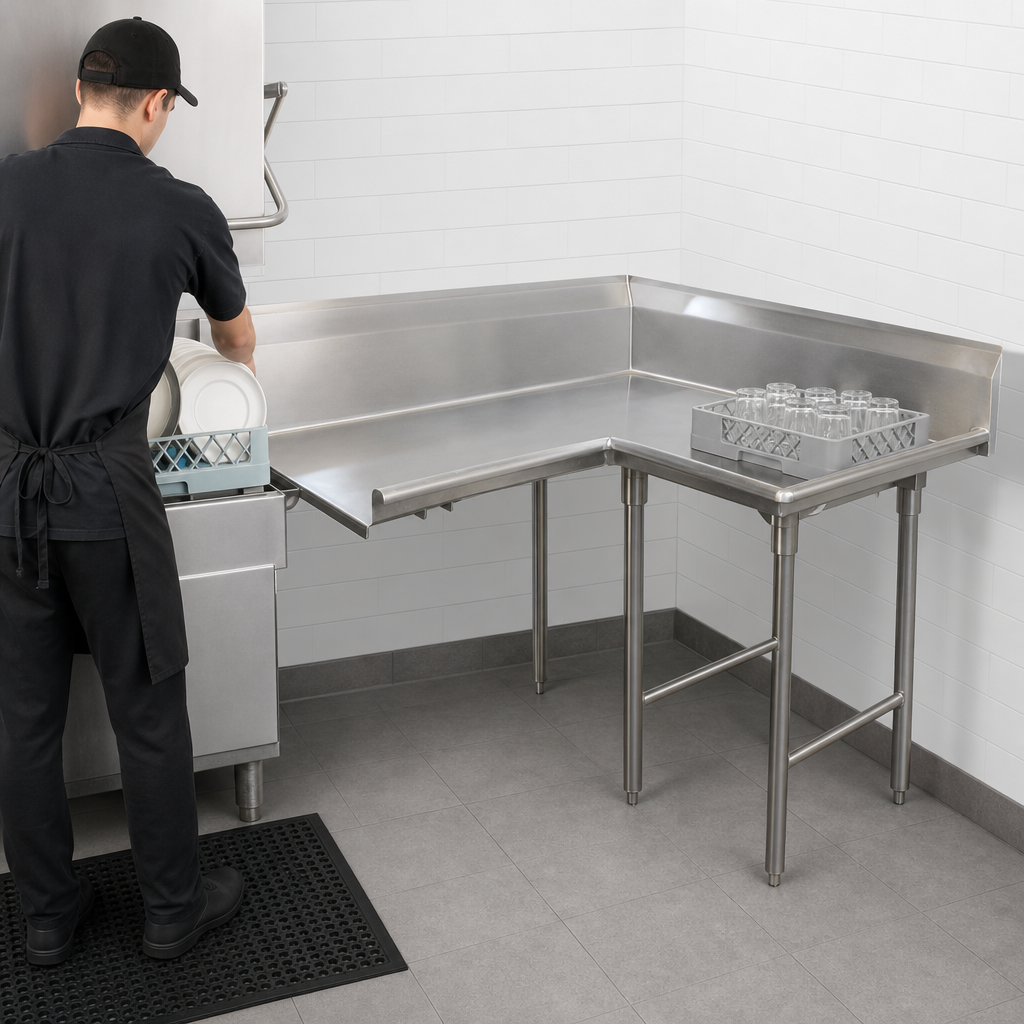

  • L-shaped clean dishtable connects directly to the dish-machine exit on the operator’s right.
  • 16-ga 304 stainless steel top resists corrosion and heavy commercial abuse.
  • 3" rolled front & side rims channel water back to the table—no drips on the floor.
  • 10 ½" high backsplash with 2" tile-edge return for fast, watertight wall installation.
  • 1 ⅝"-diameter 16-ga stainless steel legs with fully welded crossrails for maximum rigidity.
  • Adjustable stainless steel bullet feet (+1") simplify leveling on uneven floors.
  • All TIG-welded construction; welds are ground and polished to a uniform satin finish.
  • NSF listed for easy health-code compliance.

At-a-Glance Specifications

Overall length (nominal) 83" (7 ft)
Table type Clean, right-side, L-shape
Top material 16-ga 304 stainless steel
Backsplash 10 ½" H × 2" return, tile edge
Front & side rims 3" rolled down
Legs / bracing 1 ⅝" Ø 16-ga 304 SS legs with welded crossrails
Feet Adjustable stainless steel bullet feet (±1")
Approx. weight 205 lb
Compliance NSF

Also available from 47" to 143" lengths with optional sinks, undershelves, and wall shelves. Contact us for custom configurations.

Important: Always confirm dish-machine compatibility before ordering. See Advance Tabco’s Dish Machine Compatibility Chart or ask our specialists for assistance.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

245.0lbs

Direction

left to right

Shape

corner

Splash Height

10"H splash

Stainless Series

300 series

Leg Type

stainless steel legs

Width (end - corner) OA

73" - 84"

Stainless Gauge

16 gauge

Width (machine - corner) OA

49" - 60"

Specifications

Korner Clean Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2" backsplash, 3" rolled front & side rims, stainless steel legs, with crossrails, 83" long, 16 gauge 304 stainless steel
