Advance Tabco DTC-K30-84L Korner Compartment Sinks
Description

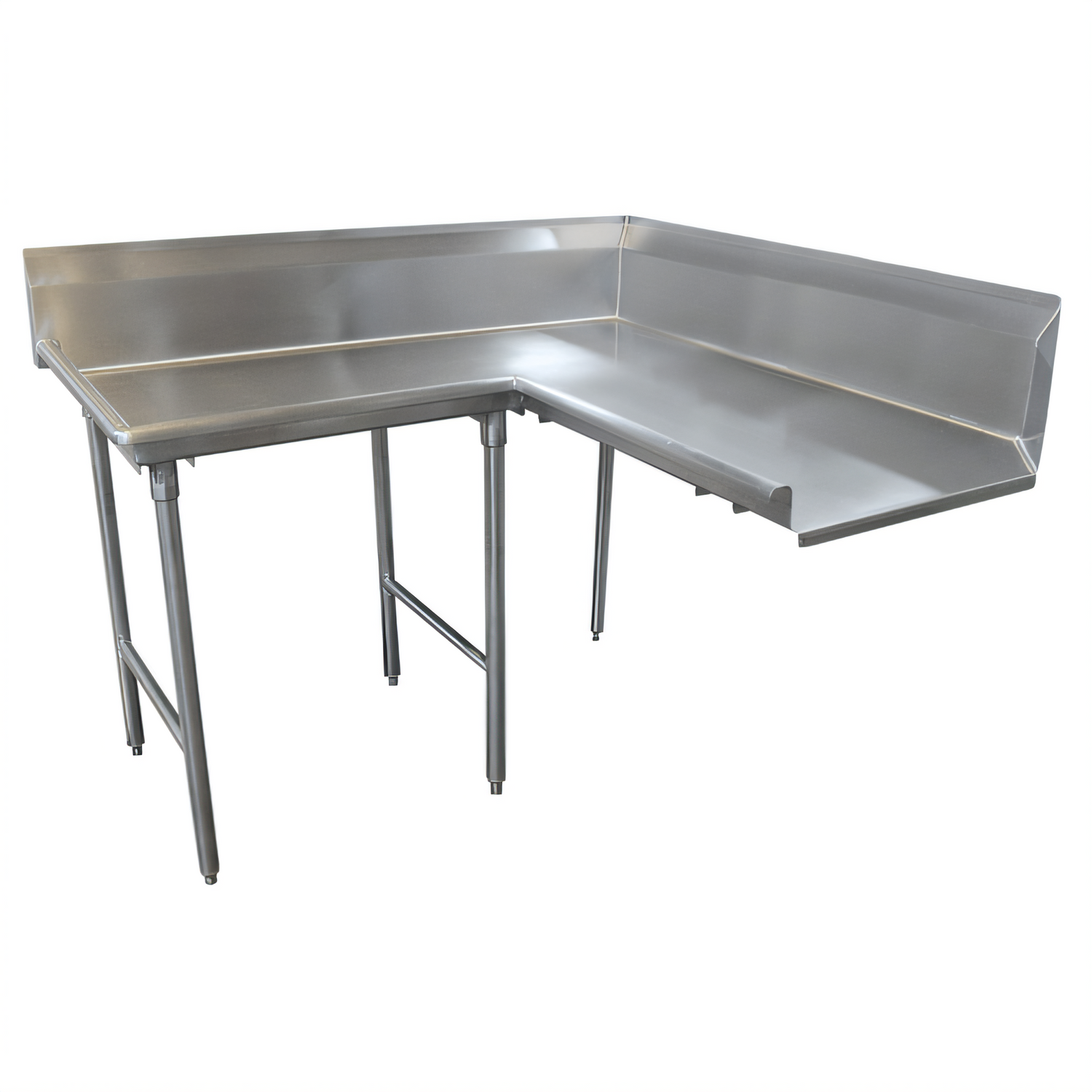

Advance Tabco “Korner” Clean Dishtable – 83" L-Shape (Left Side Mount)
Model DTC-K30-84L • Spec-Line Series • 14 ga 304 Stainless SteelDesigned for busy commercial kitchens that need an ultra-rugged, space-saving clean side solution, the Advance Tabco Korner dishtable attaches to the left of your dish-machine operator and routes clean wares efficiently toward the drying rack. Its 83 inch L-shaped top is fabricated from heavy 14-gauge 304 stainless steel for maximum strength and corrosion resistance.
Why You’ll Love It
- 14 ga 304 SS Top – extra-thick, food-safe, and virtually rust-proof.
- 10 ½" Backsplash with 2" return & tile edge for a sanitary, easy-to-seal wall joint.
- 3" Rolled Front & Side Rims keep drips contained and protect staff from sharp edges.
- 1 5⁄8" Ø Stainless Legs with welded crossrails eliminate wobble under heavy loads.
- All TIG-welded construction; welds are blended to a seamless satin finish.
- Adjustable stainless bullet feet allow quick, level installation on uneven floors.
- L-shape maximizes corner real estate and streamlines dish room traffic flow.
Technical Specs
| Overall length | 83" (nominal 7 ft) |
|---|---|
| Top material / gauge | 304 SS, 14 gauge (Spec-Line) |

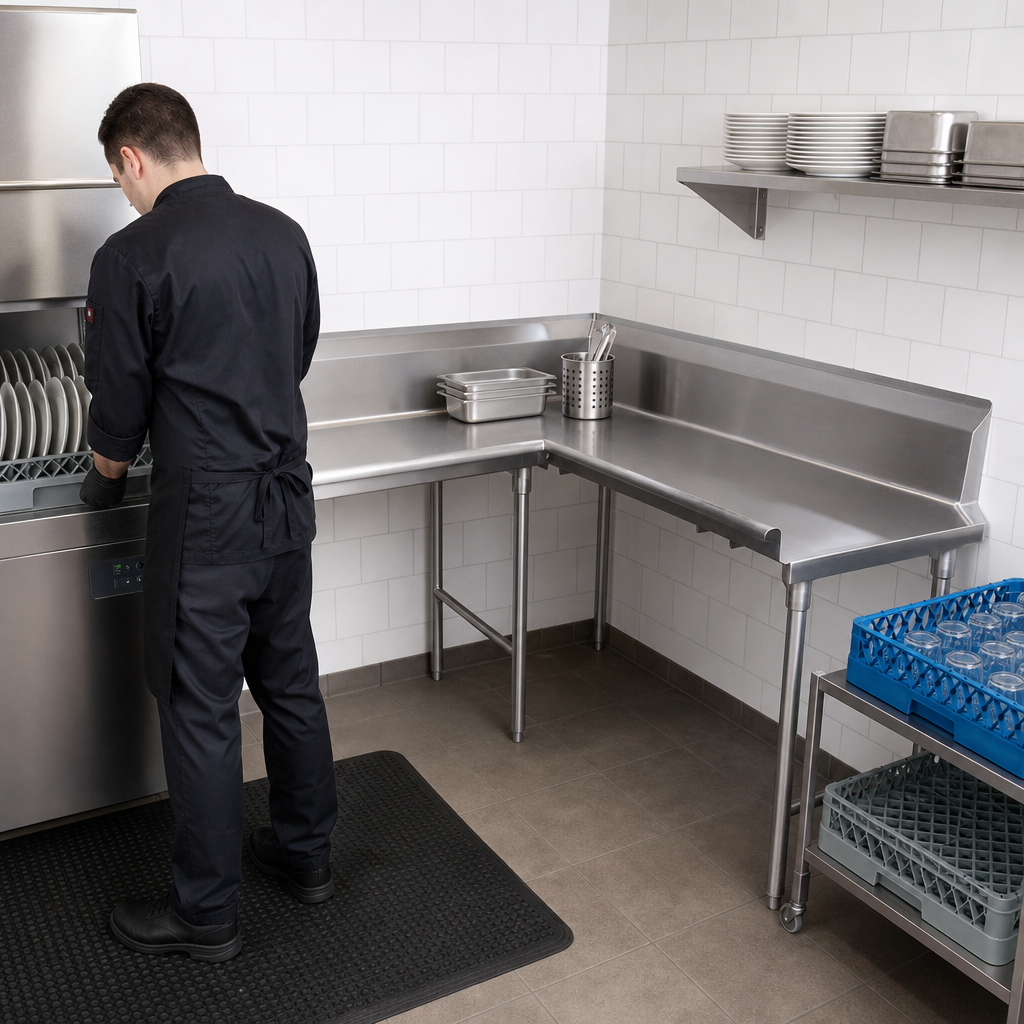

| Mount orientation | Left of dish-machine operator (clean exit) |
| Backsplash height | 10 ½" H × 2" return, tile edge |
| Front & side rims | 3" rolled, 180° hemmed safety edge |
| Work height | 34" to tabletop • 44 ½" to splash top |
| Legs / bracing | 1 5⁄8" Ø 16 ga 304 SS legs with welded stainless crossrails |
| Feet | Stainless bullet feet, 1" height adjustment |
| Weight | Approx. 205 lb |
| NSF listed | Yes |
Installation & Compatibility
- Tile-edge backsplash simplifies sealing to existing wall tile.
- Factory-supplied L-shape mates directly to most standard corner dish machines. Refer to Advance Tabco’s Dish Machine Compatibility Chart to verify clearances.
- Ships knocked down for lower freight cost; simple leg & crossrail assembly with included hardware.
Need a different length, right-hand configuration, or undershelf? Reach out for a custom quote – thousands of Smart Fabrication™ options are available.
