Advance Tabco  |  Korner  |  SKU: DTC-K30-48R  |  UPC: 747545119216

Advance Tabco DTC-K30-48R Korner Compartment Sinks

$3,099.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

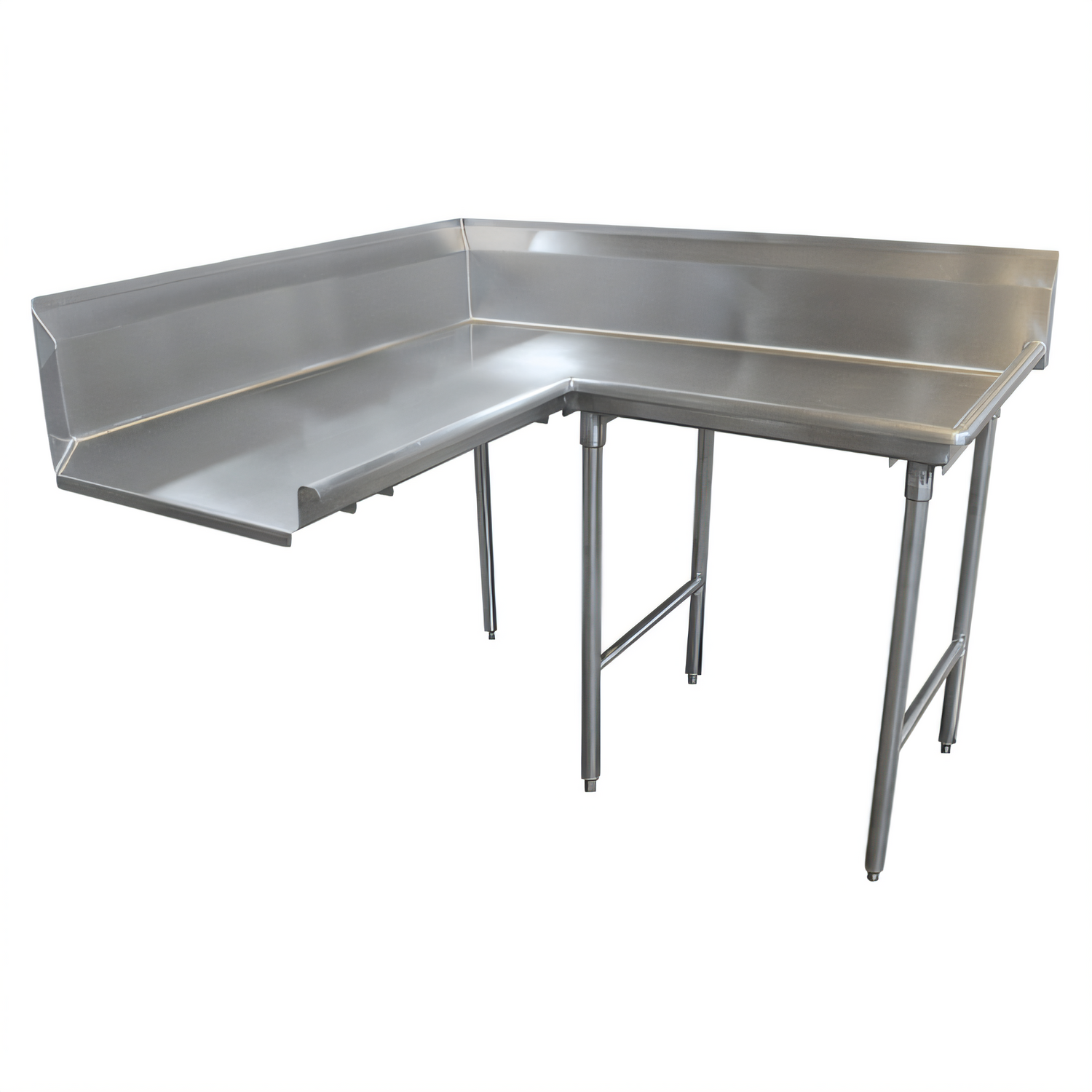

Advance Tabco “Korner” Clean Dishtable – Right Side, 47" L-Shape

Model DTC-K30-48R | 14 ga. 304 stainless steel top

Maximize corner space and keep the clean side of your dish machine organized with this heavy-duty L-shaped dishtable from Advance Tabco’s Spec-Line series. Built from rugged 14 gauge 304 stainless steel, the “Korner” table provides a sanitary, easy-to-install landing area for dish racks exiting the machine.

Key benefits

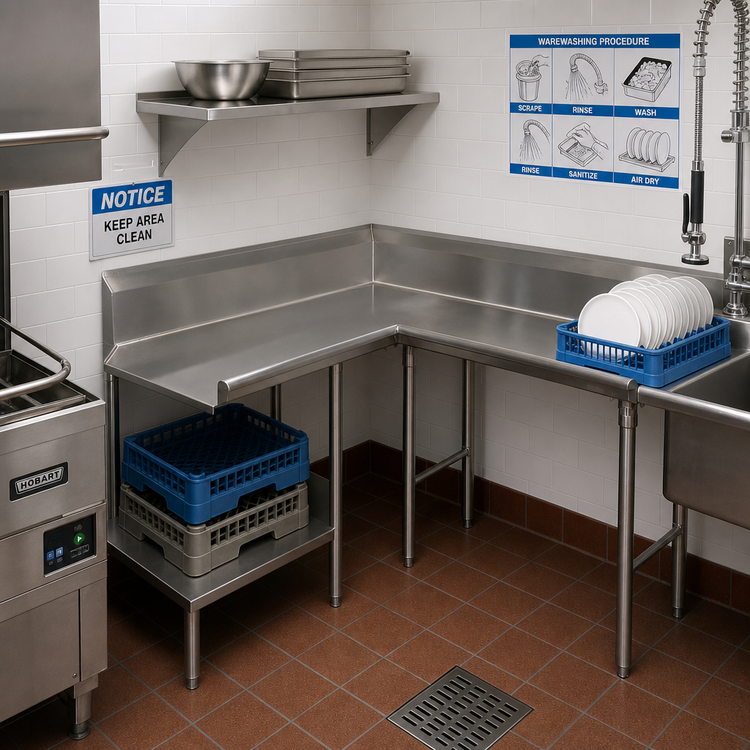

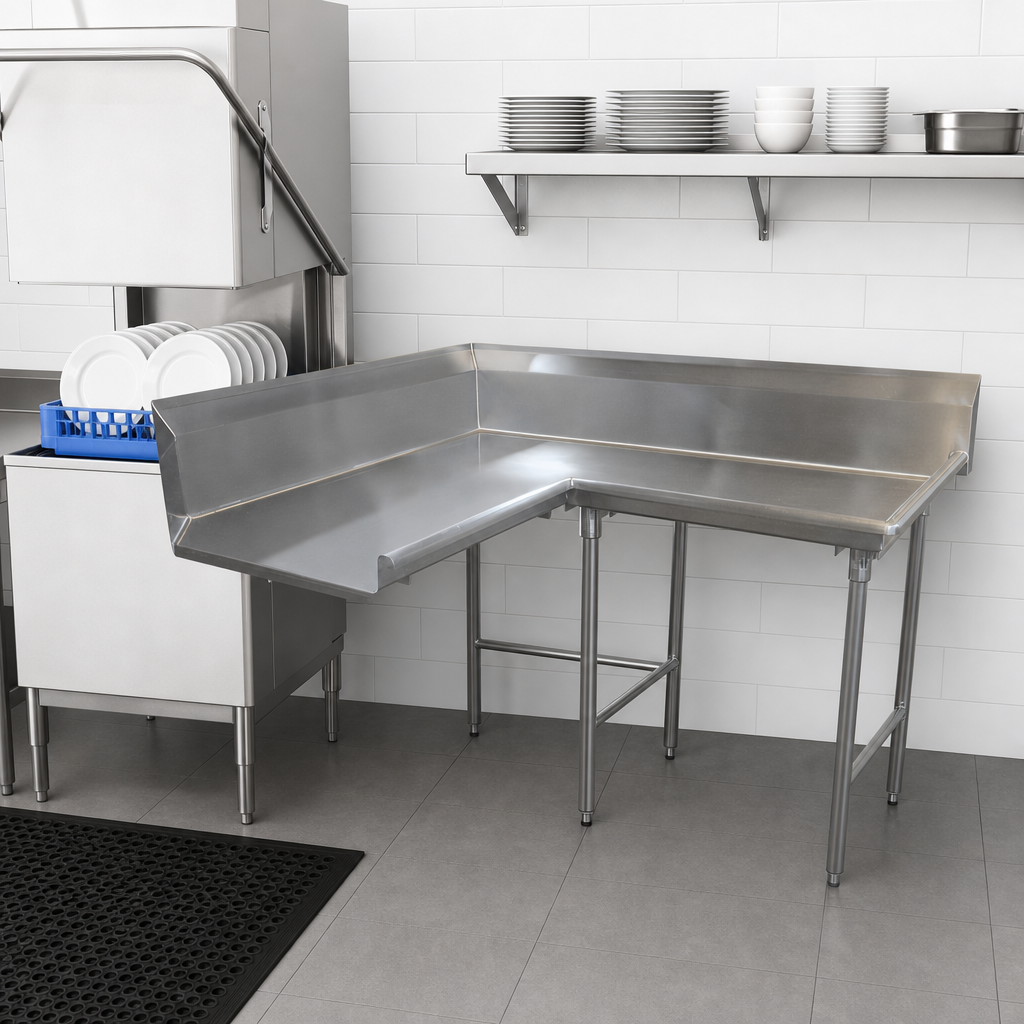

  • Space-saving 90° design mounts directly to the operator’s right (clean) side of most conveyor or door-type dish machines.
  • One-piece 14 ga. 304 stainless top withstands constant rack impact and high temperatures.
  • 10-1/2" high backsplash with 2" tile-edge return seals tight to walls—no extra trim required.
  • 3" rolled front & side rims contain splashes and add edge rigidity.
  • 1-5/8" Ø 16 ga. stainless legs with TIG-welded crossrails for rock-solid stability.
  • Welds are ground & polished to a smooth, satin finish for a seamless, easy-to-clean surface.
  • Adjustable stainless steel bullet feet keep the table level on uneven floors.
  • NSF listed and built with Advance Tabco Smart Fabrication™ quality.
Specifications
Model DTC-K30-48R (Spec-Line)
Orientation Right – clean side of dish machine
Overall length (L) 47" nominal
Depth 30"
Working height 34" (44-1/2" to top of backsplash)
Top construction 14 ga. type 304 stainless steel, one piece
Backsplash 10-1/2" H with 2" return, tile edge
Front & side rims 3" rolled with 1-1/2" downturn
Legs 1-5/8" Ø, 16 ga. 304 stainless steel
Cross-bracing TIG-welded stainless steel
Feet 1" adjustable stainless bullet style
Approx. weight 145 lb
Certifications NSF
Optional accessories (sold separately)
  • Stainless steel undershelf for bulk storage
  • Wall-mount shelf to keep chemicals above splash zone
Dish machine compatibility: Verify clearance with Advance Tabco’s Dish Machine Compatibility Chart. Some machines require Smart Fabrication™ notches or spacing accessories (e.g., DTA-76, DTA-78).

Need a different length, left-hand orientation, or built-in sink? Contact us for a custom Smart Fabrication™ quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

200.0lbs

Direction

left to right

Shape

corner

Splash Height

10"H splash

Width (machine - corner) OA

49" - 60"

Width (end - corner) OA

37" - 48"

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Stainless Series

300 series

Specifications

Korner Clean Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2" backsplash, 3" rolled front & side rims, stainless steel legs, with stainless steel crossrails, 47" long, 14 gauge 304 stainless steel
