Advance Tabco DTC-K30-144R Korner Compartment Sinks
Description

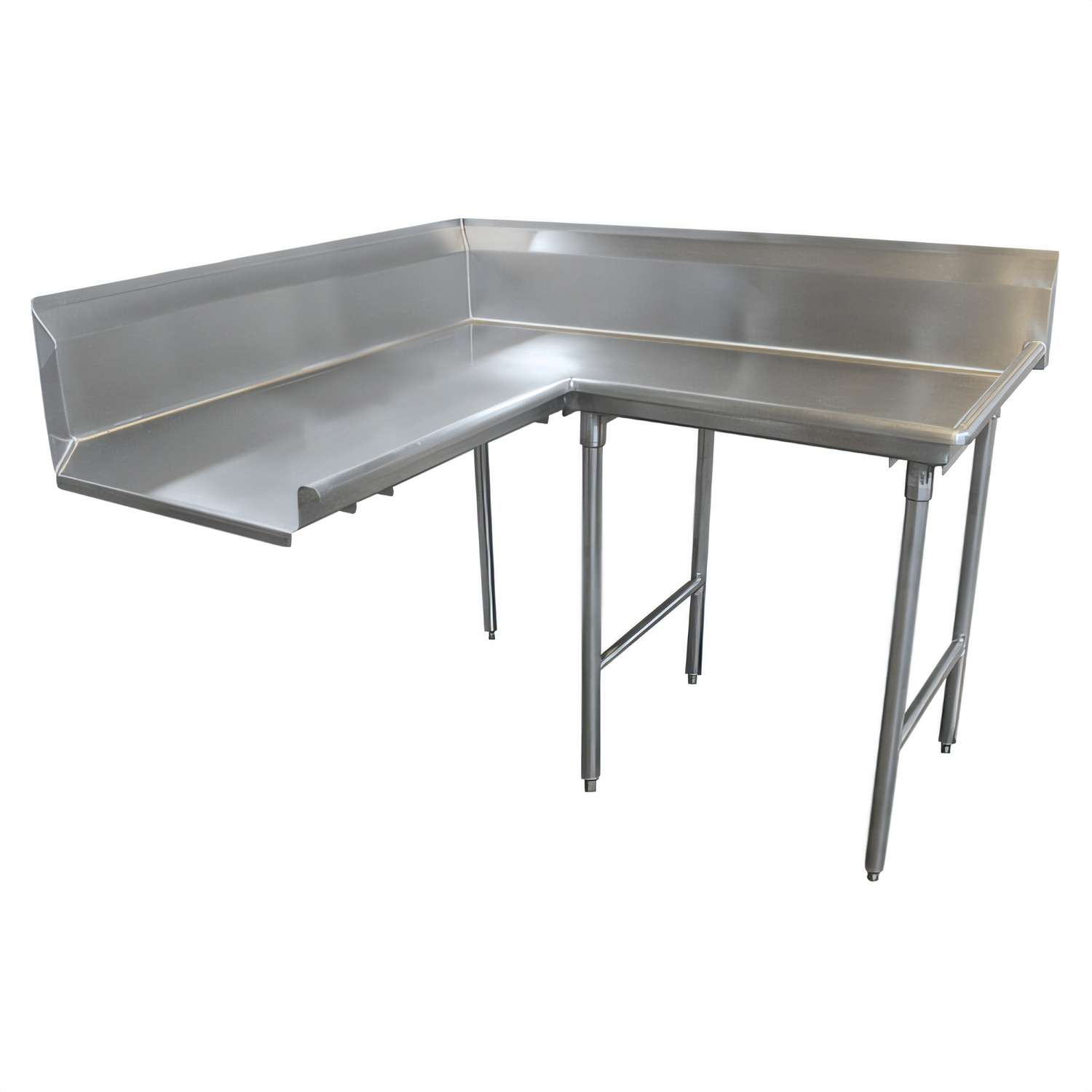

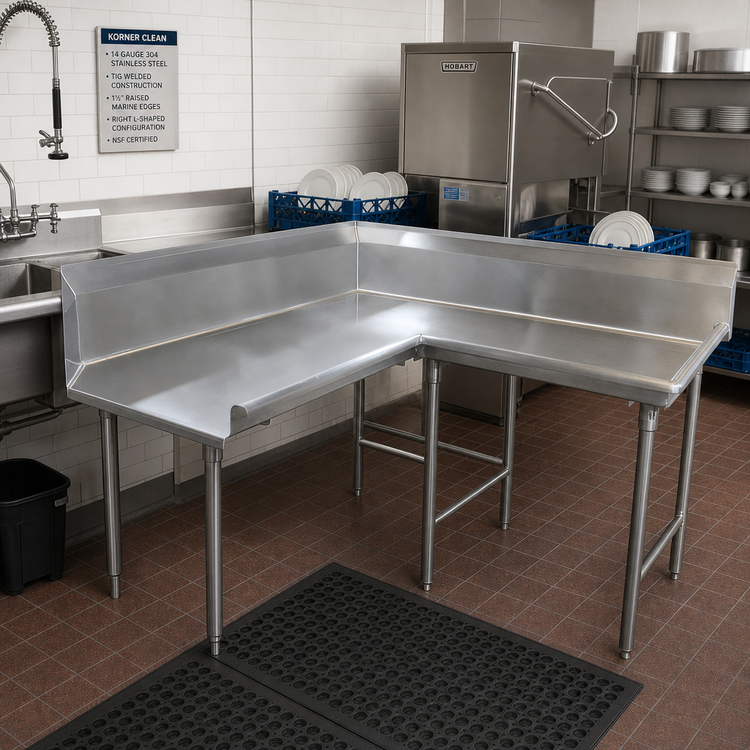

Advance Tabco Korner Clean Dishtable – 12 ft “Clean-Right” L-Shape
Model DTC-K30-144R • Spec-Line 14 ga 304 SS Top • 143" nominal lengthBuild a faster, safer dish room with the heavy-duty Korner Clean Dishtable from Advance Tabco’s Spec-Line series. Designed to mount on the right-hand (clean) exit side of the dish machine operator, this L-shaped table delivers a spacious, splash-free landing zone for racks while maximizing valuable corner space.
Why You’ll Love It
- 14 ga 304 SS work surface – extra-thick for superior dent & warp resistance.
- 10-1/2" backsplash with 2" tile edge return keeps walls dry and installs flush into tiled finishes.
- 3" rolled front & side rims contain spills and protect staff from sharp edges.
- All TIG-welded; welds are ground & blended to a uniform satin finish for easy cleaning.
- 1-5/8" Ø 16 ga stainless legs with welded stainless cross-rails for rock-solid stability.
- Adjustable stainless bullet feet level the table ±1" on uneven floors.

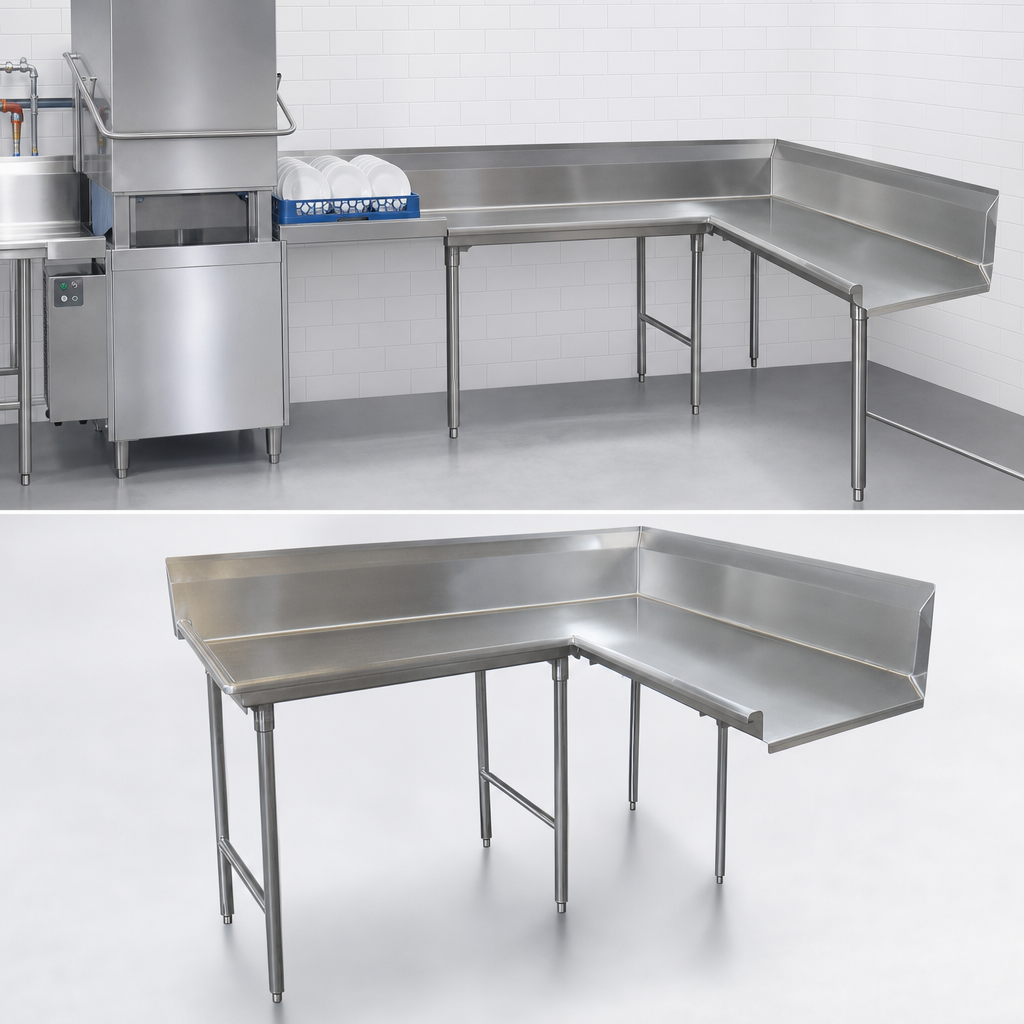

- L-shape fits neatly into 90° corners to free up straight-line wall space.
Perfect For
- High-volume restaurants & hotels
- Institutional kitchens – schools, healthcare, corporate cafeterias
- Caterers & banquet halls seeking efficient tray make-up lines
- Any dish room requiring a dedicated clean-side landing area
Technical Specs
| Model | DTC-K30-144R (Clean-Right) |
|---|---|
| Overall length (L) | 143" nominal (12 ft) |
| Top material & gauge | 14 ga 304 series stainless steel |
| Backsplash | 10-1/2" H with 2" return, tile-edge design |
| Front & side rims | 3" rolled |
| Legs | 1-5/8" Ø, 16 ga 304 stainless w/ stainless bullet feet (1" adjustability) |
| Cross bracing | Welded stainless steel (standard on Spec-Line) |
| Approx. shipping weight | 370 lb |
| Orientation | Mounts to right side of dish machine operator (clean exit) |
| NSF Listed | Yes |
Installation & Options
- Tile-edge return speeds wall integration and simplifies caulking.
- Compatible with most conveyor & door-type dish machines – see dish machine compatibility chart.
- Field-add accessories such as stainless undershelves or wall shelves (sold separately).
Verify dish machine clearance requirements before ordering. Contact Advance Tabco Smart Fabrication™ for custom modifications or accessory recommendations.
