Advance Tabco DTC-K30-144L Korner Compartment Sinks
Description

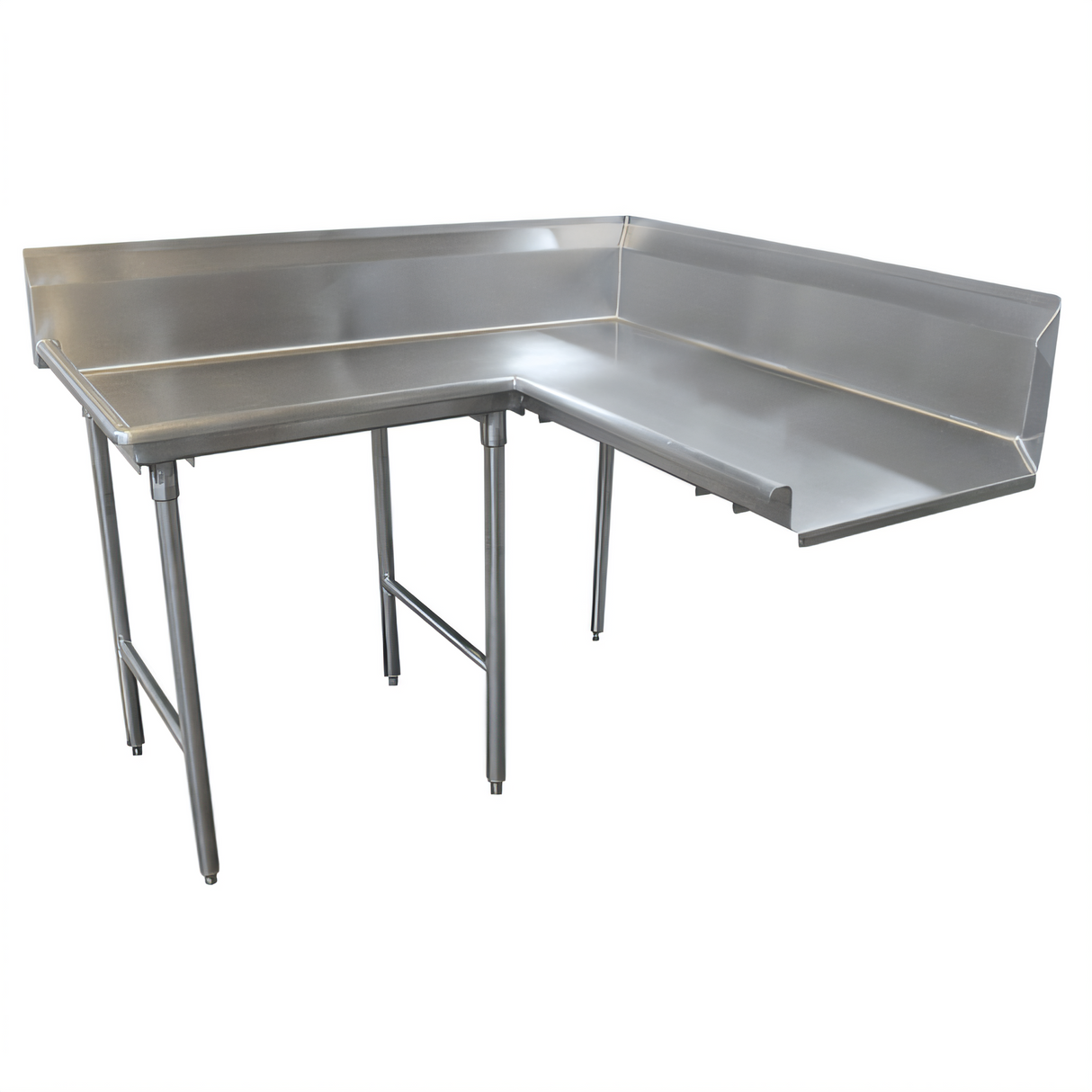

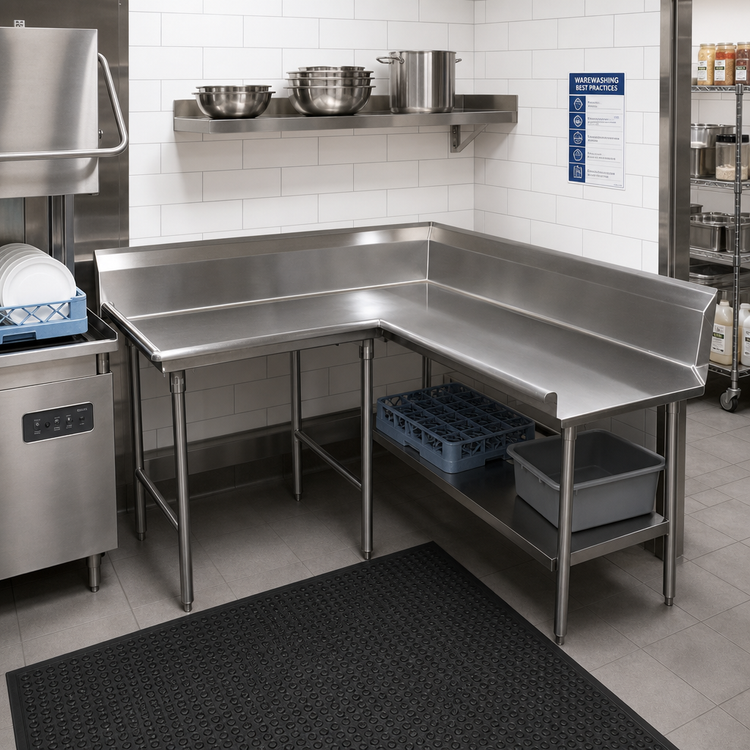

Advance Tabco “Korner” Clean Dishtable – 143" Spec-Line
L-Shaped | Left-Hand Clean Table | 14 Gauge 304 Stainless SteelBuild a seamless, sanitary clean-side landing area for your warewashing station with the Advance Tabco Korner Clean Dishtable. Engineered for heavy-duty food-service use, this Spec-Line model combines a rugged 14 ga stainless top, oversized backsplash, and welded stainless under-structure to deliver years of low-maintenance performance.
Key Features
- Spec-Line construction: 14 ga 304 stainless steel top for maximum rigidity and corrosion resistance.

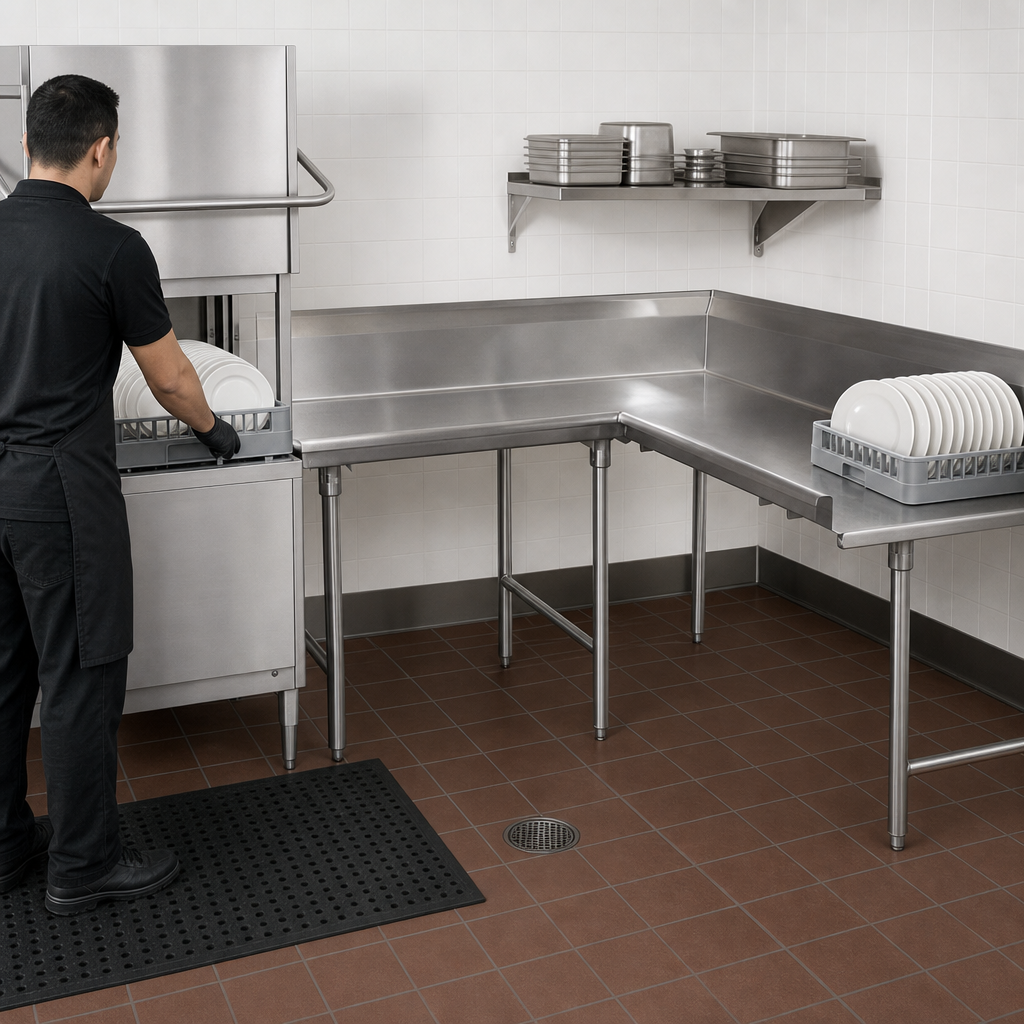

- L-shaped “Korner Clean” design attaches to the left of the dish-machine operator.
- 10-1/2" extra-high backsplash with 2" tile-edge return simplifies field installation and protects walls.
- 3" rolled front & side rims keep water contained and provide a smooth, comfortable edge.
- 1 5/8"-diameter 16 ga 304 stainless steel legs with welded cross rails for rock-solid stability.
- All TIG-welded seams are blended to a sanitary satin finish—no exposed nuts or bolts.
- Stainless steel bullet feet offer 1" of on-site height adjustment.
What’s Included
- (1) DTC-K30-144L clean dishtable top, 143" nominal length.
- Fully welded stainless leg assembly with cross bracing & adjustable feet.
- Factory-installed tile edge for quick, watertight installation against wall tile.
Technical Specifications
| Model | DTC-K30-144L (Spec-Line) |
|---|---|
| Overall Length | 143" (nominal 12 ft) |
| Orientation | Clean table – mounts on operator’s left side |
| Top Material / Thickness | 14 ga type 304 stainless steel |
| Backsplash Height | 10-1/2" with 2" return, tile edge |
| Front & Side Rims | 3" rolled edge, 1-1/2" machine lip |
| Legs | 1 5/8"-dia. 16 ga 304 stainless steel |
| Cross Bracing | Welded stainless steel rails |
| Feet | Stainless steel bullet feet, 1" adjustable |
| Approx. Shipping Weight | 370 lb |
Popular Accessories (Sold Separately)
- Stainless steel undershelf for additional storage.
- Wall-mounted overshelf to keep racks & trays above the worksurface.
- Smart Fabrication™ cut-outs or notches for specific dish-machine models.
Advance Tabco continually improves products and reserves the right to change specifications without notice.
