Advance Tabco DTC-G70-96L Compartment Sinks
Description

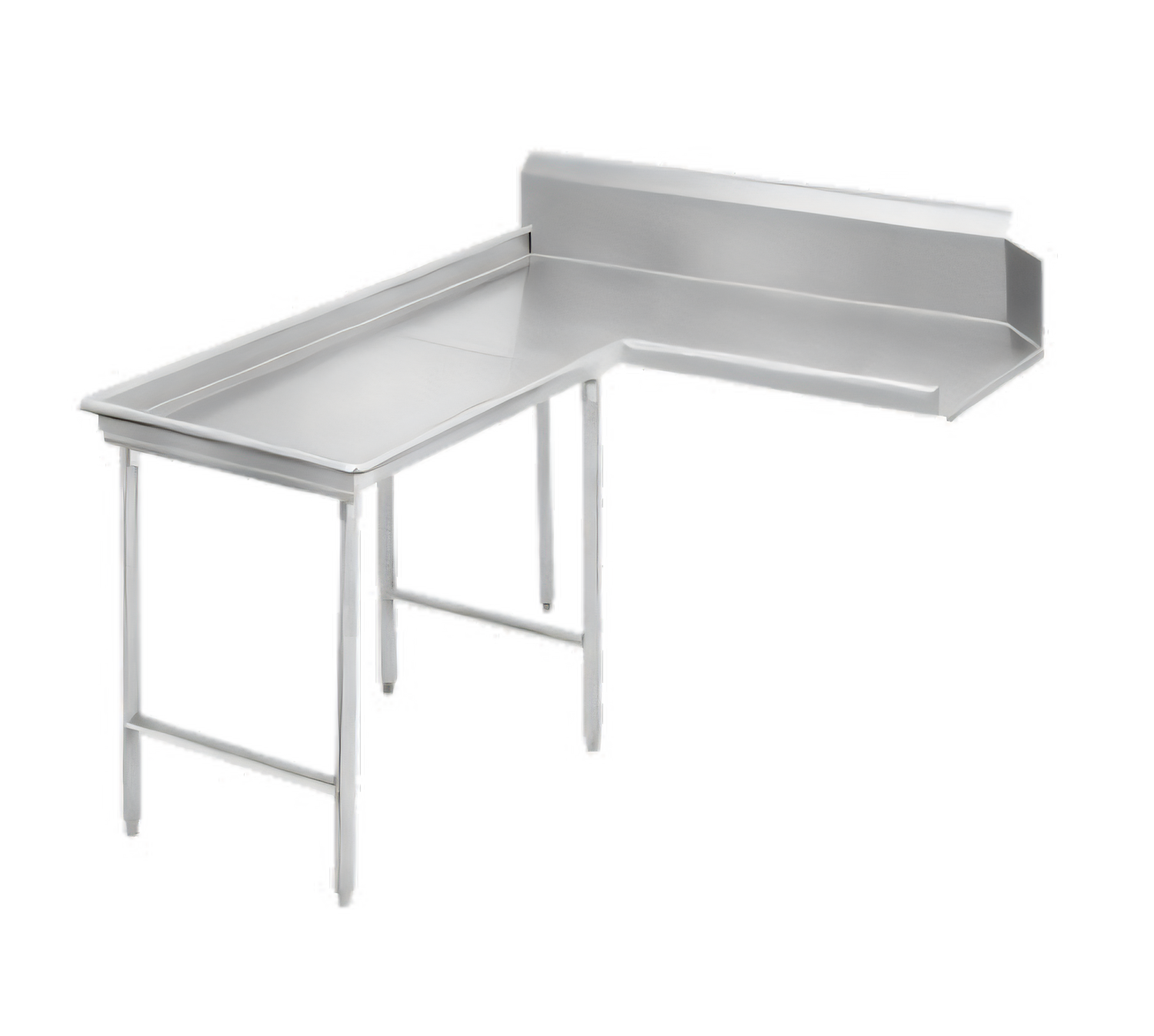

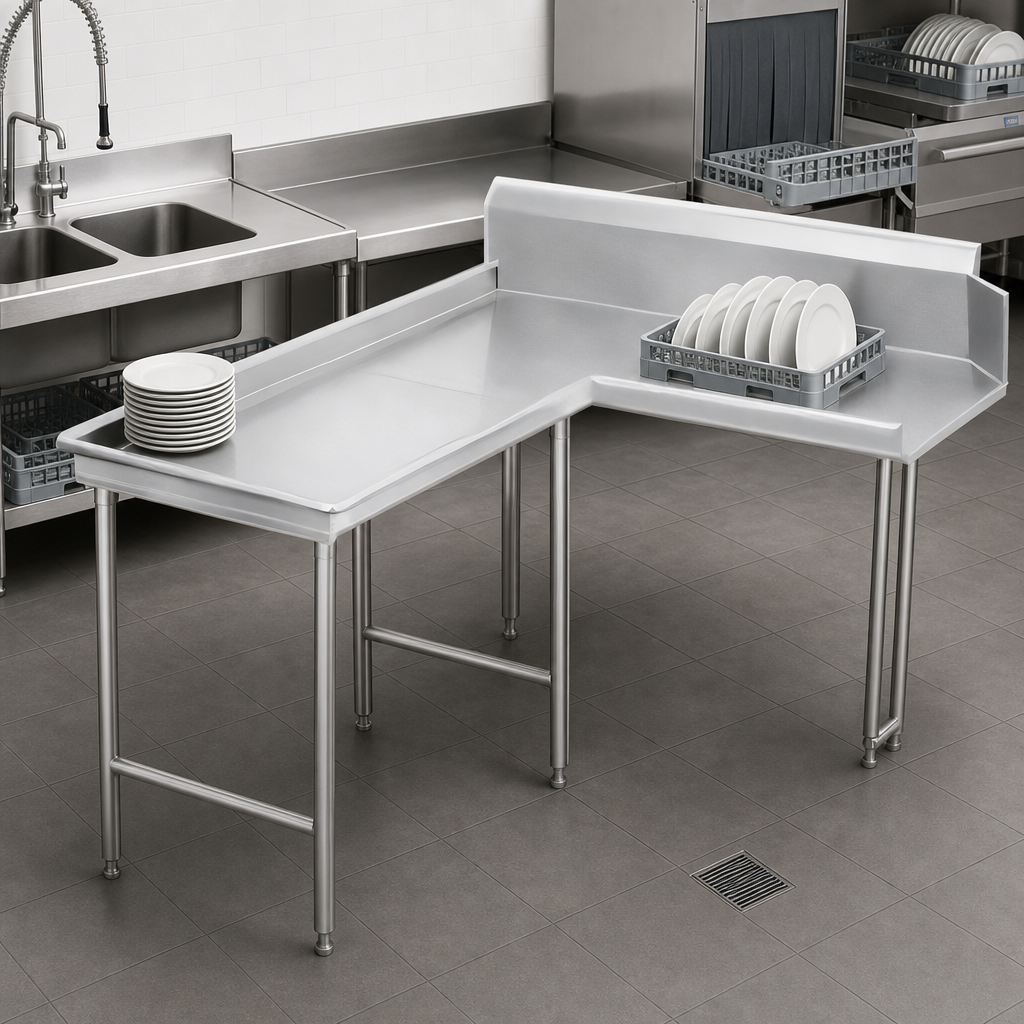

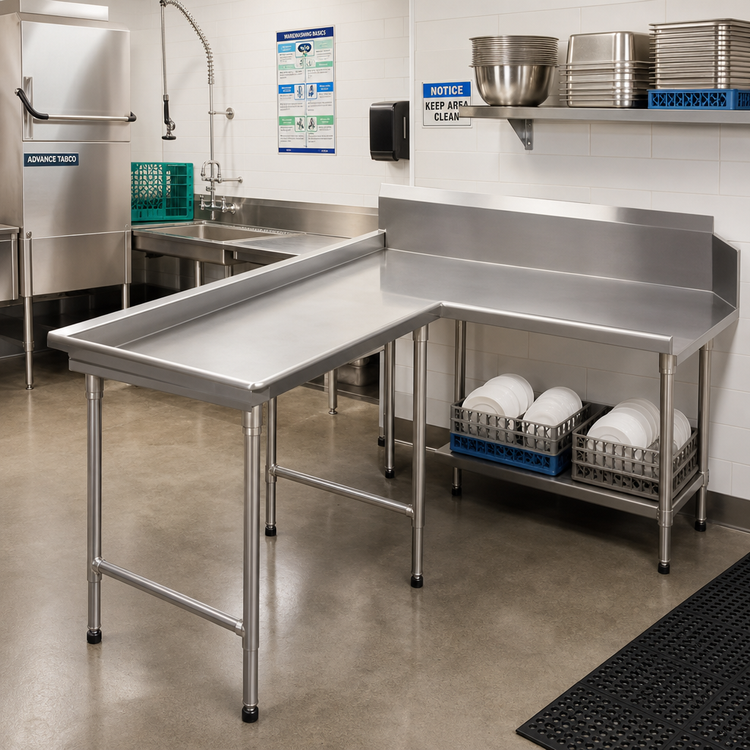

Island-Clean Dishtable – Left Side, L-Shaped, 95"
Advance Tabco • 16 ga 304 Stainless Steel Top & LegsGive your warewashing line a professional, hygienic exit station. This island-style clean dishtable attaches to the left of the dish-machine operator, providing a spacious L-shaped landing area, an extra-tall backsplash, and the rock-solid durability kitchens expect from Advance Tabco.
Key benefits
- 16 ga 304 stainless steel top – corrosion-proof, food-safe, and easy to sanitize.
- 95" main run with a 59" wing along the machine for generous clean-side capacity.
- 10 ½" backsplash (on machine side only) with 2" return & tile edge for a watertight, code-compliant install.
- Island design keeps both long edges accessible for fast rack handling.
- 1-5/8" Ø 16 ga stainless steel legs with welded crossrails for maximum rigidity.
- Adjustable 1" stainless steel bullet feet level the table on uneven floors.
- All TIG-welded construction; welds are blended to a uniform satin finish.
- NSF listed materials & fabrication for commercial foodservice use.
Technical specifications
| Orientation | Island Clean – Left (attaches to operator’s left-hand side) |
|---|---|
| Overall length (L) | 95" nominal (8 ft) |
| Wing length (along dish machine) | 59" |
| Top material / gauge | 304 stainless steel, 16 ga |
| Legs | 1-5/8" Ø 304 stainless steel, 16 ga, with welded crossrails |
| Backsplash | 10 ½" H (59" side only) with 2" return & tile edge |
| Front & end edges | 1 ½" rolled rim, 3/4" downturn |
| Feet | Stainless steel bullet style, 1" height adjustment |
| Weld finish | Ground & polished to match adjacent satin surfaces |
| NSF compliance | Yes |
Popular add-ons
- Stainless steel undershelf (factory-welded die-cast leg clamps—no exposed hardware).
- Matching wall shelf for dish-racks, glass racks, or chemical supplies.
Need a different size, sink bowl, or pre-rinse modification? Advance Tabco’s Smart Fabrication™ team can custom-build to your specs.
