Advance Tabco  |  SKU: DTC-G70-84R

Advance Tabco DTC-G70-84R Compartment Sinks

$2,885.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

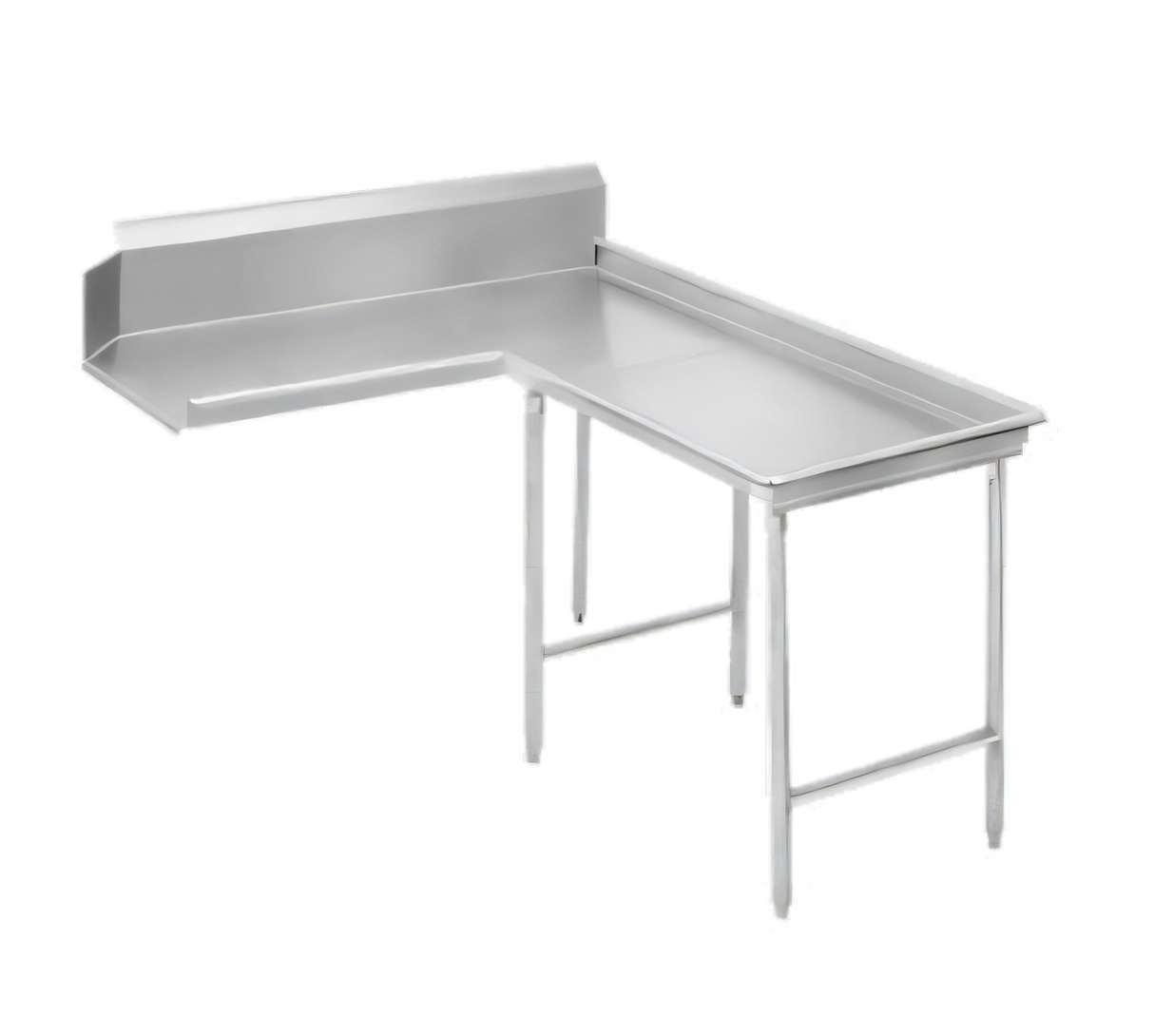

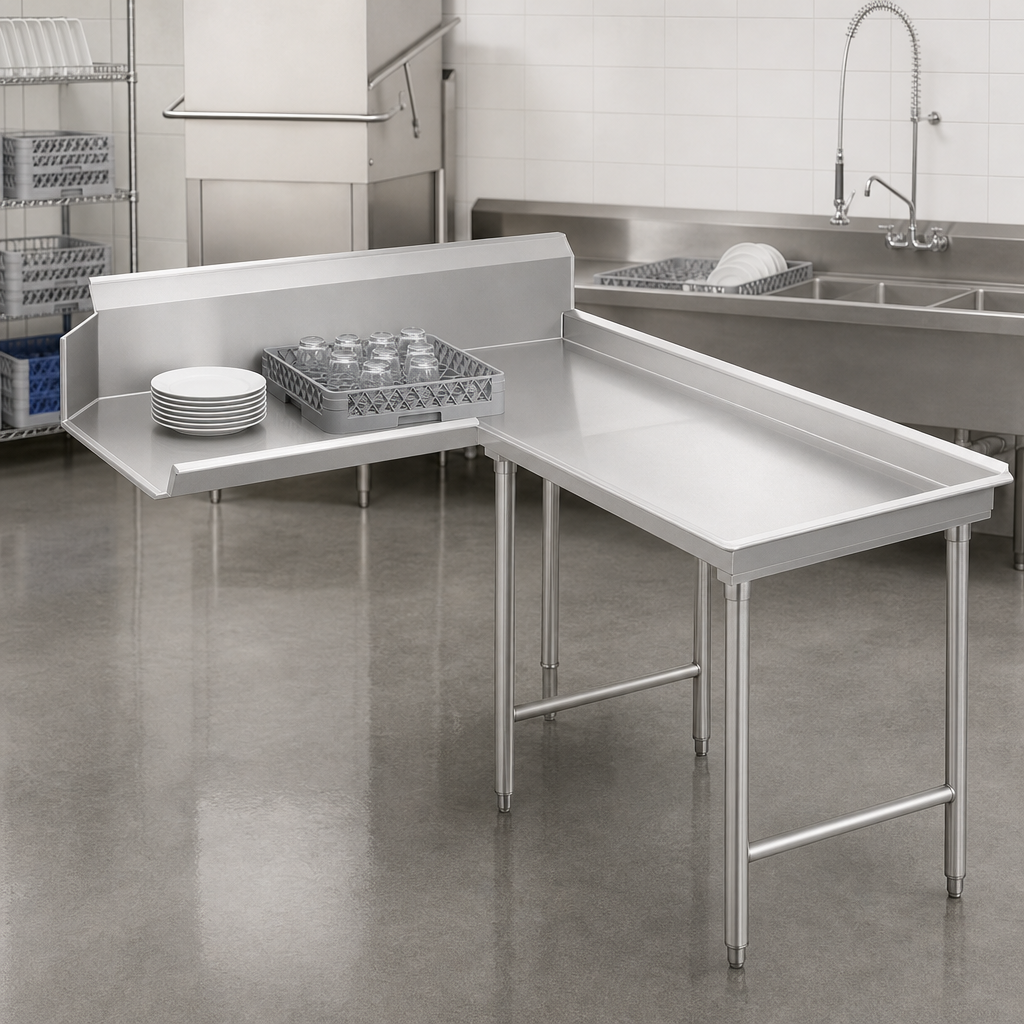

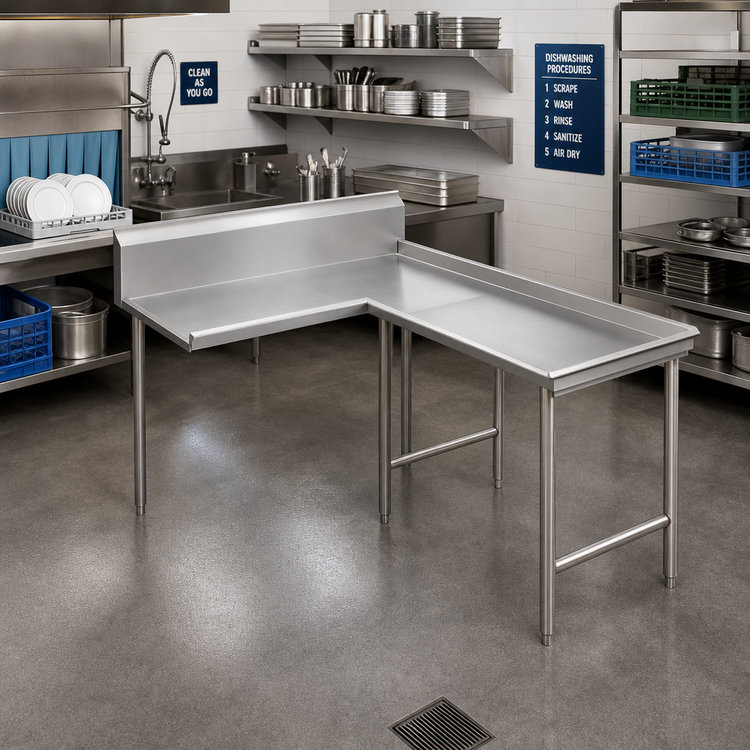

Advance Tabco Island Clean Dishtable – Right, 83″

Model DTC-G70-84R | 16 ga 304 Stainless Steel Top

Engineered for the clean (exit) side of conveyor dish machines, this L-shaped Island Clean dishtable provides a generous landing area, exceptional rigidity, and the sanitation advantages only all-stainless TIG-welded construction can deliver.

Key Features

  • Right-hand configuration mounts to the operator’s right for smooth rack flow.
  • L-shaped footprint: 59″ run against the machine with 30″ return—ideal for drying & sorting.
  • 10-1/2″ high backsplash on the 59″ side with 2″ return and tile-edge for a watertight, code-compliant seal.
  • Durable 16 ga 304 series stainless steel work surface resists corrosion and heavy wear.
  • 1 5/8″ Ø 16 ga 304 stainless steel legs with welded cross rails for maximum stability.
  • Adjustable stainless steel bullet feet (1″ range) simplify leveling on uneven floors.
  • All TIG-welded; welds are ground and polished to a smooth satin finish for easy cleaning.
  • Stainless steel gussets welded to a heavy support channel add lasting rigidity.
  • Nominal 83″ (7 ft) length keeps freight and doorway clearances manageable.

Specifications

Model DTC-G70-84R
Orientation Right-hand (clean/exit side)
Overall Length (L) 83″
Machine-Side Run 59″ (with backsplash)
Return Depth (T) 30″
Work Surface 16 ga 304 stainless steel, satin finish
Backsplash 10-1/2″ H x 2″ return, tile-edge
Legs (5) 1 5/8″ Ø 16 ga 304 stainless with welded cross bracing
Feet Stainless steel bullet feet, 1″ adjustable
Approx. Weight 205 lb
NSF Listed Yes

Popular Options (sold separately)

  • Stainless steel undershelf with die-cast leg clamps (no exposed hardware).
  • Wall-mount overshelf for additional storage.
  • Smart Fabrication™ notches, openings or sink bowls for custom dish machine layouts.
Important: Before ordering, confirm compatibility with your dish machine using the Advance Tabco Dish Machine Compatibility Chart. Certain models may require Smart Fabrication™ modifications.

Questions? Call 1-800-645-3166 or email customer@advancetabco.com.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

240.0lbs

Direction

left to right

Shape

island

Splash Height

10"H splash

Stainless Series

300 series

Leg Type

stainless steel legs

Width (end - corner) OA

73" - 84"

Stainless Gauge

16 gauge

Width (machine - corner) OA

49" - 60"

Specifications

Island-Clean Dishtable, island style, L-shaped, attaches to right of dish machine operator, 10-1/2" backsplash on 59" side only, with 2" return, stainless steel legs, with crossrails, 83" long, 16 gauge 304 stainless steel top
