Advance Tabco DTC-G70-84L Compartment Sinks
$3,029.00
Unit price
/
Unavailable
Description

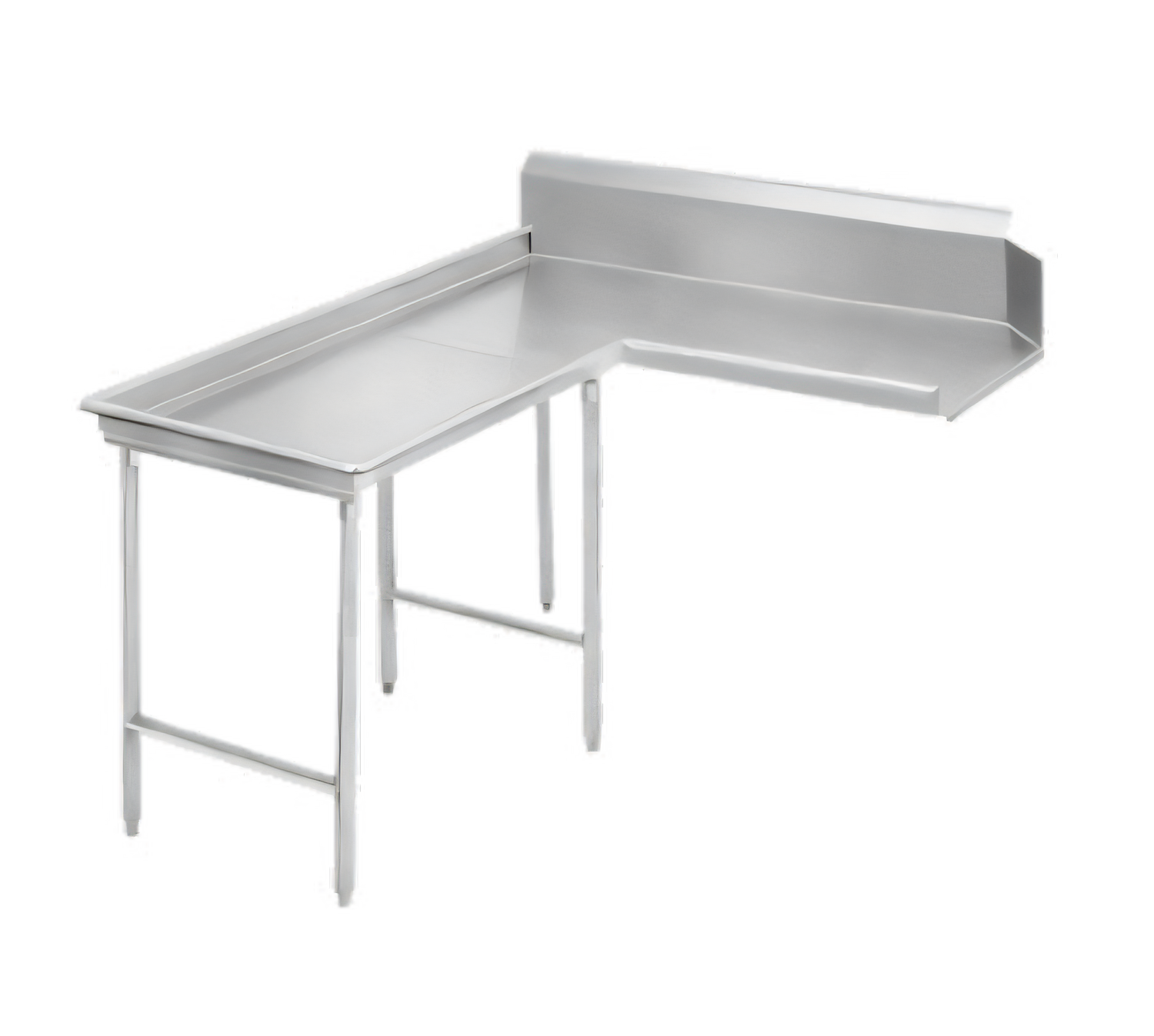

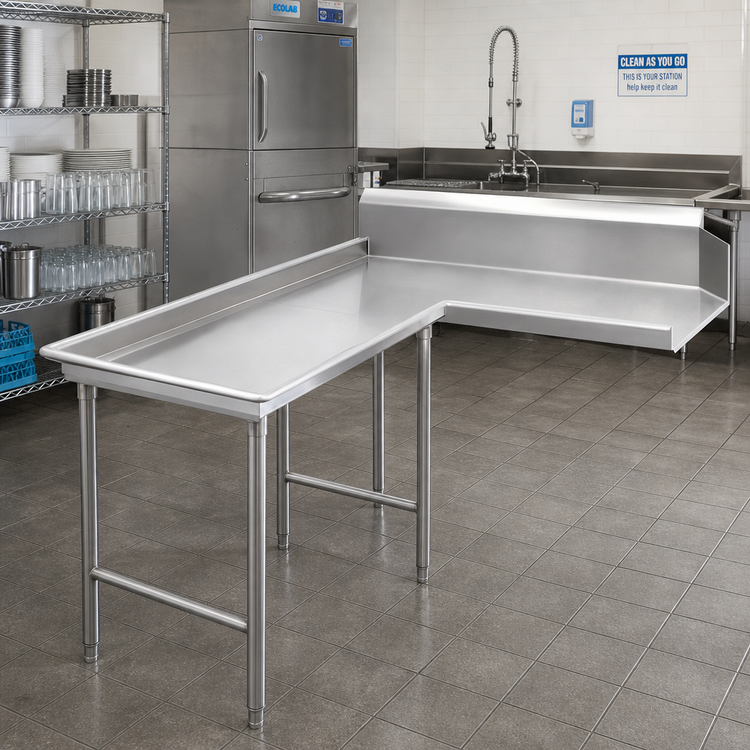

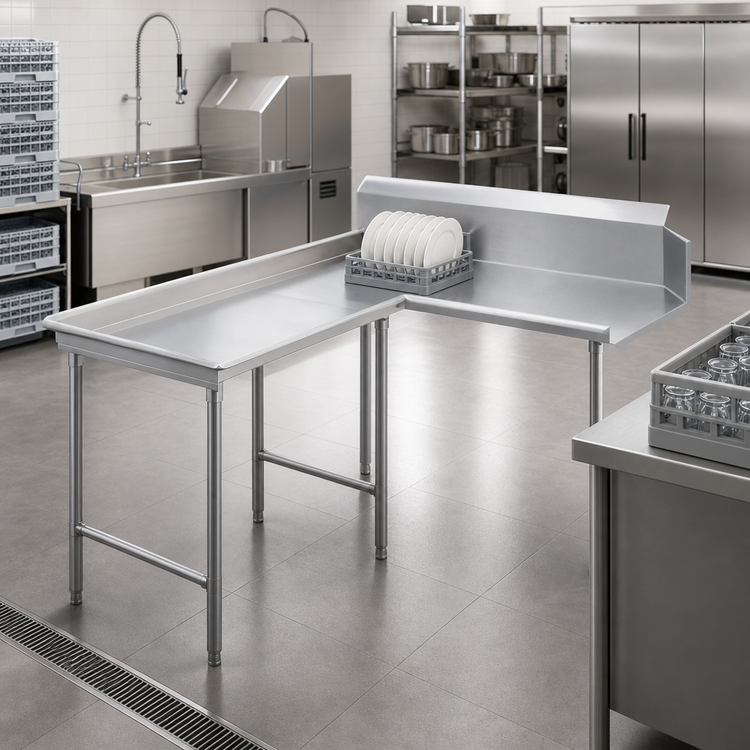

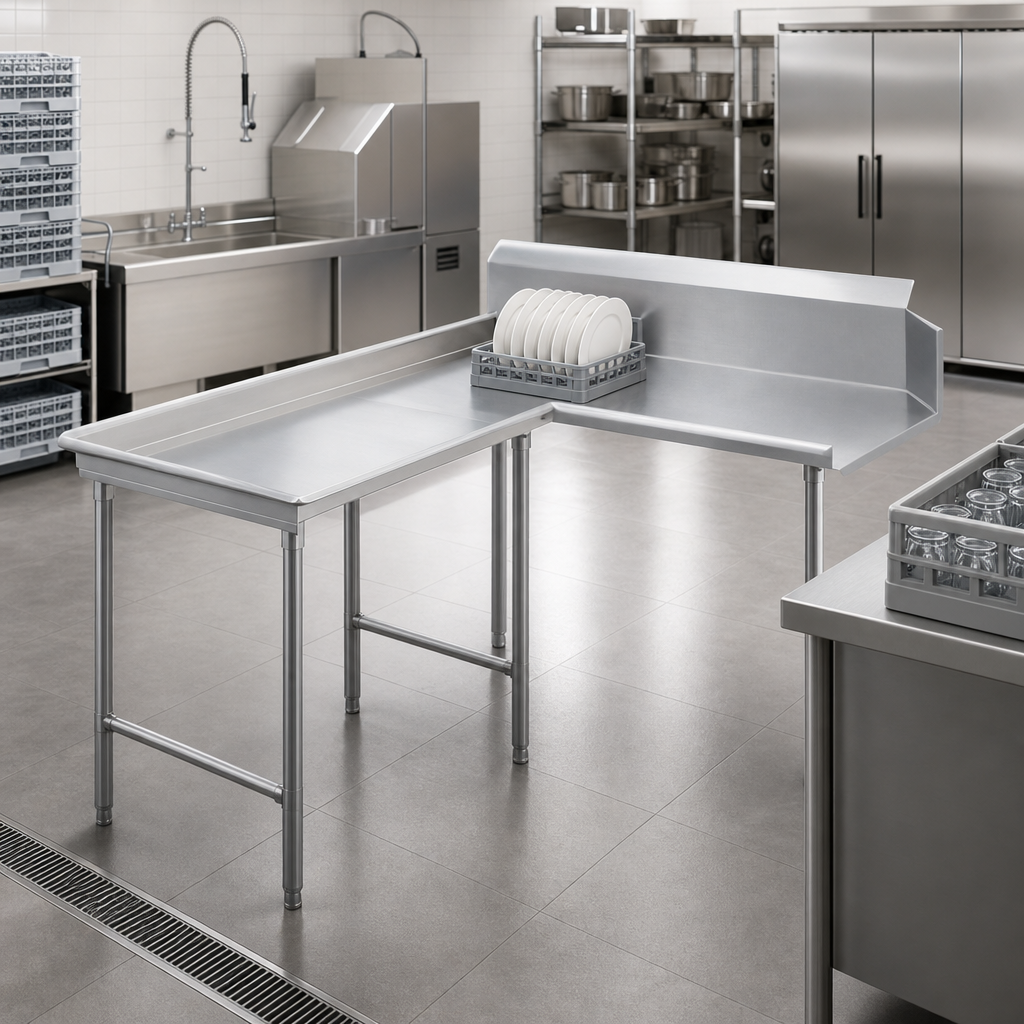

Advance Tabco Island-Clean Dishtable – 83" L-Shaped (Left)
16 ga Type 304 Stainless Steel Top | 10-1/2" High Backsplash | NSFGive racks a spotless landing zone as they exit the dish machine. This rugged island-style clean dishtable is engineered for fast installation, years of daily abuse, and trouble-free sanitation in any commercial kitchen.
Key Features
- L-shaped configuration attaches to the left side of the dish-machine operator for efficient one-way workflow.
- Generous 83" nominal length (7 ft) provides ample landing space for clean wares.
- 16 ga 304 stainless steel one-piece top with satin finish resists corrosion, chemicals & dents.
- Extra-large 10-1/2" backsplash (59" long side only) with 2" return and tile edge for a watertight, code-compliant wall seal.
- 1-5/8"-dia. 16 ga 304 stainless steel legs with welded crossrails and gussets for rock-solid stability.
- Adjustable stainless steel bullet feet level the table on uneven floors.
- All TIG-welded construction; welds are blended for a smooth, easy-to-clean surface.
- NSF listed – built to meet the strictest food-service sanitation standards.
Detailed Specifications
| Nominal Size | 83" L × 59" W (long side) × 29-1/2" W (short side) |
|---|---|
| Orientation | Island Clean – Left (mounts to operator’s left) |
| Top Material & Gauge | 16 ga Type 304 stainless steel, one-piece |
| Backsplash | 10-1/2" H on 59" side, 2" return, tile edge |
| Legs / Frame | 1-5/8"-dia. 16 ga 304 stainless steel legs with welded crossrails & gussets |
| Feet | Stainless steel bullet feet, 1" height adjustment |
| Working Height | 34" (standard) |
| Approx. Shipping Weight | 205 lb |
| Finish | Satin – blended & polished |
| Advance Tabco Series | DTC-G70 (Standard Series, 16 ga top) |
| Suggested Model # | DTC-G70-84L |
| Certifications | NSF |
Why It’s Better
- Tile-Edge Splash speeds installation—just run the tile to the edge and seal.
- Cross-Braced Frame eliminates wobble, even when fully loaded with dish racks.
- 304 Stainless Throughout (top, legs, gussets & feet) for maximum corrosion resistance in wet environments.
Important: Dish machines vary! Always verify required clearances before ordering.
Consult the Advance Tabco Dish Machine Compatibility Chart or call 1-800-645-3166 for assistance.
Need undershelves, wall shelves, or custom modifications? Ask about Advance Tabco Smart Fabrication™ options to tailor your clean-side setup.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.0in
Shipping Weight
240.0lbs
Splash Height
10"H splash
Shape
island
Leg Type
stainless steel legs
Stainless Series
300 series
Stainless Gauge
16 gauge
Width (end - corner) OA
73" - 84"
Direction
right to left
Width (machine - corner) OA
49" - 60"
Specifications
Island-Clean Dishtable, island style, L-shaped, attaches to left of dish machine operator, 10-1/2" backsplash on 59" side only, with 2" return, stainless steel legs, with crossrails, 83" long, 16 gauge 304 stainless steel top
