Advance Tabco  |  SKU: DTC-G70-48R  |  UPC: 747545119056

Advance Tabco DTC-G70-48R Compartment Sinks

$2,717.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

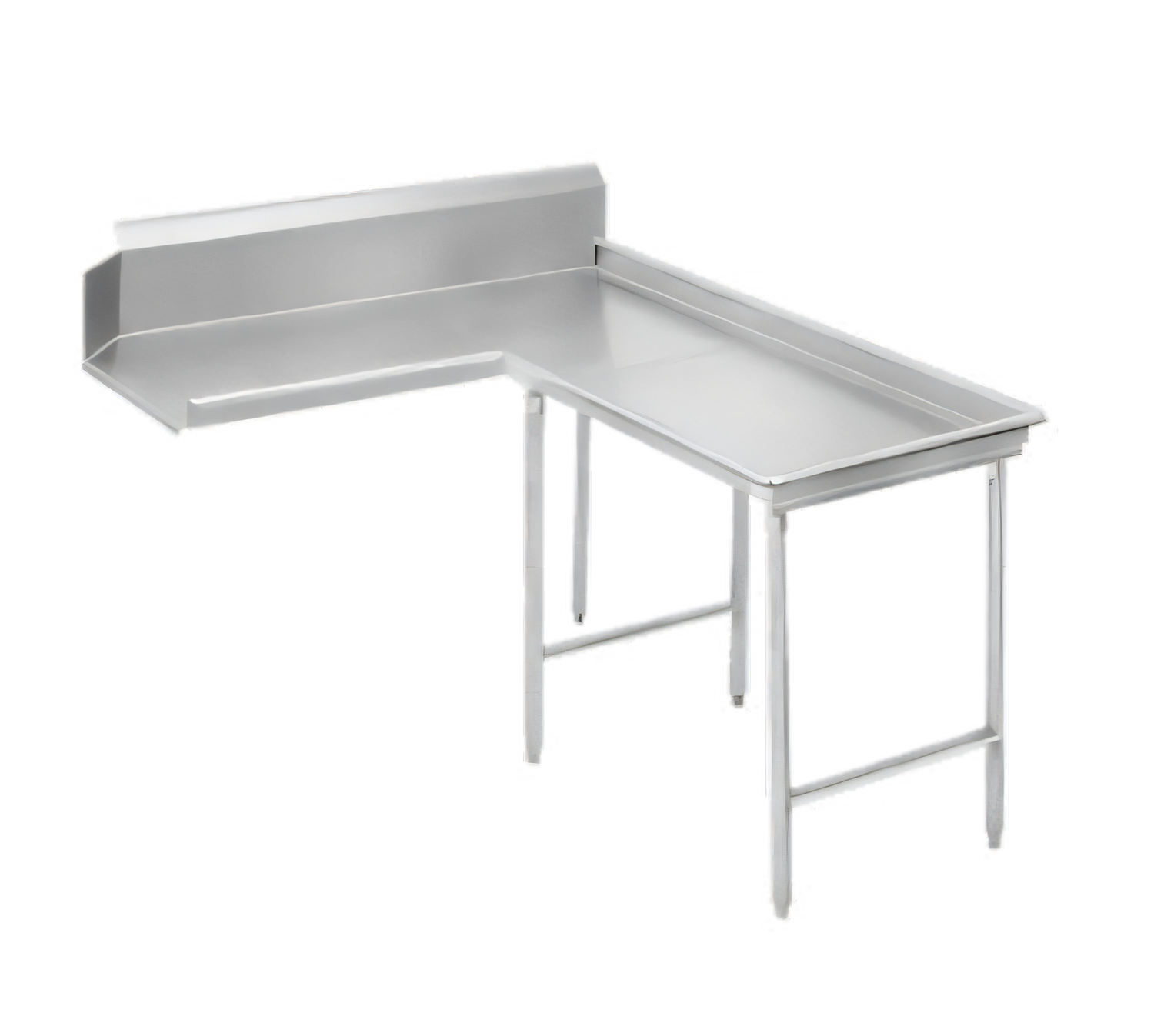

Island-Clean Dishtable – Right Side, 47" L

Advance Tabco DTC-G70-48R | 16-Gauge 304 Stainless Steel

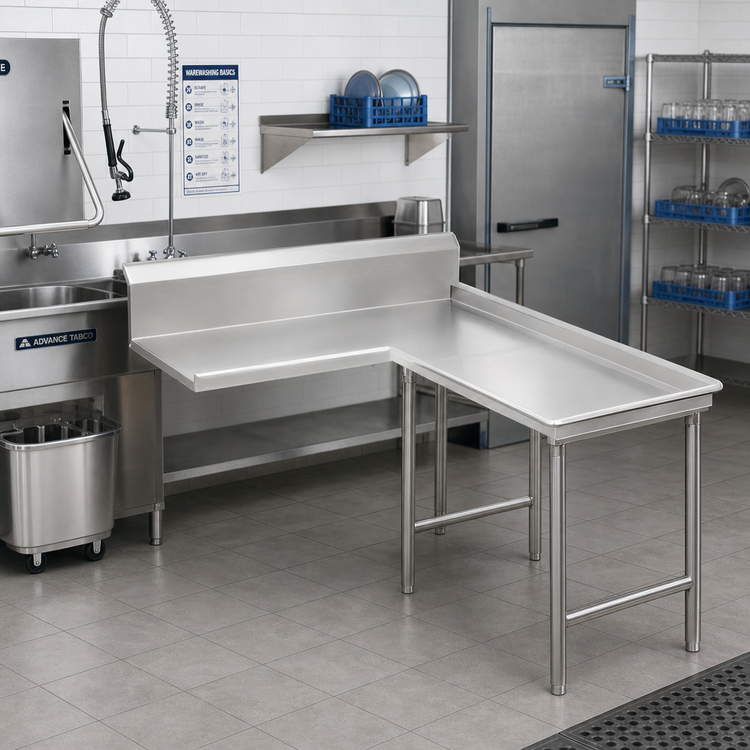

Give your warewashing line a professional finish with Advance Tabco’s island-style clean dishtable. Engineered for the clean/exit side of a commercial dish machine, this rugged L-shaped table provides a generous landing area for racks while its extra-high backsplash keeps water exactly where it belongs.

Key Benefits & Features
  • Heavy-duty 16 ga. 304 stainless steel top – corrosion-proof, food-safe, and NSF compliant.

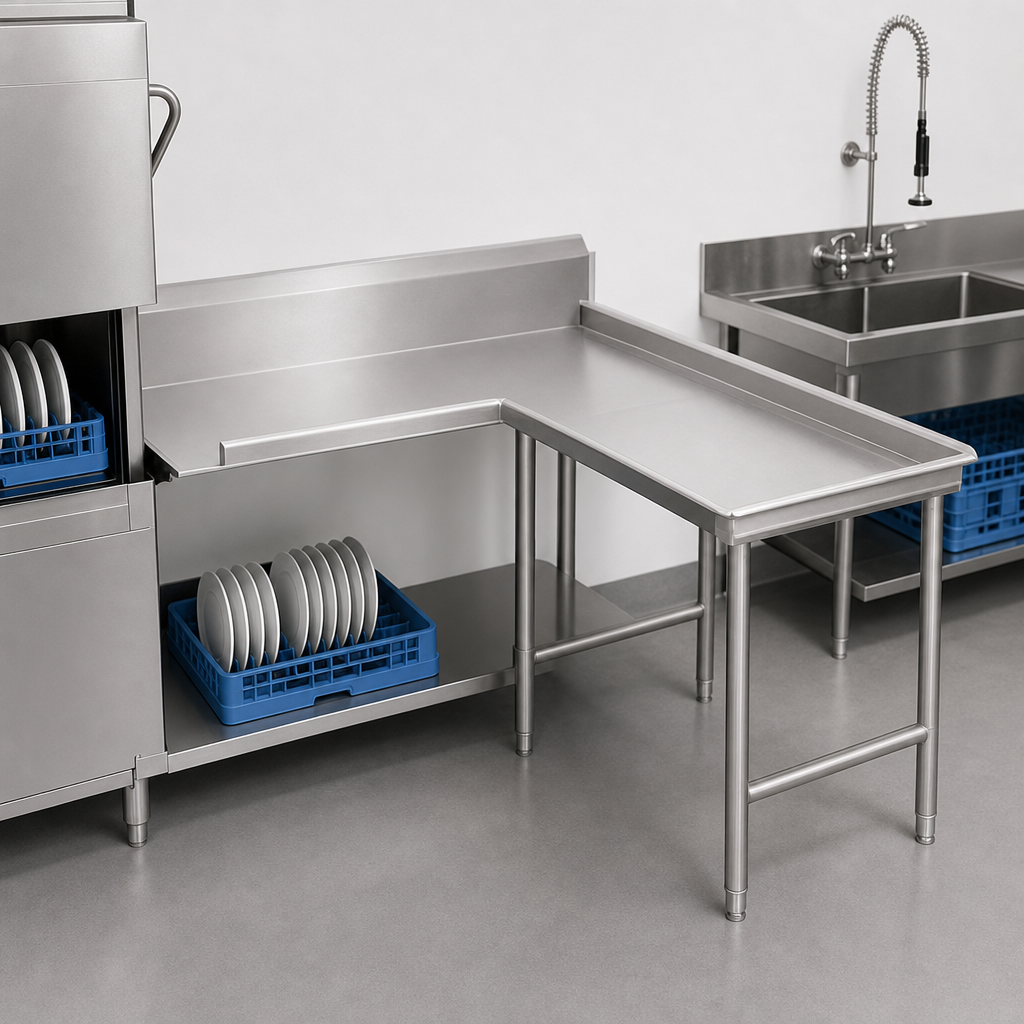

  • L-shaped island configuration mounts to the right of the dish-machine operator.
  • Machine side: 59" long with a bold 10 ½" tile-edge backsplash and 2" return for superior splash control.
  • Entry leg: 47" long – ideal for tight footprints or replacement installs.
  • 1 ⅝" Ø stainless steel legs (16 ga.) with welded crossrails for unmatched rigidity.
  • Adjustable stainless steel bullet feet simplify leveling on uneven floors.
  • All TIG-welded construction; welds are blended to a smooth, sanitary satin finish.
  • Die-cast leg clamp accepts optional undershelf without exposed nuts or bolts.
Technical Specifications
Model / Series DTC-G70-48R   (Standard Island-Clean)
Orientation Right-hand clean table (mounts to operator’s right)
Overall Dimensions 59" W (machine side) × 47" L (leg) × 34" H*Work height; feet adjust ±1".
Backsplash 10 ½" H on 59" side  |  2" return / tile edge
Top Material / Gauge 304 stainless steel  / 16 ga.
Legs & Bracing 1 ⅝" Ø 304 SS legs (16 ga.) with welded crossrails
Feet Adjustable stainless steel bullet feet (1" range)
Approx. Weight 145 lb
Certifications NSF Listed
Popular Accessories (sold separately)
  • Stainless steel undershelf for additional storage
  • Wall-mounted rack shelves
  • Custom sink bowls, drainboards & overshelves via Smart Fabrication™
Important: Dish machines have unique clearance requirements. Verify compatibility or request Smart Fabrication™ modifications before ordering.

Need a different length, left-hand setup, or added sink? Contact us for custom configurations and quick quotes.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

185.0lbs

Shape

island

Direction

left to right

Width (machine - corner) OA

49" - 60"

Splash Height

10"H splash

Stainless Series

300 series

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Width (end - corner) OA

37" - 48"

Specifications

Island-Clean Dishtable, island style, L-shaped, attaches to right of dish machine operator, 10-1/2" backsplash on 59" side only, with 2" return, stainless steel legs, with crossrails, 47" long, 16 gauge 304 stainless steel top
