Advance Tabco DTC-G70-108R Compartment Sinks
Advance Tabco DTC-G70-108R Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTC-G70-108R Compartment Sinks
Description

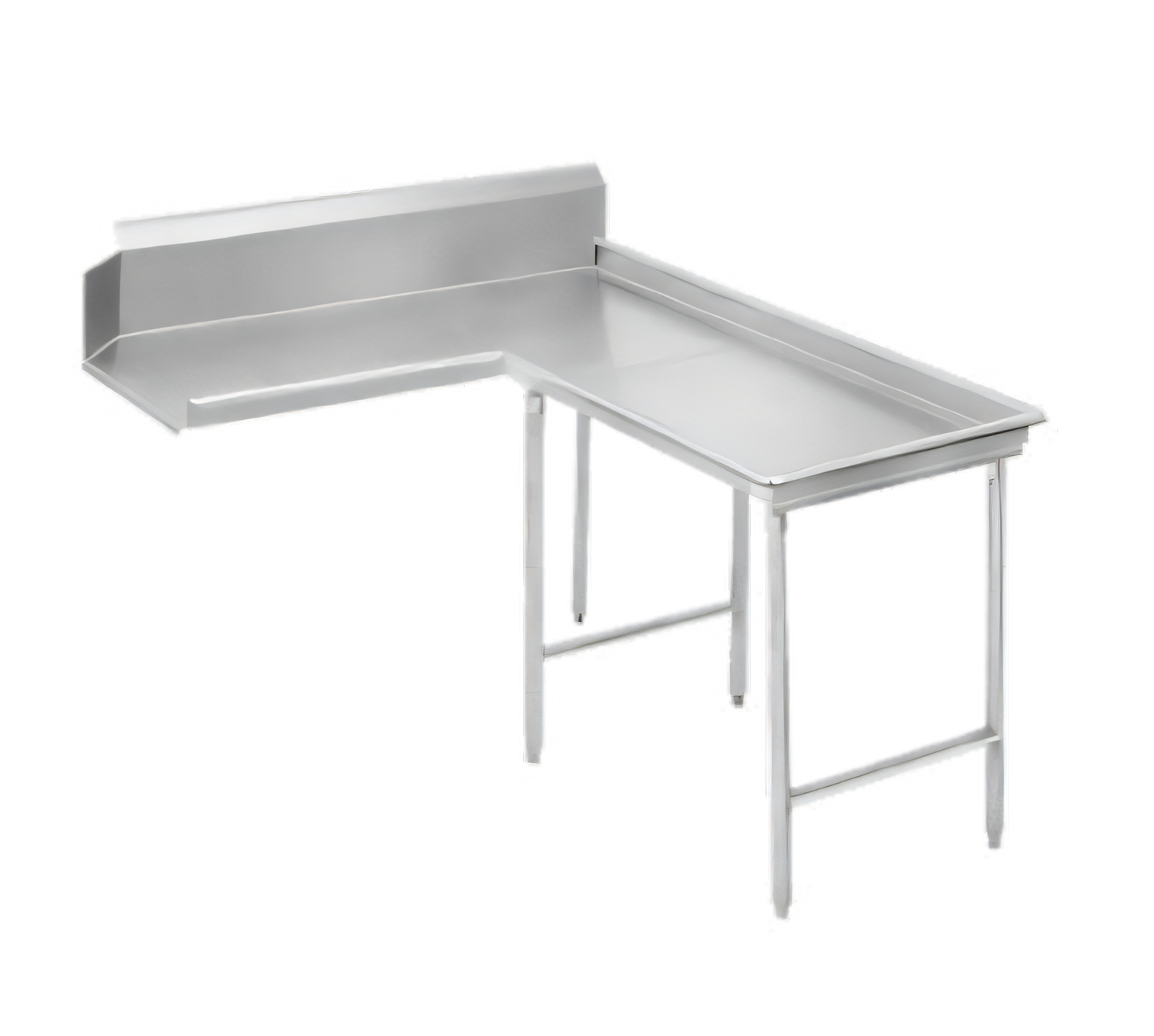

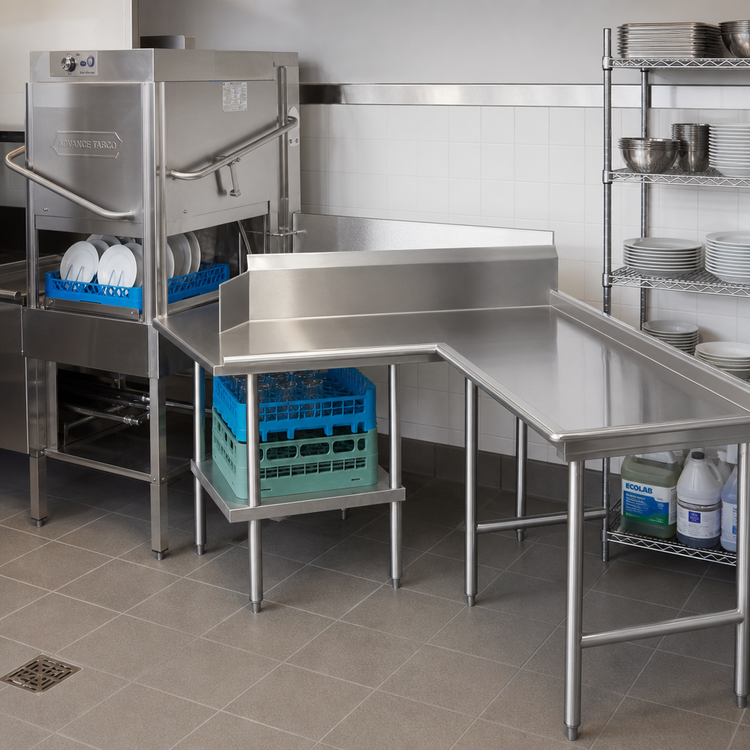

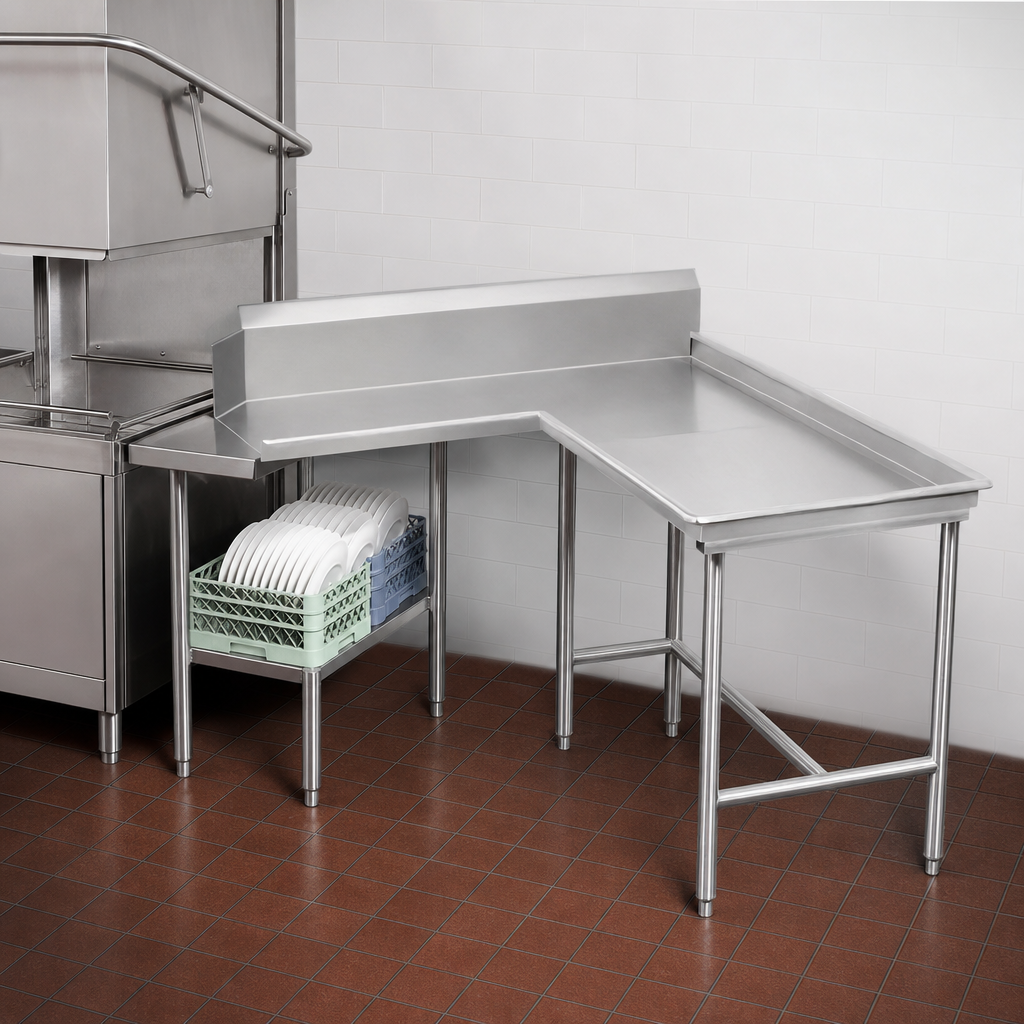

Advance Tabco Island-Clean Dishtable – Right Hand, 107" L-Shape
Model family: DTC-G70-Island Clean Right (Standard 16 ga Line)Engineered for high-volume commercial kitchens, this NSF-listed island clean dishtable delivers rugged 16 gauge 304 stainless-steel construction in a space-saving L-shaped footprint. Designed to mount to the right side of the dish-machine operator, it speeds up the clean-rack process while keeping your ware-washing area sanitary, organized and easy to maintain.
Why You’ll Love It
- Heavy-duty 16 ga 304 SS top – stands up to constant rack sliding and heavy loads.
- Extra-large 10-1/2" backsplash on the 59" short side, complete with a 2" return and tile edge for a watertight, code-compliant install.
- Island style, right-hand clean section – operator stands inside the “L” for a smooth unload → rack slide → storage workflow.
- 1-5/8" Ø 16 ga stainless legs with welded crossrails and adjustable stainless bullet feet for rock-solid stability on uneven floors.
- All TIG-welded; welds are blended to a matching satin finish for a seamless, easy-to-clean surface.
- Completely open below for carts or can be fitted with an optional undershelf or wall shelf (ordered separately).
At-a-Glance Specs
| Overall configuration | L-shaped – clean section to operator’s right |
|---|---|
| Nominal length (long side) | 107" (9 ft) (108" fabrication dimension) |
| Short side depth | 59" with full backsplash |
| Top material & gauge | 16 ga type 304 stainless steel |
| Backsplash height / return | 10-1/2" H with 2" return (short side only) |
| Legs / bracing | 1-5/8" Ø 16 ga 304 SS legs with welded crossrails |
| Adjustability | 1" stainless bullet feet |
| Working height | 34" (standard NSF height) |
| Finish | Satin #4 polish on all exposed surfaces |
| Compliance | NSF listed; meets ANSI/NSF standards |
Installation Notes
- Tile-edge rim simplifies sealing to surrounding counters or coved tile walls.
- Verify clearance using the official Dish Machine Compatibility Chart before ordering.
- Ships knock-down for freight efficiency; simple leg & crossrail assembly required.
Popular Add-Ons (ordered separately)
- Stainless undershelf for extra rack storage
- Wall-mount overshelf for chemicals & glass racks
- DTA-76 bowl setback kit (if required by dish-machine clearance)
- DTA-78 splash-notch kit for corner installations
Need a different length, left-hand configuration or custom sink bowl? Advance Tabco’s Smart Fabrication™ team can build it. Email smartfab@advancetabco.com for a fast quote.
