Advance Tabco DTC-G30-84R Compartment Sinks
Description

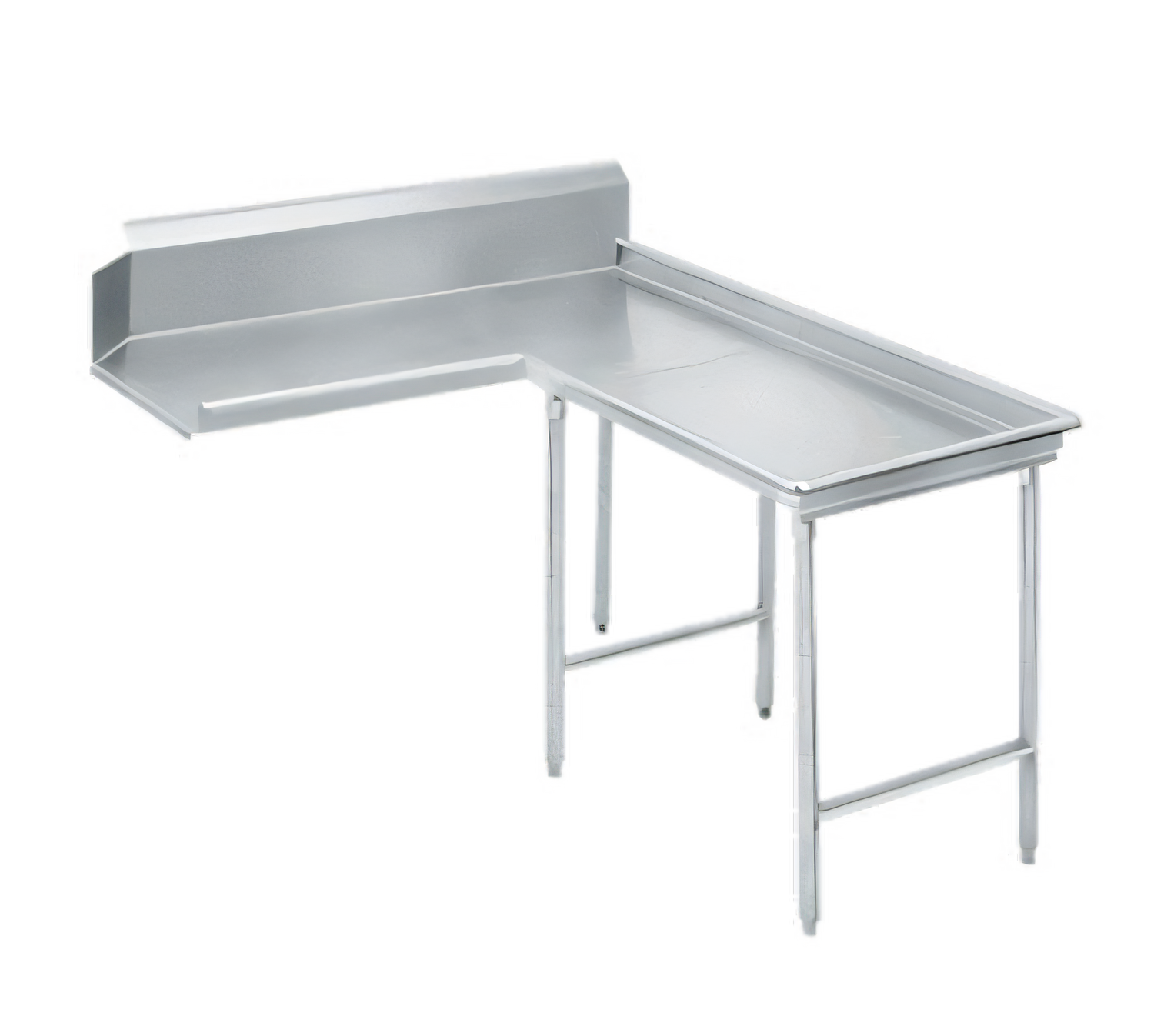

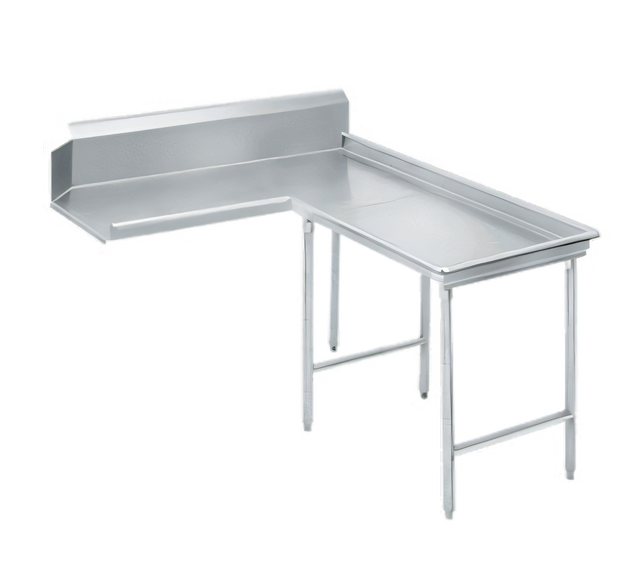

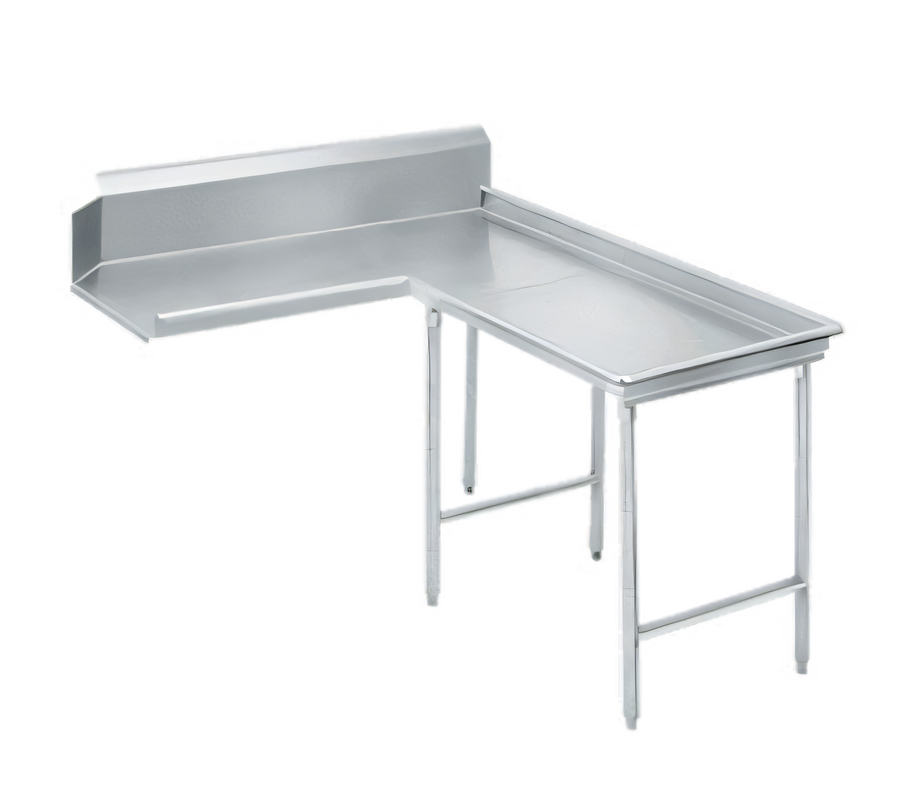

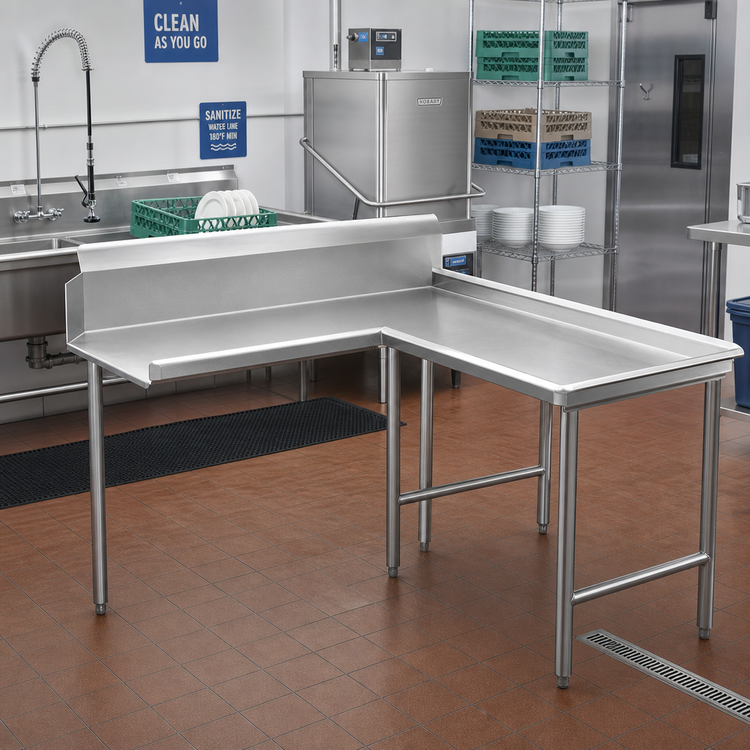

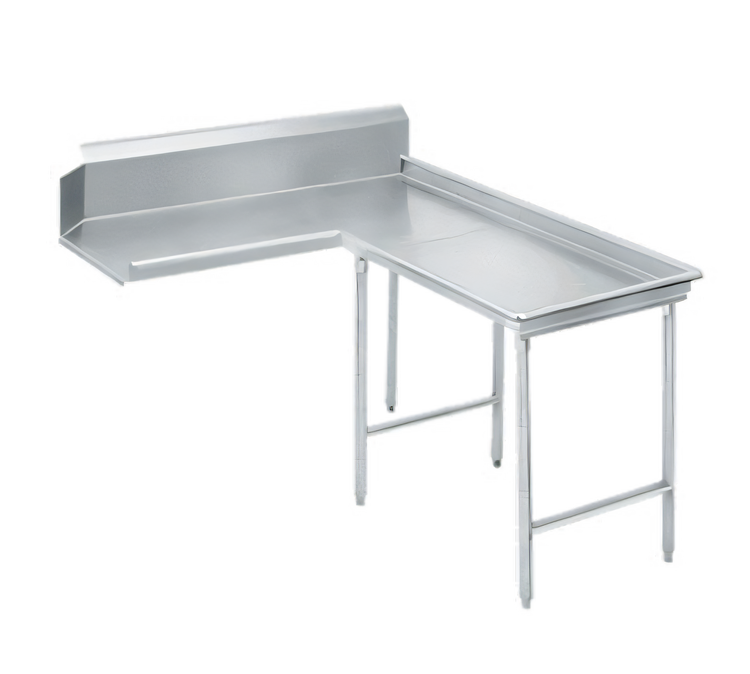

Island-Clean Dishtable – 83" L-Shaped (Right Side)
Advance Tabco Spec-Line | Model DTC-G30-84REngineered for the “clean” end of your ware-washing line, this island-style dishtable attaches to the right side of the dish-machine operator to speed rack handling and maximize sanitary workflow. Heavy-duty 14 gauge 304 stainless steel and an extra-large 10 ½" backsplash ensure years of worry-free service in the busiest kitchens.
Why You’ll Love It
- 14 ga 304 stainless steel top – the thickest Spec-Line work surface for superior impact & corrosion resistance.

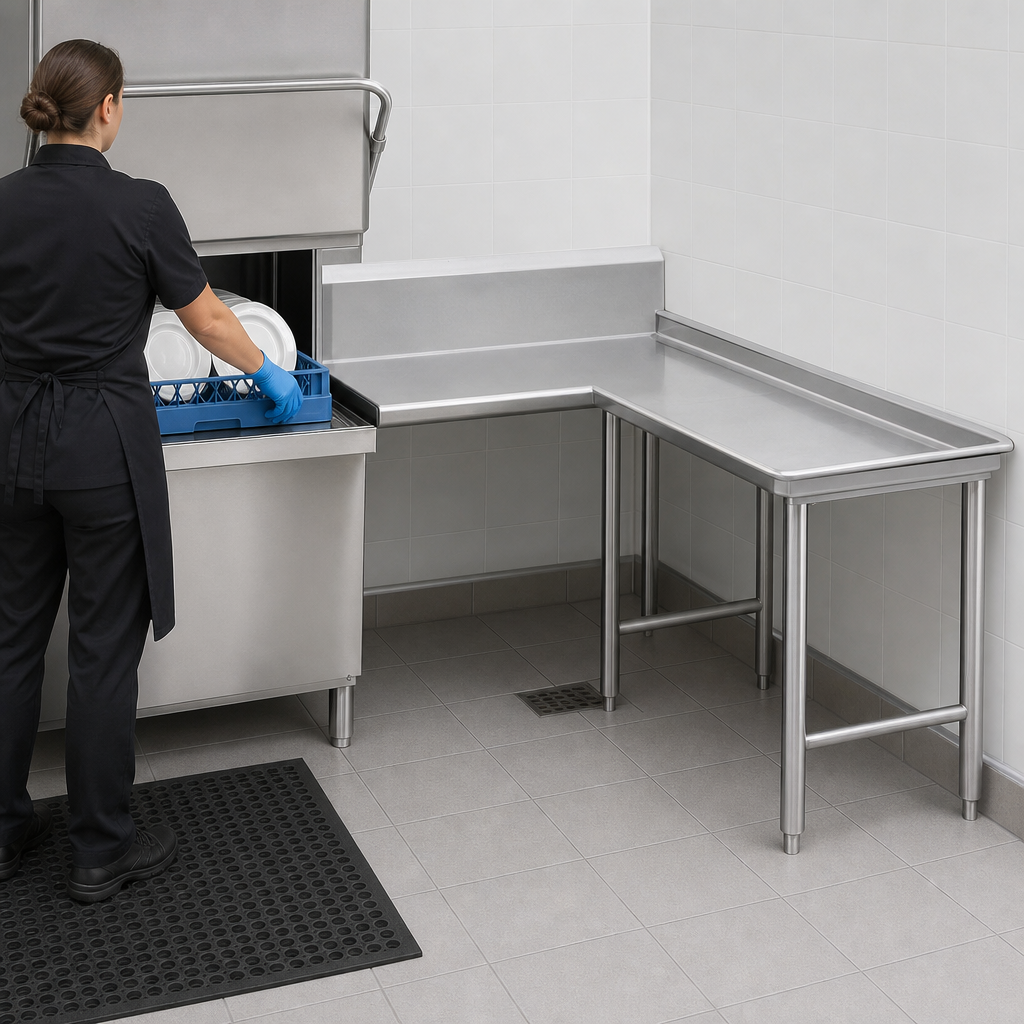

- Island clean, right-hand configuration – L-shaped table mounts on the operator’s right to receive racks straight from the machine.
- 10 ½" backsplash (59" side only) with 2" return and tile edge for a watertight, code-compliant wall seal.
- Welded stainless construction – TIG-welded seams blended to a hygienic satin finish.
- 1 ⅝" Ø legs & crossrails – 16 ga 304 stainless legs with front-to-back welded cross bracing and 1"-adjustable bullet feet.
- Nominal 83" “L” dimension – sized to integrate with standard 7 ft dish room layouts for effortless replacement or new installs.
- Tile-edge design – drop the table behind existing quarry tile or coved base for fast, professional installation.
Perfect For
- High-volume restaurants & cafeterias
- Hotel, resort & banquet kitchens
- Schools, universities & corporate dining
- Any operation running a right-hand door or conveyor dish machine
Technical Specs
| Overall configuration | L-shape, Island Clean – mounts to right side of dish machine operator |
|---|---|
| Nominal length (“L”) | 83" (7 ft) |
| Short-side length | 59" |
| Work surface width | 30" (front-to-back) |
| Top material / gauge | 304 stainless steel, 14 ga |
| Backsplash | 10 ½" H on 59" side, 2" return, tile edge |
| Legs | 1 ⅝" Ø 304 stainless, 16 ga, welded crossrails front-to-back |
| Feet | Stainless steel bullet feet, 1" adjustable |
| Construction method | TIG welded; welds polished to satin finish |
| Approx. weight | 205 lb |
Need help configuring a complete soil-to-clean dishtable system? Call Advance Tabco Customer Service at 1-800-645-3166 or email customer@advancetabco.com.
