Advance Tabco DTC-G30-144R Compartment Sinks
Description

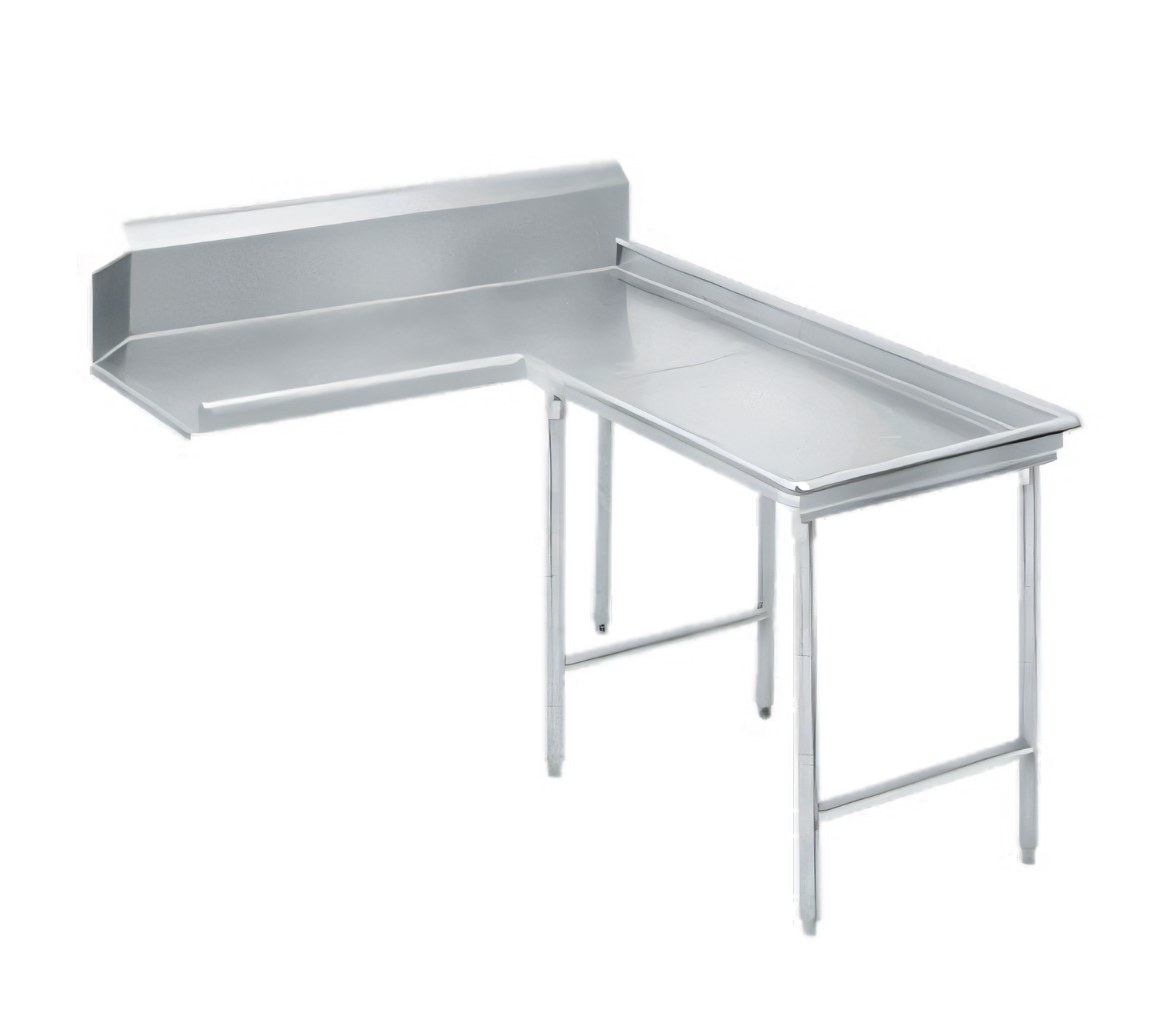

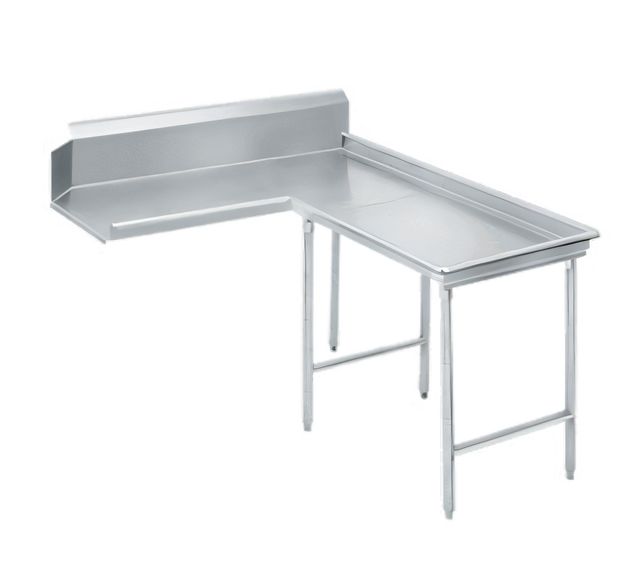

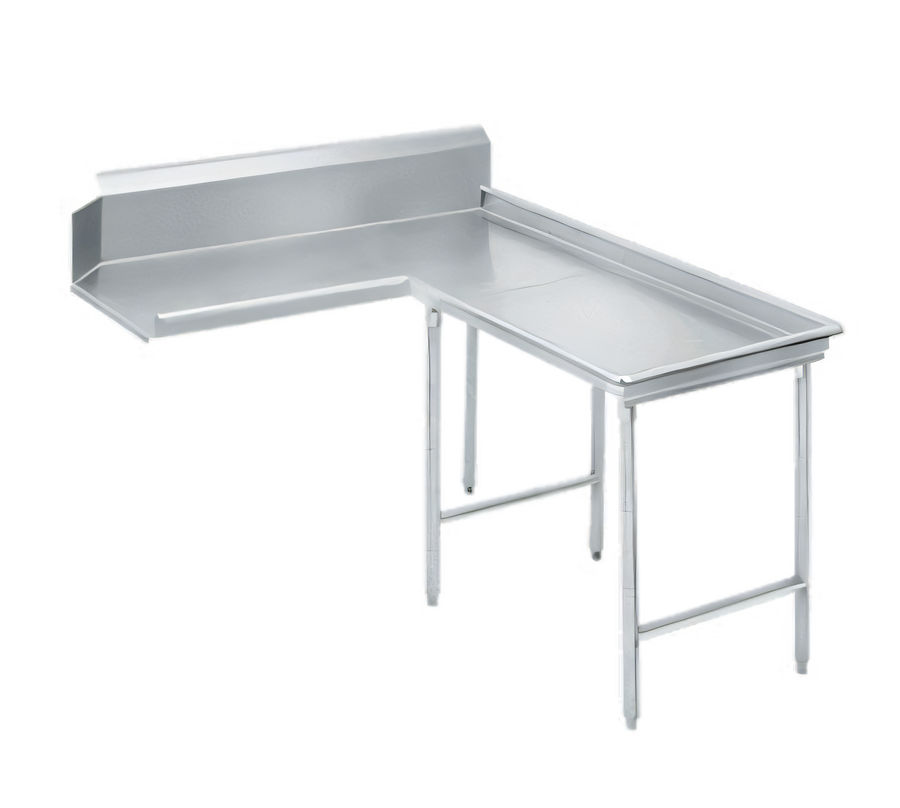

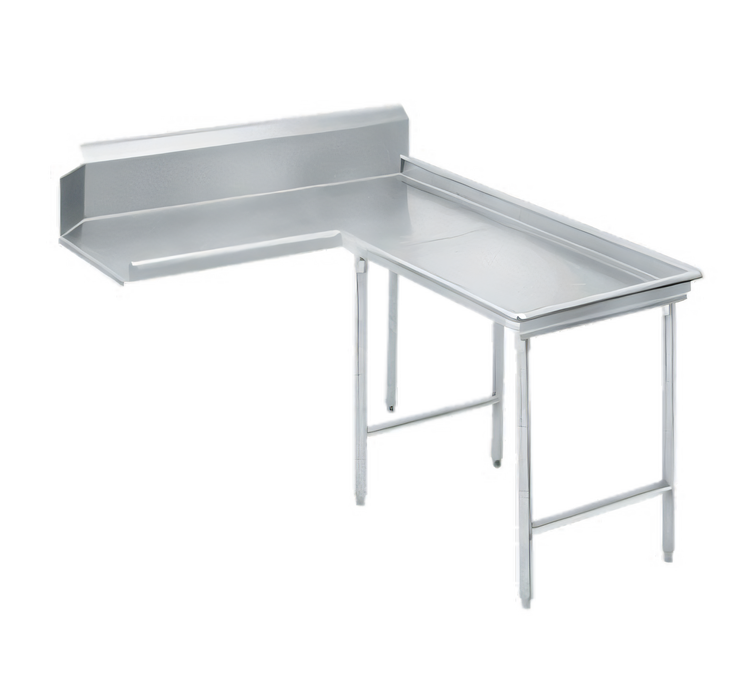

Island Clean Dishtable – 143" L-Shaped, Right-Hand (Spec-Line, 14 Ga 304 SS)

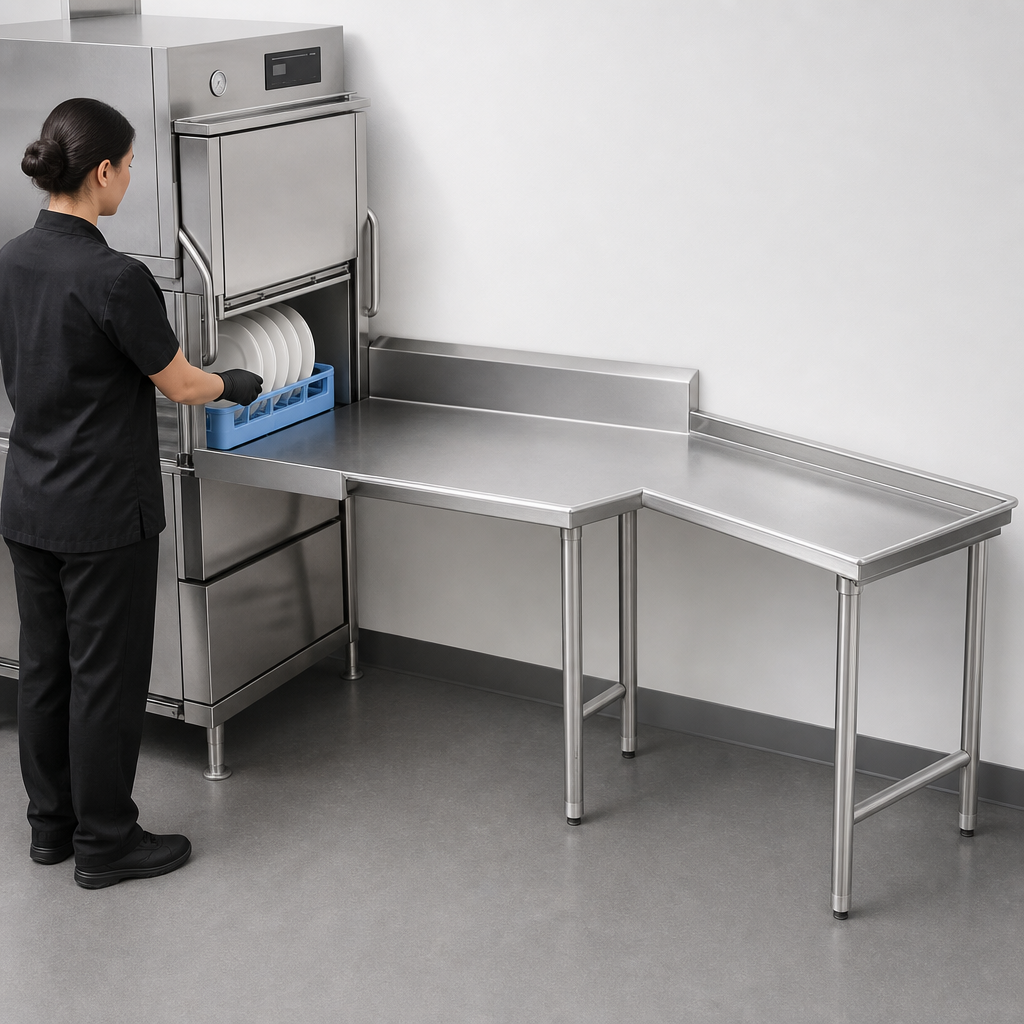

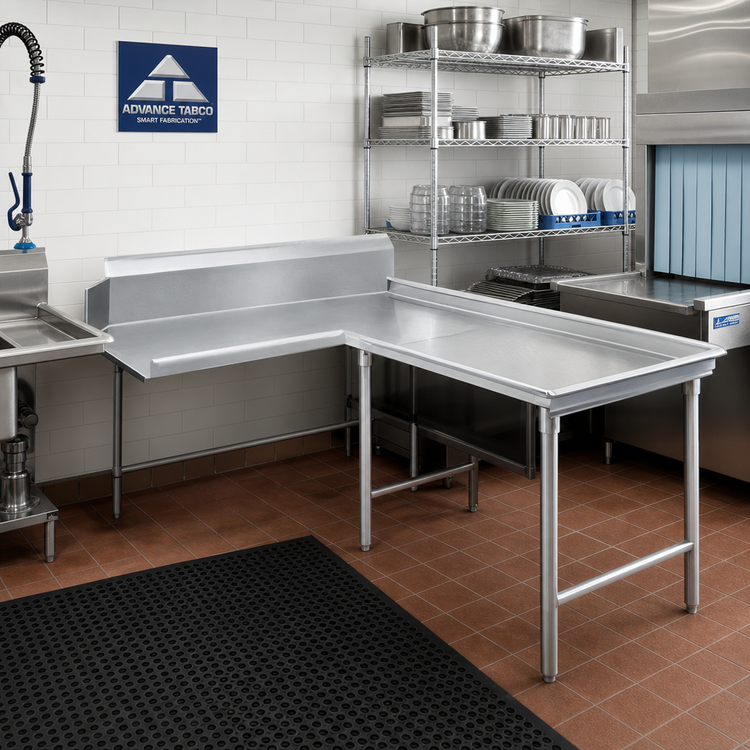

Advance Tabco • Reference Model: DTC-G30-144RGive the clean side of your ware-washing line the spacious, sanitary landing area it deserves. This island-style dishtable parks to the right of the dish-machine operator, keeping racks moving and countertops clutter-free while standing up to the heaviest commercial use.
Key Features
- Spec-Line build: heavy-duty 14 ga 304 stainless steel top with uniform satin polish.
- L-shaped island configuration installs free of walls and maximizes corner space.
- Oversized 10 ½" backsplash (59" run only) with 2" return & tile edge for a watertight, food-safe seal.
- 1 ½" rolled front & side edges contain splashes and are easy on forearms.
- (6) 1 ⅝" Ø 16 ga 304 stainless steel legs with welded crossrails front-to-back for rock-solid stability.
- Stainless bullet feet adjust 1" to level on uneven floors.
- All TIG-welded; gussets are fully welded to stainless support channels—no bolts to loosen over time.
- NSF listed for open-kitchen, healthcare and institutional applications.
At-a-Glance Specs
| Overall length (nominal “L”) | 143" / 12 ft |
|---|---|
| Short side length | 59" |
| Orientation | Island Clean – Right Hand (mounts on clean/exit side) |
| Work surface | 14 ga 304 stainless steel |
| Legs & bracing | 1 ⅝" Ø, 16 ga 304 stainless steel with welded crossrails |
| Backsplash | 10 ½" H on 59" run, 2" return, tile edge |
| Work height | 34" (adjustable with bullet feet) |
| Finish | Satin polish, easy-clean |
| NSF listing | Yes |
Why Choose Spec-Line?
- 40 % thicker top than 16 ga tables—ideal for high-volume rack impact.
- Factory-welded construction arrives ready to use; no field welding required.
- Tile edge speeds up installation and prevents water intrusion behind the table.
Optional undershelves, wall shelves and custom Smart Fabrication™ alterations are available directly from Advance Tabco.
Always confirm dish-machine clearance before ordering. View the full compatibility chart here or contact our team for assistance.
