Advance Tabco DTC-3-K20-96R Compartment Sinks
Description

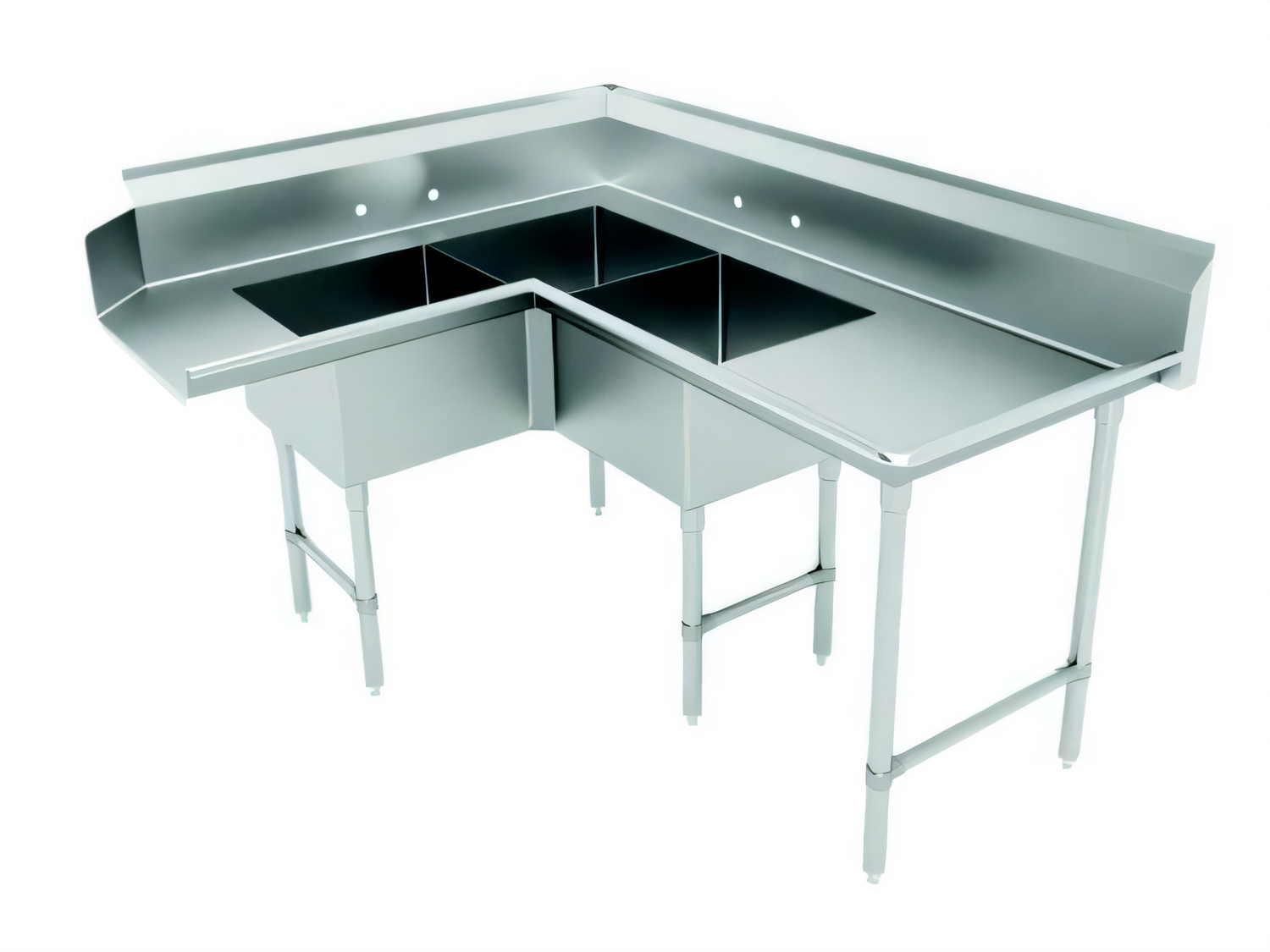

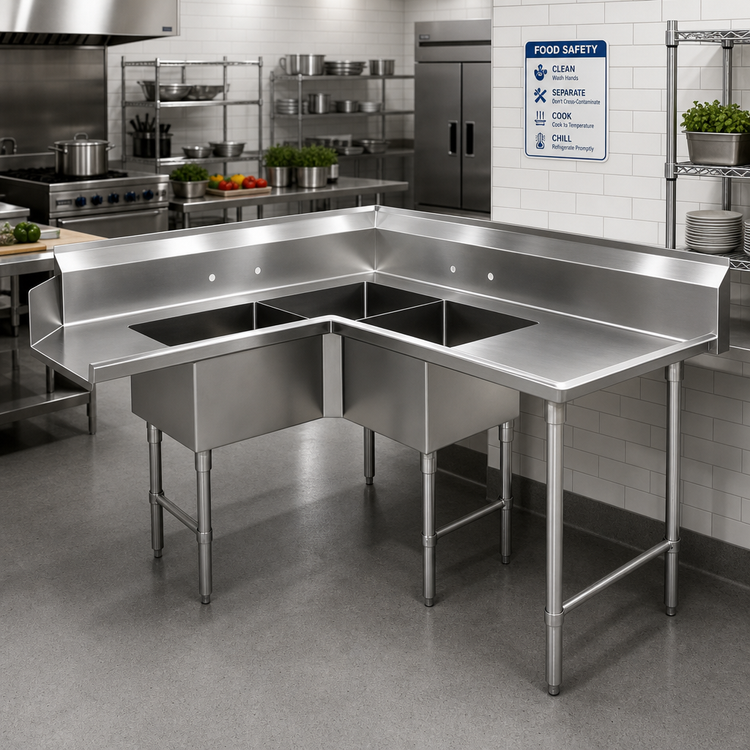

96" Corner Dishtable with 3-Compartment Sink – Right Side Attachment
Advance Tabco Model DTC-3-K20-96R | NSF ListedEngineered for high-volume warewashing lines, this Advance Tabco corner dishtable combines a spacious 48" drainboard with three fully welded, fabricated sink bowls. Built entirely from heavy-duty 16 ga. 304 stainless steel, it installs to the right of your dish-machine operator, maximizing work-flow while standing up to the daily rigors of commercial kitchens, hotels, and institutional facilities.
Key Features
- (3) 20" × 20" × 12" deep sink bowls welded 12" from the dish-machine opening.
- Extra-large 10.5" backsplash with 2" return and tile edge for a sanitary, water-tight seal.
- 48" integrated drainboard provides generous landing and sorting space.
- 16 ga. 304 stainless steel top; TIG-welded seams polished to a matching satin finish.
- Stainless steel 1 5/8" adjustable legs, front-to-back crossrails, and gusset plates.
- 1" adjustable stainless steel bullet feet for fast, level installation.
- Faucet holes punched on 8" centers (requires two deck-mount faucets, sold separately).
- 1-1/2" IPS basket drains included for all bowls.
- NSF certified for open-food-service environments.
Product Specifications
| Overall length | 96" nominal (Advance Tabco list length = 95") |
|---|---|
| Overall width (side A) | 59" |
| Drainboard length | 48" |
| Sink bowl dimensions | (3) 20" W × 20" L × 12" D |
| Backsplash height | 10.5" |
| Working height | 34" – 35" (adjustable) |
| Material | 16 ga. 304 stainless steel top, legs, crossrails & feet |
| Drain connection | 1-1/2" IPS per bowl (basket drains included) |
| Faucet punching | 8" on-center (two faucets required, not included) |

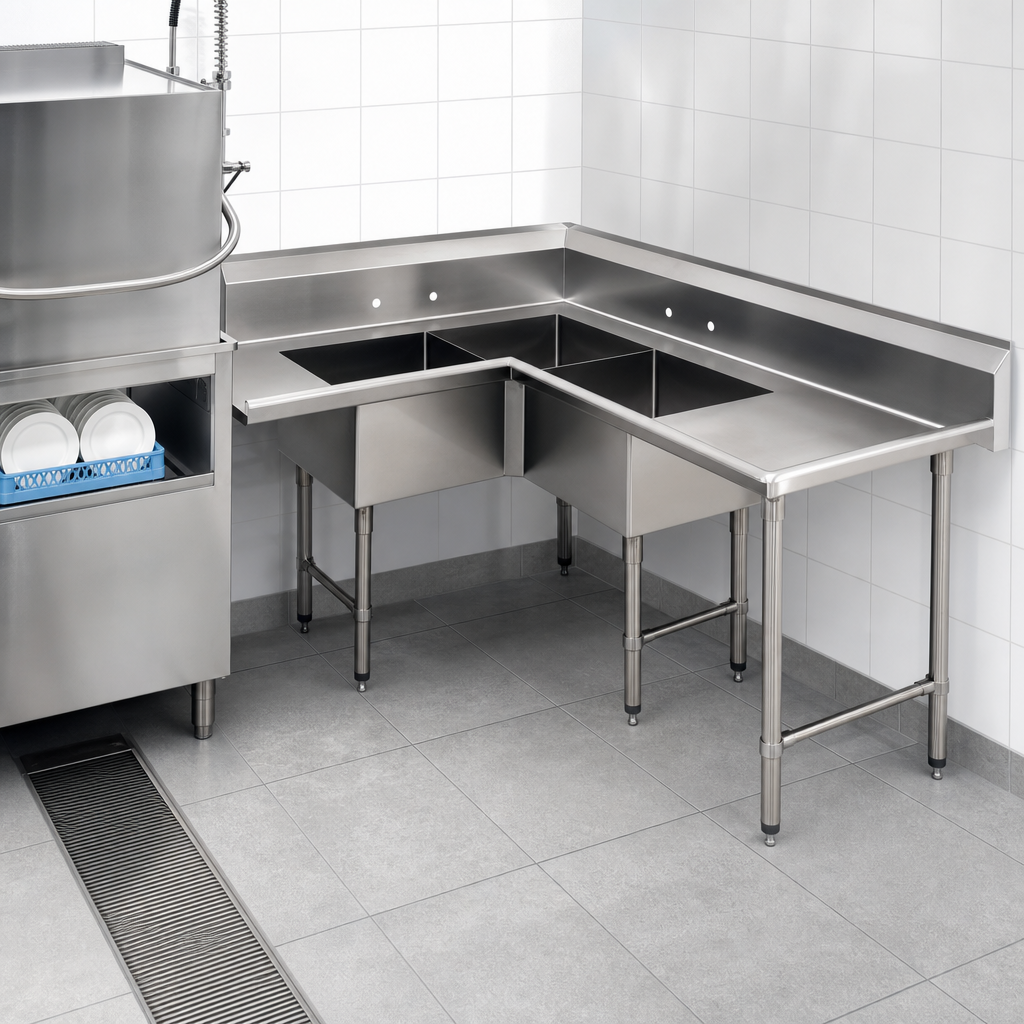

| Orientation | Right-hand – attaches to the right side of the dish machine operator |
| Approx. shipping weight | 310 lb |
| Certifications | NSF |
Need pre-rinse baskets, slide bars, or twist-handle drains? Compatible Advance Tabco accessories such as models DTA-100, DTA-60, K-4, K-5, and K-15 are available separately.
