Description

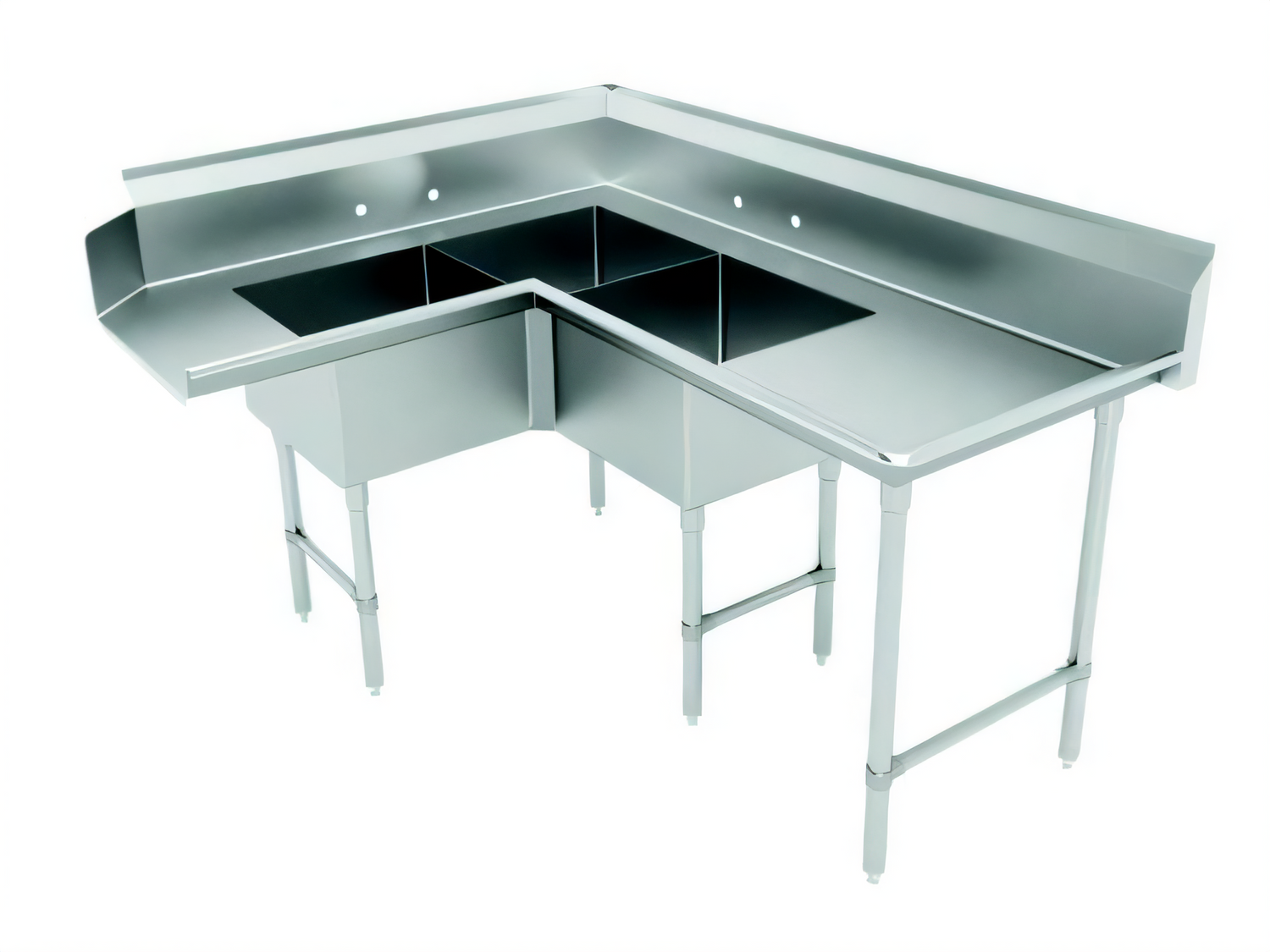

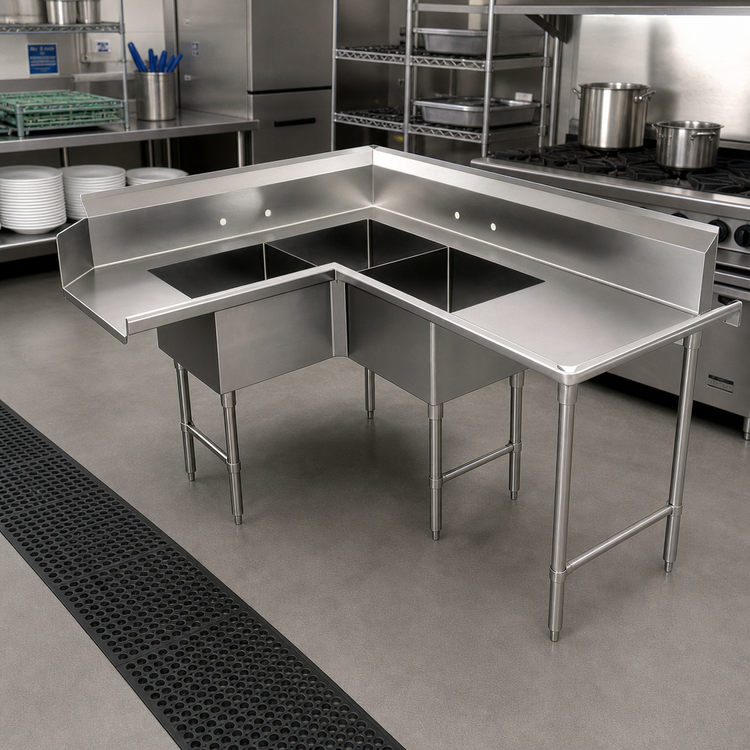

Advance Tabco 96" Corner Dishtable with 3-Compartment Sink — Left Feed

Model: DTC-3-K20-96L | NSF Listed

Designed for high-volume dishrooms that need every square inch to work harder, this left-hand feed Advance Tabco corner dishtable combines a spacious 48" drainboard with three full-size sink bowls, creating a seamless dirty-to-clean workflow in even the busiest kitchens.

Key Advantages

  • 3 fabricated bowls (20" × 20" × 12") positioned 12" from the dish machine for maximum work surface.
  • Rugged 16 ga. 304 stainless steel top—resists corrosion from harsh warewashing chemicals.
  • Generous 48" drainboard speeds drying and staging.
  • 10-1/2" high backsplash with 2" return limits mess and installs easily with the built-in tile edge.
  • All TIG-welded construction; welds are blended to a matching satin finish for a professional look.
  • Stainless steel 1 5⁄8" dia. legs, gusset-reinforced crossrails (front-to-back) & adjustable bullet feet keep the unit rock solid.
  • Pre-punched 8" on-center faucet holes (two required; faucets sold separately).
  • 1-1/2" IPS waste drains included—no extra parts to source.

Technical Specifications

Overall length 95" nominal (fits 96" footprint)
Overall width 59" (corner configuration)
Drainboard length 48"
Sink bowl (qty 3) 20" W × 20" L × 12" D
Material / gauge 304 stainless steel, 16 ga. top & bowls
Backsplash height 10-1/2" with 2" return
Working height 34"

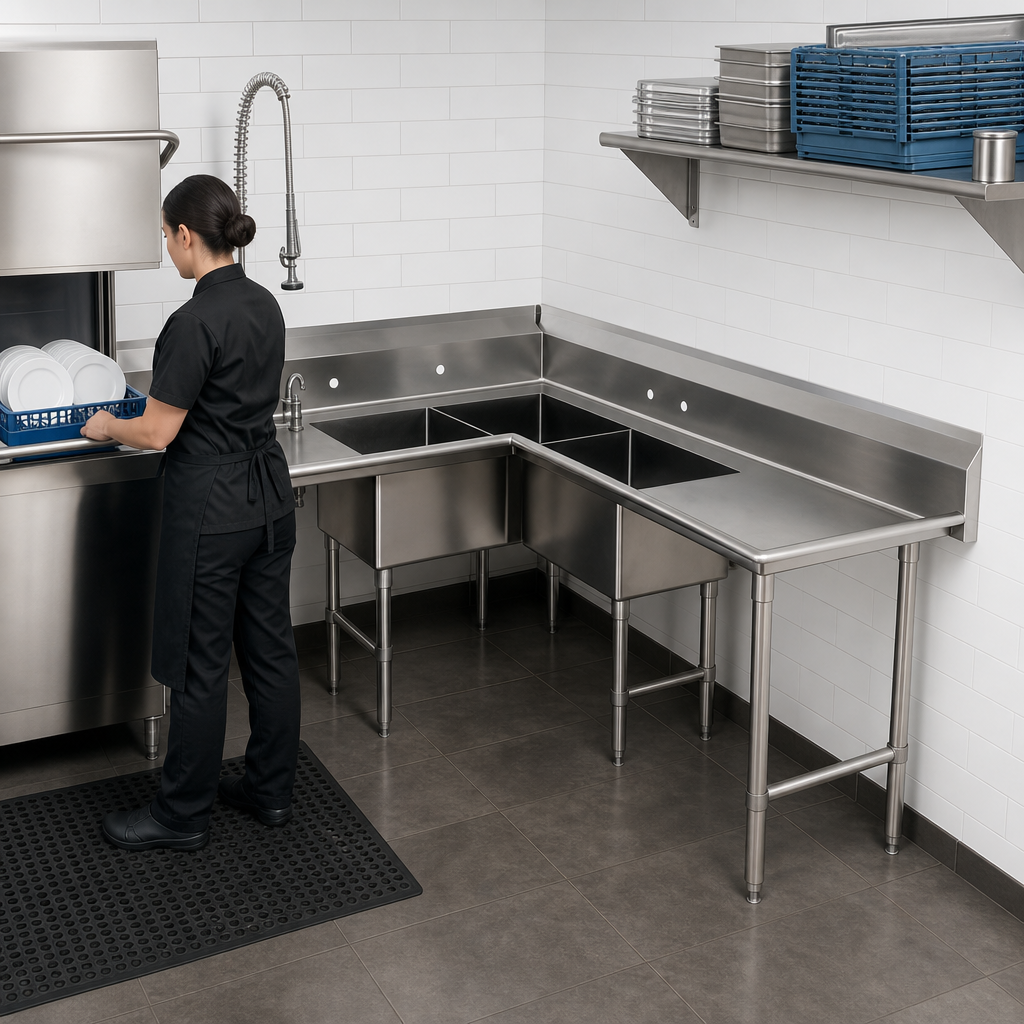

Orientation Left feed (attaches to left of dish machine operator)
Approx. weight 310 lb
Certifications NSF

Ideal For

  • High-volume restaurants & cafeterias
  • Hotel & resort kitchens
  • Catering commissaries
  • Institutional foodservice operations
Important: Verify your dish machine’s control box or drive unit location before installation to ensure there is no interference with the sink bowls. Consult the Advance Tabco dish machine compatibility chart if needed.

Optional Accessories (sold separately)

  • Prerinse basket with welded slide bar – Model DTA-100
  • Prerinse slide bar – Model DTA-60
  • Twist-handle operated drains & overflow assemblies (K-4, K-5, K-15)

Faucets and prerinse assemblies are not included. Two 8"-center deck or splash-mounted faucets are required for operation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

96.0in

Depth

30.0in

Shipping Weight

310.0lbs

Compartment (front - back)

20"

Width (side - side) OA

85" - 96"

Dishtable Splash

10-1/2"

Dishtable Legs

stainless steel

Dishtable Shape

corner

Type Stainless Steel Top

300 series

Compartment (side - side)

20"

Gauge

16 ga

Dish Machine Location

right side

Specifications

Corner Dishtable with 3-compartment Sink, 96”W, (3) 20" x 20" x 12" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 48" drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
