Description

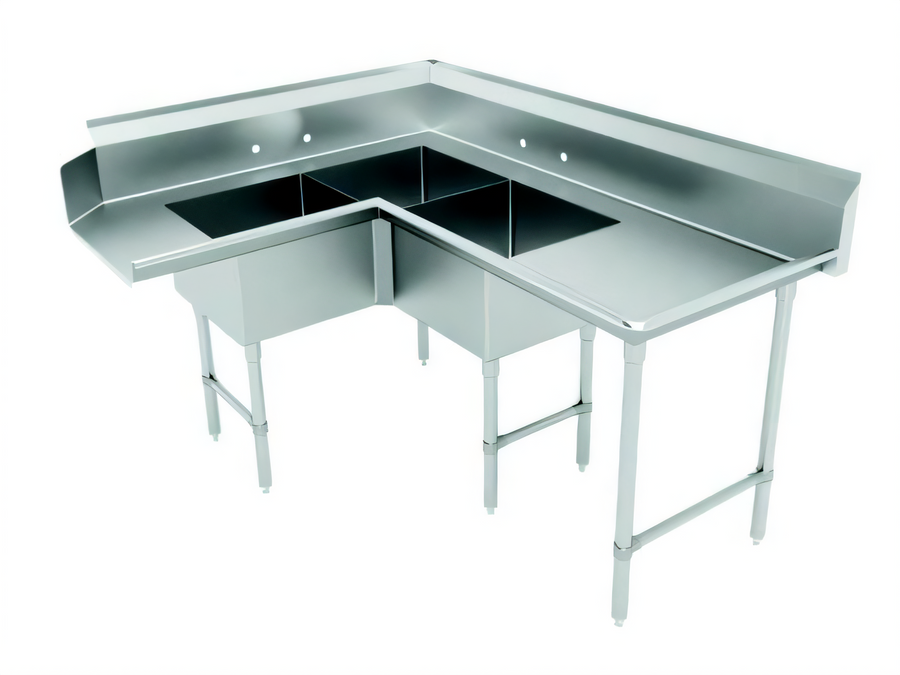

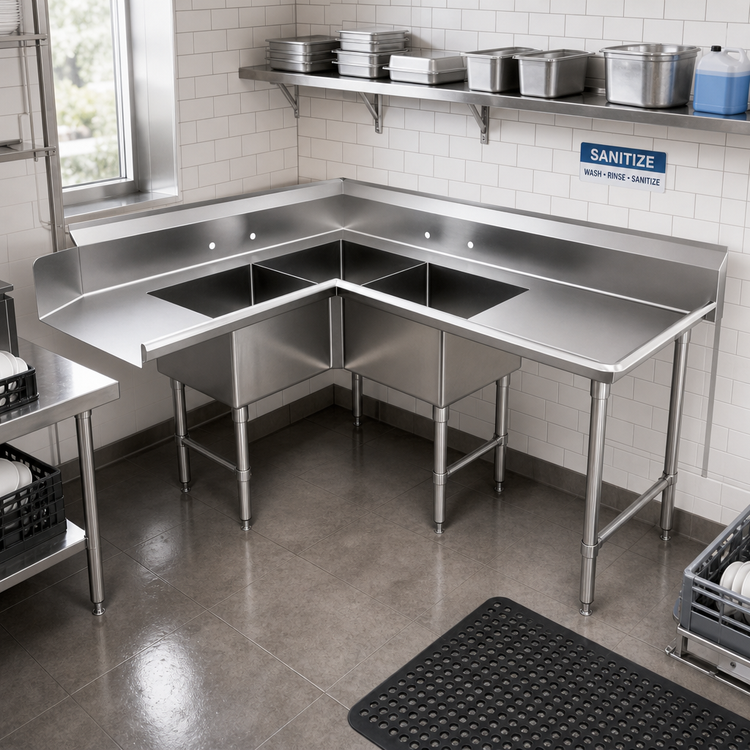

Advance Tabco 71" Corner Dishtable with 3-Compartment Sink – Right Side

Model DTC-3-K20-72R | NSF Listed

Combine warewashing efficiency and rugged durability in one space-saving corner station. This Advance Tabco fabricated dishtable attaches to the right of your dish machine operator, giving staff a full 3-compartment sink, oversized drainboard and a sanitary backsplash—all built from heavy-gauge 304 stainless steel to withstand the busiest commercial kitchens.

Key Features & Benefits

  • All TIG-welded, 16-gauge type 304 stainless steel top and bowls resist corrosion and harsh chemicals.

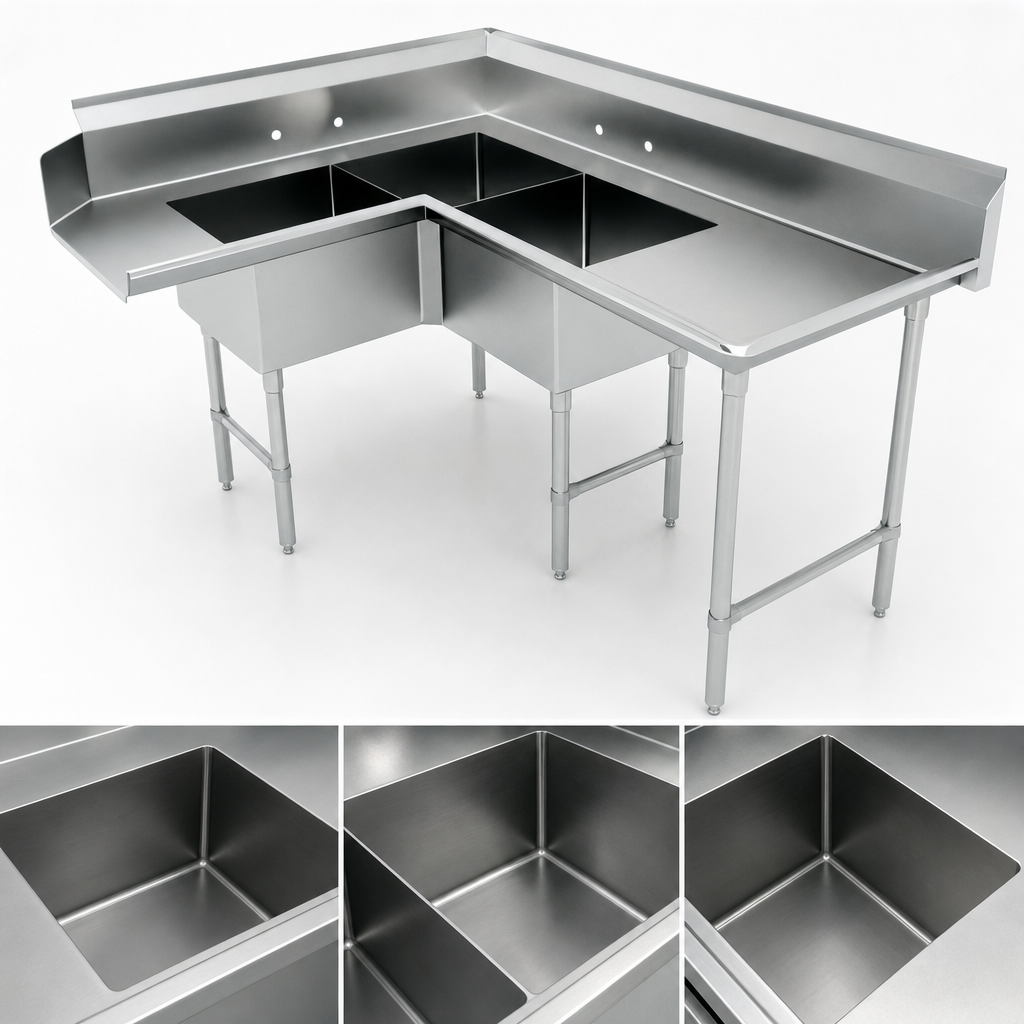

  • (3) deep 20" × 20" × 12" sink bowls are positioned 12" from the machine opening for maximum usable workspace.
  • 24" sloped drainboard speeds drying and directs water back to the sink.
  • Extra-large 10-1/2" backsplash with 2" return & tile edge simplifies installation and keeps walls dry.
  • Pre-punched 8" on-center faucet holes (requires two faucets, sold separately).
  • (3) 1-1/2" IPS basket drains included for quick plumbing hook-up.
  • 1-5/8" stainless steel adjustable legs, front-to-back crossrails and welded gussets deliver rock-solid stability.
  • Stainless steel bullet feet let you level the unit on uneven floors.
  • NSF certified for safe, sanitary food-service use.

Specifications

Manufacturer Advance Tabco
Model DTC-3-K20-72R
Overall Length (Exposed) 71"
Overall Width (Return Side) 59"
Orientation Attaches to right of dish machine operator
Sink Compartments (3) 20" × 20" × 12" fabricated bowls
Drainboard Length 24"
Backsplash Height 10-1/2" with 2" return
Material / Gauge 16-ga 304 stainless steel top & bowls
Legs & Bracing Stainless steel 1-5/8" O.D. with crossrails
Drain Size 1-1/2" IPS (included)
Faucet Centers 8" O.C. (faucets not included)
Shipping Weight Approx. 270 lb.
Certifications NSF

Optional Accessories

  • DTA-100 pre-rinse basket with welded slide bar (fits 20" × 20" bowls).
  • DTA-60 pre-rinse slide bars to support dishracks over the sink.
  • K-4, K-5 or K-15 twist-handle drain & overflow assemblies.
  • DTA-49 14-gauge upgrade for extra-heavy duty applications.
Important: Always verify your dish machine’s control box or drive unit location before ordering to ensure there is no interference with the sink bowls. Consult the Advance Tabco compatibility chart or contact us for assistance.

Need a left-hand version? Ask for model DTC-3-K20-72L.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

71.0in

Depth

30.0in

Shipping Weight

270.0lbs

Gauge

16 ga

Dish Machine Location

left side

Dishtable Splash

10-1/2"

Width (side - side) OA

63" - 72"

Compartment (front - back)

20"

Dishtable Shape

corner

Dishtable Legs

stainless steel

Compartment (side - side)

20"

Type Stainless Steel Top

300 series

Specifications

Corner Dishtable with 3-compartment Sink, 71”W, (3) 20" x 20" x 12" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 24" drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
