Advance Tabco  |  SKU: DTC-3-K20-72L

Advance Tabco DTC-3-K20-72L Compartment Sinks

$4,064.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

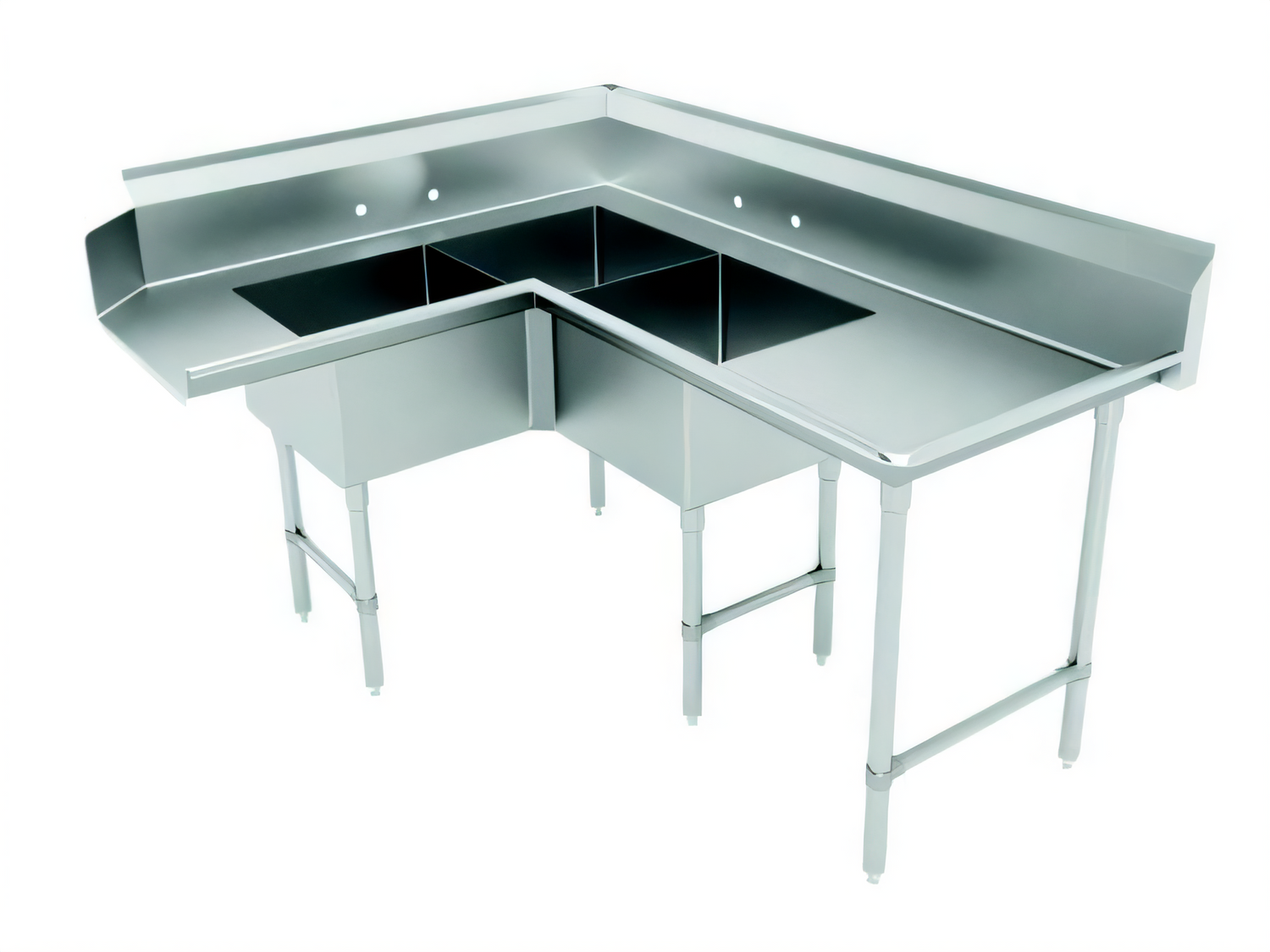

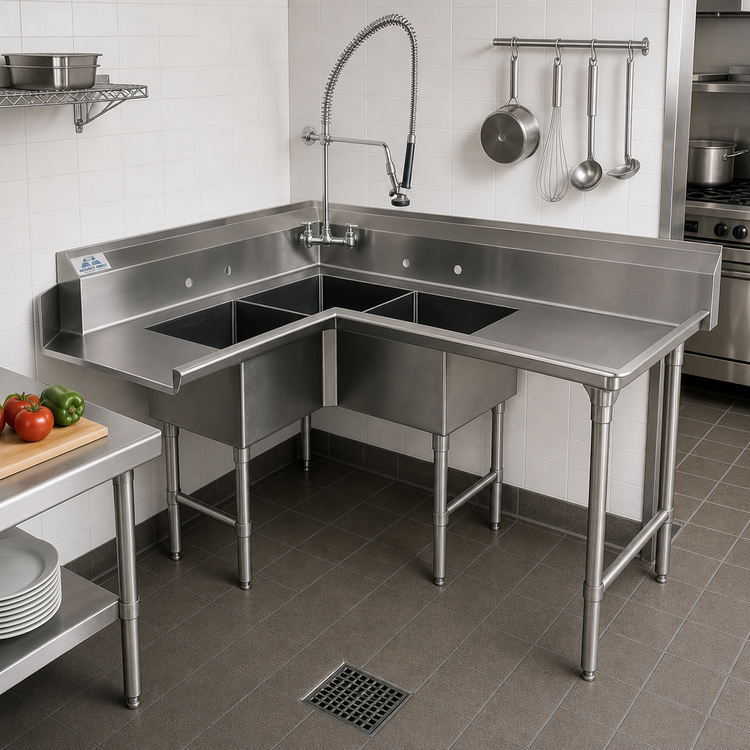

Advance Tabco DTC-3-K20-72L Corner Dishtable with 3-Compartment Sink – 71"

Left-hand attach • three 20" x 20" x 12" bowls • 24" drainboard

Built to withstand the punishing pace of commercial kitchens, this NSF-listed corner dishtable unites a rugged three-compartment sink with a roomy drainboard to create an efficient wash-rinse-sanitize station in a compact 71" footprint.

Key Features

  • Corner configuration attaches to the left of the dish-machine operator for a seamless, right-to-left workflow.

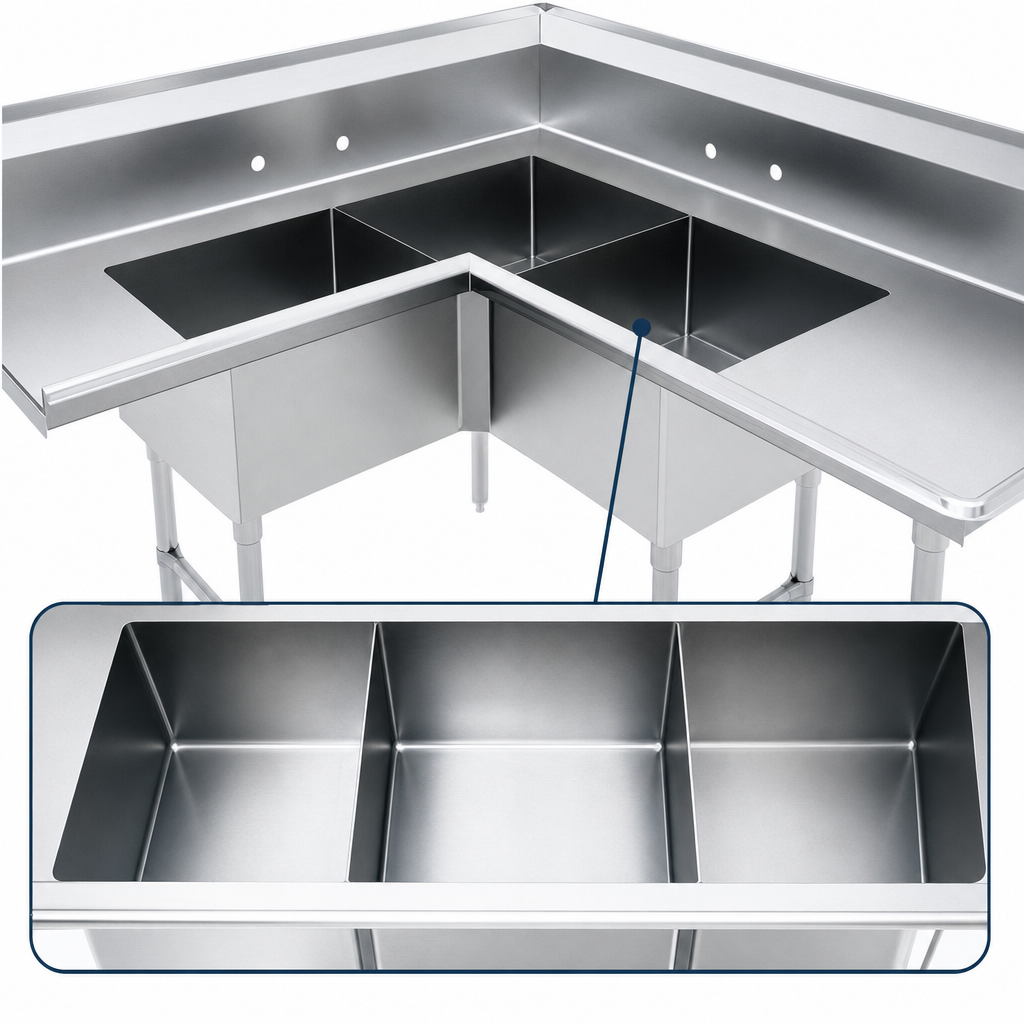

  • Three fabricated sink bowls (20" W × 20" D × 12" H) are positioned 12" from the machine to maximize usable surface area.
  • 10½" extra-large backsplash with 2" return and tile edge keeps water contained and installs flush against walls.
  • 16-gauge type 304 stainless steel top; all TIG-welded and blended to a sanitary satin finish.
  • Stainless steel 1 5⁄8" adjustable legs, front-to-back crossrails, and welded gussets deliver exceptional rigidity.
  • 24" drainboard speeds loading/unloading while directing excess water back to the bowls.
  • Two pre-punched 1⅛" faucet holes on 8" centers (requires two faucets, not included).
  • 1 ½" IPS waste drains supplied for each compartment.
  • Adjustable stainless steel bullet feet level the unit on uneven floors.
  • NSF certified for open foodservice use.

At-a-Glance Specs

Model DTC-3-K20-72L
Overall length 71"
Layout Corner – left-hand attach
Sink compartments 3 × 20" W × 20" D × 12" H
Drainboard 24" L
Backsplash 10½" H with 2" return
Top material 16-gauge 304 stainless steel
Frame Stainless steel legs & front-to-back crossrails
Drain size 1 ½" IPS (included)
Faucet centers 8" (faucets not included)
Approx. weight 270 lb
Certifications NSF

Recommended Accessories (sold separately)

  • DTA-100 prerinse basket with welded slide bar (fits 20" × 20" bowls)
  • DTA-60 prerinse slide bar for 20" × 20" bowls
  • K-4 twist-handle drain support bracket
  • K-5 twist-handle operated drain, 2" IPS
  • K-15 twist-handle drain with overflow
Important: Before ordering, verify that your dish machine’s control box or drive unit will not interfere with the sink bowls. Refer to Advance Tabco’s Dish Machine Compatibility Chart or contact us for assistance.

Need a heavier 14-gauge top or a custom layout? Ask about Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

71.0in

Depth

30.0in

Shipping Weight

270.0lbs

Width (side - side) OA

63" - 72"

Dishtable Shape

corner

Type Stainless Steel Top

300 series

Dishtable Splash

10-1/2"

Gauge

16 ga

Compartment (side - side)

20"

Compartment (front - back)

20"

Dishtable Legs

stainless steel

Dish Machine Location

right side

Specifications

Corner Dishtable with 3-compartment Sink, 71”W, (3) 20" x 20" x 12" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 24" drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
