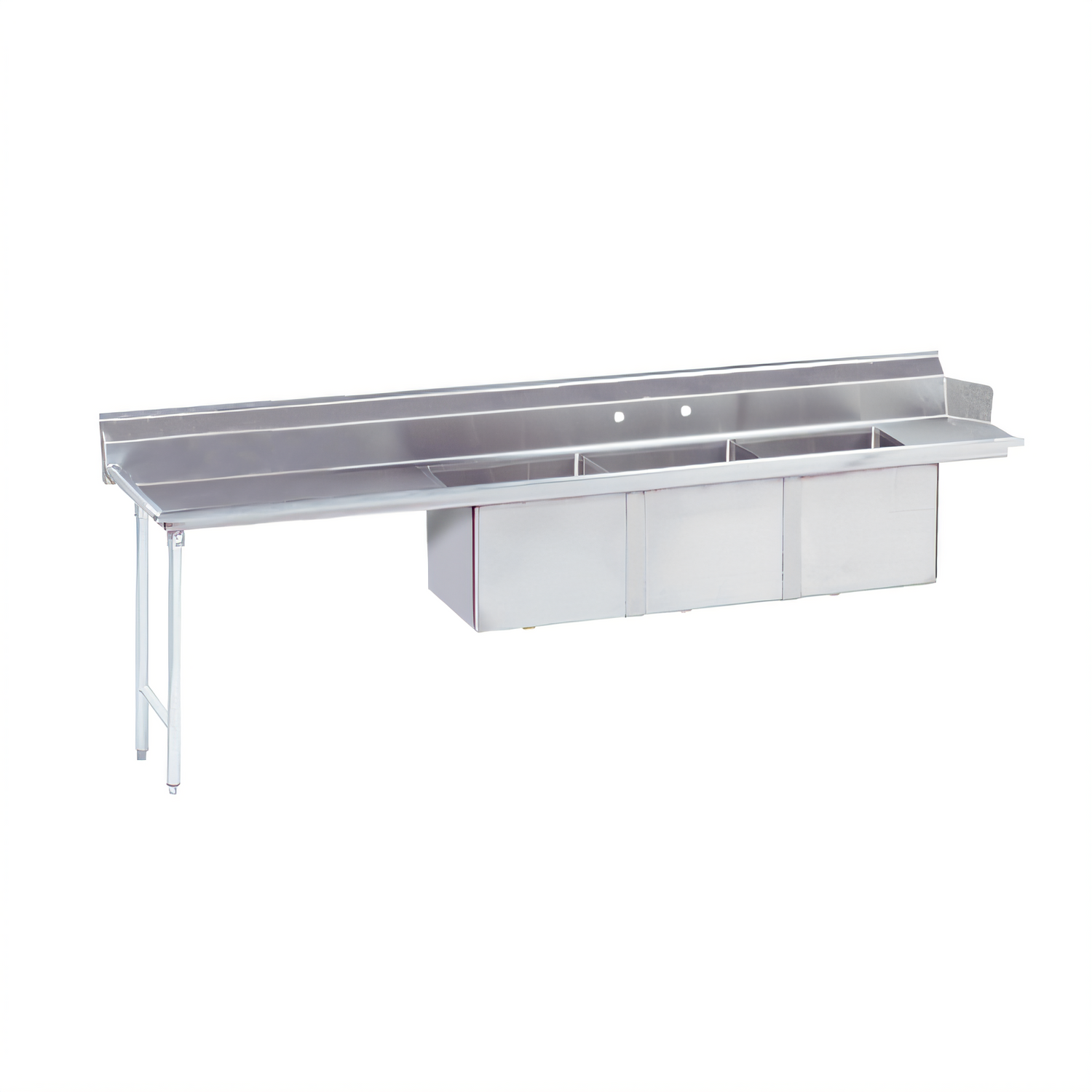

Advance Tabco 143-Inch Left Drainboard 3-Compartment Sink Dishtable with 24 x 24 x 14 Bowls

16 Gauge 304 Stainless Steel Construction, 59-Inch Left Drainboard

Built for high-volume warewashing, this heavy-duty sink dishtable combines three oversized bowls, a long left drainboard, and rugged stainless steel construction to streamline dishroom workflow.

  • Three 24" x 24" x 14" fabricated sink bowls provide ample wash, rinse, and soak space.
  • 59-inch left drainboard adds dedicated landing and drying space beside the dish machine.
  • 16 gauge 304 stainless steel top is paired with stainless steel legs, cross bracing, and bullet feet.
  • 10-1/2-inch backsplash with tile edge helps simplify installation and protect walls.
  • Bowls are positioned 12 inches in from the machine to maximize usable work surface.
  • Faucet holes are punched on 8-inch centers; faucet is not included.
  • 1-1/2-inch IPS waste drains are included.

Overall Dimensions:

143.0"W x 30.0"D x 44.5"H

Product Weight:

380.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

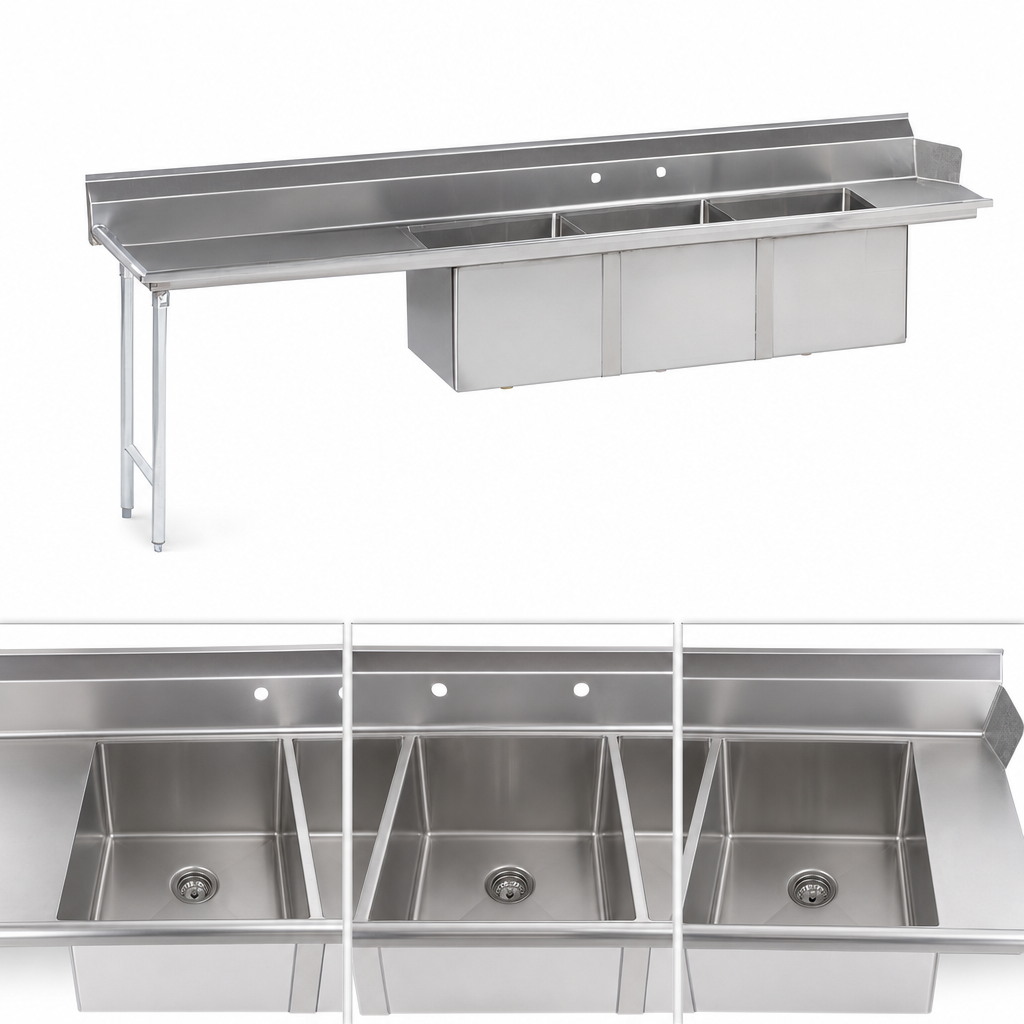

Three Fabricated Sink Bowls

Includes three 24" x 24" x 14" bowls for multi-step dishroom tasks.

Left Drainboard

59-inch drainboard provides extra landing space on the left side of the unit.

Heavy-Duty Stainless Construction

Built with a 16 gauge 304 stainless steel top, stainless steel legs, front-to-back cross bracing, and stainless steel bullet feet.

10-1/2-Inch Backsplash

Extra-large backsplash includes a 2-inch return and tile edge for easier installation.

Optimized Bowl Placement

Bowls are located 12 inches in from the dish machine to maximize work surface area.

Faucet Prep Included

Faucet holes are punched on 8-inch centers; faucet is supplied by others.

Waste Drains Included

1-1/2-inch IPS waste drains are included with the unit.

Machine Fit Verification Required

Manufacturer notes that control box or drive unit interference must be verified before installation.

All-TIG-Welded Construction

Welded areas are blended to match adjacent surfaces and finished to a satin appearance.

Two-Faucet Requirement

The 24" x 24" bowl configuration is marked as requiring two faucets.

Type Dishtable
Style Straight
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin Finish
Gauge 16 Gauge
Compartments 3
Backsplash Height 10-1/2 Inches
Bowl Size 24 Inches x 24 Inches x 14 Inches
Drainboard Length 59 Inches
Shipping Width 143 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Compatibility chart PDF Download

Frequently Asked Questions

No. The splash is punched for a faucet, but the faucet is supplied by others.
Yes. 1-1/2-inch IPS waste drains are included.
It has three fabricated sink bowls.
Each bowl measures 24 inches x 24 inches x 14 inches.
The bowls are located 12 inches in from the machine.
Yes. The documentation notes that DTA-76 is used for custom bowl location.
