Advance Tabco DTC-3-2424-120R Compartment Sinks
Description

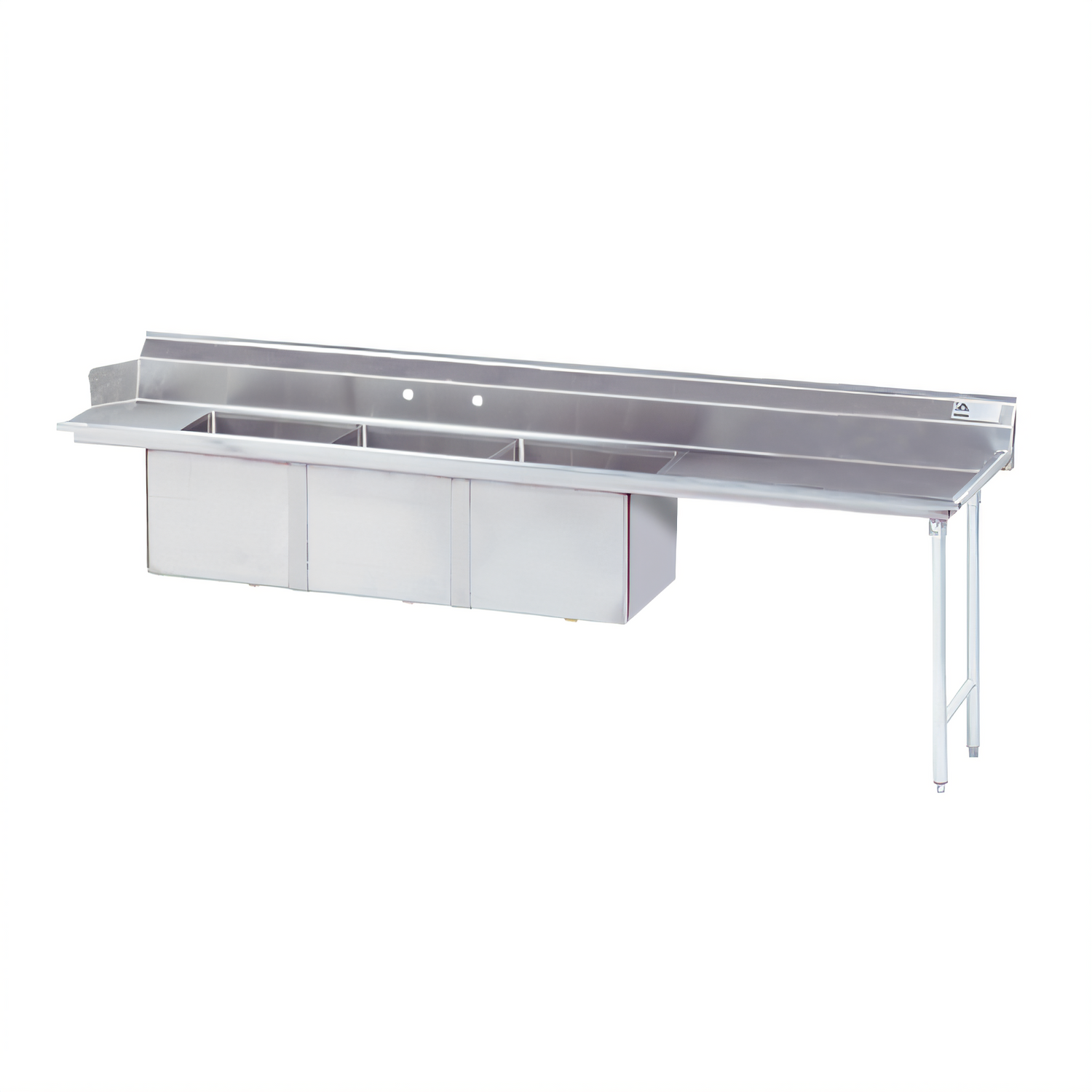

Advance Tabco 119" 3-Compartment Dishtable w/ Right Drainboard
Model DTC-3-2424-120R • NSF ListedBuilt for heavy-duty commercial kitchens, this 119" Advance Tabco dishtable combines an oversized 35" right-hand drainboard with three extra-large 24" × 24" × 14" fabricated sink bowls. The 16-gauge 304 stainless steel top, TIG-welded construction, and stainless legs with cross-bracing deliver rock-solid durability while streamlining the wash-rinse-sanitize workflow on the right side of your dish machine operator.
Key Features
- Full 119" length with 3-compartment sink – ideal for wash, rinse & sanitize stations.

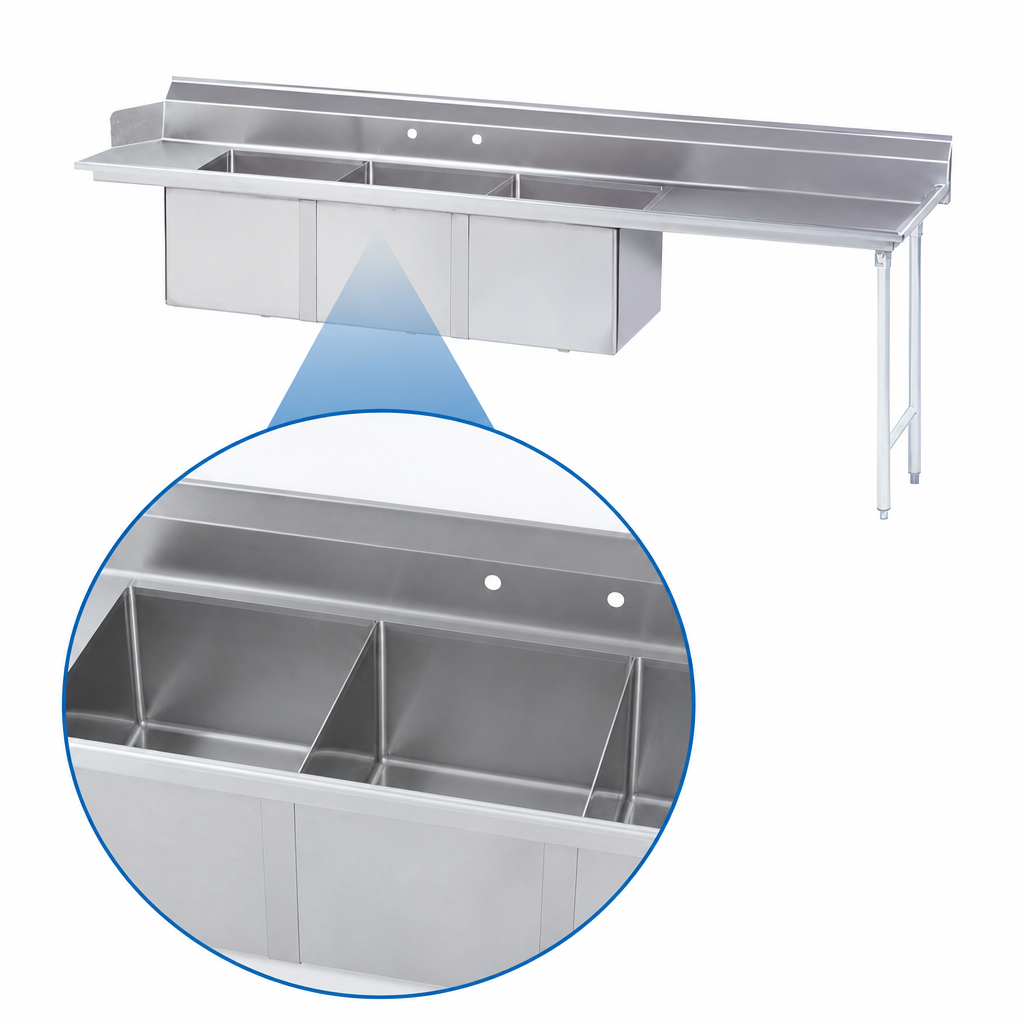

- (3) 24" × 24" × 14" sink bowls positioned 12" from dish machine to clear control boxes.
- 35" right-hand drainboard keeps soiled or clean wares organized and off the work surface.
- 16-gauge 304 stainless steel top and bowls, fully TIG-welded & blended to a satin finish.
- 10 ½" high backsplash with 2" return and tile edge for quick, sanitary wall installation.
- (2) sets of 8"-on-center faucet holes pre-punched in the splash (faucets sold separately).
- 1 ½" IPS stainless waste drains supplied for each compartment.
- 1 5⁄8" Ø stainless steel legs with welded gussets & front-to-back crossrails.
- Adjustable stainless bullet feet for fast leveling on uneven floors.
- NSF listed for safe food-contact use.
At-a-Glance Specifications
| Overall width | 119" (302 cm) |
|---|---|
| Configuration | Right side dishtable with 3-compartment sink & 35" drainboard |
| Sink bowl dimensions (W × L × D) | 24" × 24" × 14" |
| Bowl placement | 12" from dish machine opening |
| Top / bowl material | 16-gauge 304 stainless steel |
| Legs & bracing | 1 5⁄8" Ø stainless legs with front-to-back crossrails |
| Feet | Adjustable stainless bullet feet |
| Backsplash | 10 ½" H with 2" return, tile edge |
| Faucet holes | (2) sets, 8" centers, 1 ⅛" diameter (requires two faucets) |
| Drain size | 1 ½" IPS stainless drains included |
| Approx. shipping weight | 350 lb (159 kg) |
| Certifications | NSF |
Perfect Fit Promise
DTC-series dishtables are engineered to interface with most conveyor and door-type dish machines. The 12" bowl setback meets common clearance requirements for control boxes and drive units, but dish machines vary.
Need a different length, bowl size, or orientation? Ask about Advance Tabco Smart Fabrication™ options, pre-rinse slide bars, twist-handle drains, and other accessories.
