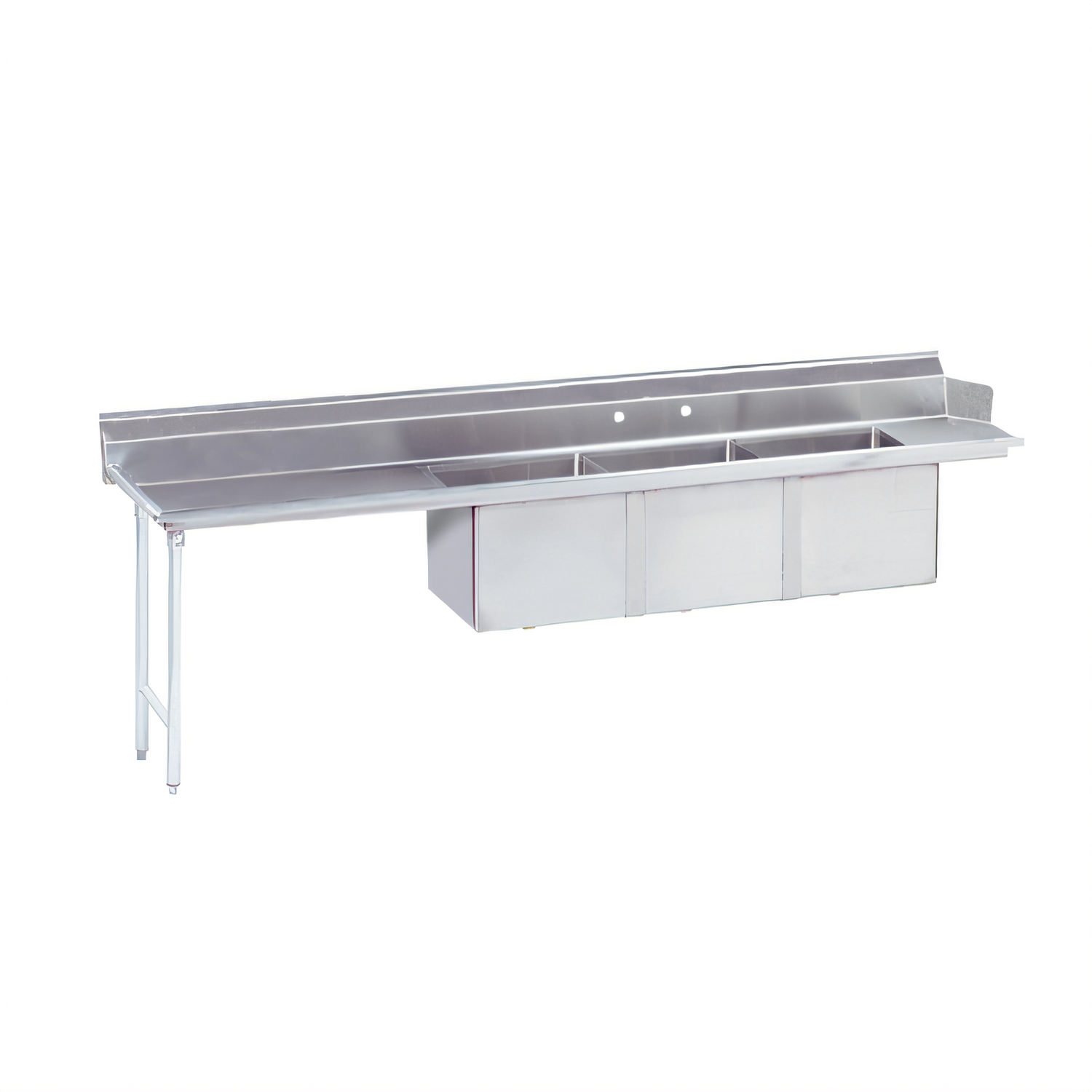

Advance Tabco Left-Drainboard 3-Compartment Sink Dishtable with 24 x 24 x 14 Inch Bowls, 119 Inch Wide

SKU: DTC-3-2424-120L
$5,110.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Work Tables Compartment Sinks New Arrivals Restaurant Equipment Sink Tables Sinks & Handwashing Stations Specialty Work Tables

Advance Tabco Left-Drainboard 3-Compartment Sink Dishtable with 24 x 24 x 14 Inch Bowls, 119 Inch Wide

304 Stainless Steel Top, Straight Design, Left-Side Dish Machine Installation

This heavy-duty 119-inch dishtable combines three oversized sink bowls with a left-side drainboard and durable stainless steel construction to streamline dish room workflow.

  • Three fabricated sink compartments with 24 x 24 x 14 inch bowls provide generous washing capacity.
  • 35 inch left drainboard helps keep clean items organized and expands your work surface.
  • 16 gauge 304 stainless steel top with stainless steel legs, cross bracing, and bullet feet for durability.
  • 10-1/2 inch backsplash with 2 inch return and tile edge helps contain splashes and simplifies installation.
  • Bowls are positioned 12 inches in from the machine; verify control box or drive unit clearance before ordering.
  • Faucet holes are punched on 8 inch centers and 1 1/2 inch IPS waste drains are included.

Overall Dimensions:

119.0"W x 30.0"D x 44.5"H

Product Weight:

380.0 lb

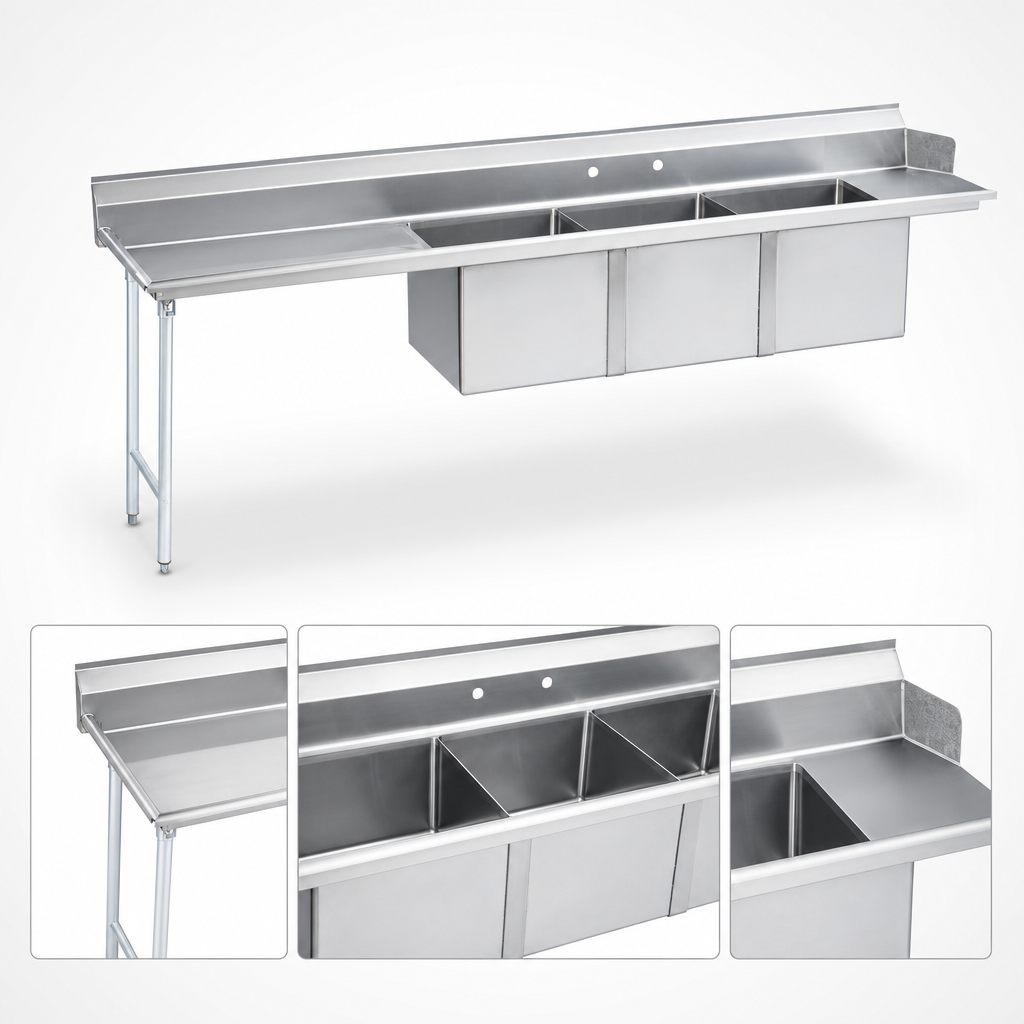

Three Compartment Fabricated Sink

Built with three sink bowls for multi-stage dishwashing and foodservice cleanup.

24 x 24 x 14 Inch Bowls

Large fabricated bowls provide ample room for washing and rinsing larger wares.

Left Drainboard Configuration

Configured with a left-side drainboard and attaches to the left of the dish machine operator.

304 Stainless Steel Construction

Features a 16 gauge 304 stainless steel top with stainless steel legs and front-to-back cross bracing.

10-1/2 Inch Backsplash

Extra-large backsplash includes a 2 inch return and tile edge to help reduce splashing and improve installation fit.

Integrated Installation Details

Bowls are located 12 inches from the machine, faucet holes are punched on 8 inch centers, and 1 1/2 inch IPS waste drains are included.

Type Dishtable
Style Straight
Installation Type Floor Model
Compartments 3
Bowl Size 24 x 24 x 14 Inches
Drainboard Side Left
Drainboard Length 35 Inches
Backsplash Height 10-1/2 Inches
Material 304 Stainless Steel
Gauge 16 Gauge
Drain Connection Size 1 1/2 Inches IPS
Shipping Width 119 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Compatibility chart PDF Download

Frequently Asked Questions

The unit has three bowls, each measuring 24 x 24 x 14 inches.
This model is configured with a left-side drainboard and attaches to the left of the dish machine operator.
No. Faucet holes are punched on 8 inch centers, but the faucet is not included.
Yes. The 1 1/2 inch IPS waste drains are included.
The bowls are located 12 inches in from the machine.
Yes. Verify that the dish machine control box or drive unit will not interfere with the dishtable.
