Advance Tabco DTC-3-2020-96R Compartment Sinks
Description

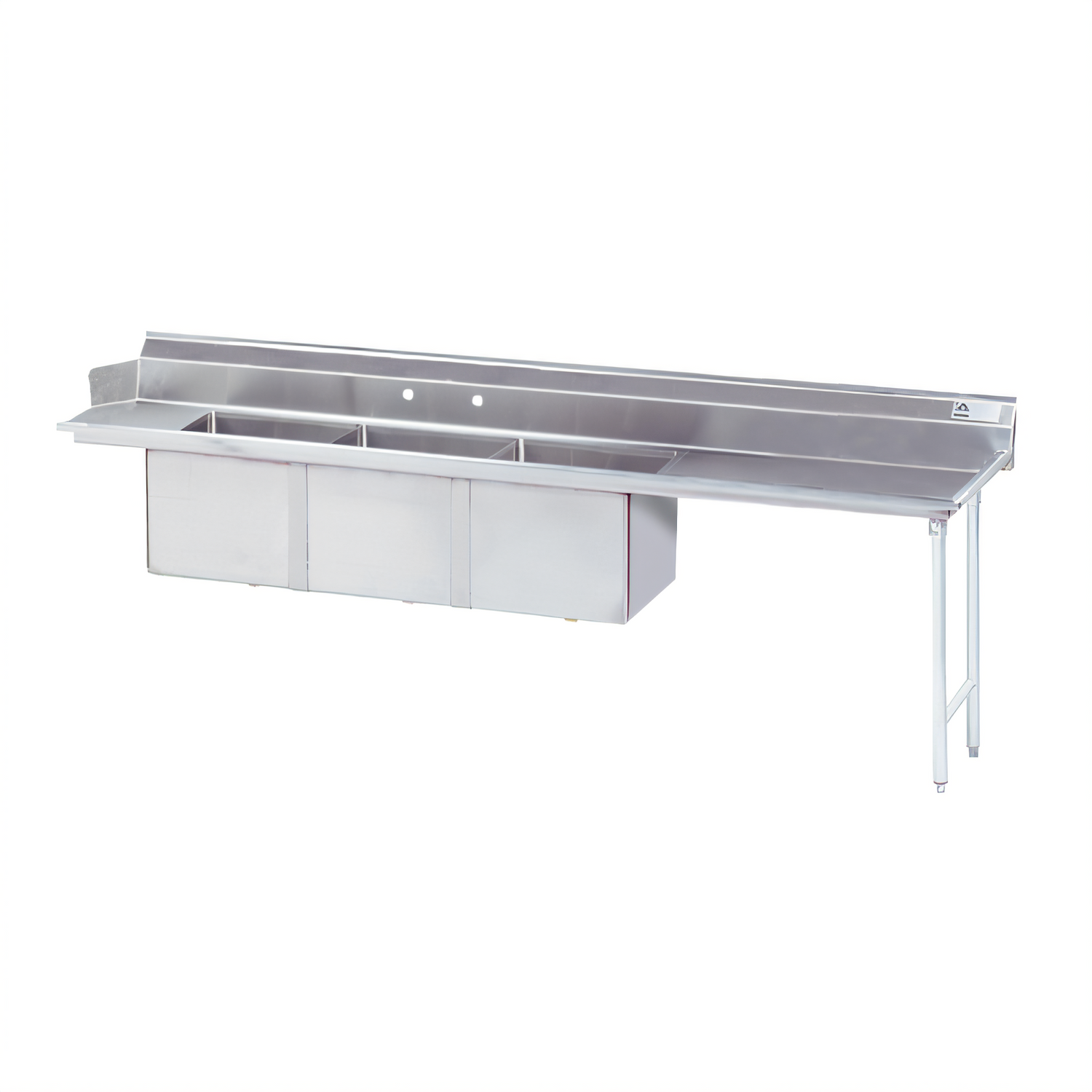

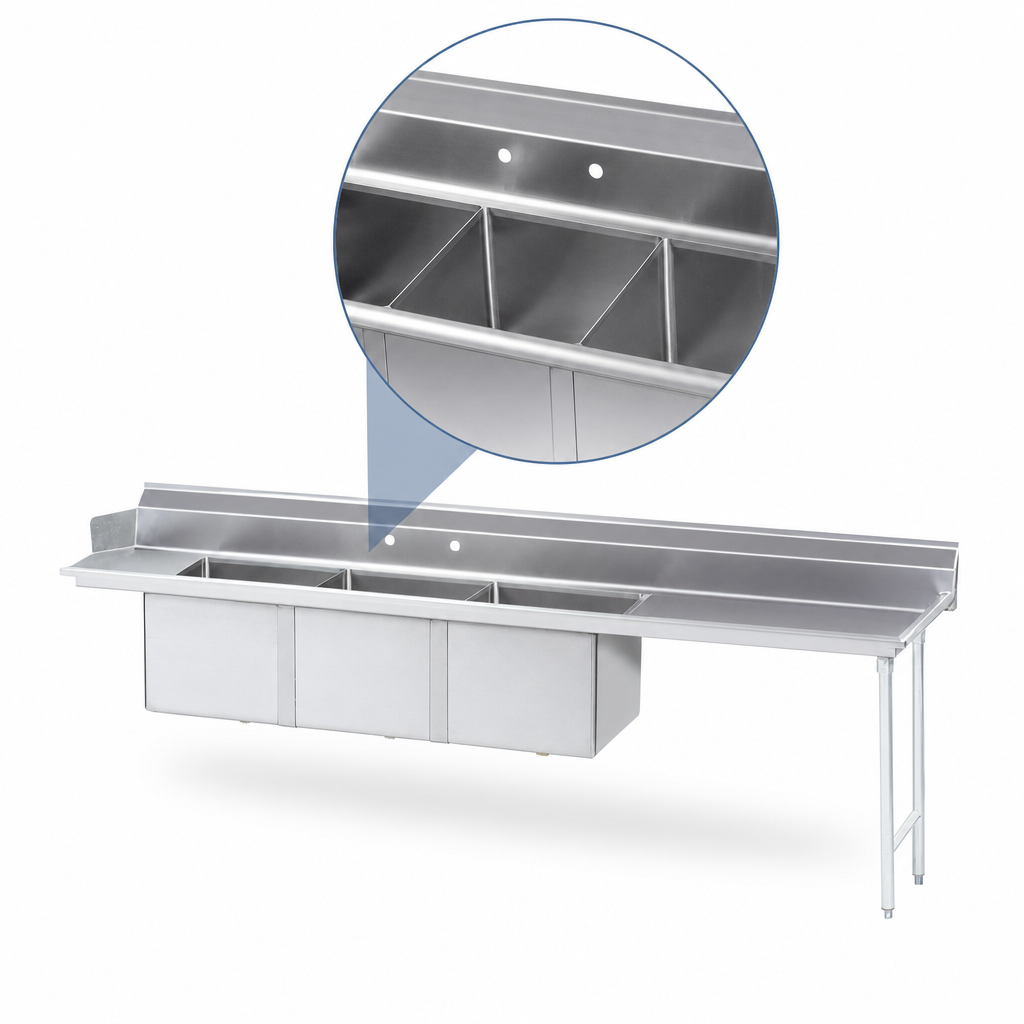

Advance Tabco DTC-3-2020-96R 3-Compartment Dishtable
95" W, right-side installation, 23" drainboard, NSFBuilt for busy commercial kitchens, this 95-inch Advance Tabco dishtable combines a rugged 3-compartment sink with a generous right-hand drainboard, giving dish crews a seamless, sanitary work zone that mates directly to the right side of your dish machine operator station.
Why you’ll love it
- Three 20" × 20" × 14" fabricated bowls provide ample capacity for wash, rinse & sanitize operations.
- 16 ga type 304 stainless steel top resists corrosion and daily abuse.
- TIG-welded 1-piece construction with blended seams for a smooth, easy-clean finish.
- 23" right drainboard gives clean ware a landing zone without taking up extra floor space.
- Bowls are factory-set 12" from the dish machine opening to clear most control boxes & vents.
- 10½" backsplash with 2" return and tile edge makes wall installation fast and watertight.
- 1 ⅝" Ø stainless steel legs, gussets & front-to-back crossrails eliminate wobble.
- Adjustable stainless bullet feet level the unit from 34" to 37" working height.
- Pre-punched 8" O.C. faucet holes and 1 ½" IPS waste drains included (faucets not included).
- NSF listed for food-service sanitation.
Technical specifications
| Model | DTC-3-2020-96R |
|---|---|
| Overall length | 95" (241 cm) |
| Overall depth | 30" (76 cm) |
| Sink bowls | (3) 20" W × 20" L × 14" D |
| Drainboard | 23" right-hand |
| Top material & gauge | 16 ga 304 stainless steel |
| Legs / bracing | 1 ⅝" Ø stainless legs with front-to-back crossrails |
| Backsplash height | 10½" with 2" return & tile edge |
| Faucet cut-outs | 8" centers, 1 ⅛" dia. holes (3-hole pattern) |
| Waste drains | 1 ½" IPS, basket strainers included |
| Approx. weight | 260 lb (118 kg) |
| Certifications | NSF |
Popular add-ons (sold separately)
- Prerinse baskets & slide bars for 20" × 20" bowls (models DTA-100, DTA-60).
- Twist-handle drains & overflow assemblies (models K-4, K-5, K-15).
- Custom bowl relocation or heavy-duty 14 ga upgrade—ask for Smart Fabrication™.

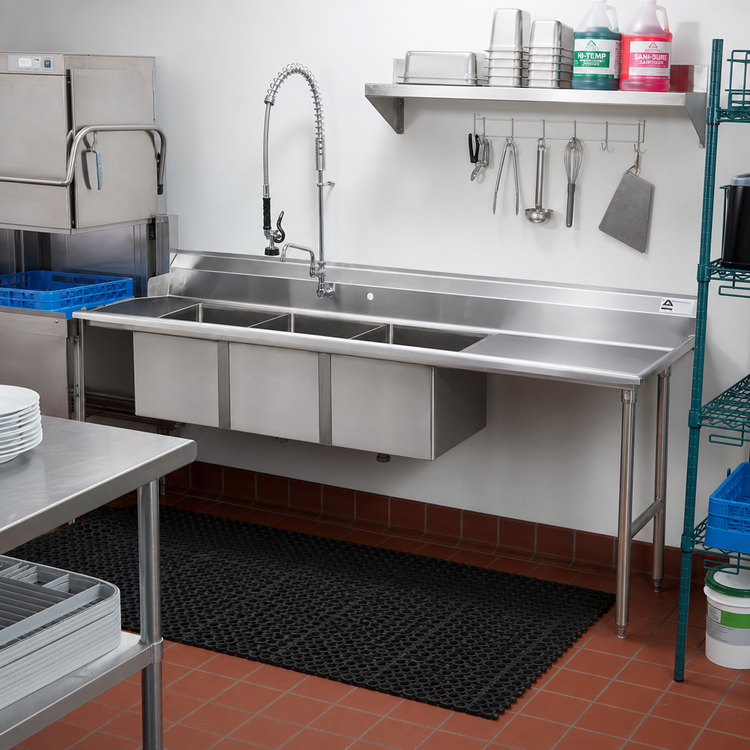

Image(s) shown are representative; actual configuration conforms to specifications above. Faucets and dish machine shown for context are not included.
