Description

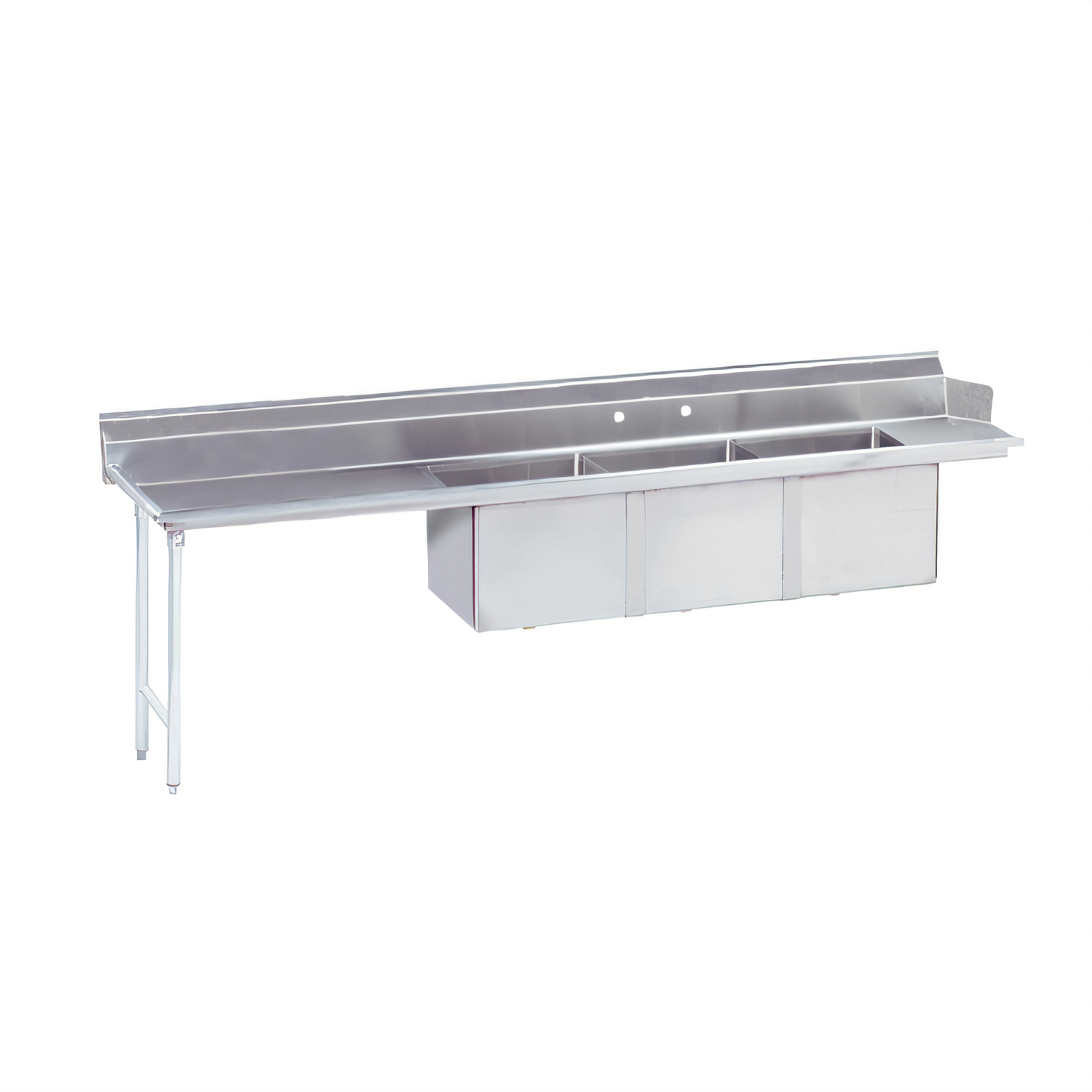

Advance Tabco DTC-3-2020-96L 95" 3-Compartment Dishtable with Sink

Left soil side • 16 ga. Type 304 stainless steel • 23" drainboard

Engineered for busy commercial kitchens, this Advance Tabco fabricated dishtable combines a rugged 95-inch work surface with a fully integrated three-compartment sink. Built from heavy-duty 16 gauge 304 stainless steel and reinforced by stainless legs and crossrails, the DTC-3-2020-96L stands up to daily punishment while streamlining the scrape-wash-rinse flow on the left of your dish machine operator.

Key features at a glance

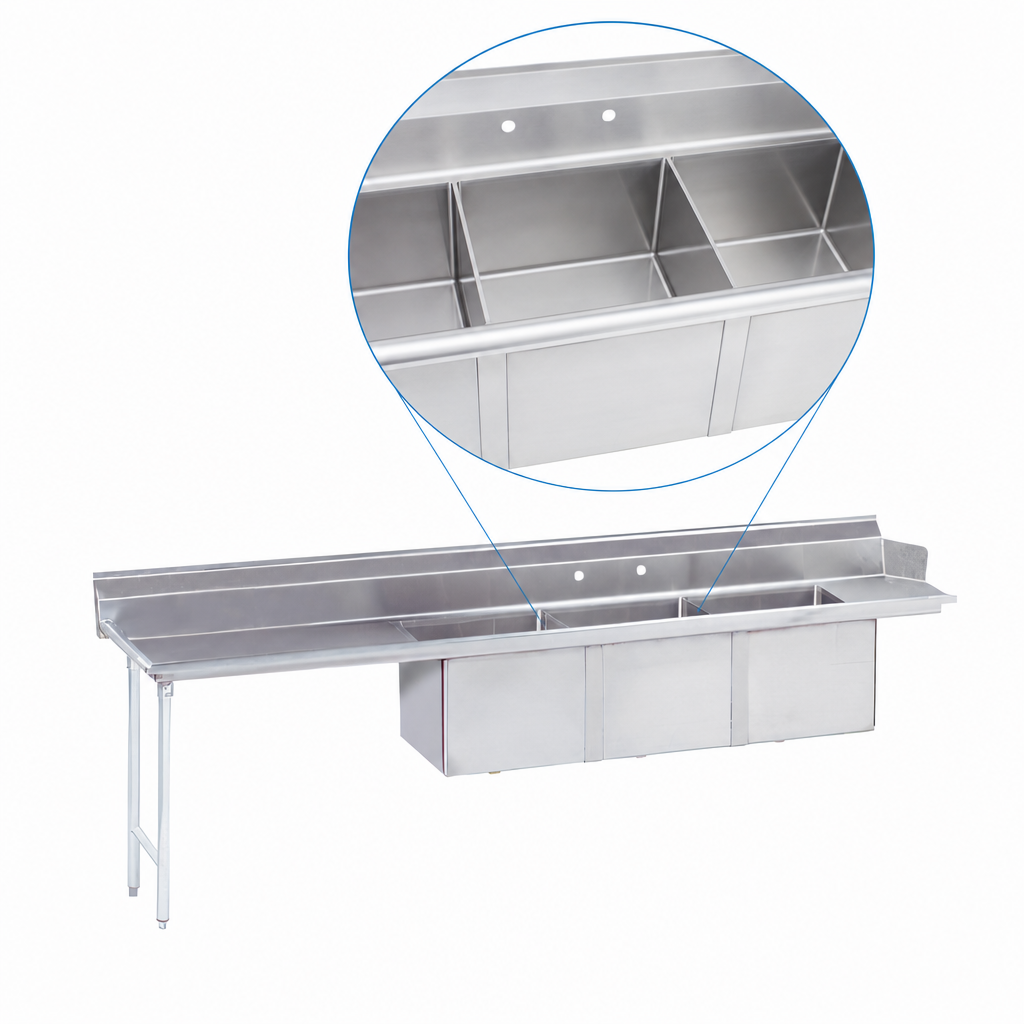

  • Three fabricated sink bowls, each 20" W × 20" L × 14" D, positioned 12" from the dish machine opening for code-compliant clearance.
  • 23" left-side drainboard with pitched surface promotes quick water run-off back to the sink.
  • All-TIG-welded 16 ga. Type 304 stainless steel top with satin finish resists corrosion and cleans up fast.
  • 10-1/2" high backsplash with 2" return and tile-edge for a sanitary, splash-containment seal against the wall.
  • (2) 1⅛" faucet holes pre-punched on 8" centers; 1½" IPS waste drains included (faucet not supplied).
  • 1 ⅝"-diameter stainless legs with welded gussets and full front-to-back cross bracing for rock-solid stability.
  • Adjustable 1" stainless bullet feet level the table on uneven floors.
  • NSF listed for food-service sanitation.
Technical specifications
Model DTC-3-2020-96L
Orientation Left soil side (mounts to operator’s left)
Overall length 95"
Overall depth 30" (nominal)
Drainboard length 23" (left end)
Sink bowls 3 fabricated bowls, 20" × 20" × 14" deep
Bowl placement 12" from dish machine opening
Work height 34" to tabletop / 37" to top of backsplash
Top material / gauge 16 ga. Type 304 stainless steel
Legs & bracing 1 ⅝" Ø stainless steel legs with front-to-back crossrails
Feet Adjustable stainless bullet feet
Drain connection (3) 1 ½" IPS wastes (included)
Faucet punchings (2) holes on 8" centers in backsplash
Certifications NSF
Compatibility check: Bowl clearance meets the standard 12" requirement, but always verify your specific dish machine’s control-box location and other clearance needs before ordering. Contact Advance Tabco Smart Fabrication™ if modifications are required.

Faucet, pre-rinse assembly, scrap basket and disposer are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

95.0in

Depth

30.0in

Shipping Weight

260.0lbs

Width (side - side) OA

85" - 96"

Dishtable Splash

10-1/2"

Gauge

16 ga

Compartment (side - side)

20"

Dishtable Shape

straight

Dishtable Legs

stainless steel

Compartment (front - back)

20"

Type Stainless Steel Top

300 series

Dish Machine Location

right side

Specifications

Dishtable with 3-compartment Sink, 95”W, (3) 20" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 23" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
