Advance Tabco

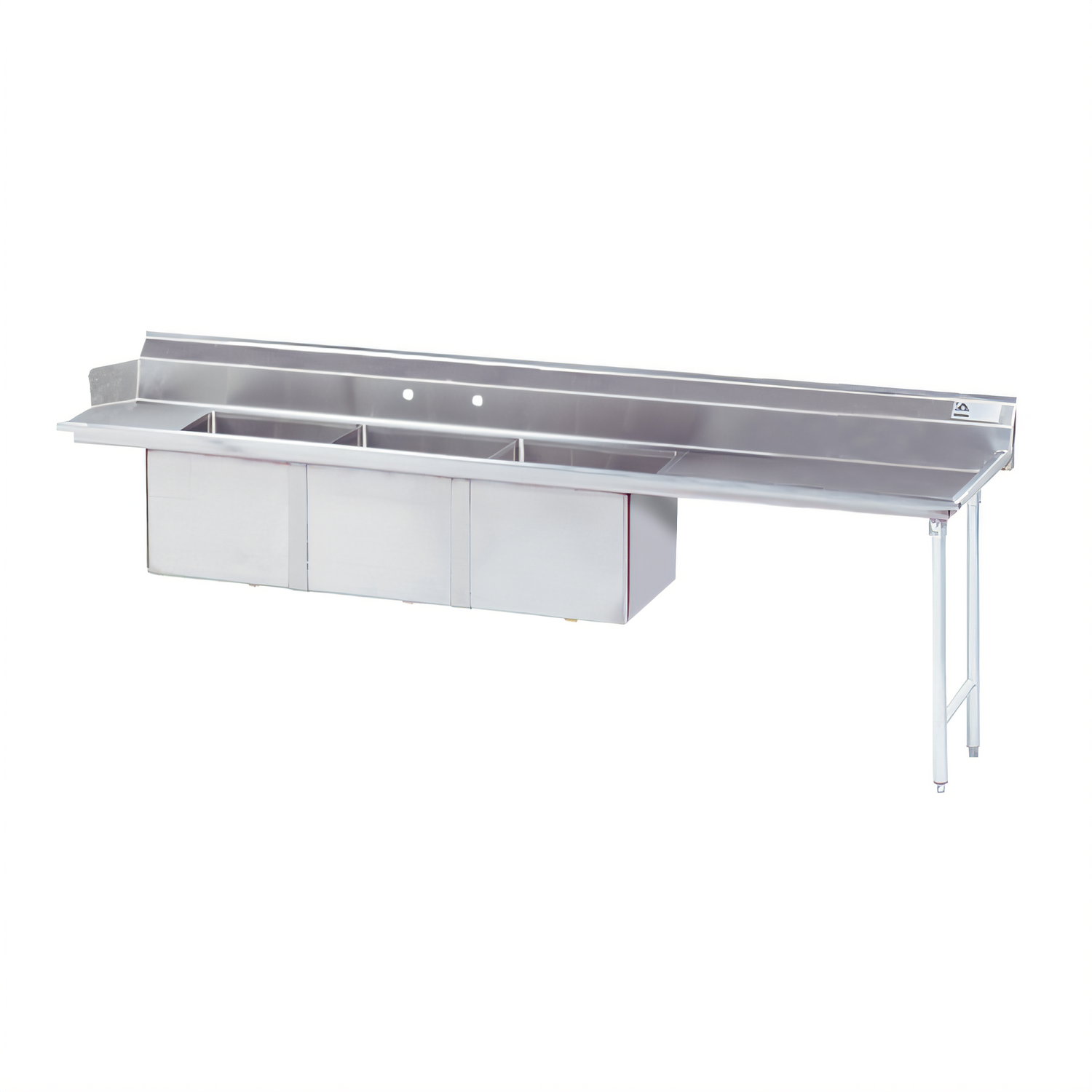

Advance Tabco 143-Inch Straight 3-Compartment Sink Dishtable with 20 x 20 x 14 Inch Bowls and Right Drainboard

SKU: DTC-3-2020-144R
GTIN: 747545207357
$4,901.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Work Tables Compartment Sinks New Arrivals Restaurant Equipment Sink Tables Sinks & Handwashing Stations Specialty Work Tables

Advance Tabco 143-Inch Straight 3-Compartment Sink Dishtable with 20 x 20 x 14 Inch Bowls and Right Drainboard

16-Gauge 304 Stainless Steel, Left-Side Machine Attachment

Built for busy dish rooms, this 3-compartment dishtable combines a long right-side drainboard with rugged stainless steel construction to streamline warewashing.

  • Three 20 x 20 x 14 inch fabricated sink bowls support multi-step warewashing.
  • 71-inch right drainboard provides a generous landing and drying area.
  • 16-gauge 304 stainless steel top with stainless steel legs, crossrails, and bullet feet.
  • Attaches to the left of the dish machine operator; bowls are positioned 12 inches from the machine.
  • 10-1/2-inch backsplash with tile edge helps contain splashes and simplifies installation.
  • Faucet holes are punched on 8-inch centers, and waste drains are included.
  • NSF listed for commercial sanitation compliance.

Overall Dimensions:

143.0"W x 30.0"D x 44.5"H

Product Weight:

340.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

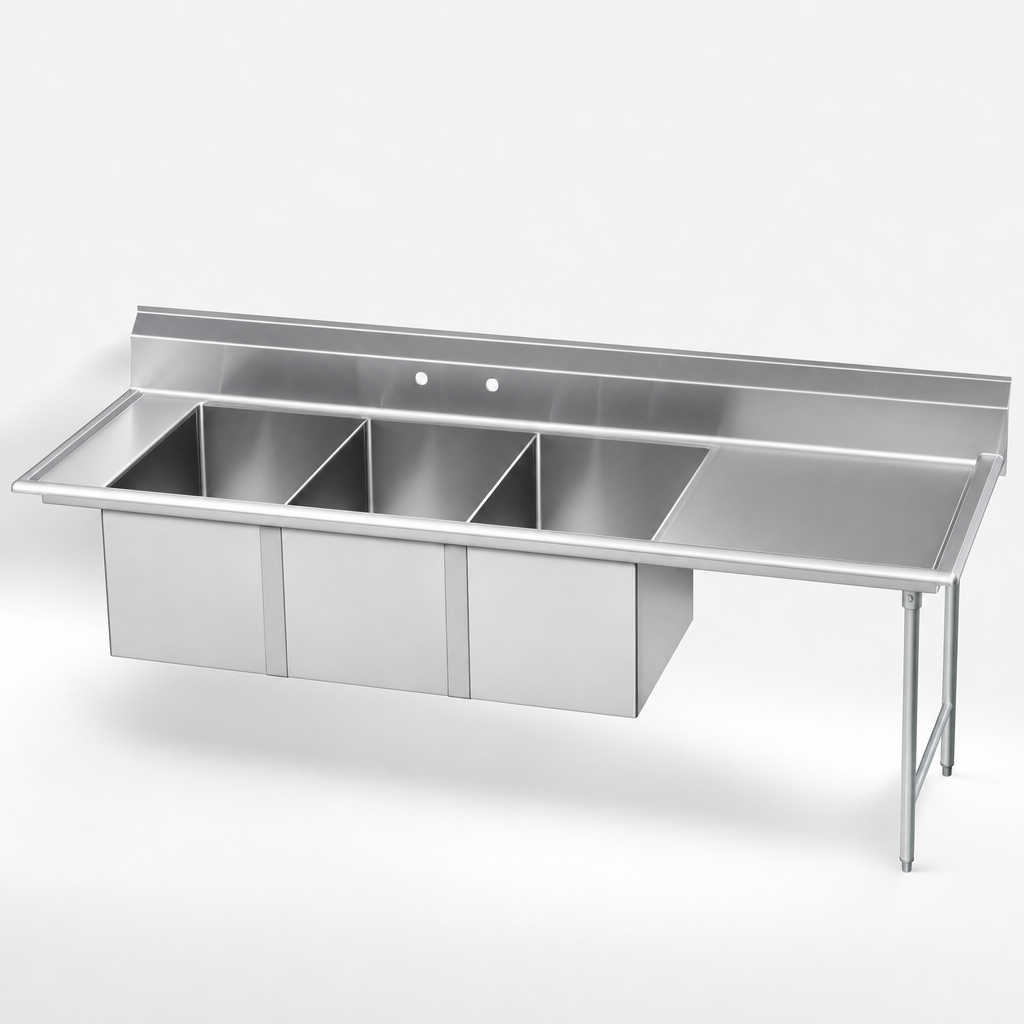

Three Fabricated Sink Bowls

Includes three 20 x 20 x 14 inch bowls for separating wash, rinse, and sanitize tasks.

Right Drainboard

A 71-inch drainboard provides extra space for staging racks, drying items, and organizing dish flow.

16-Gauge 304 Stainless Steel Top

Commercial stainless steel construction is built for durability and corrosion resistance.

Stainless Steel Support Structure

Stainless steel legs, front-to-back crossrails, gussets, and bullet feet help provide stability.

10-1/2-Inch Backsplash

The large backsplash with tile edge helps reduce splash and supports wall installation.

Installed for Dish Machine Workflow

The unit attaches to the left of the dish machine operator, with bowls located 12 inches from the machine.

Utility Preparation

Faucet holes are punched on 8-inch centers, and 1 1/2 inch IPS waste drains are included.

Optional Bowl Location Flexibility

The documentation notes DTA-76 for custom bowl location and DTA-49 for a 14-gauge upgrade.

Type 3-Compartment Sink Dishtable
Style Straight
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin Finish
Gauge 16 Gauge
Compartments 3
Bowl Size 20 x 20 x 14 Inches
Drainboard Size 71 Inches
Drainboard Side Right
Dish Machine Location Left Side
Backsplash Height 10-1/2 Inches
Faucet Hole Centers 8 Inches
Drain Connection Size 1-1/2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 143 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 340 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Compatibility chart PDF Download

Frequently Asked Questions

It attaches to the left of the dish machine operator.
The unit includes three 20 x 20 x 14 inch fabricated bowls.
The bowls are located 12 inches in from the machine.
No. Faucet holes are punched on 8-inch centers, but the faucet is supplied by others.
Yes. The documentation states that 1 1/2 inch IPS waste drains are included.
Yes. The documentation references the DTA-100 prerinse basket and DTA-60 prerinse slide bar for 20 x 20 fabricated bowls.
