Advance Tabco  |  SKU: DTC-3-2020-120L  |  UPC: 747545118622

Advance Tabco DTC-3-2020-120L Compartment Sinks

$4,478.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

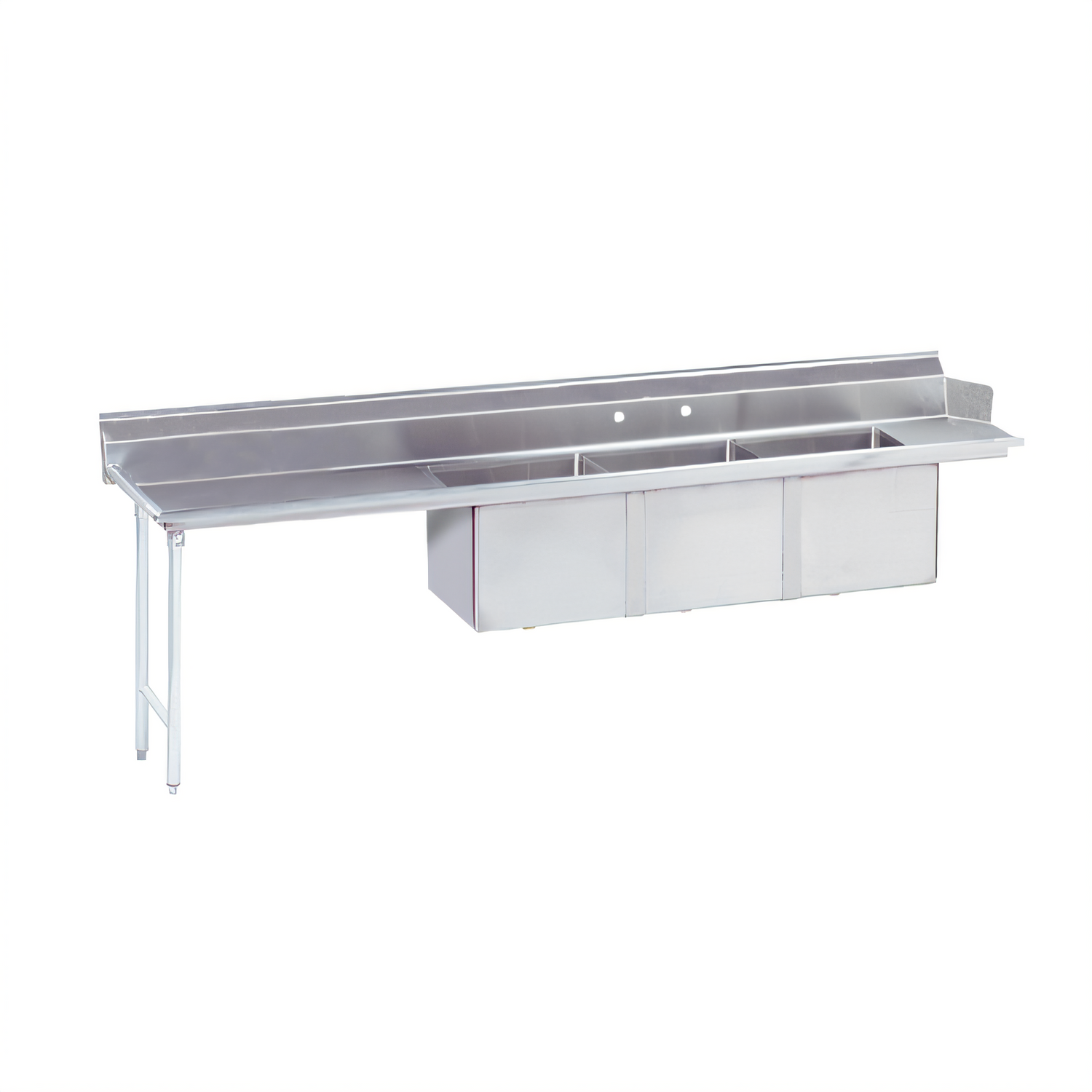

Advance Tabco DTC-3-2020-120L 119" Dishtable with 3-Compartment Sink & Left Drainboard

20" × 20" × 14" bowls • 16 ga. 304 Stainless Steel • NSF Listed

Built to keep high-volume warewashing lines moving, this one-piece Advance Tabco dishtable welds a rugged 3-compartment sink to a generous 47 inch left-hand drainboard. The 16-gauge 304 stainless steel top, TIG-welded seams and heavy-duty leg package combine for years of worry-free service next to your conveyor dish machine.

Key Benefits

  • Integrated 3-compartment fabricated sink for soaking, washing and rinsing in one station.
  • Spacious 47" drainboard on the left side keeps racks and sheet pans organized and off the floor.
  • 16 ga. type 304 stainless steel top resists harsh chemicals and daily abuse.
  • TIG-welded construction; joints are blended to a smooth satin finish for fast, sanitary clean-up.
  • 10 1/2" backsplash with 2" return and tile edge protects walls and simplifies installation.
  • Bowls are positioned 12" from the dish machine opening to clear most control boxes and vents.
  • Pre-punched 8" O.C. faucet holes and 1 1/2" IPS basket drains included (faucet not included).
  • 1 5/8" Ø stainless legs, full front-to-back crossrails and adjustable bullet feet provide rock-solid support.

At-a-Glance Specifications

Model DTC-3-2020-120L (Left drainboard)
Overall length 119" / 3023 mm
Overall depth 30" / 762 mm
Working height 34" to sink rim
Backsplash height 10 1/2" with 2" return
Drainboard 47" rib-reinforced, left side
Sink compartments (3) 20" W × 20" L × 14" D
Clearance to dish machine 12" from nearest bowl
Top material 16-ga. type 304 stainless steel
Base 1 5/8" Ø stainless legs & front-to-back crossrails
Feet Adjustable stainless steel bullet feet
Plumbing 8" O.C. faucet holes; (3) 1 1/2" IPS drains (included)
Approx. weight 310 lb.
Certifications NSF
Important: Always verify your specific dish machine model to ensure its control box or drive components will not interfere with the sink bowl placement. Consult the Dish Machine Compatibility Chart or contact our specialists before ordering.

Faucet, prerinse unit, basket strainers and installation hardware sold separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Shipping Weight

310.0lbs

Width (side - side) OA

109" - 120"

Dishtable Splash

10-1/2"

Dishtable Legs

stainless steel

Compartment (side - side)

20"

Type Stainless Steel Top

300 series

Gauge

16 ga

Dish Machine Location

right side

Dishtable Shape

straight

Compartment (front - back)

20"

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 20" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 47" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
