Advance Tabco  |  SKU: DTC-3-2020-108R

Advance Tabco DTC-3-2020-108R Compartment Sinks

$4,736.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

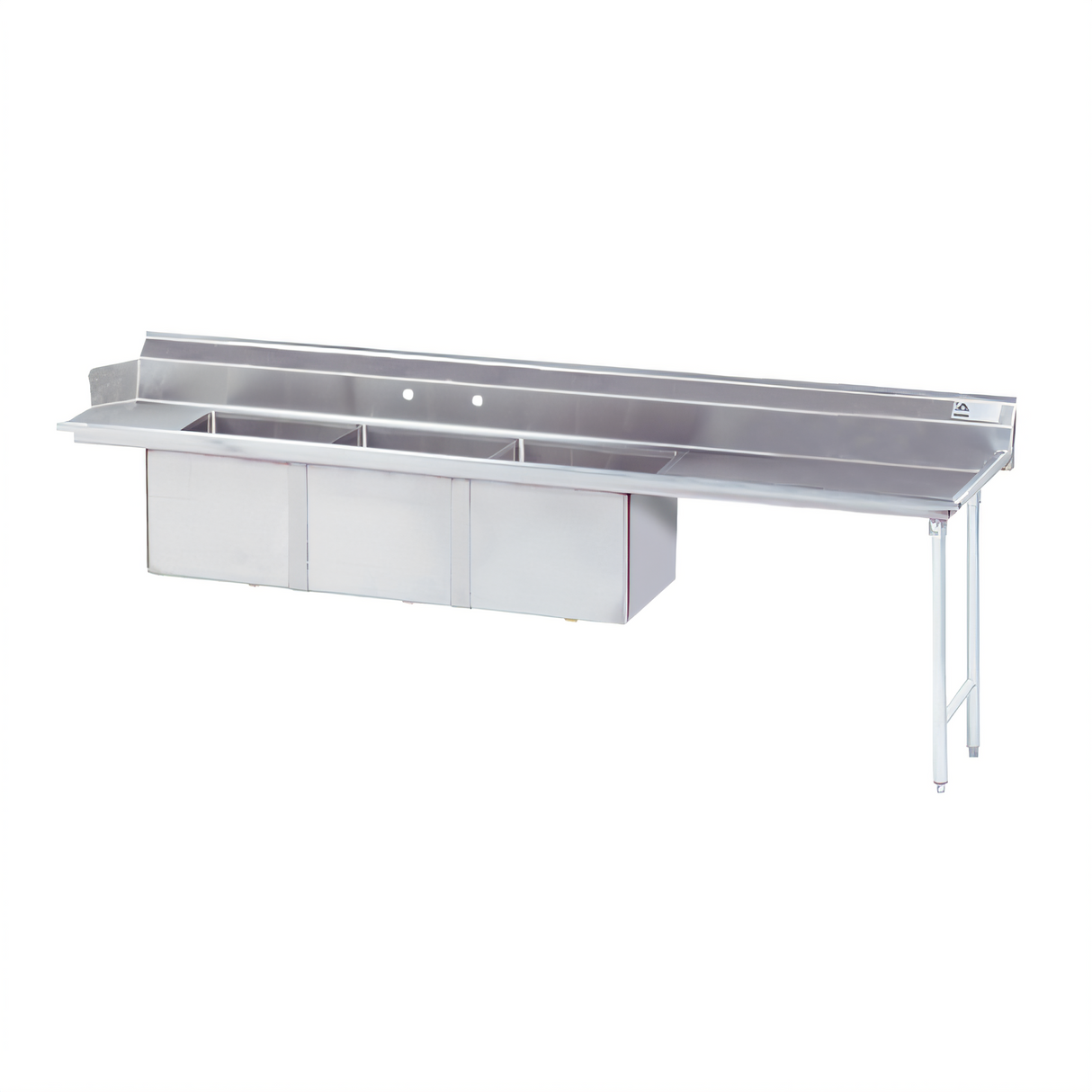

Advance Tabco 107" Right-Side Dishtable w/ 3-Compartment Sink

Model: DTC-3-2020-108R (20" x 20" x 14" Bowls)

Streamline your ware-washing line with Advance Tabco’s NSF-listed dishtable and integrated triple sink. Built from rugged 16-gauge 304 stainless steel, this 107" long unit delivers generous work surface, a spacious 35" drainboard, and optimal bowl placement 12" from the dish machine—perfect for right-hand entry systems.

Why Choose This Dishtable

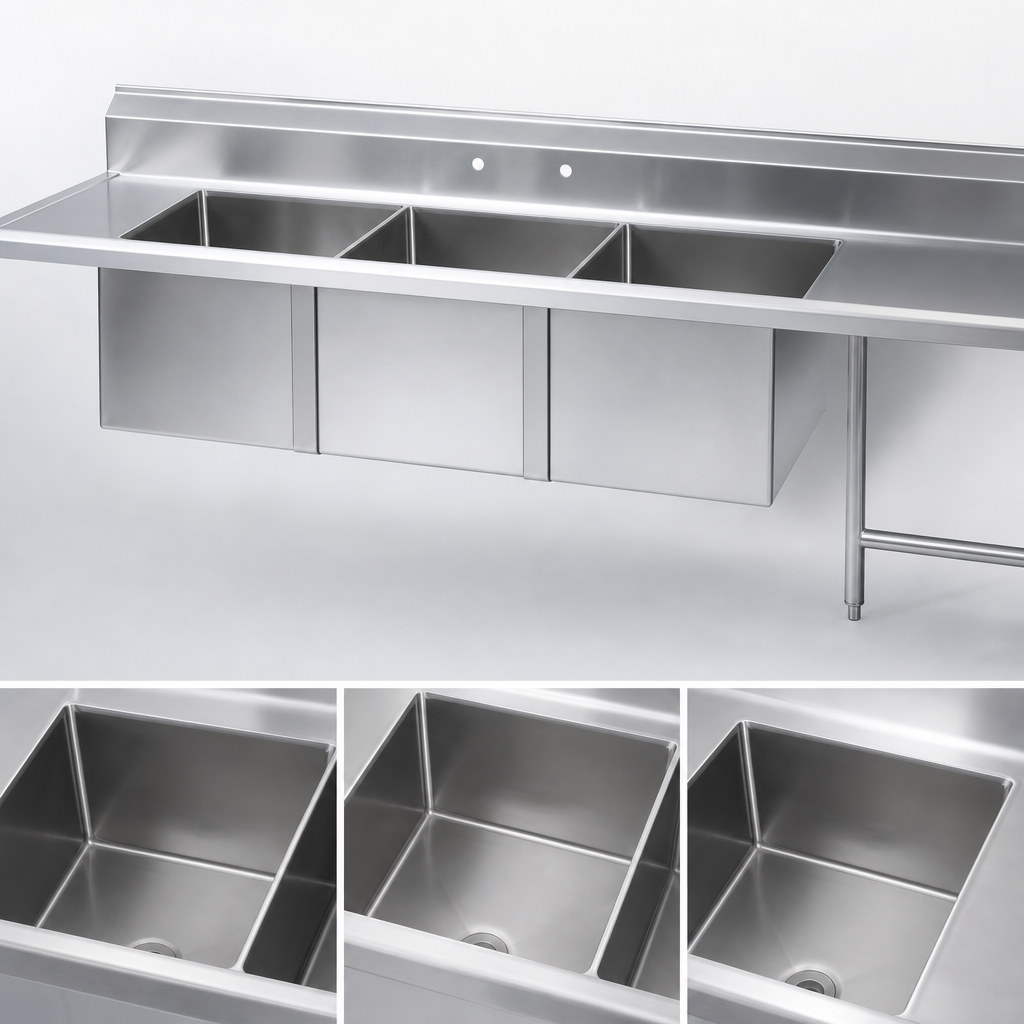

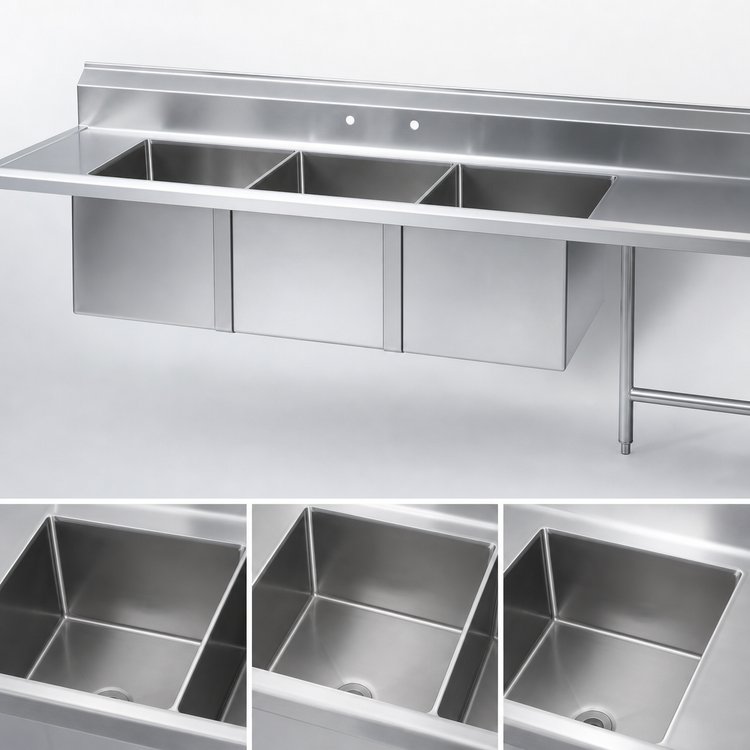

  • Three fabricated sink bowls (20" W x 20" D x 14" H) for efficient wash, rinse & sanitize steps.
  • 16-gauge 304 stainless steel top resists corrosion, dents, and high-volume abuse.
  • 35" right-side drainboard with integral pitch for fast water run-off.
  • 10-1/2" backsplash with 2" return & tile edge for a clean, code-compliant install.
  • TIG-welded stainless steel legs, gussets & front-to-back crossrails for rock-solid stability.
  • Adjustable stainless steel bullet feet level the table on uneven floors.
  • Pre-punched 8"-on-center faucet holes (faucet sold separately).
  • 1-1/2" IPS waste drains included.
  • NSF certified for food-service sanitation.

Specifications

Overall length 107" (272 cm)
Configuration Right-side soil table – mounts to operator’s right on dish machine
Sink bowls (3) 20" W x 20" D x 14" H fabricated bowls
12" set-back from machine opening
Drainboard 35" right drainboard with pitched surface
Top material / gauge 16-gauge type 304 stainless steel
Frame 1-5/8" Ø stainless steel legs with welded gussets & front-to-back crossrails
Backsplash 10-1/2" H with 2" return & tile edge
Drain size 1-1/2" IPS per bowl (drains supplied)
Faucet holes (2) 1-1/8" holes on 8" centers
Feet Adjustable stainless steel bullet feet
Certification NSF
Approx. weight 285 lb (129 kg)
Important: Bowl set-back meets the 12" clearance required by most major dish machines, but you must verify your specific model to ensure the control box or drive unit will not interfere. Refer to Advance Tabco’s Dish Machine Compatibility Chart or contact our specialists before ordering.

Ideal Applications

  • High-volume restaurants & cafeterias
  • Catering commissaries & ghost kitchens
  • Hotel, resort & banquet facilities
  • University & healthcare dish rooms

Need a left-hand unit, alternate bowl size, or 14-gauge upgrade? Ask about Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

107.0in

Depth

30.0in

Shipping Weight

285.0lbs

Dish Machine Location

left side

Dishtable Splash

10-1/2"

Width (side - side) OA

97" - 108"

Dishtable Legs

stainless steel

Compartment (side - side)

20"

Type Stainless Steel Top

300 series

Gauge

16 ga

Dishtable Shape

straight

Compartment (front - back)

20"

Specifications

Dishtable with 3-compartment Sink, 107”W, (3) 20" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 35" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
