Advance Tabco  |  SKU: DTC-3-1824-144L  |  UPC: 747545207364

Advance Tabco DTC-3-1824-144L Compartment Sinks

$4,910.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Restaurant Equipment Sink Tables Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

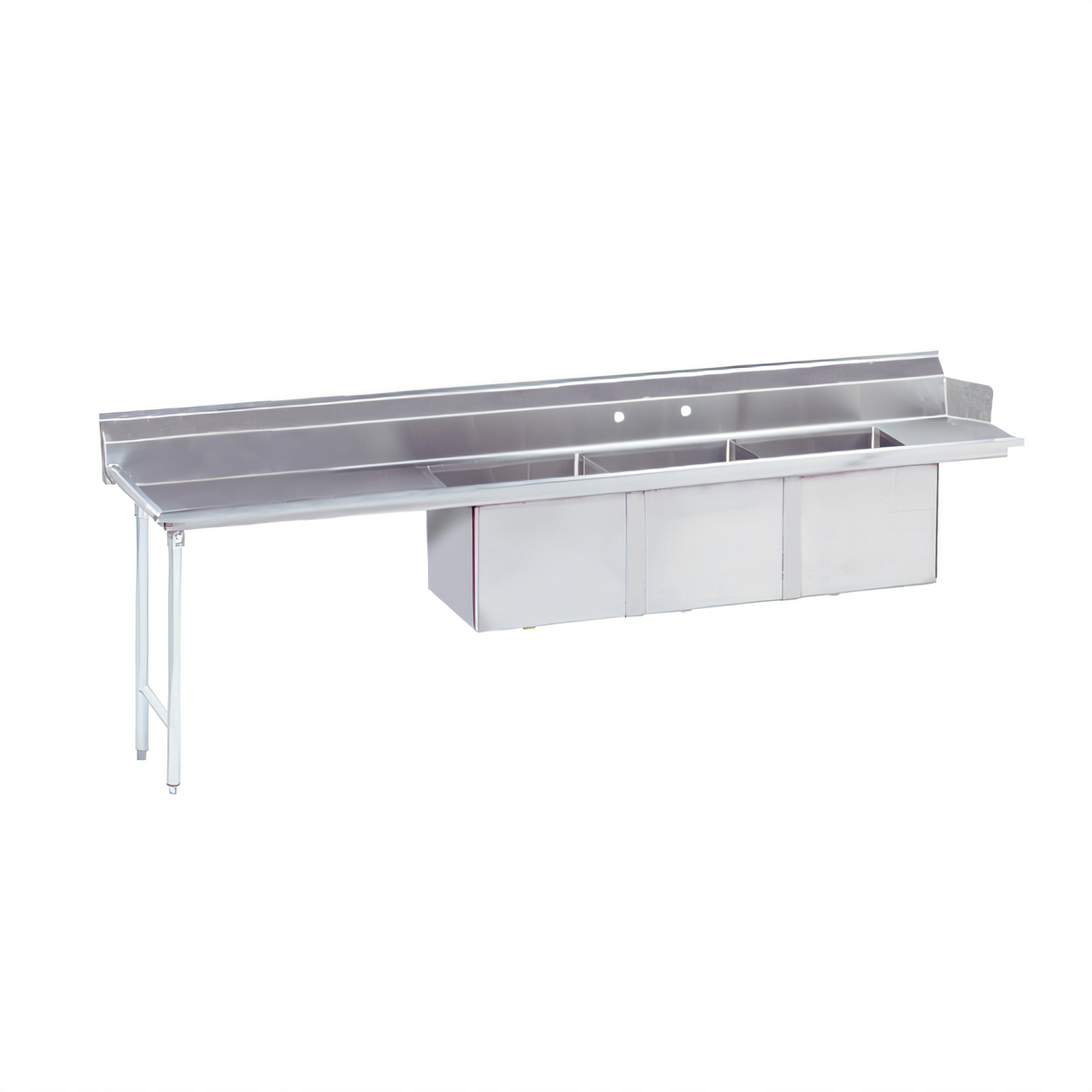

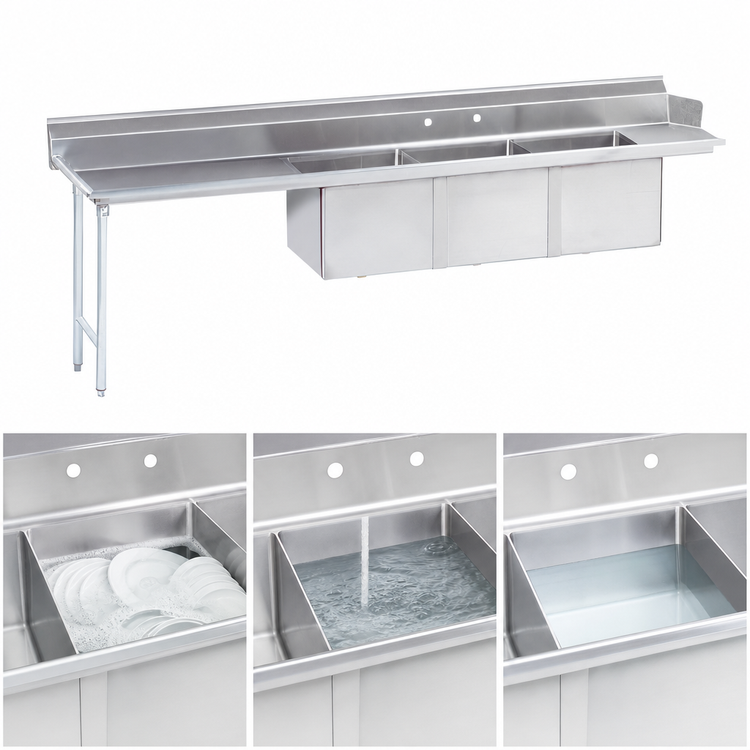

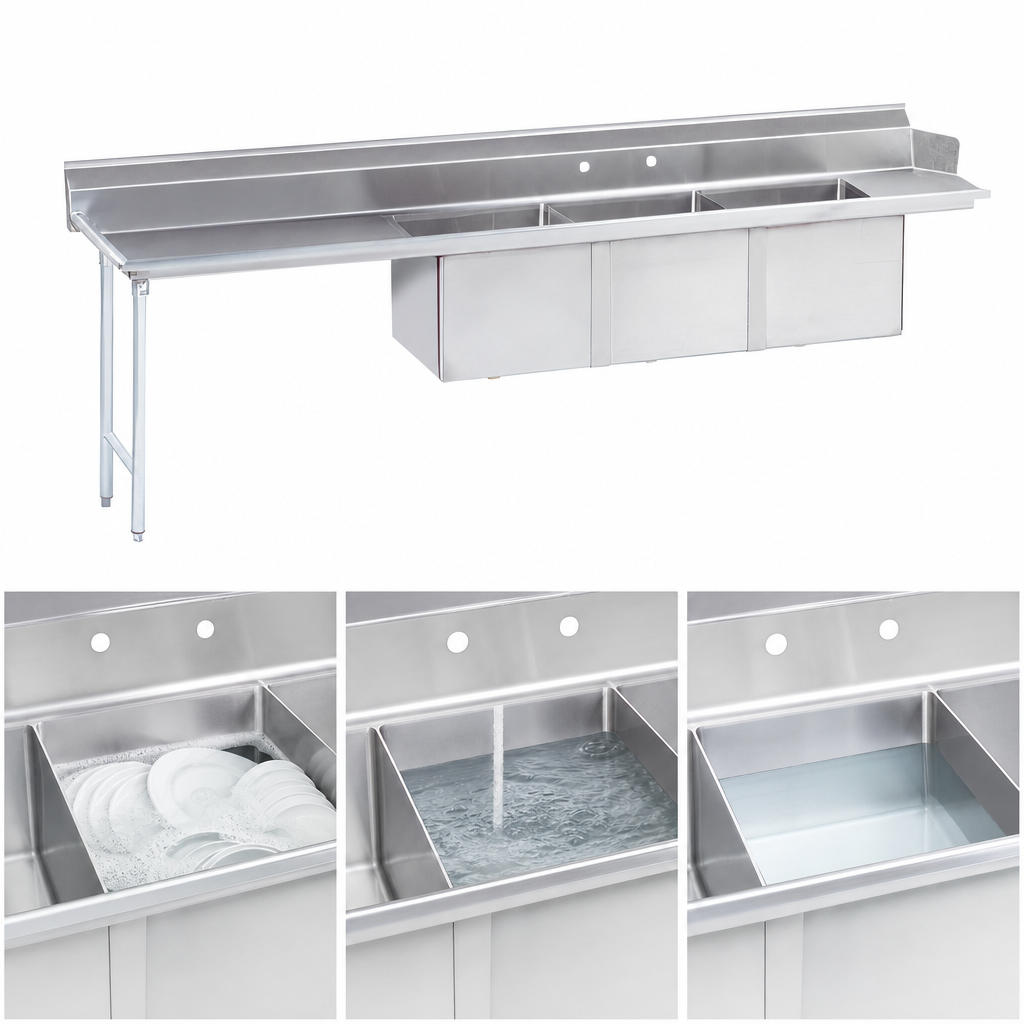

Advance Tabco DTC-3-1824-144L Three-Compartment Soil Dishtable

143" L x 30" W – Left-Feed Configuration – NSF Listed

Built for high-volume kitchens, this 143-inch Advance Tabco dishtable combines a rugged three-compartment sink with an extra-long drainboard to create an efficient, one-piece staging area on the left side of your dish machine.

Key Features

  • (3) 18" × 24" × 14" fabricated sink bowls positioned 12" from the dish machine opening.
  • 77" left-hand drainboard delivers generous landing space for soiled wares.
  • 16-gauge type 304 stainless steel top with satin finish—resists corrosion and heavy abuse.
  • Fully TIG-welded; welds are blended to a seamless, sanitary finish.
  • 10-1/2" backsplash with 2" return & tile edge for quick, watertight installation against a wall.
  • 8" on-center faucet holes punched in backsplash; 1-1/2" IPS waste drains supplied (faucet not included).
  • 1-5/8" stainless steel legs with welded gussets, front-to-back crossrails & adjustable stainless bullet feet.
  • NSF certified for open food-service applications.

Specifications

Model DTC-3-1824-144L
Overall length 143" (3,632 mm)
Overall width 30"
Working height 37" (34" to tabletop)
Sink compartments (3) 18" W × 24" L × 14" D
Drainboard length 77" (left of sink bowls)
Top material 16-ga 304 stainless steel
Legs / bracing Stainless steel legs with front-to-back crossrails
Waste drains 1-1/2" IPS (included)
Approx. weight 365 lb
Mounting Attaches to left side of dish machine operator

Installation Notes

  • Bowl set-back meets the 12" clearance recommended for most conveyor dish machines.
  • Verify your specific machine’s control box or drive unit does not interfere with the sink bowls.
  • For machines that require additional clearance, Advance Tabco Smart Fabrication™ options (e.g., DTA-76) are available.
Heads up: Faucets, pre-rinse units, drain baskets, and slide bars are sold separately.

Why Choose Advance Tabco?

Made in the USA and backed by decades of stainless expertise, Advance Tabco dishtables are engineered for durability, cleanability, and smooth integration with today’s leading warewashing equipment.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

143.0in

Depth

30.0in

Shipping Weight

365.0lbs

Width (side - side) OA

133" - 144"

Compartment (side - side)

18"

Gauge

16 ga

Dishtable Splash

10-1/2"

Dish Machine Location

right side

Dishtable Legs

stainless steel

Dishtable Shape

straight

Compartment (front - back)

24"

Type Stainless Steel Top

300 series

Specifications

Dishtable with 3-compartment Sink, 143”W, (3) 18" x 24" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 77" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
