Advance Tabco  |  SKU: DTC-3-1824-120R

Advance Tabco DTC-3-1824-120R Compartment Sinks

$4,672.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

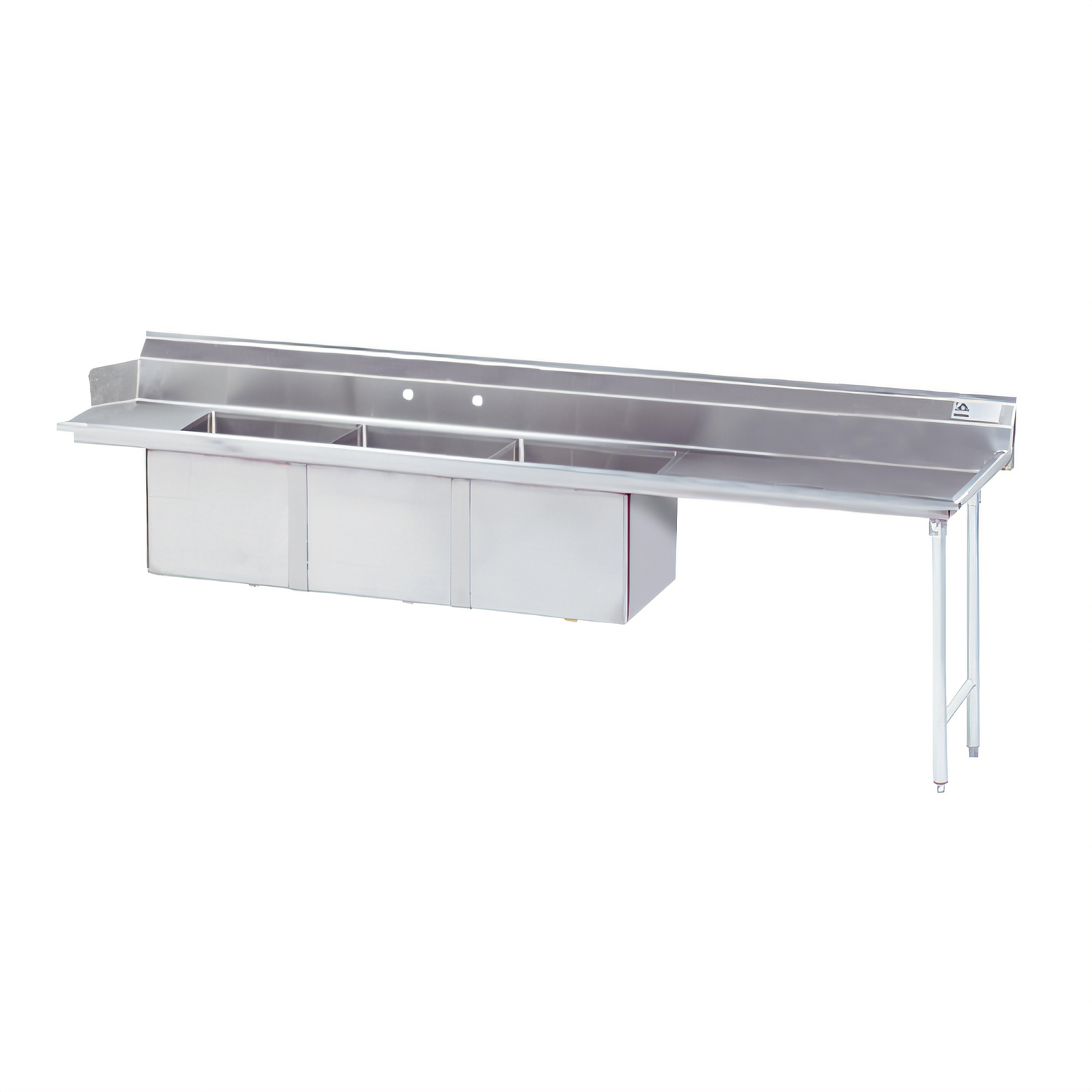

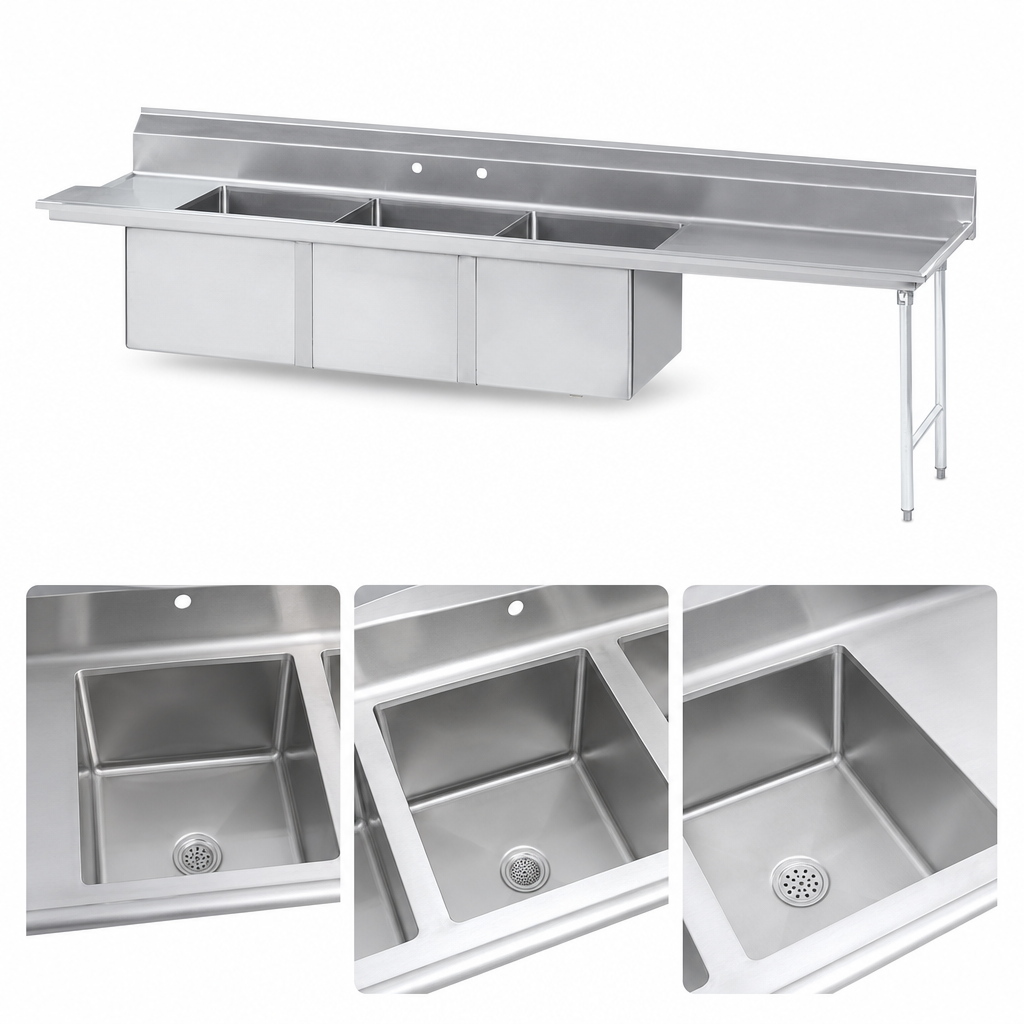

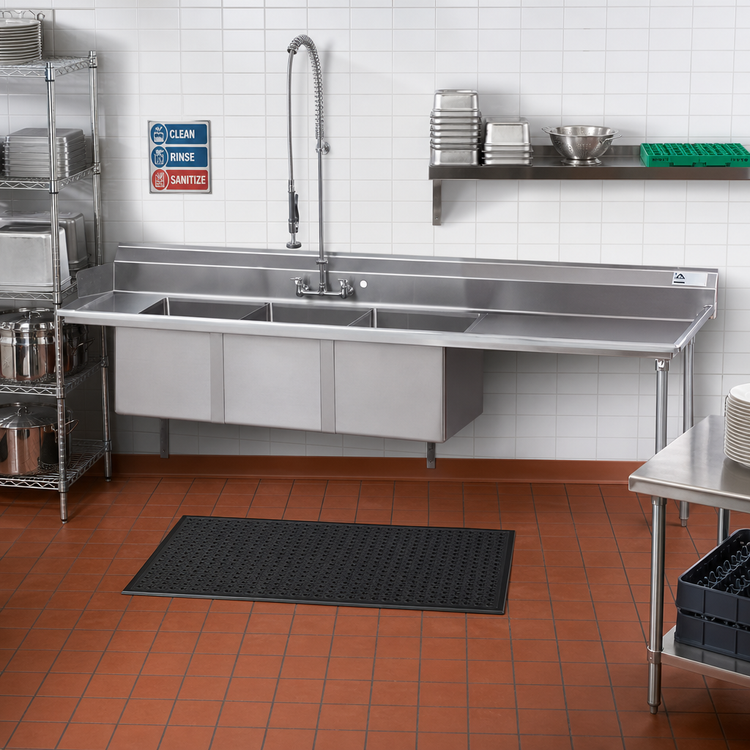

Advance Tabco DTC-3-1824-120R 119" Three-Compartment Dishtable with Sink

Right-side machine attachment • 53" left drainboard • NSF

Engineered for high-volume dishrooms, this 119 in. Advance Tabco Smart Fabrication™ dishtable combines a rugged three-compartment sink with a spacious drainboard to keep warewashing fast, organized and sanitary. Heavy-duty 16 ga. 304 stainless steel, TIG-welded construction and reinforced legs ensure the durability today’s busiest kitchens demand.

Key features

  • Three fabricated bowls – 18 in. W × 24 in. F-B × 14 in. D – located 12 in. from the dish machine for unobstructed loading/unloading.
  • 53 in. left-side drainboard offers ample space for landing dirty wares or air-drying racks.
  • 16 ga. type 304 stainless steel top with satin finish resists corrosion, chemicals and heavy impacts.
  • 10 ½ in. high backsplash with 2 in. return and tile edge contains splashes and simplifies wall installation.
  • Pre-punched 8 in. on-center faucet holes (faucet not included) and 1 ½ in. IPS waste drains supplied.
  • Stainless steel legs, full front-to-back crossrails and welded gussets maximize rigidity and load capacity.
  • Adjustable stainless steel bullet feet allow quick leveling on uneven floors.
  • NSF listed for safe use in regulated foodservice environments.

At-a-glance specifications

Model DTC-3-1824-120R
Overall length 119 in. (302 cm)
Connection Attaches to right of dish machine operator
Drainboard Left, 53 in. L
Sink bowls (3) 18 in. W × 24 in. F-B × 14 in. D
Top material 16 ga. 304 stainless steel
Legs & bracing Stainless steel legs with front-to-back crossrails
Backsplash 10 ½ in. H with tile edge
Faucet holes 8 in. centers (faucet sold separately)
Drain size 1 ½ in. IPS (drains included)
Approx. weight 260 lb
Certification NSF

Ideal for

  • Restaurants, hotels & resorts
  • Cafeterias & institutional kitchens
  • Catering & banquet facilities
  • Any high-volume warewashing operation needing a compact, all-in-one clean-up station
Important: Verify your dish machine model before ordering to ensure the control box or drive unit will not interfere with table installation. For custom bowl placement, specify kit DTA-76.

Optional accessories such as pre-rinse slide bars, twist-handle drains and rinse baskets are available—contact us for details.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Type Stainless Steel Top

300 series

Width (side - side) OA

109" - 120"

Compartment (side - side)

18"

Dish Machine Location

left side

Dishtable Legs

stainless steel

Dishtable Splash

10-1/2"

Dishtable Shape

straight

Compartment (front - back)

24"

Gauge

16 ga

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 18" x 24" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 53" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
