Description

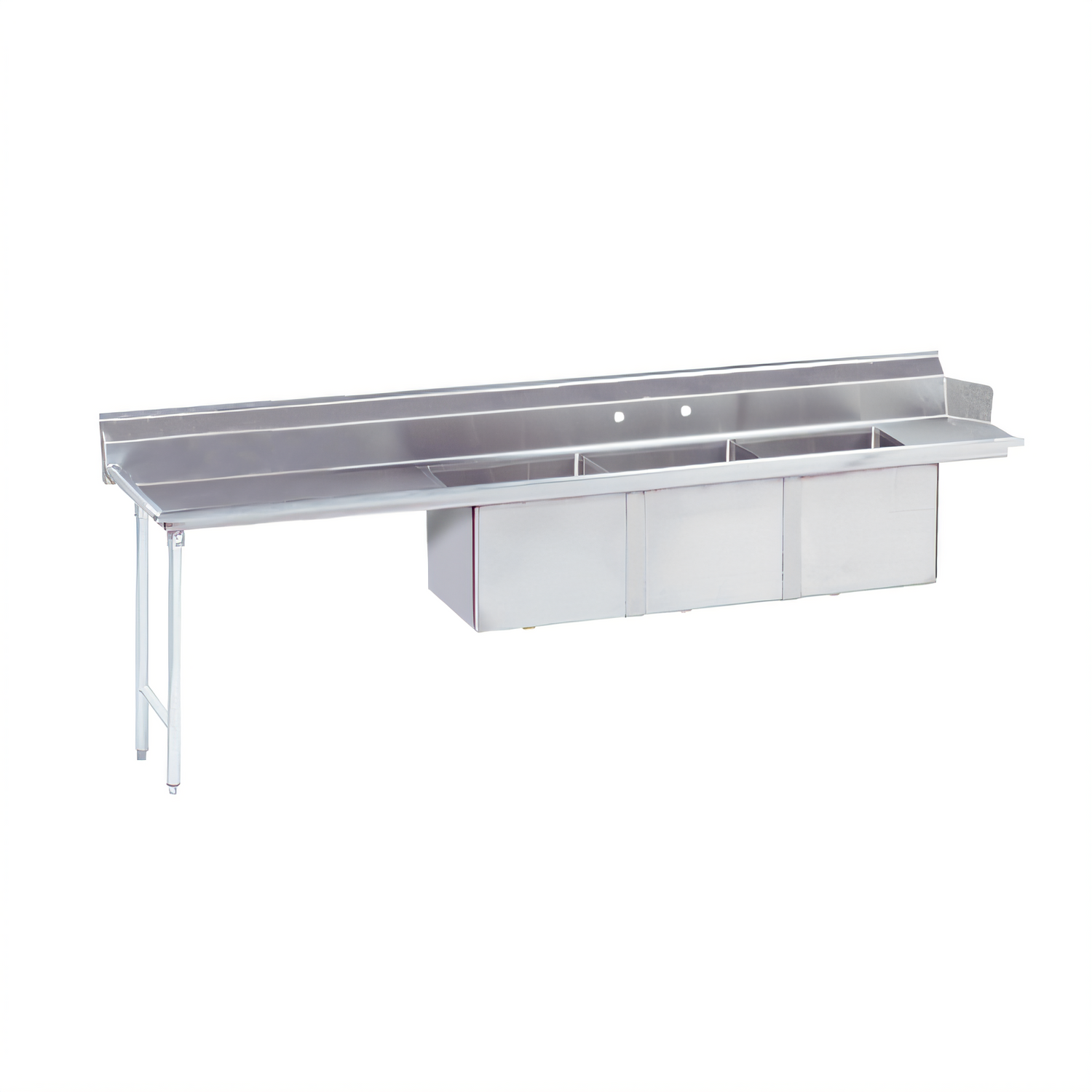

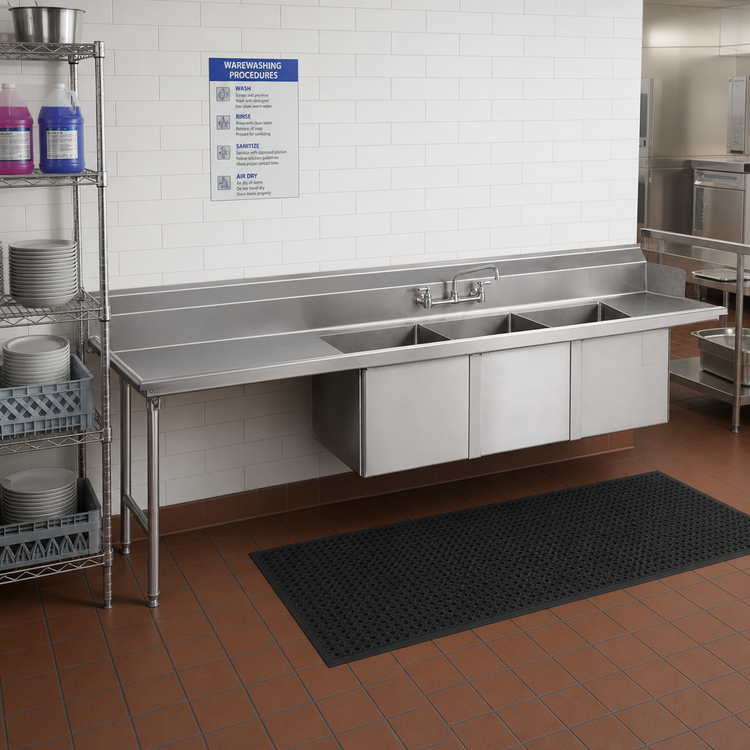

Advance Tabco DTC-3-1824-120L 3-Compartment Dishtable & Sink – 119″

Left-side clean dishtable with extra-large 53″ drainboard

Streamline your warewashing line with this NSF-listed Advance Tabco dishtable featuring three full-size fabricated sink bowls and a generous drainboard that attaches to the left of the dishmachine operator. Built from heavy-duty, 16-gauge 304 stainless steel from top to adjustable bullet feet, the DTC-3-1824-120L delivers the durability, capacity, and ergonomic workflow today’s commercial kitchens demand.

Key Features & Benefits

  • Full 119″ run length handles high-volume operations without crowding the dishroom.

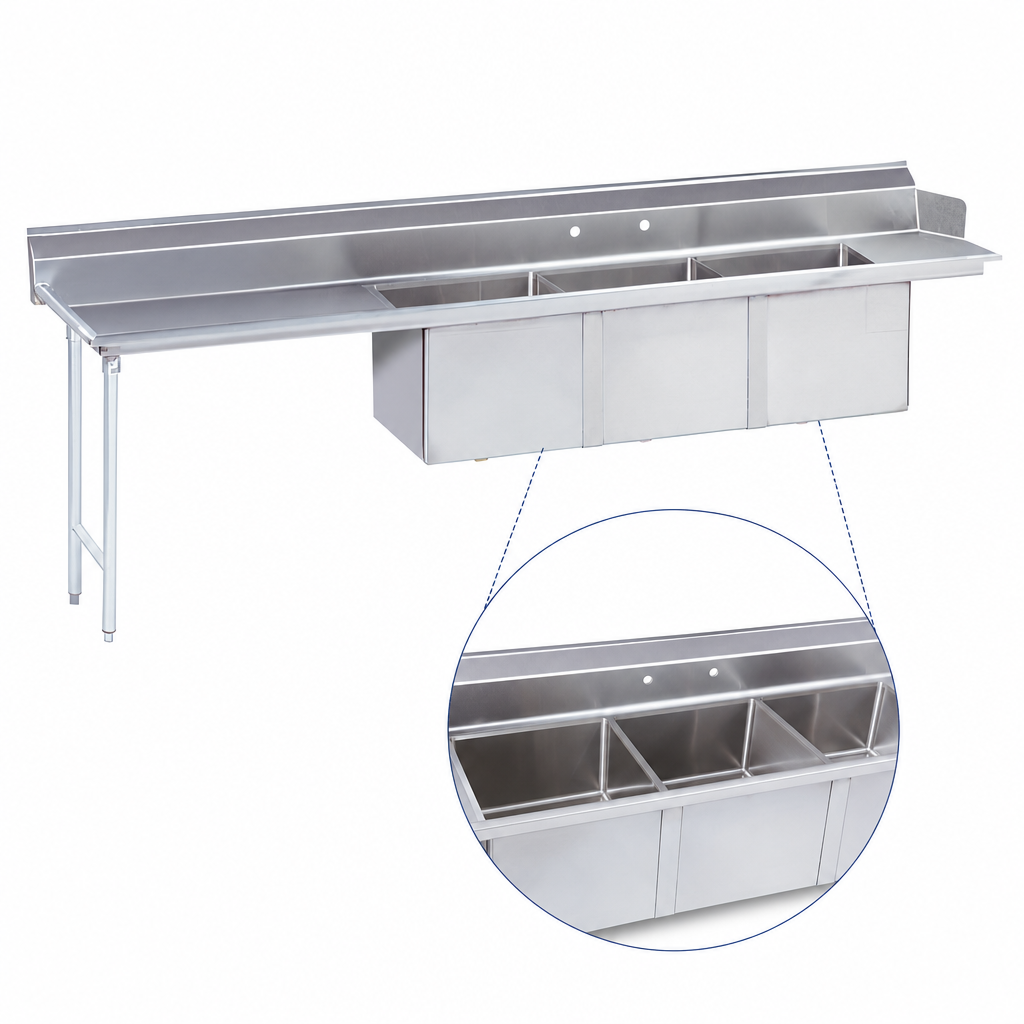

  • (3) 18″ W x 24″ D x 14″ H bowls fabricated from 304 stainless steel – ideal for wash, rinse & sanitize or multi-tasking prep duties.
  • 53″ left drainboard provides ample landing space for racks and sheet pans.
  • 16-gauge 304 stainless steel top with TIG-welded seams and satin finish for long-term corrosion resistance.
  • 1 ½″ IPS waste drains supplied – no extra kit required.
  • Tile-edge 10 ½″ backsplash with 2″ return for quick, sanitary wall installation.
  • Pre-punched 8″ on-center faucet holes (faucet sold separately).
  • Stainless steel legs, gussets & front-to-back crossrails add rock-solid stability.
  • Adjustable stainless steel bullet feet keep the table level on uneven floors.
  • Bowl set positioned 12″ from the dishmachine to optimize workflow and prevent spray-back.
  • NSF certified for food-safety compliance.

At-a-Glance Specifications

Model DTC-3-1824-120L
Overall Width 119 in. (3023 mm)
Drainboard 53 in. (left side)
Number / Size of Bowls 3 bowls – 18 in. W × 24 in. D × 14 in. H each
Gauge / Material 16-ga 304 stainless steel top & bowls
Backsplash Height 10 ½ in. with 2 in. return
Legs & Bracing 1 ⅝ in. O.D. stainless legs with stainless front-to-back crossrails
Drain Size 1 ½″ IPS (drains included)
Weight (Approx.) 260 lb.
Certifications NSF

Built by Advance Tabco

  • U.S.-based manufacturer with over 90 years of stainless fabrication expertise.
  • All TIG-welded construction with gussets welded to channel frame for unmatched strength.
  • Satin-finished welds blend seamlessly with adjacent surfaces for a professional, easy-to-clean appearance.
Important: Before ordering, verify that your dishmachine’s control box or drive unit will not interfere with the sink bowls or backsplash. Consult the Advance Tabco dishmachine compatibility chart or contact our team for assistance.

Need custom bowl placement, pre-rinse accessories, or a 14-gauge upgrade? Ask about Advance Tabco Smart Fabrication® options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

119.0in

Depth

30.0in

Dishtable Splash

10-1/2"

Width (side - side) OA

109" - 120"

Gauge

16 ga

Compartment (side - side)

18"

Dishtable Shape

straight

Compartment (front - back)

24"

Type Stainless Steel Top

300 series

Dishtable Legs

stainless steel

Dish Machine Location

right side

Specifications

Dishtable with 3-compartment Sink, 119”W, (3) 18" x 24" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 53" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
