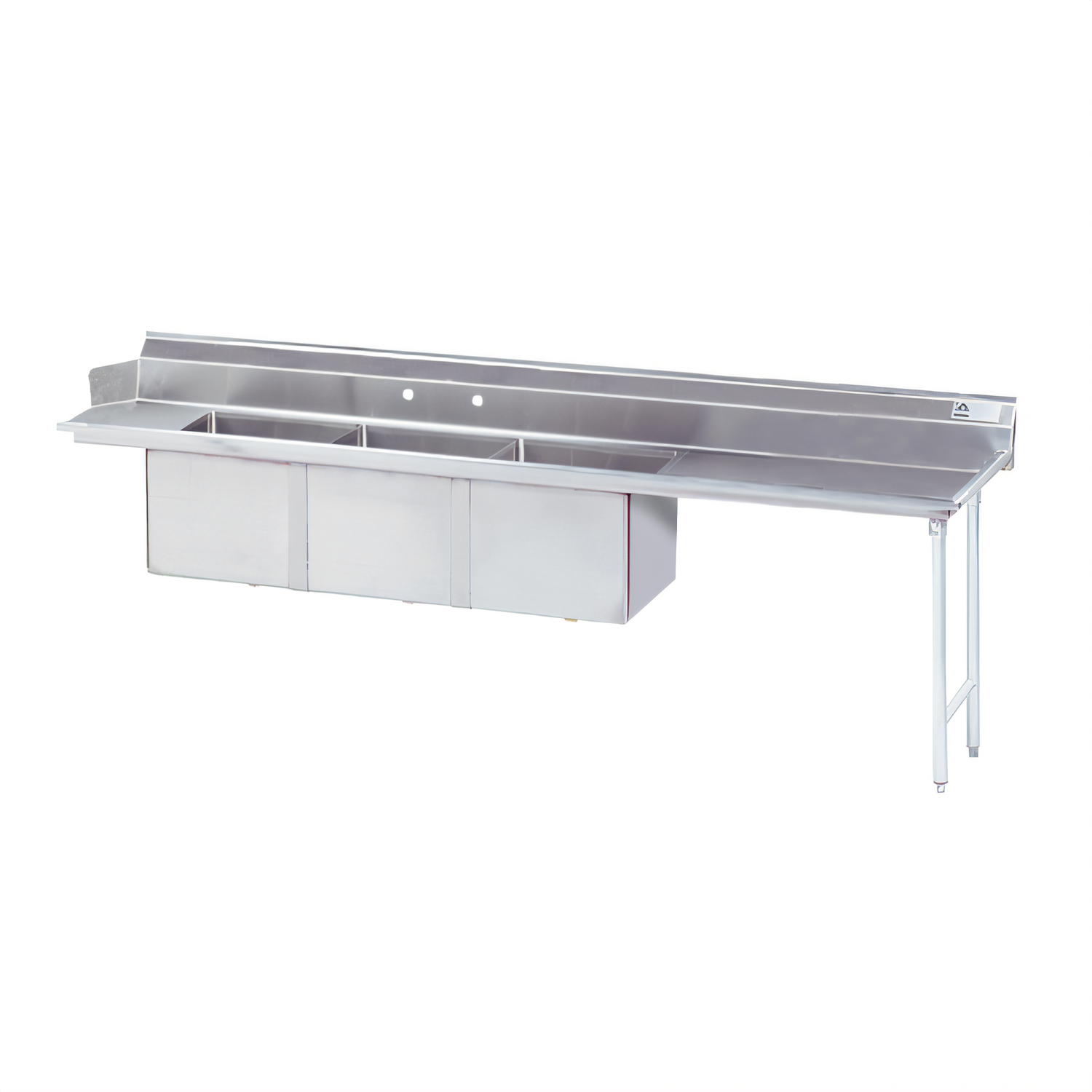

Advance Tabco DTC-3-1824-108RX Compartment Sinks
$3,906.00
Unit price
/
Unavailable
Description

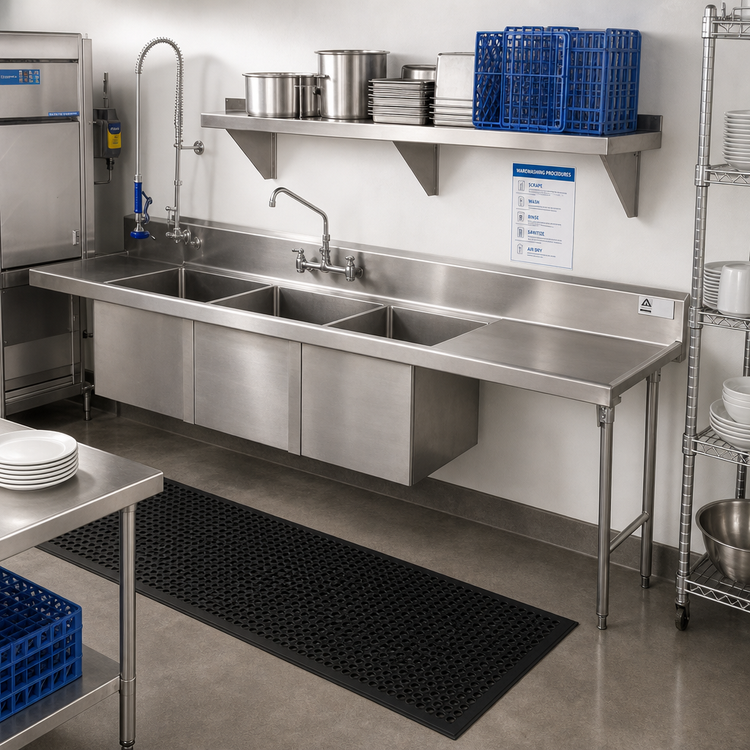

Advance Tabco DTC-3-1824-108R 3-Compartment Dishtable & Sink – 107" Right Side
18" × 24" × 14" fabricated bowls • 41" right drainboard • NSFStreamline your ware-washing line with a single, heavy-duty station. This 107-inch Advance Tabco Smart Fabrication™ dishtable installs to the right of your door-type or conveyor dishmachine, delivering a full three-compartment sink plus an extra-long drainboard for effortless rack handling.
Highlights

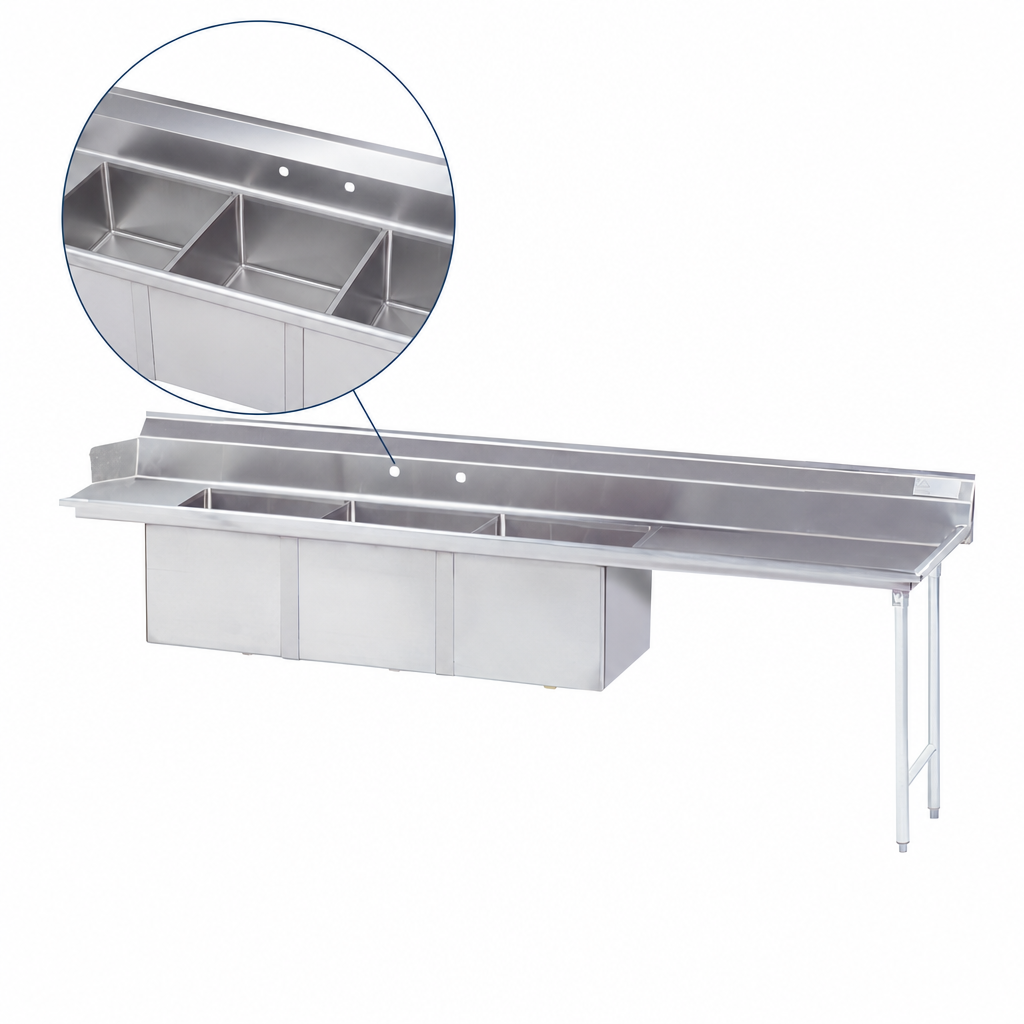

- Three 18" W × 24" L × 14" D sink bowls for wash, rinse & sanitize operations.
- 41" right-hand drainboard accommodates multiple racks for air-drying and staging.
- 16 ga. type 304 stainless steel top—TIG-welded and satin-finished for maximum strength.
- 10 ½" backsplash with 2" return & tile edge keeps walls clean and speeds installation.
- 1 ⅛" faucet holes punched on 8" centers; 1 ½" IPS waste drains included (faucets sold separately).
- 1 ⅝" Ø stainless steel legs with welded front-to-back crossrails and gussets for rock-solid support.
- Adjustable stainless steel bullet feet level the unit on uneven floors.
- Bowls are offset 12" from the dishmachine cut-out to clear most control boxes and drive units.
- NSF listed for safe, sanitary use in commercial foodservice operations.
At-a-Glance Specs
| Model | DTC-3-1824-108R |
|---|---|
| Overall length | 107" |
| Sink compartments | (3) 18" × 24" × 14" |
| Drainboard | 41" right-hand |
| Top material & gauge | 16 ga. 304 stainless steel |
| Backsplash | 10 ½" H with 2" tile-edge return |
| Faucet holes | (2) on 8" centers |
| Waste drains | 1 ½" IPS (included) |
| Legs / bracing | 1 ⅝" Ø S/S legs with S/S crossrails |
| Approx. weight | 250 lb. |
| Certifications | NSF |
Recommended Accessories
- Pre-rinse baskets (DTA-51, DTA-58) to protect your wash water.
- Slide bars for pre-rinse sprayers (DTA-64) for safer, hands-free operation.
- Twist-handle drains with overflow (K-4, K-5) for quick, sanitary emptying.
Important: Verify dishmachine compatibility. Bowls are set 12" from the machine opening—confirm your dishmachine’s control box or drive unit will not interfere with installation. Refer to Advance Tabco’s compatibility chart or contact us for assistance.
Looking for a custom length or bowl position? Ask about Smart Fabrication™ modifications.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
44.5in
Width
107.0in
Depth
30.0in
Width (side - side) OA
97" - 108"
Compartment (side - side)
18"
Dish Machine Location
left side
Dishtable Shape
straight
Dishtable Splash
10-1/2"
Gauge
16 ga
Type Stainless Steel Top
300 series
Dishtable Legs
stainless steel
Compartment (front - back)
24"
Specifications
Dishtable with 3-compartment Sink, 107”W, (3) 18" x 24" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 41" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
