Advance Tabco  |  SKU: DTC-3-1824-108LX

Advance Tabco DTC-3-1824-108LX Compartment Sinks

$3,906.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

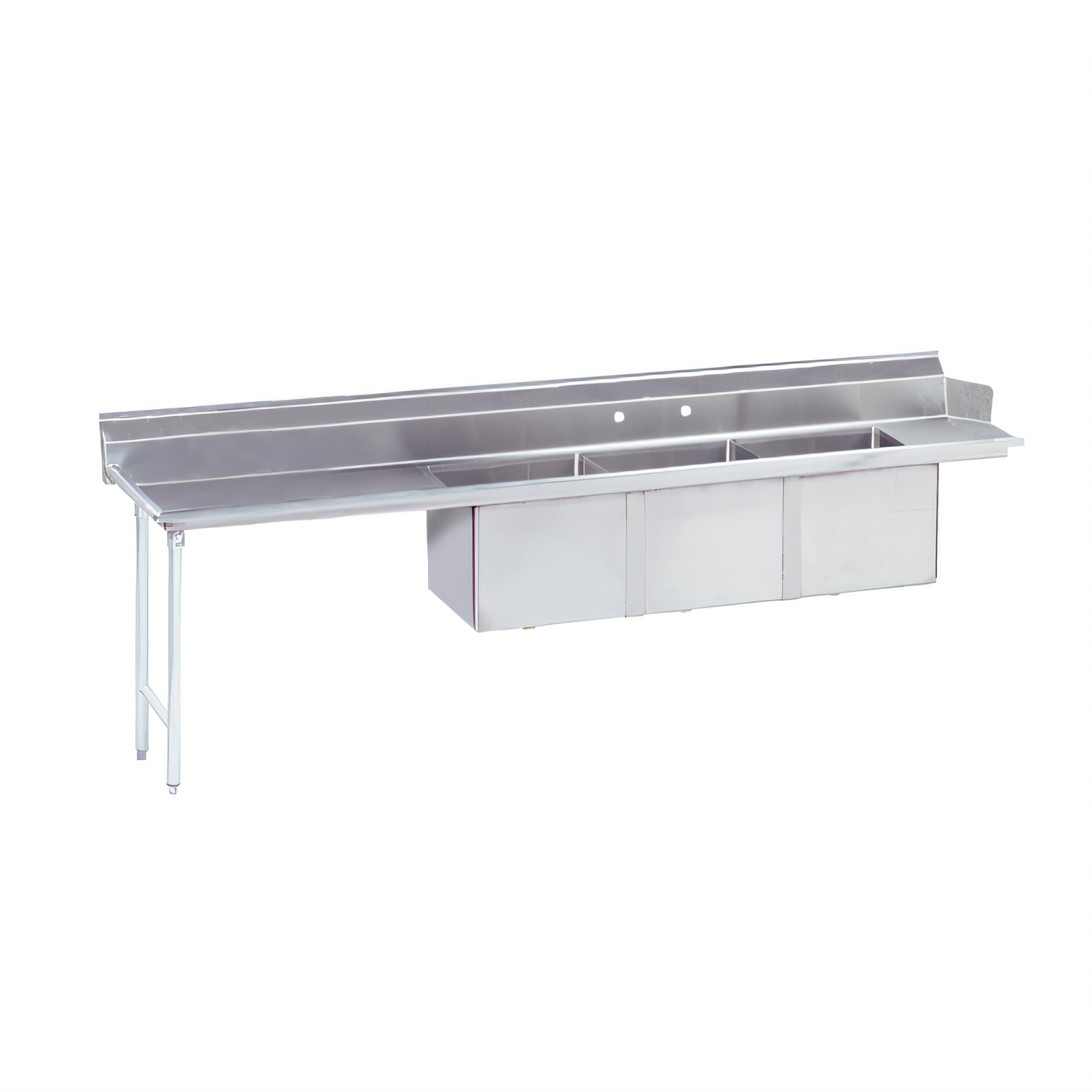

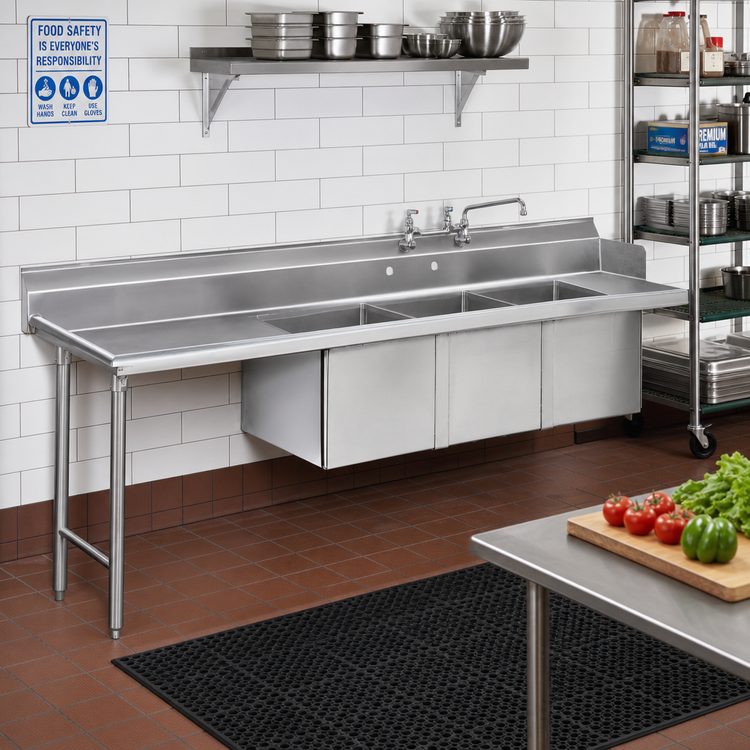

Advance Tabco DTC-3-1824-108L Dishtable w/ 3-Compartment Sink – 107"W

Left-side clean dishtable designed for 18" × 24" fabricated sink bowls

Streamline your ware-washing line with a single piece of equipment that rinses, washes and sanitizes – then sends dishes straight to your left-feed dish machine. The NSF-listed Advance Tabco DTC-3-1824-108L combines a rugged 16-gauge, 304 stainless steel work surface with three generous 18" × 24" × 14" sink bowls and a spacious 41" drainboard, all in a space-saving 107" footprint.

Key Features & Benefits

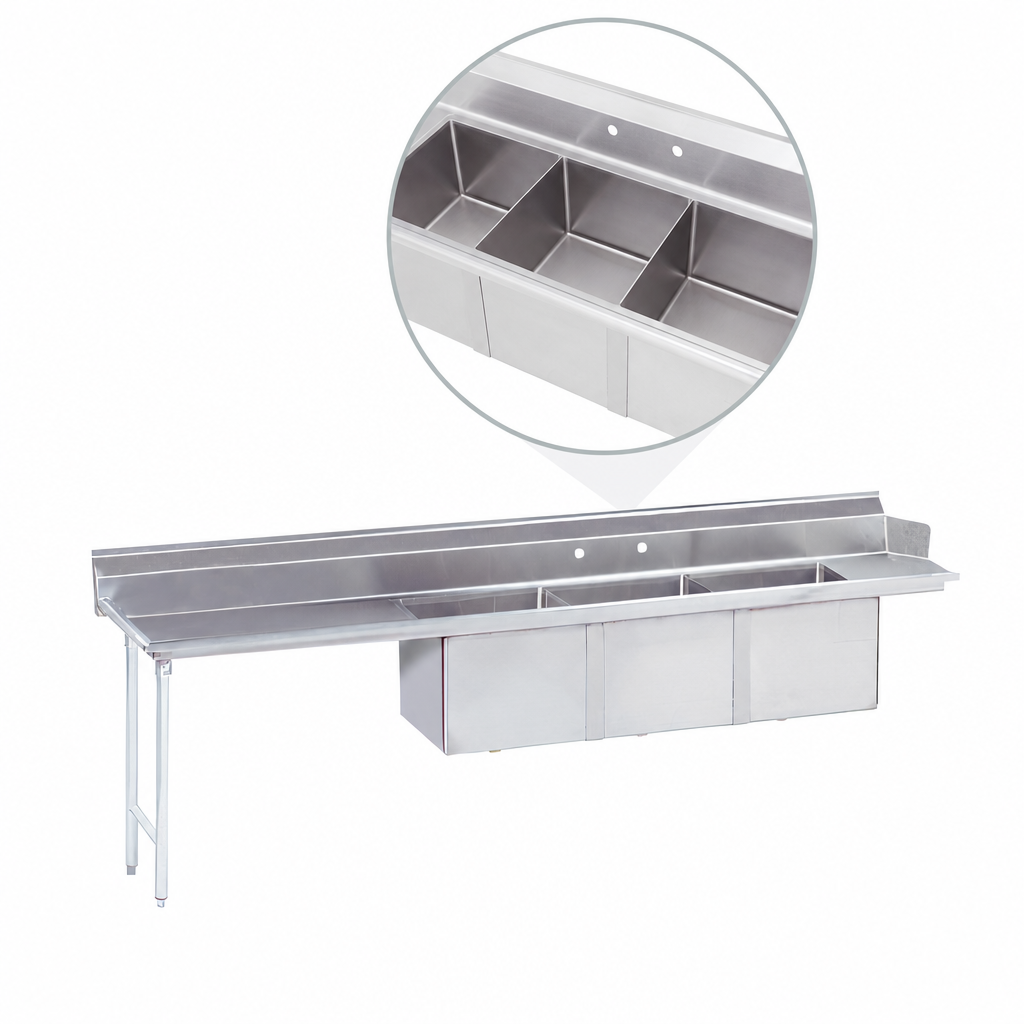

  • Integrated 3-compartment fabricated sink – wash, rinse & sanitize without separate sinks.
  • Premium 16-gauge 304 stainless steel top – corrosion-resistant, food-safe and easy to clean.
  • 41" left drainboard – ample landing area for soiled ware; 2" pitched for rapid drainage.
  • Bowls positioned 12" from machine – maximizes work surface while maintaining ergonomic access.
  • 10 ½" backsplash with 2" tile edge – protects surrounding walls and simplifies installation.
  • TIG-welded construction with blended seams for a smooth satin finish.
  • Stainless steel legs, gussets & front-to-back crossrails – rock-solid stability in high-traffic kitchens.
  • Adjustable stainless steel bullet feet – level the table on uneven floors.
  • Pre-punched 8" on-center faucet holes (faucet not included) & 1 ½" IPS drains supplied.
  • NSF certified for safe, sanitary operation.
Specifications
Model DTC-3-1824-108L
Overall width 107"
Orientation Left – table attaches to the left of dish machine operator
Sink bowls (3) 18" W × 24" L × 14" D
Drainboard length 41" (left end)
Work surface height 34" (37" to top of backsplash)
Material 16-ga 304 stainless steel top, legs & cross-bracing
Backsplash 10 ½" H with 2" tile edge
Drain size / qty (3) 1 ½" IPS waste drains (included)
Approx. shipping weight 250 lb
Certifications NSF
Important: Verify your dish machine’s control box or drive unit does not extend into the 12" clearance zone directly adjacent to the sink bowls. Consult the Advance Tabco dish machine compatibility chart or contact our team before ordering.
Ideal Applications
  • High-volume restaurants & hotels
  • Catering halls & banquet facilities
  • School, university & hospital kitchens
  • Dishrooms requiring a left-feed conveyor or door-type machine

Need custom bowl placement, additional prerinse accessories or a 14-gauge upgrade? Ask about Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

107.0in

Depth

30.0in

Compartment (side - side)

18"

Width (side - side) OA

97" - 108"

Gauge

16 ga

Dishtable Splash

10-1/2"

Type Stainless Steel Top

300 series

Dishtable Legs

stainless steel

Dishtable Shape

straight

Compartment (front - back)

24"

Dish Machine Location

right side

Specifications

Dishtable with 3-compartment Sink, 107”W, (3) 18" x 24" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 41" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
