Advance Tabco DTC-3-1824-108L Compartment Sinks
Description

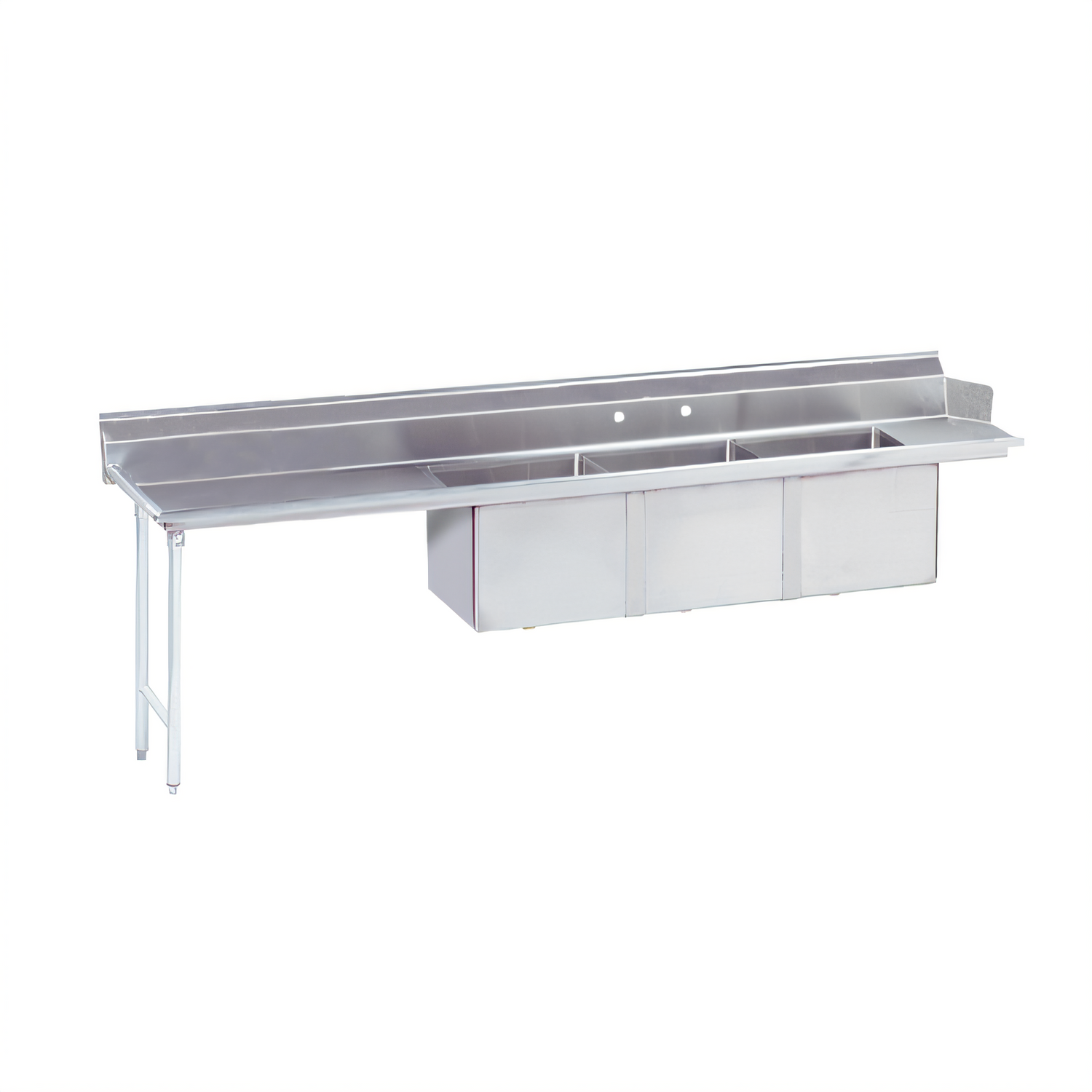

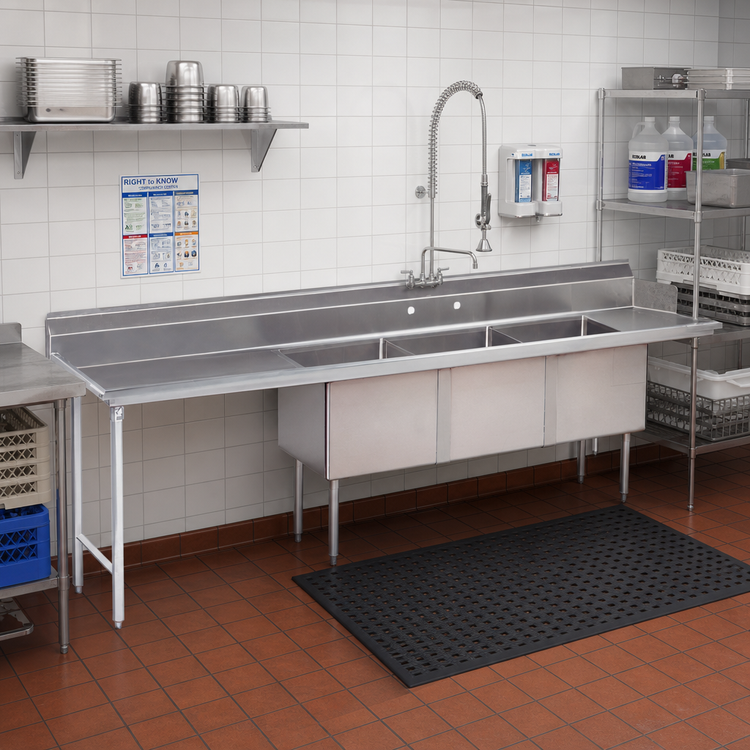

Advance Tabco DTC-3-1824-108L 3-Compartment Dishtable – Left Feed, 107"
41" left-hand drainboard • (3) 18" × 24" × 14" fabricated bowls • NSFBuilt for high-volume dishrooms, the Advance Tabco DTC-3-1824-108L combines a generous drainboard with a full 3-compartment sink—everything you need to scrap, wash, rinse and sanitize in one rugged stainless-steel workstation that bolts directly to the left side of your dish machine.
Key Features
- Overall length: 107"; designed to feed left→right into dish machine.
- 41" integrated drainboard with raised ribs for fast drying & staging.

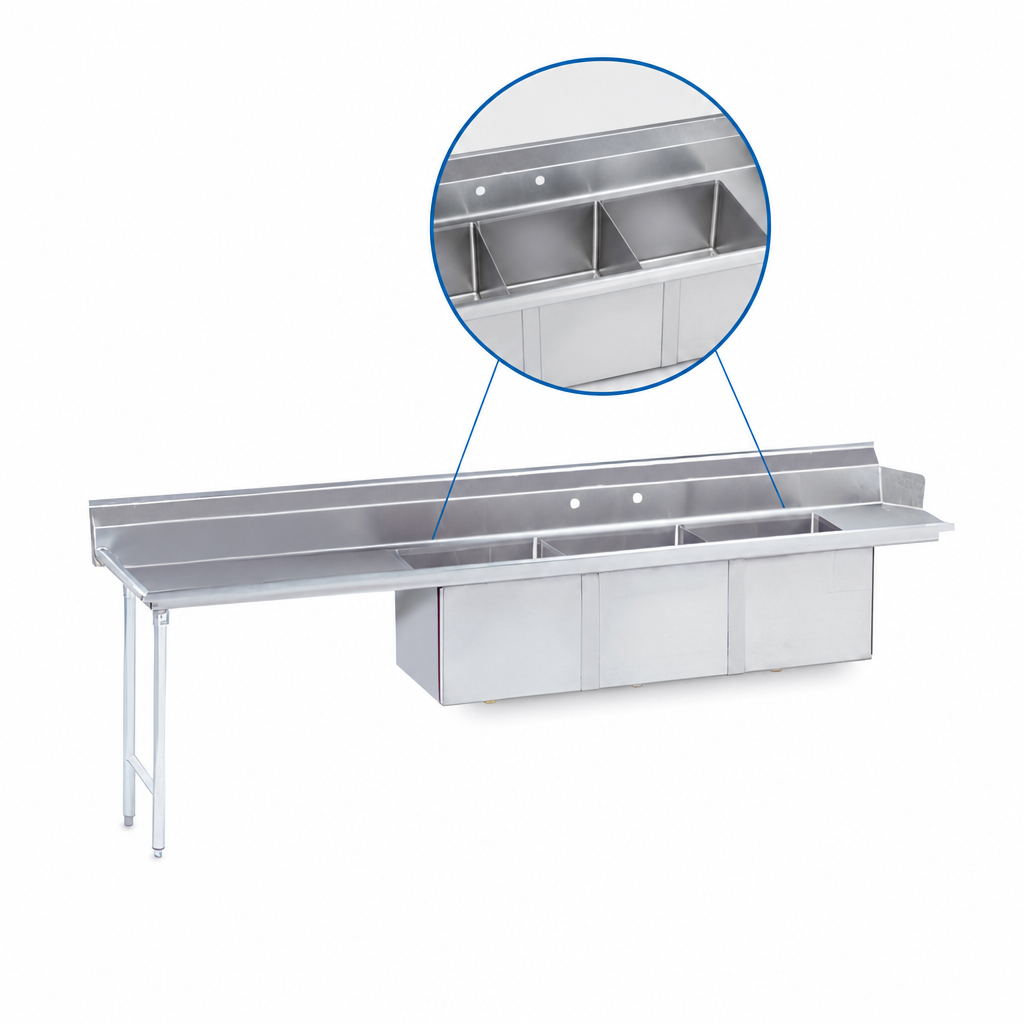

- (3) fabricated sink bowls, each 18" W × 24" L × 14" D, located 12" from machine inlet for ergonomic loading.
- One-piece, TIG-welded 16 gauge 304 stainless steel top & bowls—corrosion-resistant & easy to sanitize.
- 10 ½" backsplash with 2" return and tile edge for a watertight wall seal.
- 8" on-center faucet holes pre-punched (faucet not included).
- (3) 1 ½" IPS basket drains supplied.
- 1 5⁄8" O.D. stainless steel legs with welded gussets & full front-to-back crossrails.
- Adjustable stainless steel bullet feet for quick leveling.
- NSF listed for foodservice sanitation.
At-a-Glance Specifications
| Model | DTC-3-1824-108L |
|---|---|
| Overall Length | 107" (2718 mm) |
| Overall Depth | 30" (762 mm) |
| Drainboard | 41" left-hand |
| Number of Bowls | 3 |
| Bowl Interior (WxLxD) | 18" × 24" × 14" |
| Work Height | 34" to rim / 37" to backsplash top |
| Backsplash Height | 10 ½" |
| Material / Gauge | 304 stainless steel, 16 ga top & bowls |
| Legs & Bracing | 1 5⁄8" Ø stainless legs with crossrails |
| Drain Connections | 1 ½" IPS (included) |
| Faucet Holes | (2) 1 ⅛" dia. holes, 8" on center |
| Approx. Shipping Weight | 250 lb (113 kg) |
| Certifications | NSF |
Ideal For
- High-traffic restaurants & cafeterias
- Hotels, resorts & banquet operations
- Catering & commissary kitchens
- Any dishroom needing a left-feed three-bay sink that integrates with a conveyor or door-type machine
Optional Accessories
- Prerinse baskets & slide bars (models DTA-51, DTA-58, etc.)
- Twist-handle drains & overflow assemblies
- 14-gauge top upgrade (Advance Tabco kit DTA-49)
Faucets, scrap baskets, and prerinse units are sold separately. Advance Tabco reserves the right to modify product specifications without notice.
