Advance Tabco | SKU:
DTC-3-1620-96L
Advance Tabco DTC-3-1620-96L Compartment Sinks
$3,992.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco DTC-3-1620-96L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTC-3-1620-96L Compartment Sinks
$3,992.00
Unit price
/
Unavailable
Description

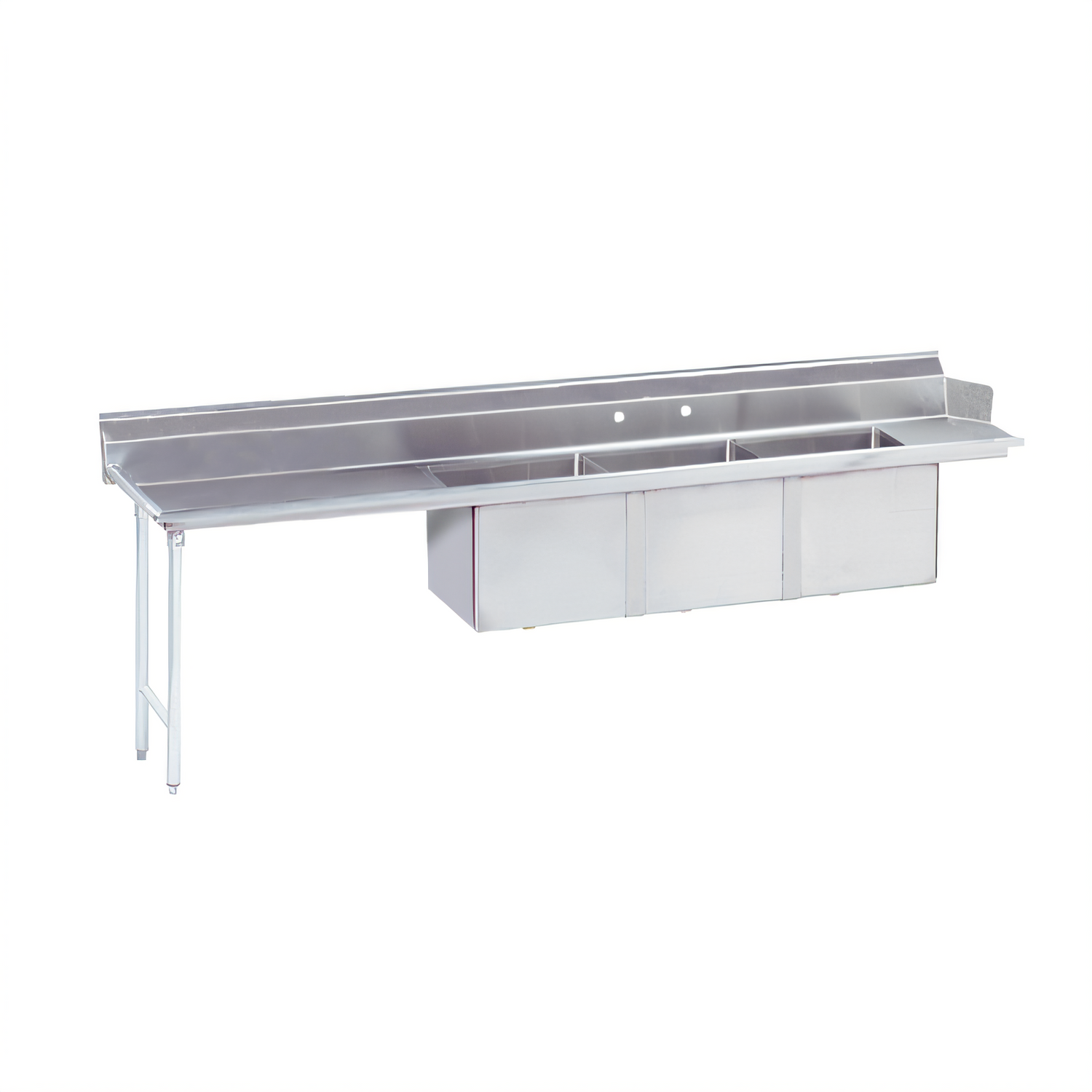

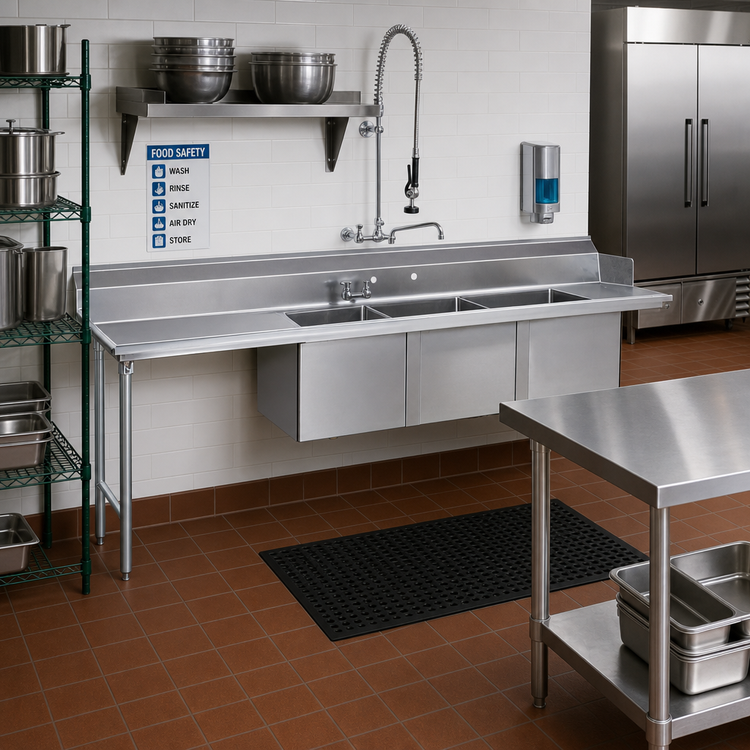

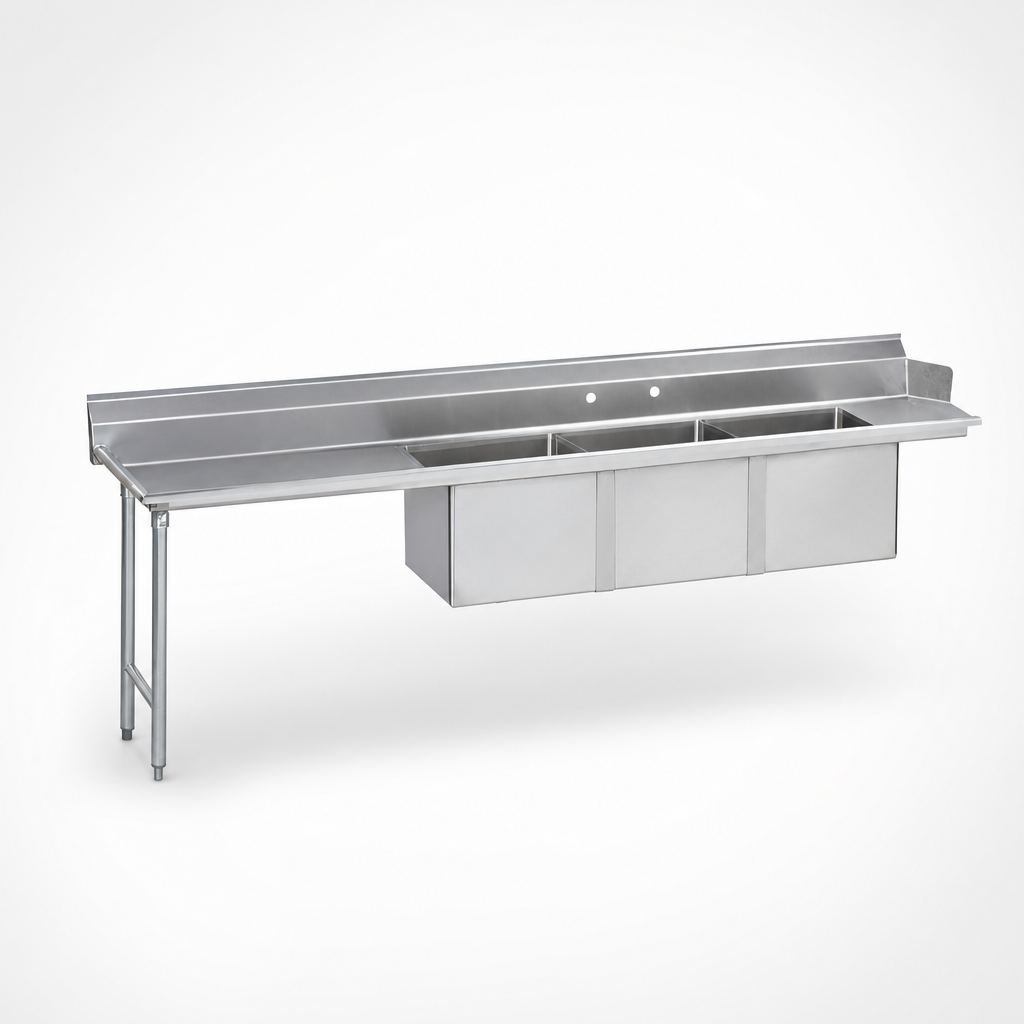

Advance Tabco DTC-3-1620-96L 95" Dishtable with 3-Compartment Sink
Left-Side Soil Table • 35" Drainboard • 16 ga 304 Stainless SteelBuilt for busy ware-washing lines, this NSF-listed Advance Tabco dishtable mounts to the left of your dish-machine operator and delivers the rugged performance you need to keep the soiled side running smoothly.
Key Features
- Overall length: 95" (model DTC-3-1620-96L)
- (3) 16" W × 20" F-B × 14" D welded sink bowls—set 12" from machine for control-box clearance
- 35" left drainboard with pitched surface for fast water run-off
- 16 ga type 304 stainless steel top, TIG-welded and satin-finished
- 10 ½" backsplash with 2" return and tile edge for a watertight wall seal
- Pre-punched 8" on-center faucet holes (faucet not included)
- 1 ½" IPS basket drains supplied for each compartment
- 1 ⅝" O.D. stainless steel legs, welded gussets & front-to-back cross rails
- Adjustable stainless steel bullet feet for quick leveling
- NSF certified for food-service sanitation
Dimensions & Specifications
| Model | DTC-3-1620-96L |
|---|---|
| Overall length | 95" |
| Overall width | 30" (typical) |
| Drainboard length | 35" (left side) |
| Sink compartments | 3 |
| Bowl size (each) | 16" W × 20" F-B × 14" D |
| Gauge / material | 16 ga type 304 stainless steel |
| Work height | 34" to tabletop / 37" to top of backsplash |
| Backsplash height | 10 ½" |
| Drain connections | 1 ½" IPS (included) |
| Approx. weight | 240 lb |
| Certifications | NSF |
Popular Accessories (sold separately)
- Prerinse baskets & slide bars (models DTA-64, DTA-60, DTA-51)
- Twist-handle operated drains with overflow (K-5, K-4, K-15)
- 14-gauge top upgrade (add-on code DTA-49)
Compatibility Notice: Bowls are factory-set 12" from the dish machine opening.
Before ordering, verify that the dish machine control box or drive unit will not interfere.
If clearance is needed, specify Advance Tabco Smart Fabrication™ option DTA-76.
Have questions? Call Advance Tabco customer service at 1-800-645-3166.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
44.5in
Width
95.0in
Depth
30.0in
Shipping Weight
240.0lbs
Width (side - side) OA
85" - 96"
Dishtable Splash
10-1/2"
Compartment (side - side)
16"
Dishtable Legs
stainless steel
Type Stainless Steel Top
300 series
Gauge
16 ga
Dish Machine Location
right side
Dishtable Shape
straight
Compartment (front - back)
20"
Specifications
Dishtable with 3-compartment Sink, 95”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 35" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
