Advance Tabco  |  SKU: DTC-3-1620-84RX

Advance Tabco DTC-3-1620-84RX Compartment Sinks

$2,772.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

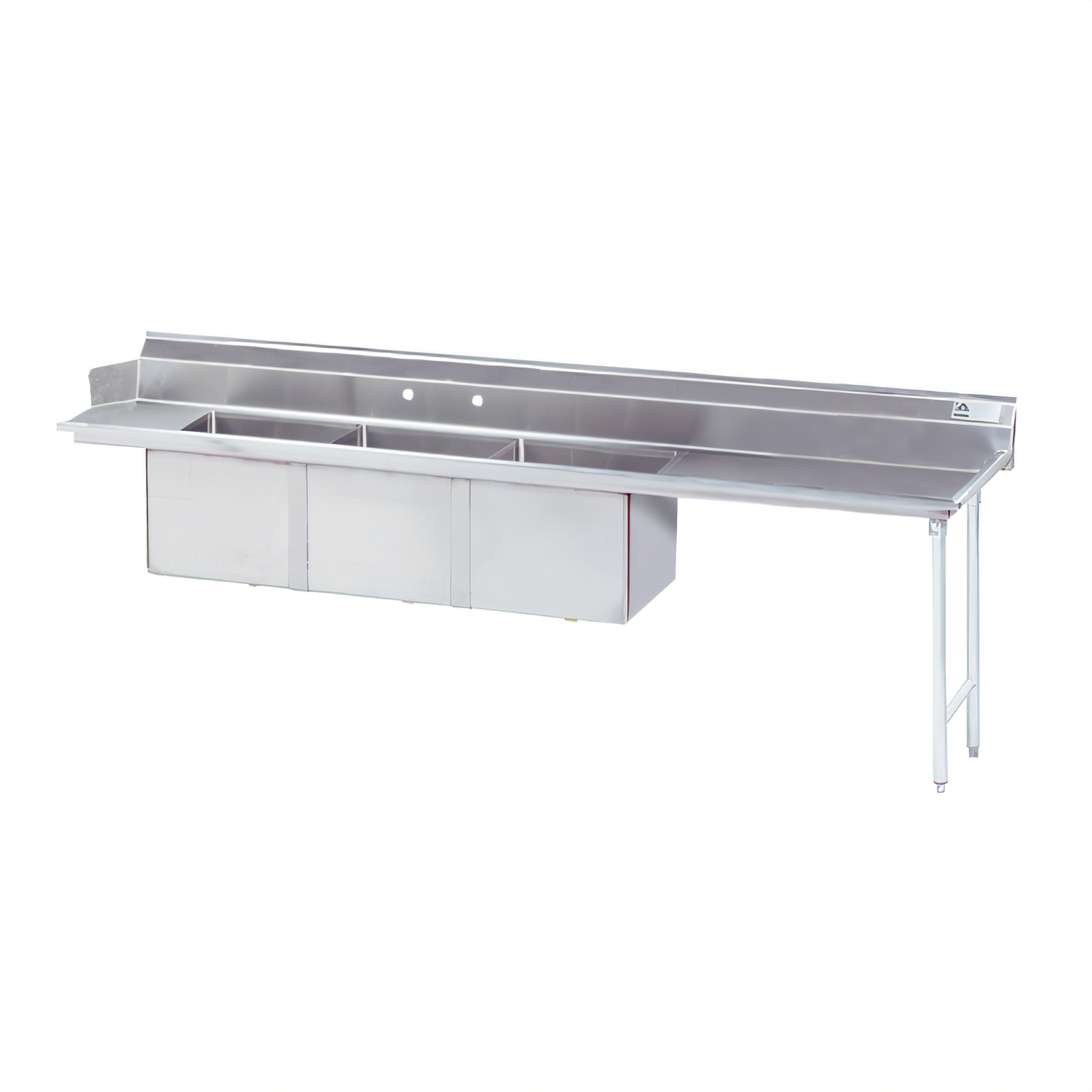

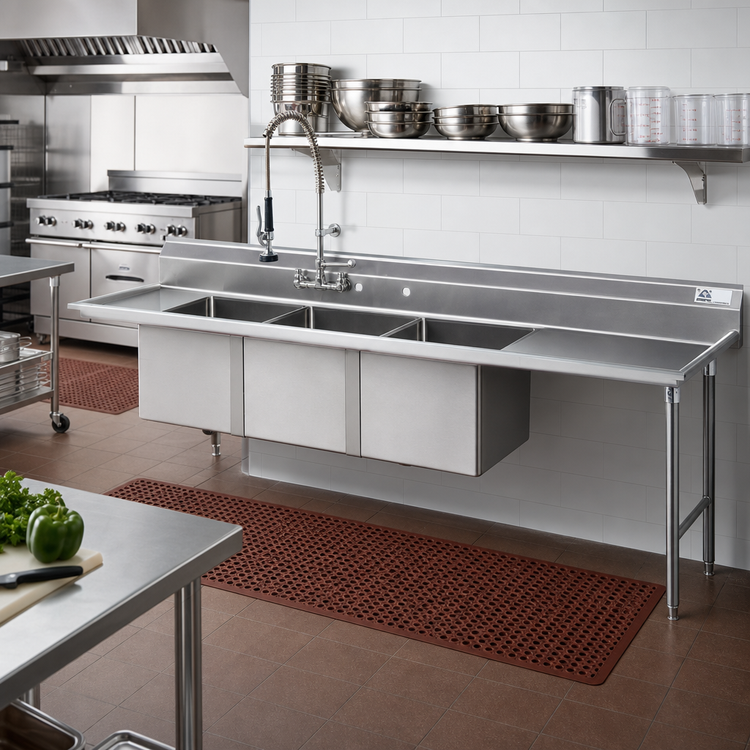

Advance Tabco DTC-3-1620-84R 83" Right-Hand Dishtable with 3-Compartment Sink

16 in × 20 in × 14 in bowls | 23 in drainboard | 16 ga 304 SS

Built for demanding ware-washing lines, this fabricated dishtable attaches directly to the right side of your dish machine, delivering a durable, NSF-listed wash-rinse-sanitize station in just 83 inches of floor space.

Key benefits

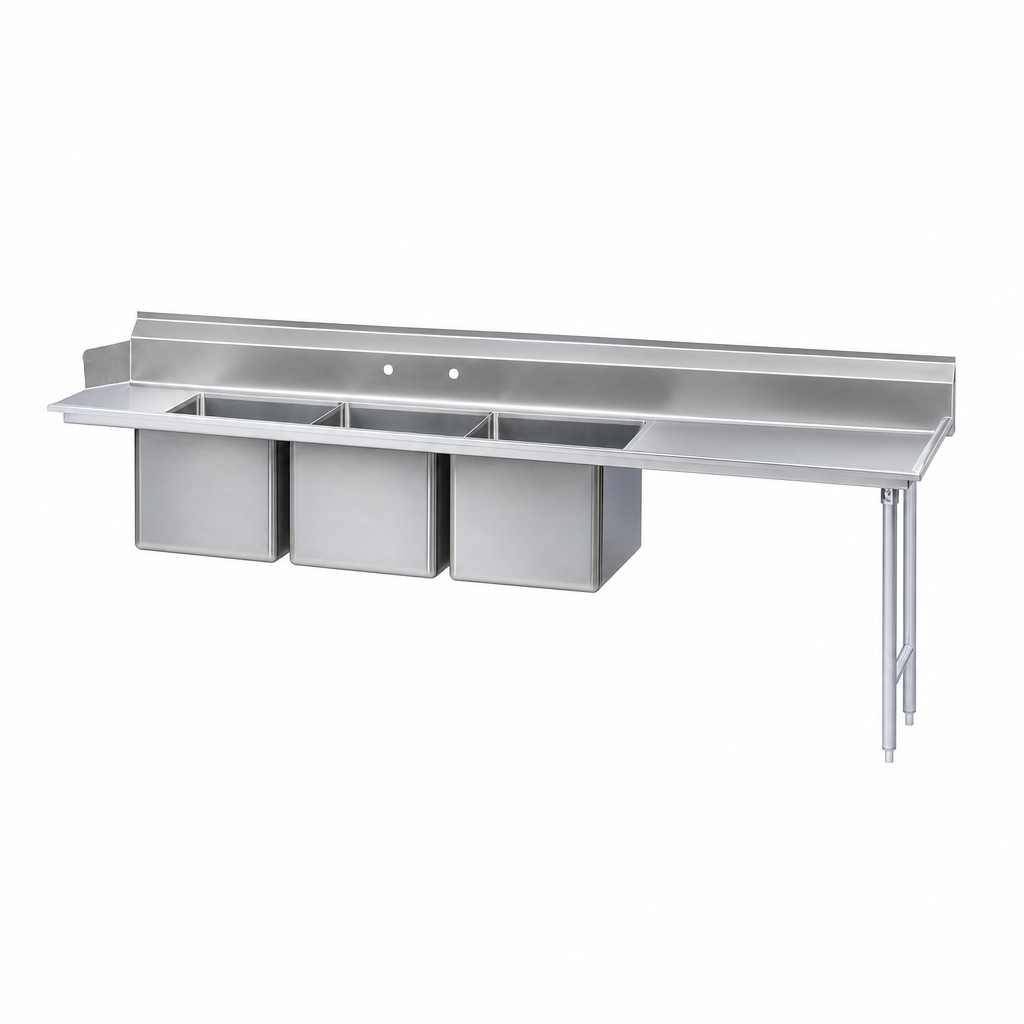

  • Three integral 16 × 20 × 14 in bowls create a complete 3-step washing system.
  • Heavy-duty 16 ga type 304 stainless steel top & bowls resist corrosion and harsh chemicals.
  • 23 in right-side drainboard offers a generous landing zone for clean wares.
  • TIG-welded seams are blended to a satin finish for a seamless, professional appearance.
  • 10 ½ in backsplash with 2 in return and tile edge protects walls and speeds installation.
  • 8 in-on-center faucet holes punched in backsplash (faucet not included).
  • (3) 1 ½ in IPS basket drains supplied—no extra plumbing kits required.
  • 1 ⅝ in stainless steel legs with front-to-back crossrails and adjustable bullet feet maximize stability.
  • Bowls are set 12 in from the dish machine opening to clear most control boxes and vents.
  • NSF listed for sanitary, code-compliant operation.

Specifications

Model DTC-3-1620-84R
Overall length 83 in (211 cm)
Orientation Right-hand (attaches to operator’s right)
Sink compartments 3
Bowl size (W × L × D) 16 × 20 × 14 in each
Drainboard length 23 in
Top & bowls 16 ga type 304 stainless steel
Legs / bracing Stainless steel legs & front-to-back crossrails
Backsplash height 10 ½ in with 2 in return
Faucet holes 8 in centers
Waste drain size 1 ½ in IPS (included)
Bowl setback from machine 12 in
Approx. shipping weight 220 lb
Certifications NSF
Compatibility reminder: Always verify your specific dish machine model—especially any control box or drive unit—before ordering to ensure unobstructed installation.

Need heavier 14 ga construction, prerinse baskets, or custom bowl placement? Ask about Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

83.0in

Depth

30.0in

Shipping Weight

220.0lbs

Gauge

16 ga

Dish Machine Location

left side

Width (side - side) OA

73" - 84"

Compartment (side - side)

16"

Type Stainless Steel Top

300 series

Dishtable Splash

10-1/2"

Dishtable Legs

stainless steel

Compartment (front - back)

20"

Dishtable Shape

straight

Specifications

Dishtable with 3-compartment Sink, 83”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 23" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
