Advance Tabco  |  SKU: DTC-3-1620-84LX

Advance Tabco DTC-3-1620-84LX Compartment Sinks

$2,772.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

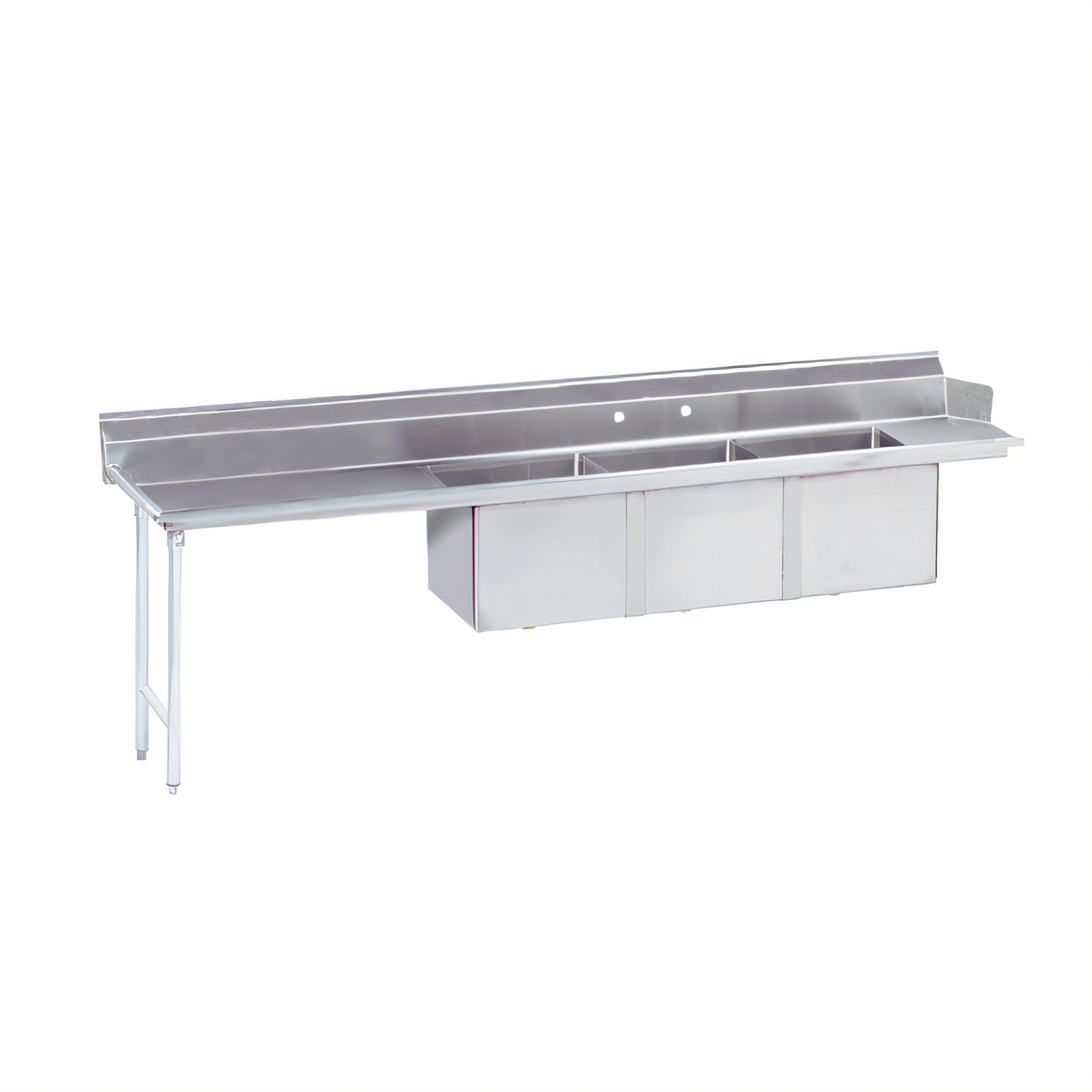

Advance Tabco DTC-3-1620-84L Stainless Steel Dishtable with 3-Compartment Sink

83" W • Left-Side Soil Table • 23" Drainboard • NSF Certified

Designed for busy commercial kitchens, this Advance Tabco dishtable combines a rugged 3-compartment sink with a generous drainboard to streamline your dish-handling workflow. Built from heavy-duty 16-gauge type 304 stainless steel and reinforced with full cross-bracing, it delivers the durability, sanitation and operator comfort demanded by warewashing stations.

Key Features
  • 83" overall length attaches to the left of the dish-machine operator

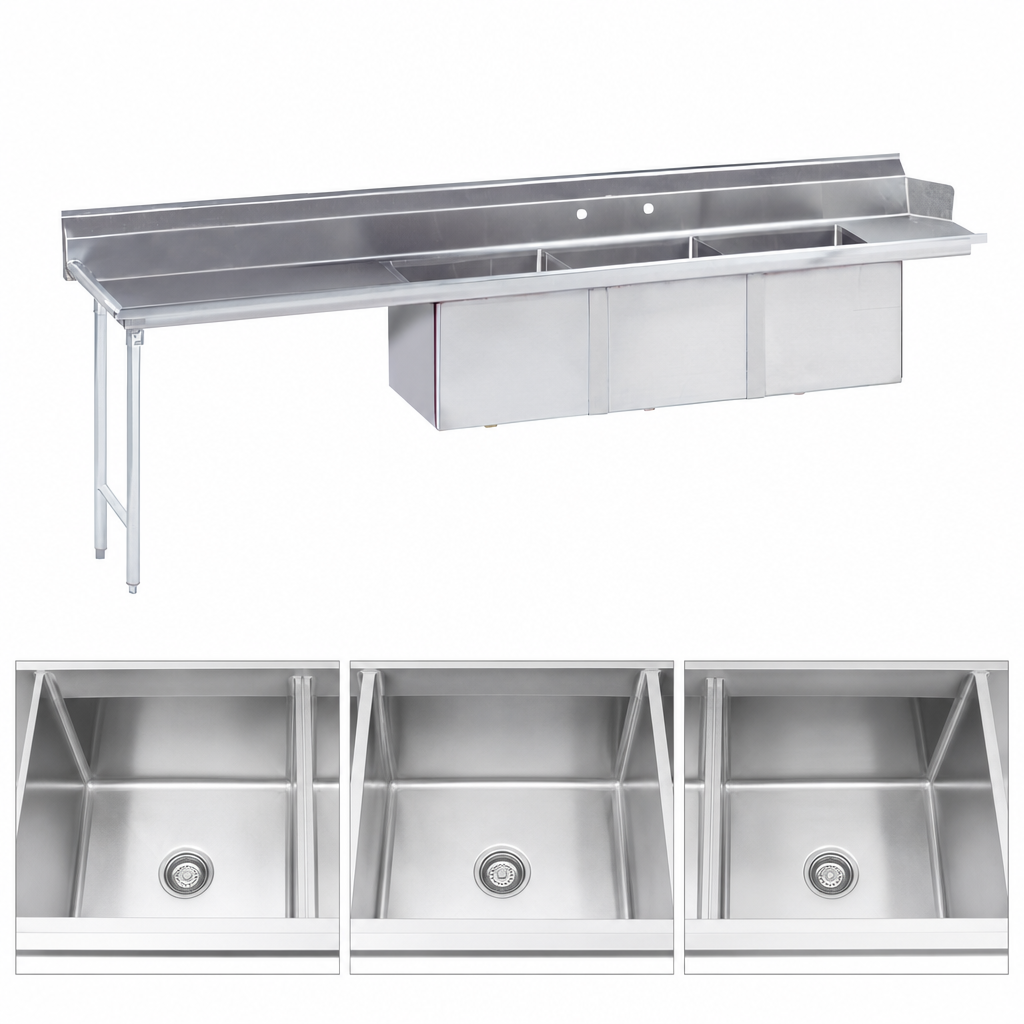

  • (3) fabricated sink bowls – 16" W × 20" L × 14" D each
  • 23" left-hand drainboard provides ample staging for soiled ware
  • Bowls are factory-set 12" from the machine opening for compatibility with most conveyor & door-type models
  • One-piece TIG-welded 16-gauge 304 SS top with satin finish
  • 10-1/2" backsplash with 2" return and tile edge for a watertight, code-compliant install
  • 1-5/8" Ø stainless steel legs, gusseted to SS channels, plus front-to-back crossrails for superior rigidity
  • Adjustable stainless steel bullet feet level the table on uneven floors
  • 8" on-center faucet holes pre-punched in splash (faucet sold separately)
  • (3) 1-1/2" IPS stainless steel waste drains included
  • NSF listed for food-service sanitation
Specifications
Model DTC-3-1620-84L
Overall Width 83 in. (210.8 cm)
Front-to-Back Depth 30 in. (76.2 cm)
Working Height 34 in. to 35 in. adjustable
Sink Compartments Three – 16" W × 20" L × 14" D
Drainboard Length 23 in.
Material / Gauge 16-ga Type 304 stainless steel top & bowls
Legs & Bracing 1-5/8" Ø stainless legs with front-to-back SS crossrails
Backsplash 10-1/2" H with 2" return & tile edge
Faucet Mounting 8" centers (holes pre-punched)
Waste Outlets 1-1/2" IPS drains (supplied)
Shipping Weight ≈ 220 lb.
Certifications NSF
Optional Accessories (sold separately)
  • Prerinse baskets & slide bars (DTA-64, DTA-60, DTA-51, etc.)
  • Twist-handle drains & overflow kits (K-4, K-5, K-15)
  • 14-gauge top upgrade (add kit DTA-49)
Important: Verify your dish machine’s control box, drive unit and vent position before ordering to ensure no interference with the 12" bowl setback. Consult the Advance Tabco Dish-Machine Compatibility Chart or call 1-800-645-3166 for assistance.

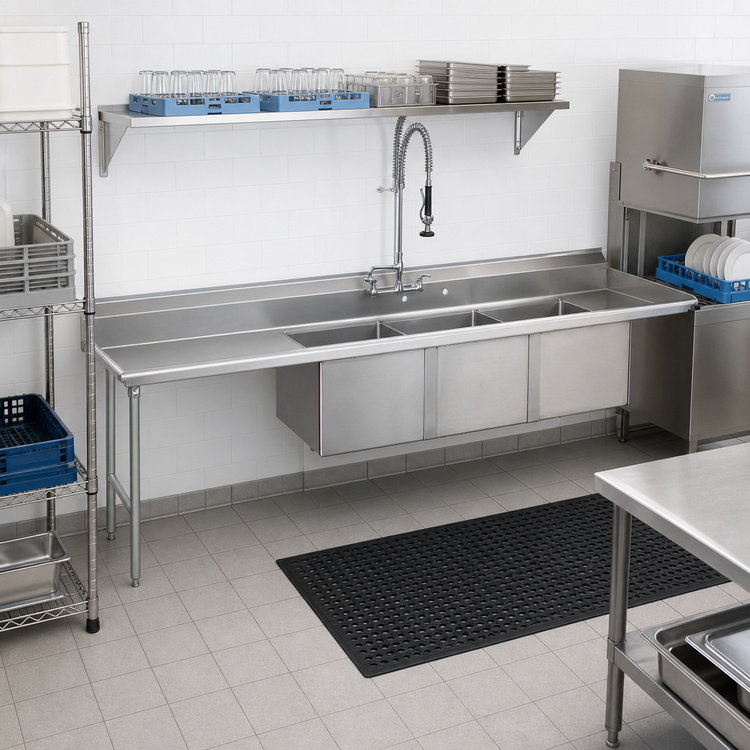

Faucets, prerinse units and dish machine shown for reference only and are not included with this dishtable.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

83.0in

Depth

30.0in

Shipping Weight

220.0lbs

Compartment (side - side)

16"

Width (side - side) OA

73" - 84"

Dish Machine Location

right side

Dishtable Splash

10-1/2"

Dishtable Legs

stainless steel

Dishtable Shape

straight

Gauge

16 ga

Compartment (front - back)

20"

Type Stainless Steel Top

300 series

Specifications

Dishtable with 3-compartment Sink, 83”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 23" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
