Advance Tabco  |  SKU: DTC-3-1620-66R  |  UPC: 747545218759

Advance Tabco DTC-3-1620-66R Compartment Sinks

$3,801.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

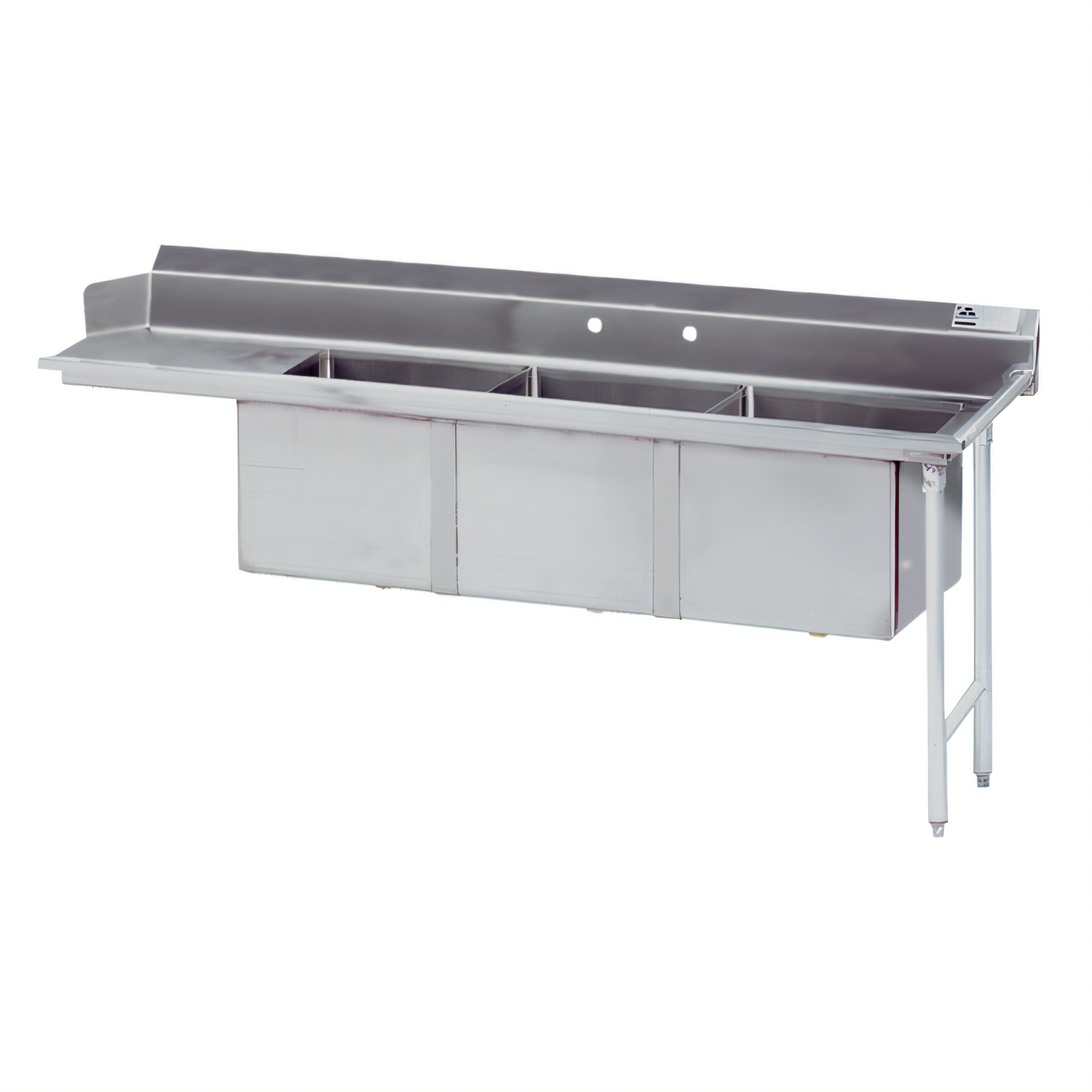

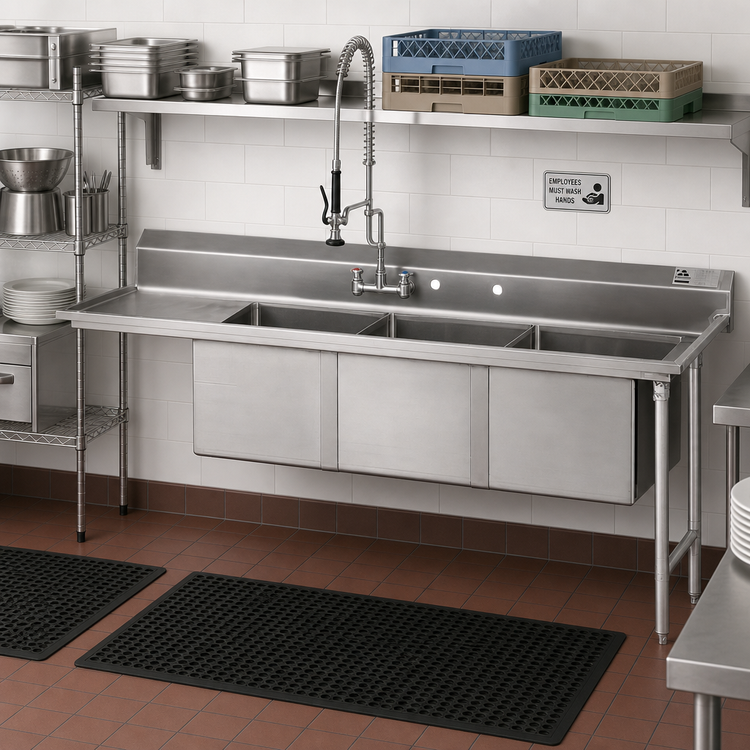

Advance Tabco DTC-3-1620-66R 66" Dishtable with 3-Compartment Sink

Right-side machine attach | (3) 16" × 20" × 14" bowls | NSF Listed

Streamline your warewashing line with the Advance Tabco DTC-3-1620-66R. This 66-inch dishtable integrates a fully fabricated 3-compartment sink and a compact right-hand drainboard, delivering rugged performance, effortless sanitation and an ergonomic workflow in one space-saving unit.

Why You’ll Love It

  • Three 16" × 20" × 14" deep bowls support a full wash-rinse-sanitize sequence.
  • Bowls are factory-positioned 12" from the dish machine opening to clear most control boxes and drive units.
  • 6" right-hand drainboard provides a convenient landing zone without increasing the footprint.
  • 16-gauge 304 stainless steel top with satin-blended TIG welds stands up to heavy commercial use.
  • 10-½" high backsplash with 2" return and tile edge creates a water-tight seal against the wall.
  • 1-⅝" O.D. stainless steel legs, welded gussets and front-to-back crossrails keep the table rock solid.
  • Adjustable stainless steel bullet feet level the unit on uneven floors.
  • Faucet holes pre-punched on 8" centers; 1-½" IPS basket drains included (plumbing trim sold separately).
  • NSF certified for superior sanitation and code compliance.

At-a-Glance Specs

Model DTC-3-1620-66R
Overall length 66" / 1676 mm
Front-to-back width 30" / 762 mm (including backsplash)
Working height 34" (adjustable via bullet feet)
Sink compartments (3) 16" W × 20" L × 14" D fabricated bowls
Drainboard 6" right-hand
Material thickness 16-ga 304 stainless steel top
Legs & bracing 1-⅝" Ø stainless legs with front-to-back crossrails
Backsplash 10-½" H with 2" return & tile edge
Faucet holes 8" centers (faucet not included)
Drain size 1-½" IPS basket drains (included)
Approx. weight 200 lb / 90.7 kg
Certification NSF
Compatibility Check: Always confirm your dish machine’s control-box or drive-unit location before installation. Refer to the latest Dish Machine Compatibility Chart or contact Advance Tabco for assistance.

Need a left-hand drainboard, heavier 14-gauge construction or custom bowl placement? Ask about Advance Tabco’s Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

41.5in

Width

66.0in

Depth

30.0in

Shipping Weight

200.0lbs

Compartment (side - side)

16"

Dishtable Legs

stainless steel

Width (side - side) OA

63" - 72"

Dishtable Splash

10-1/2"

Dish Machine Location

left side

Type Stainless Steel Top

300 series

Gauge

16 ga

Compartment (front - back)

20"

Dishtable Shape

straight

Specifications

Dishtable with 3-compartment Sink, 66”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 6" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
