Advance Tabco DTC-3-1620-66L Compartment Sinks
$3,801.00
Unit price
/
Unavailable
Description

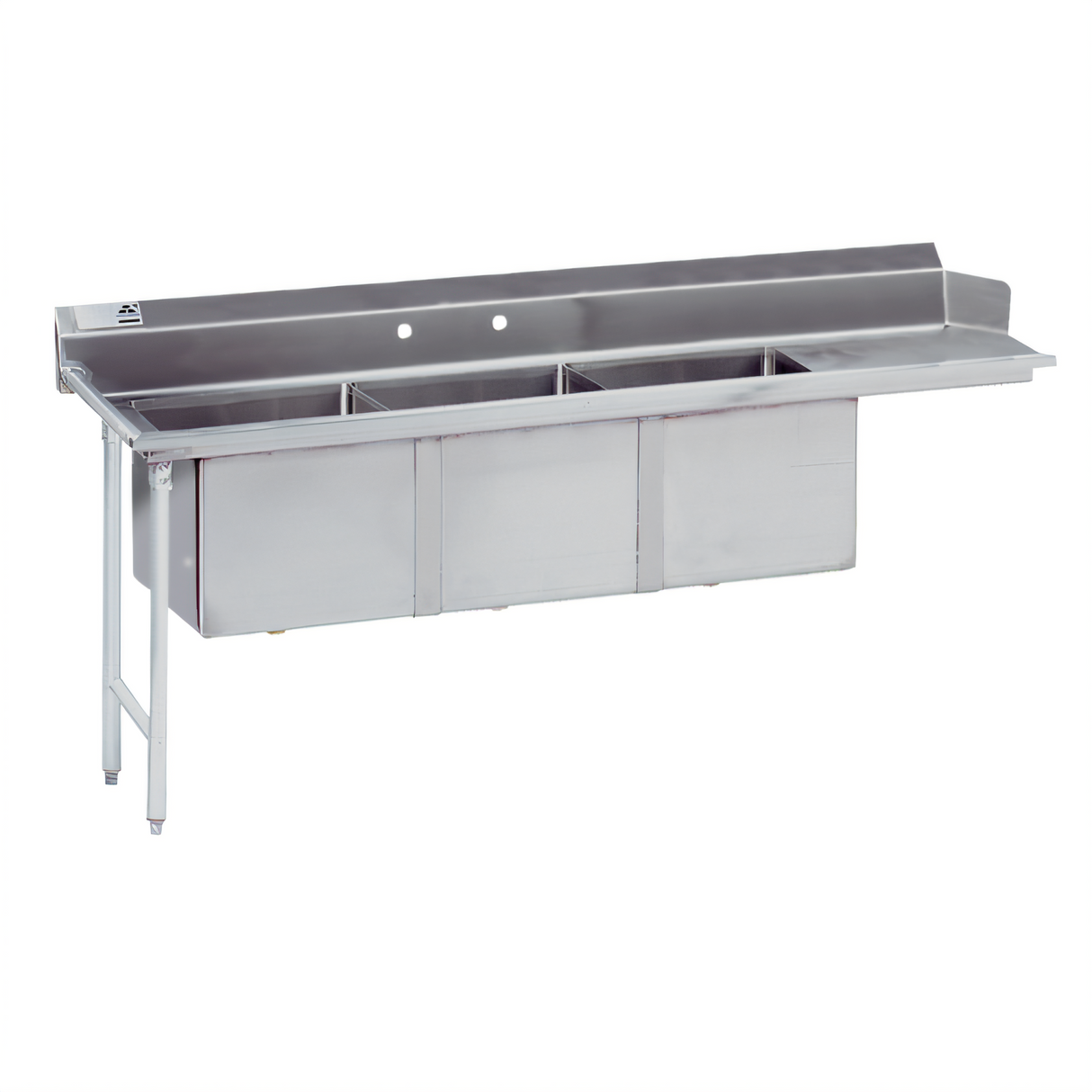

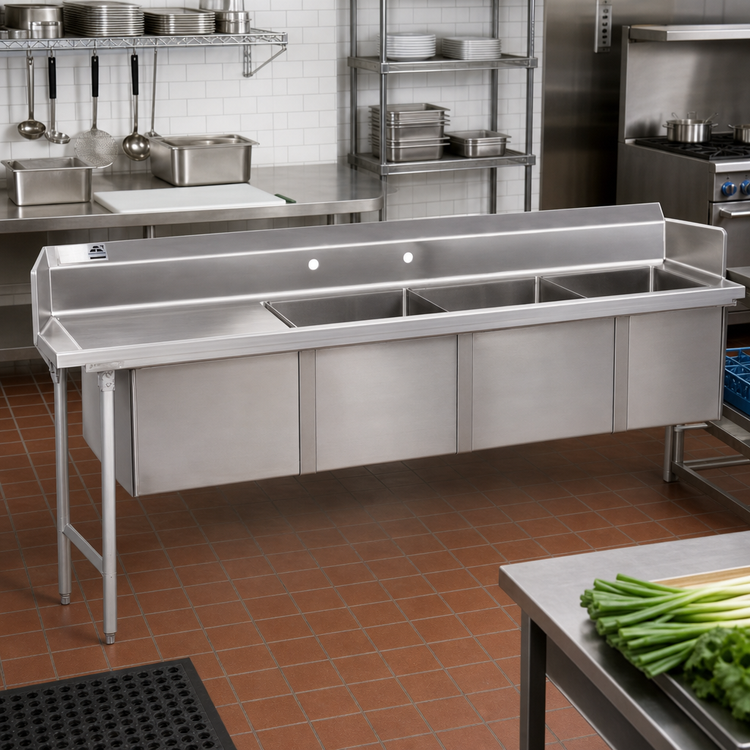

Advance Tabco DTC-3-1620-66L Dishtable with 3-Compartment Sink
66" L • 6" Left Drainboard • Fits left side of dish machineMaximize ware-washing efficiency in tight footprints with a rugged, NSF-listed dishtable that combines three fabricated sink bowls, an integrated drainboard, and rock-solid 16 ga. 304 stainless steel construction – purpose-built to mount on the left side of your dish machine.
Key Benefits

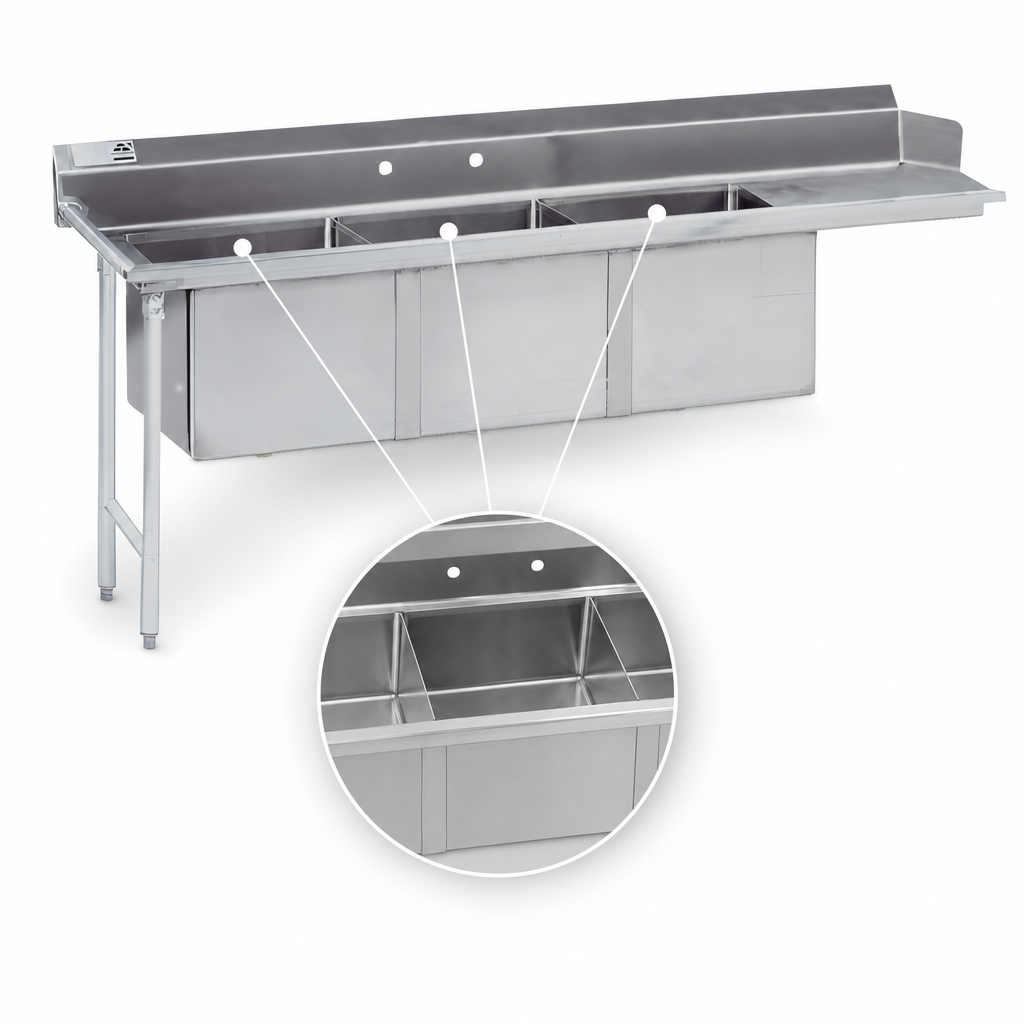

- Three 16" × 20" × 14" bowls welded 12" from the machine opening for optimum workflow.
- 6" drainboard keeps scrap and rinse items organized before loading.
- Heavy-duty 16 ga. 304 stainless steel top resists corrosion and daily abuse.
- Bold 10½" backsplash with 2" return and tile-edge simplifies wall installation & containment.
- Stainless steel legs & front-to-back crossrails with welded gussets add unmatched stability.
- Adjustable stainless steel bullet feet level the unit on uneven floors.
- Pre-punched 8" O.C. faucet holes; 1½" IPS waste drains included (faucet not supplied).
- All-TIG welded; welds blended to a satin finish for a clean, professional look.
- NSF certified for sanitation compliance.
Technical Specs
| Model | DTC-3-1620-66L |
|---|---|
| Overall Length | 66" (1676 mm) |
| Orientation | Left-hand – mounts to the left side of dish machine (operator facing) |
| Bowl Qty / Size | (3) 16" × 20" × 14" deep |
| Drainboard | 6" left drainboard |
| Work Height | 34" – 37" (adjustable bullet feet) |
| Backsplash Height | 10½" |
| Material | 16 ga. type 304 stainless steel top, stainless legs & bracing |
| Plumbing | 8" O.C. faucet holes, 1½" IPS drains (included) |
| Weight | Approx. 200 lb / 91 kg |
| Certifications | NSF |
Important: Verify your dish machine’s control box and drive unit
placement before ordering. A minimum 12" clearance from the bowls is required,
and additional SMART FABRICATION™ modifications may be necessary for some
brands/models. Consult the Advance Tabco Dish Machine Compatibility Chart or
call 1-800-645-3166 for assistance.
Popular Add-Ons (Sold Separately)
- DTA-125 pre-rinse basket for 16" × 20" bowls
- DTA-64 slide bar for streamlined pre-rinse workflow
- K-5 twist-handle drain for hands-free emptying
Add accessories during checkout or contact us for a custom SMART FABRICATION™ quote.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
41.5in
Width
66.0in
Depth
30.0in
Shipping Weight
200.0lbs
Dishtable Splash
10-1/2"
Width (side - side) OA
63" - 72"
Dishtable Shape
straight
Compartment (side - side)
16"
Gauge
16 ga
Compartment (front - back)
20"
Dishtable Legs
stainless steel
Type Stainless Steel Top
300 series
Dish Machine Location
right side
Specifications
Dishtable with 3-compartment Sink, 66”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 6" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
