Advance Tabco  |  SKU: DTC-3-1620-144R  |  UPC: 747545207333

Advance Tabco DTC-3-1620-144R Compartment Sinks

$4,610.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Commercial Work Tables Restaurant Equipment Sink Tables Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

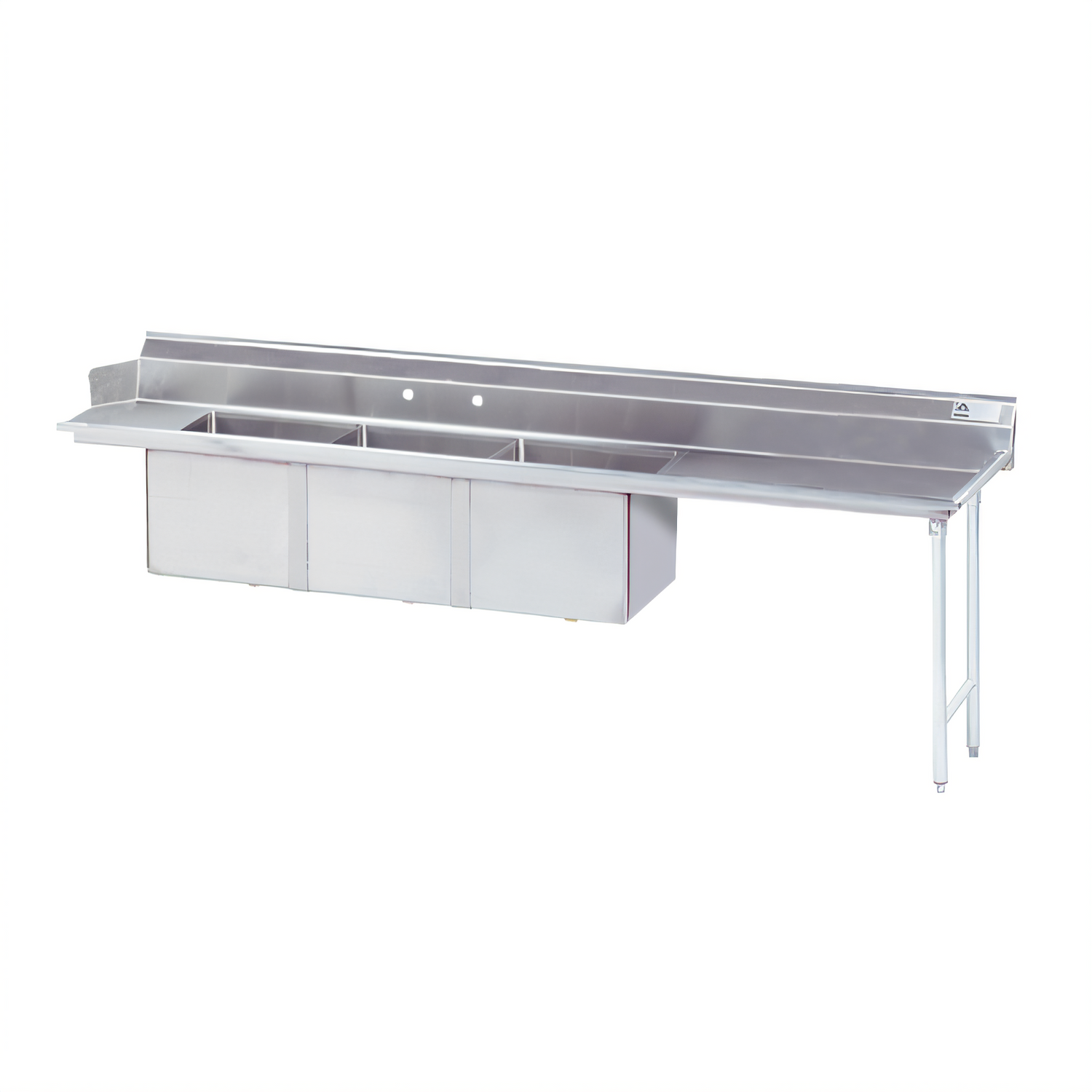

Advance Tabco DTC-3-1620-144R Three-Compartment Dishtable

143 in. overall length  |  Right-hand soil to clean flow  |  NSF Certified

Streamline warewashing with a single, extra-long station that delivers soaking, washing and landing space right where your dish-machine operator needs it. 100 % TIG-welded 16 ga 304 stainless steel and a massive 83 in. drainboard give the Advance Tabco DTC-3-1620-144R the muscle and capacity to keep up with high-volume kitchens shift after shift.

Key advantages

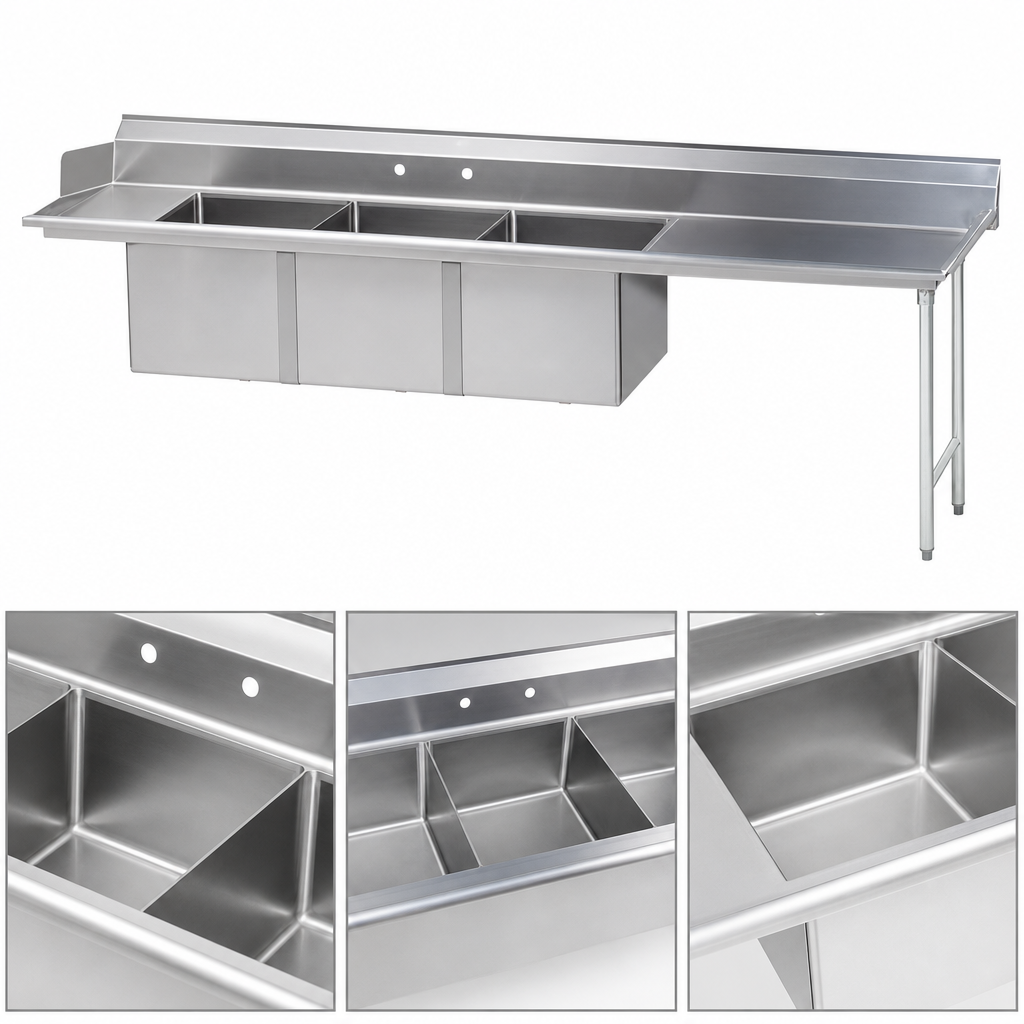

  • Integrated 3-compartment sink with (3) 16 in. × 20 in. × 14 in. fabricated bowls for wash, rinse & sanitize.
  • Bowls are set 12 in. from the dish-machine opening to clear most control boxes and vent stacks.
  • 83 in. right-side drainboard provides generous staging for dirty wares and racks.
  • Heavy-duty 16 ga 304 stainless steel top, backsplash and bowls resist corrosion and heavy impact.
  • TIG-welded stainless legs with front-to-back cross-rails and adjustable bullet feet for rock-solid support.
  • 10-1/2 in. backsplash with 2 in. tile edge speeds installation and contains splashes.
  • Pre-punched 8 in. O.C. faucet holes—just add your preferred pre-rinse or deck faucet (sold separately).
  • 1-1/2 in. IPS waste drains furnished and ready to plumb.
  • NSF listed for easy code approval.

At-a-glance specifications

Model DTC-3-1620-144R
Overall length 143 in. (363 cm)
Direction of operation Right → left (table attaches to right side of dish machine)
Sink bowls (3) 16 in. × 20 in. × 14 in. deep
Drainboard 83 in. soil drainboard (right)
Top material 16 ga type 304 stainless steel, satin finish
Legs / bracing 1-5/8 in. O.D. stainless legs with stainless front-to-back cross-rails
Feet Adjustable stainless bullet feet
Backsplash 10-1/2 in. H with 2 in. tile edge
Faucet holes (2) holes on 8 in. centers (faucet not included)
Waste connection 1-1/2 in. IPS drains (included)
Approx. weight 290 lb (132 kg)
Listings NSF

Popular accessories (sold separately)

  • Prerinse baskets & slide bars for 16 in. × 20 in. bowls (models DTA-125, DTA-64).
  • Twist-handle drains with overflow (model K-15).
  • Custom bowl relocation or oversized bowls—specify Smart Fabrication™ add-ons.
Machine clearance check: Before ordering, verify that your dish machine’s control box or drive unit will not interfere with the sink bowls. Add-on kit DTA-76 is available if additional setback is required.

Need help with compatibility or customization? Call Advance Tabco Smart Fabrication™ at 1-800-645-3166.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

143.0in

Depth

30.0in

Shipping Weight

290.0lbs

Dishtable Splash

10-1/2"

Width (side - side) OA

133" - 144"

Type Stainless Steel Top

300 series

Compartment (side - side)

16"

Gauge

16 ga

Dish Machine Location

left side

Compartment (front - back)

20"

Dishtable Legs

stainless steel

Dishtable Shape

straight

Specifications

Dishtable with 3-compartment Sink, 143”W, (3) 16" x 20" x 14" bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 83" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
